GE
Electric Cooktop

Model # JP661B*C1 Official GE cooktop

Here are the diagrams and repair parts for Official GE JP661BC1 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Range Coil Element, 8-in WB30X219
#156

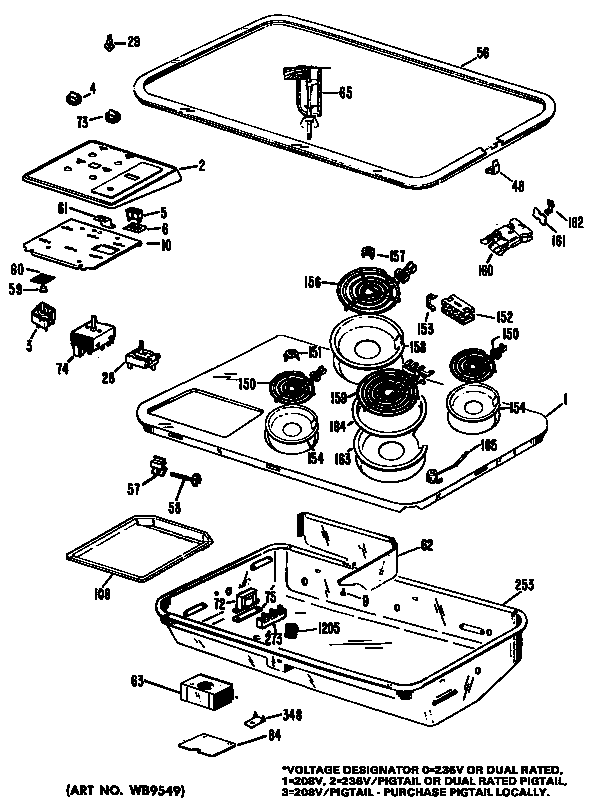

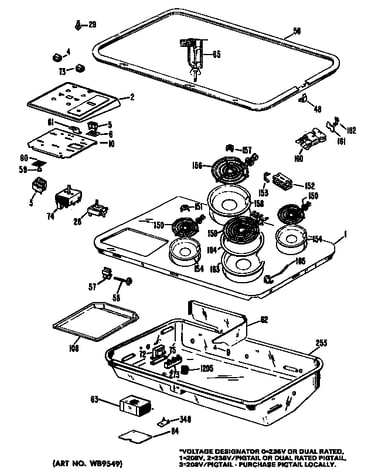

Cooktop diagram

Range coil element, 8-in

Part #WB30X219

$42.06 |
12% OFF Phone Price : $48.06
In Stock
Eskimo Range Drip Pan WB31X5011
#158

Cooktop diagram

Eskimo range drip pan

Part #WB31X5011

This item is not returnable
$20.77 |
22% OFF Phone Price : $26.77
In Stock
Range Coil Element, 6-in WB30X218
#150

Cooktop diagram

Range coil element, 6-in

Part #WB30X218

$33.92 |
15% OFF Phone Price : $39.92
In Stock
Inf Ht Swi WB21X5217
#3B

Cooktop diagram

Inf ht swi

Part #WB21X5217

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB21X5217. Substitute parts can look different from the original.
$42.68 |
12% OFF Phone Price : $48.68
In Stock
Use And Care Guide 49-4529

#NI

All parts diagram

Use and care guide

Part #49-4529

Replaced by #49-4529-1

?
Manufacturer substitution
This part replaces 49-4529. Substitute parts can look different from the original.
$8.49
In Stock
Indicator Light WB2X3278
#5

Cooktop diagram

Indicator light

Part #WB2X3278

The manufacturer no longer makes this part, and there's no substitute part

Range Drip Pan WB32X5036
#163

Cooktop diagram

Range drip pan

Part #WB32X5036

The manufacturer no longer makes this part, and there's no substitute part

Sw Rotary WB23X72
#28

Cooktop diagram

Sw rotary

Part #WB23X72

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Box WB62X1423
#253

Cooktop diagram

Cooktop box

Part #WB62X1423

The manufacturer no longer makes this part, and there's no substitute part

Seal Switch WB2X5548
#60B

Cooktop diagram

Seal switch

Part #WB2X5548

The manufacturer no longer makes this part, and there's no substitute part
