Model # 921152150 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 921152150 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 17 parts |

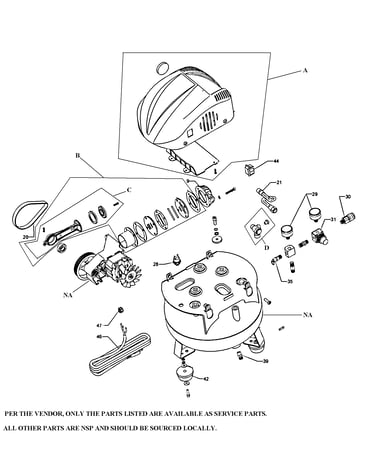

Compressor diagram

Craftsman air compressor shroud kit

Part #E103178

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Air Compressor Drive Belt E102486

#20

Compressor diagram

Craftsman air compressor drive belt

Part #E102486

The manufacturer no longer makes this part, and there's no substitute part

#46

Compressor diagram

Air compressor power cord

Part #E100101

The manufacturer no longer makes this part, and there's no substitute part

#29

Compressor diagram

Air compressor pressure gauge

Part #E103339

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Craftsman air compressor check valve

Part #E104734

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Air Compressor Rocker Switch E103001

#44

Compressor diagram

Craftsman air compressor rocker switch

Part #E103001

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Vibration Isolator Pad E100240

#42

Compressor diagram

Air compressor vibration isolator pad

Part #E100240

The manufacturer no longer makes this part, and there's no substitute part

#47

Compressor diagram

Craftsman strn relf

Part #E103340

The manufacturer no longer makes this part, and there's no substitute part

Companion Air Compressor Regulator E100308

#31

Compressor diagram

Companion air compressor regulator

Part #E100308

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Air Compressor Pressure Switch E103000

#28

Compressor diagram

Craftsman air compressor pressure switch

Part #E103000

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your air compressors

Choose a symptom to see related air compressor repairs.

View all

Why won't my air compressor start with a full air tank?

Main cause: bad check valve…

Why is my air compressor not turning on?

Main causes: lack of electrical power, check valve failure, bad pressure switch…

Why won't my air compressor build tank pressure?

Main causes: tank drain valve open or leaking air, leaky air tank, bad safety valve, worn pump seals, bad pump valve pla…

Why does my air compressor safety valve keep popping open?

Main causes: bad safety valve, pressure switch failure…

Why can't I adjust the output air pressure on my air compressor?

Main cause: faulty output air pressure regulator…

Why won't my air compressor tank hold air?

Main causes: rusted air tank, loose air tube fitting connections, bad check valve, leaky safety valve, bad tank drain va…

Why doesn't my air compressor's pressure gauge work?

Main cause: bad air tank pressure gauge…

Why does air leak from my air compressor?

Main causes: loose air tube fitting connections, bad check valve, faulty safety valve, damaged or corroded air tank, bad…

Most common repair guides to help fix your air compressors

These step-by-step repair guides will help you safely fix what’s broken on your air compressor.

View all

How to replace an air compressor pressure switch

You can replace a broken air compressor pressure switch in about 45 minutes. …

Repair difficulty

Time required

45 minutes or less

How to rebuild an air compressor pump

If the air compressor won't fill the tank with compressed air, rebuild the pump using these steps in about 45 minutes. …

Repair difficulty

Time required

45 minutes or less

How to replace an air compressor check valve

You can replace a defective air compressor check valve in about 10 minutes.…

Repair difficulty

Time required

15 minutes or less

Effective articles & videos to help repair your air compressors

Use the advice and tips in these articles and videos to get the most out of your air compressor.

View all
