Model # 1753192283 Official Kenmore upright vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1753192283 upright vacuum cleaner, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
1753192283 Vacuum Cleaners
Intrlk Rd As 644272-001
#7

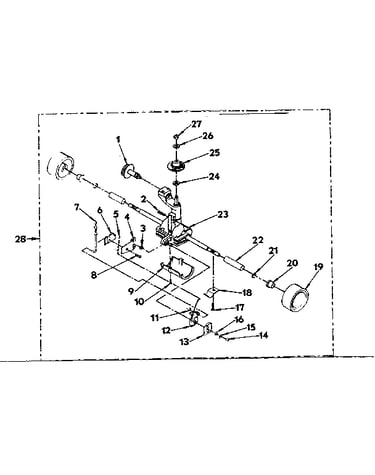

Wheel and axel assembly diagram

Intrlk rd as

Part #644272-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 644186-002
#20

Wheel and axel assembly diagram

Bearing

Part #644186-002

The manufacturer no longer makes this part, and there's no substitute part

Handle Plate 644202-003
#31

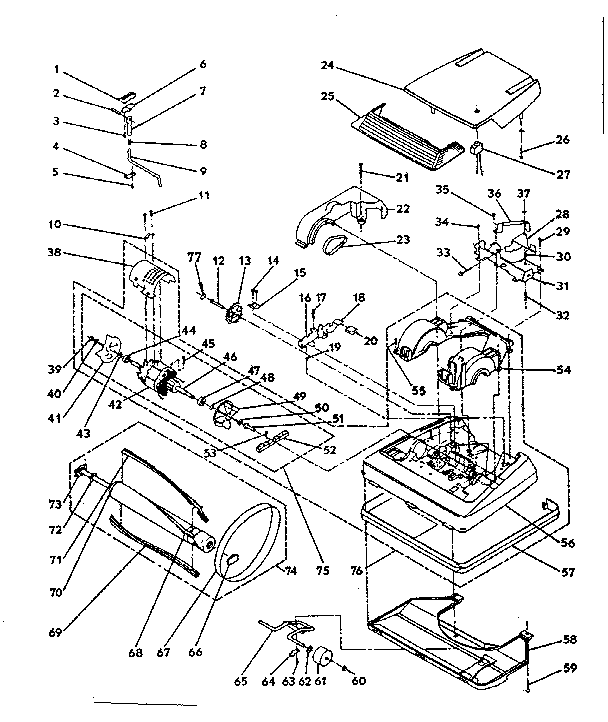

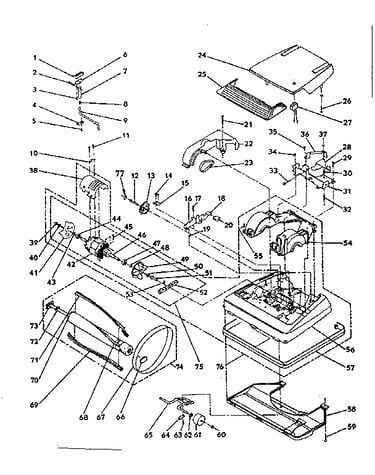

Nozzle and motor assembly diagram

Handle plate

Part #644202-003

The manufacturer no longer makes this part, and there's no substitute part

Retainer Plate 643015-000
Retainer plate

Part #643015-000

The manufacturer no longer makes this part, and there's no substitute part

Cable Bracket 644261-001
#4

Wheel and axel assembly diagram

Cable bracket

Part #644261-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 643888-001
#52

Nozzle and motor assembly diagram

Brush assembly

Part #643888-001

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 644553-001
#3

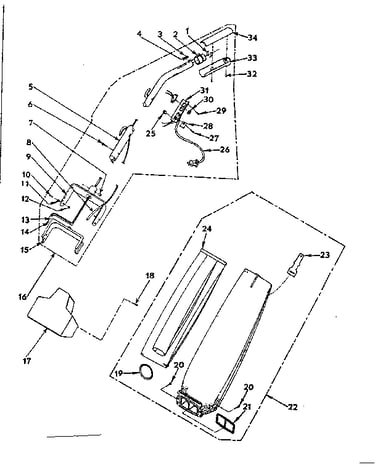

Handle and bag housing diagram

Set screw

Part #644553-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-324
#24

Wheel and axel assembly diagram

Washer

Part #706382-324

The manufacturer no longer makes this part, and there's no substitute part

Cap 966515-001
#60

Nozzle and motor assembly diagram

Cap

Part #966515-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 644294-001
Screw

Part #644294-001

The manufacturer no longer makes this part, and there's no substitute part
