Model # 315212010 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 315212010 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

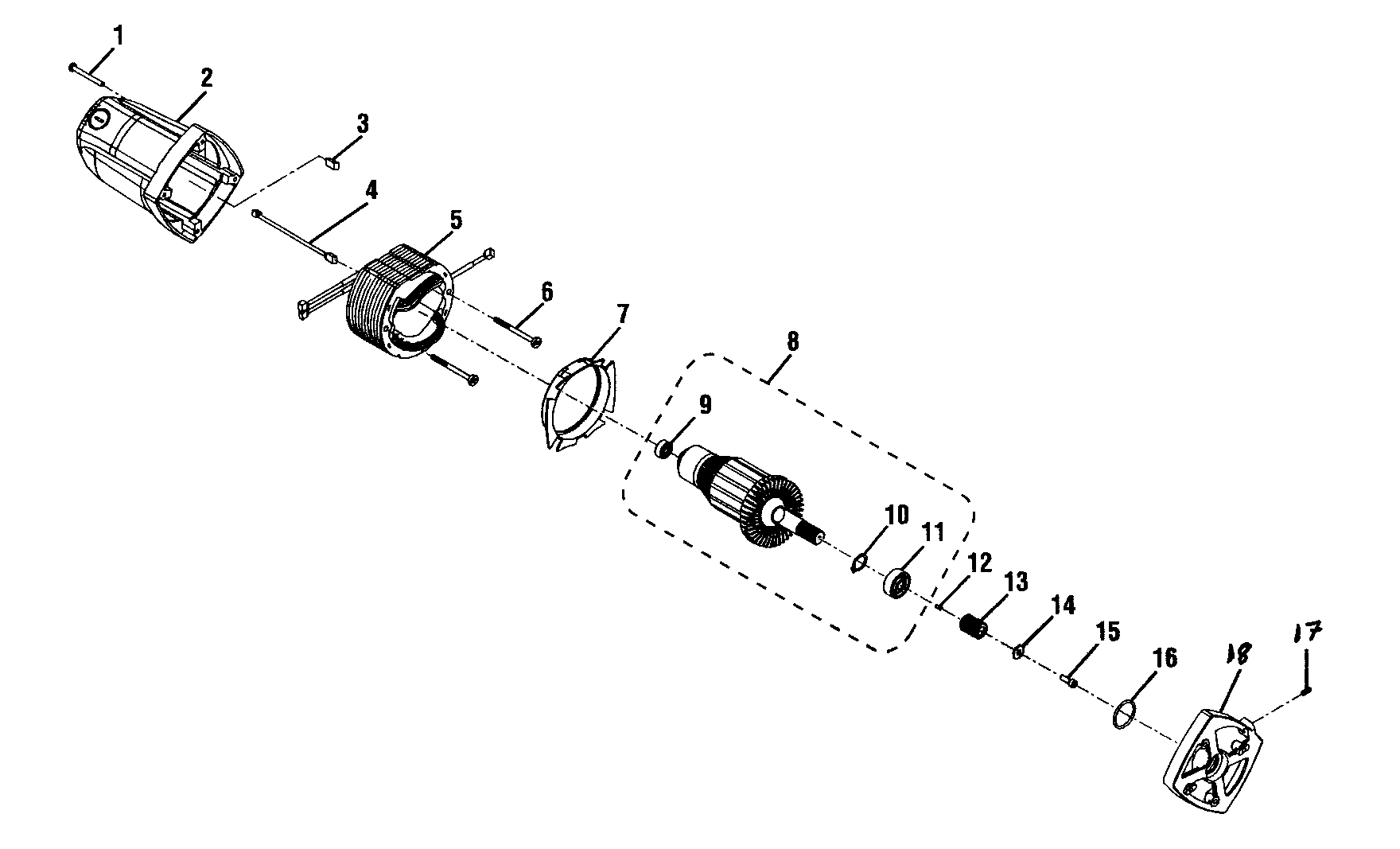

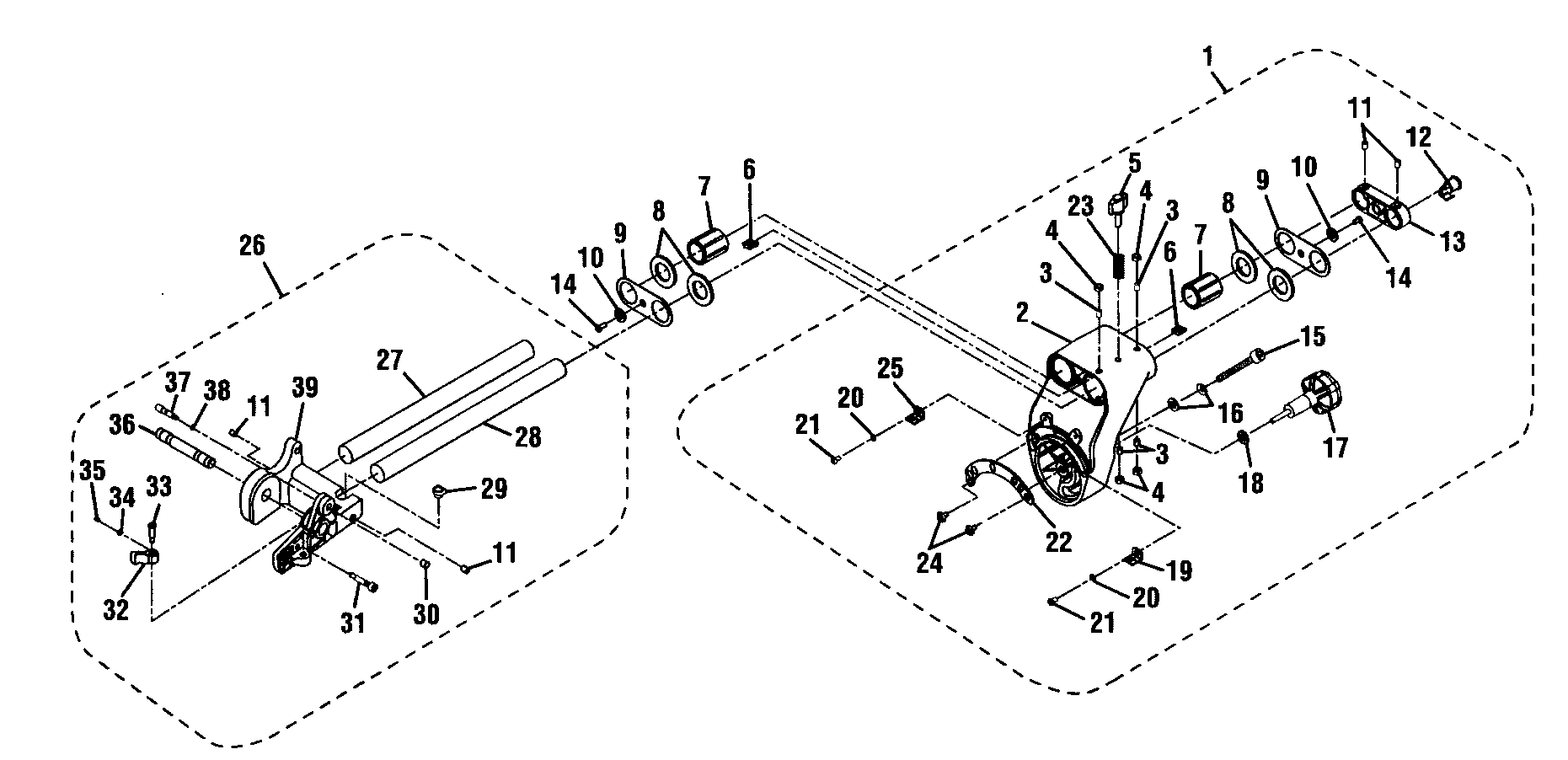

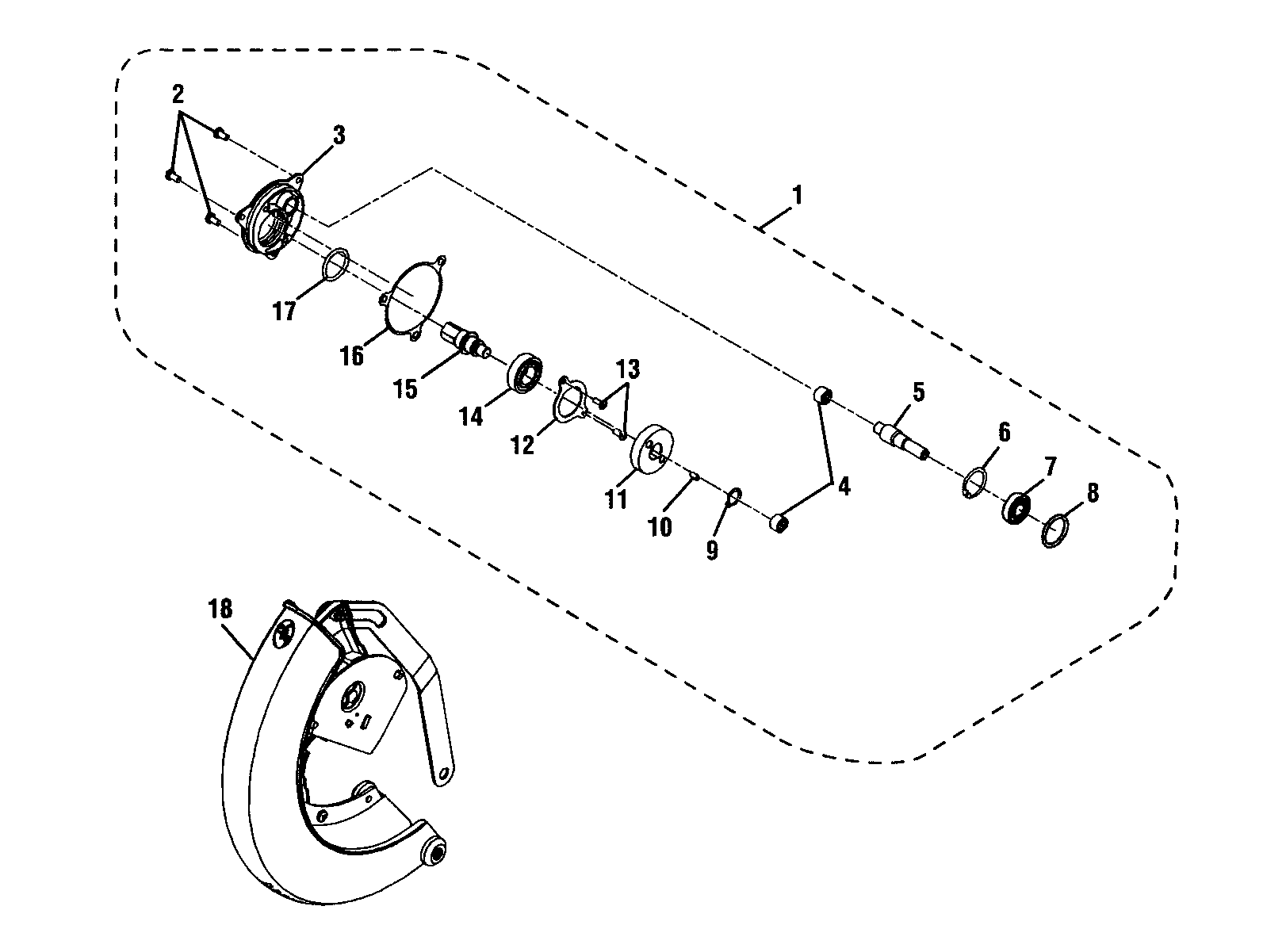

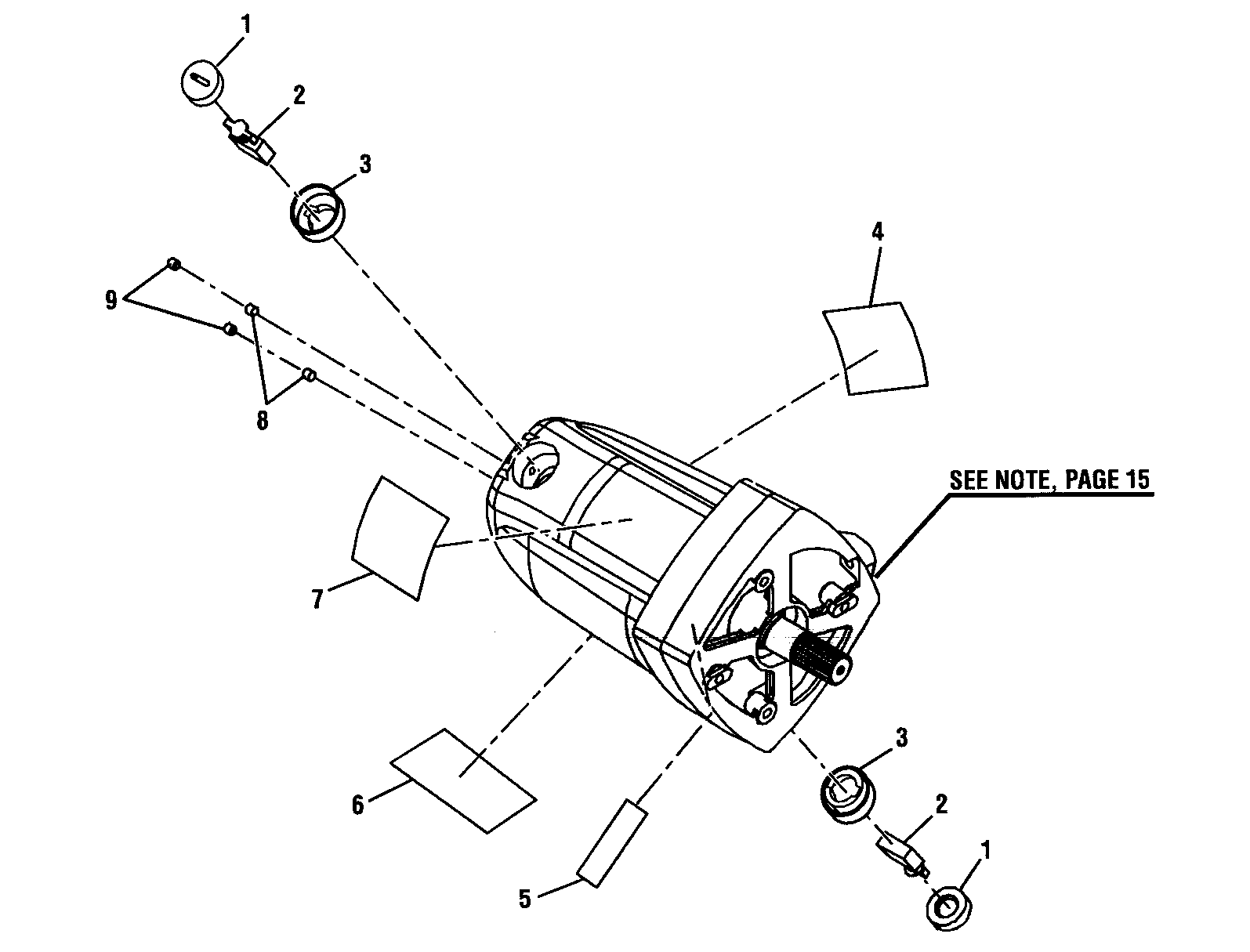

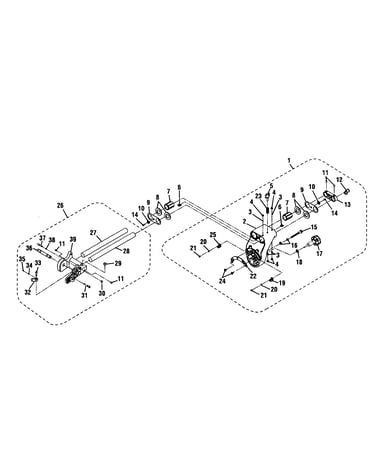

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 244 parts  |
Card 089100300729
#29

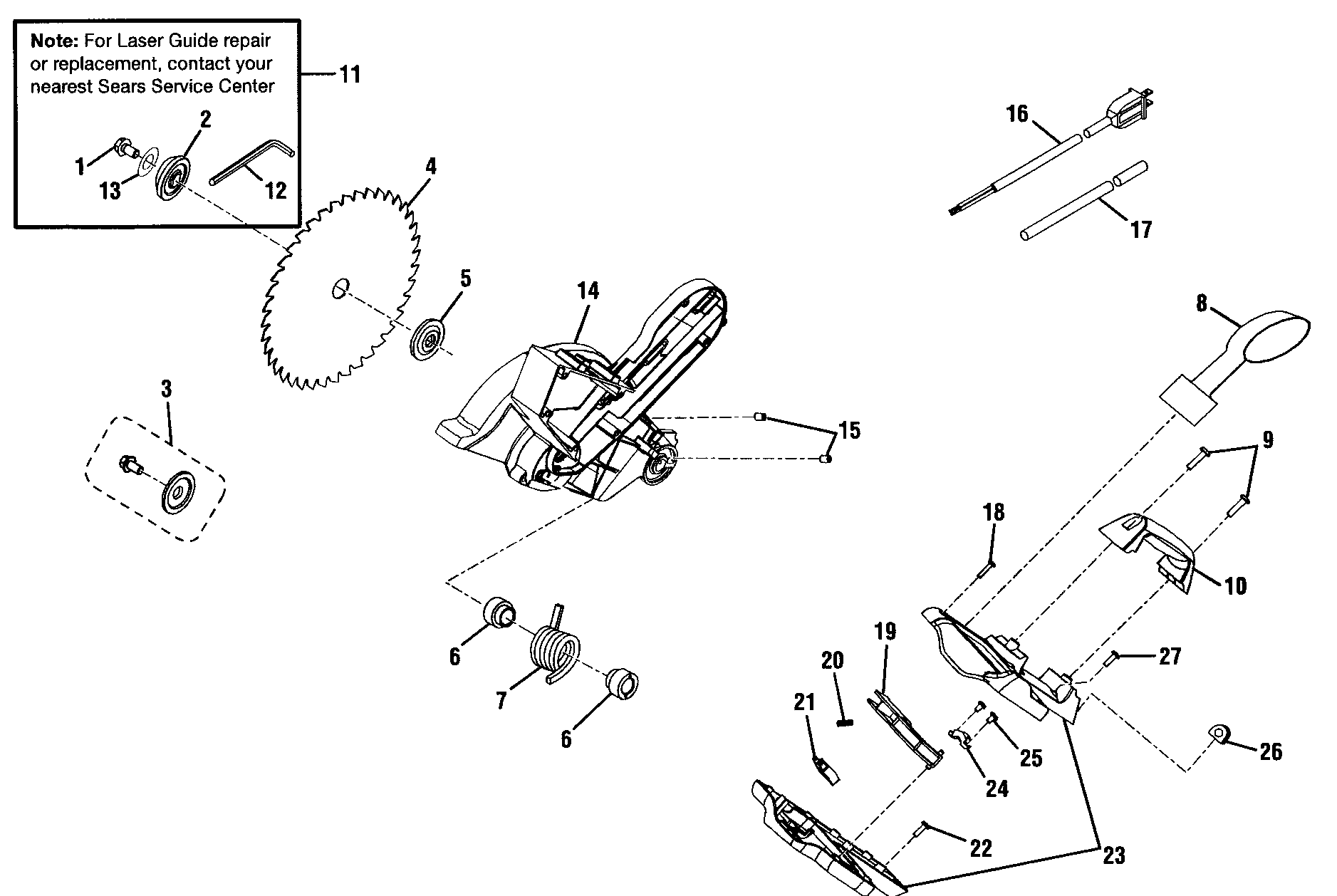

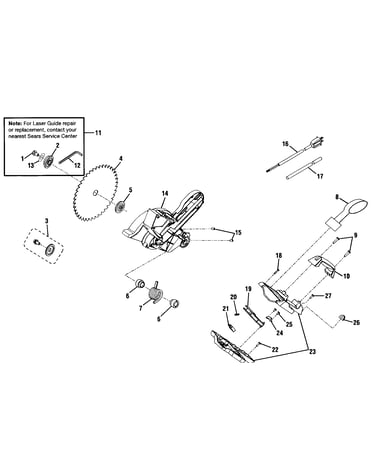

Upper guard assy diagram

Card

Part #089100300729

The manufacturer no longer makes this part, and there's no substitute part

Clamp Base 545503000
#5

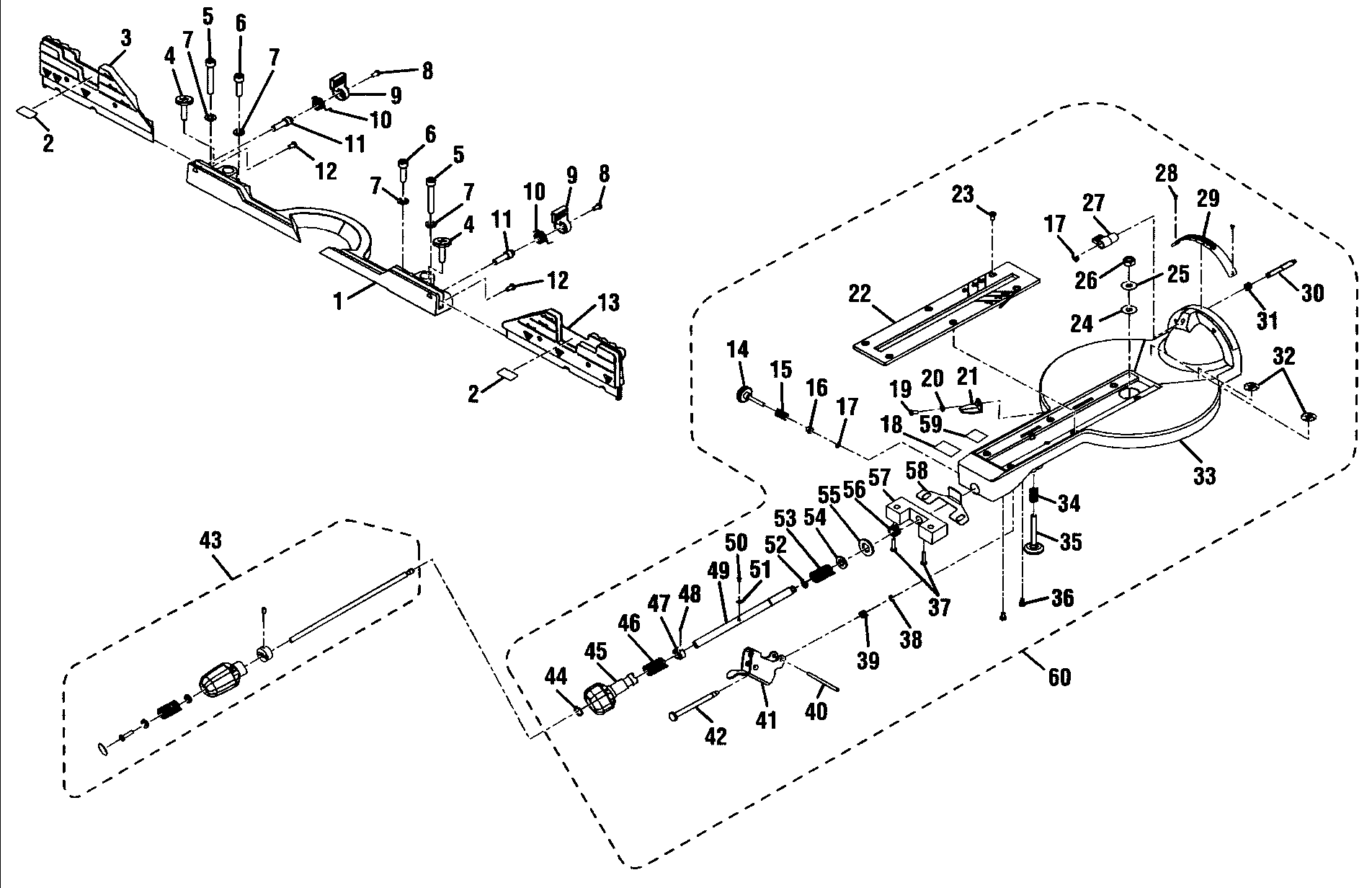

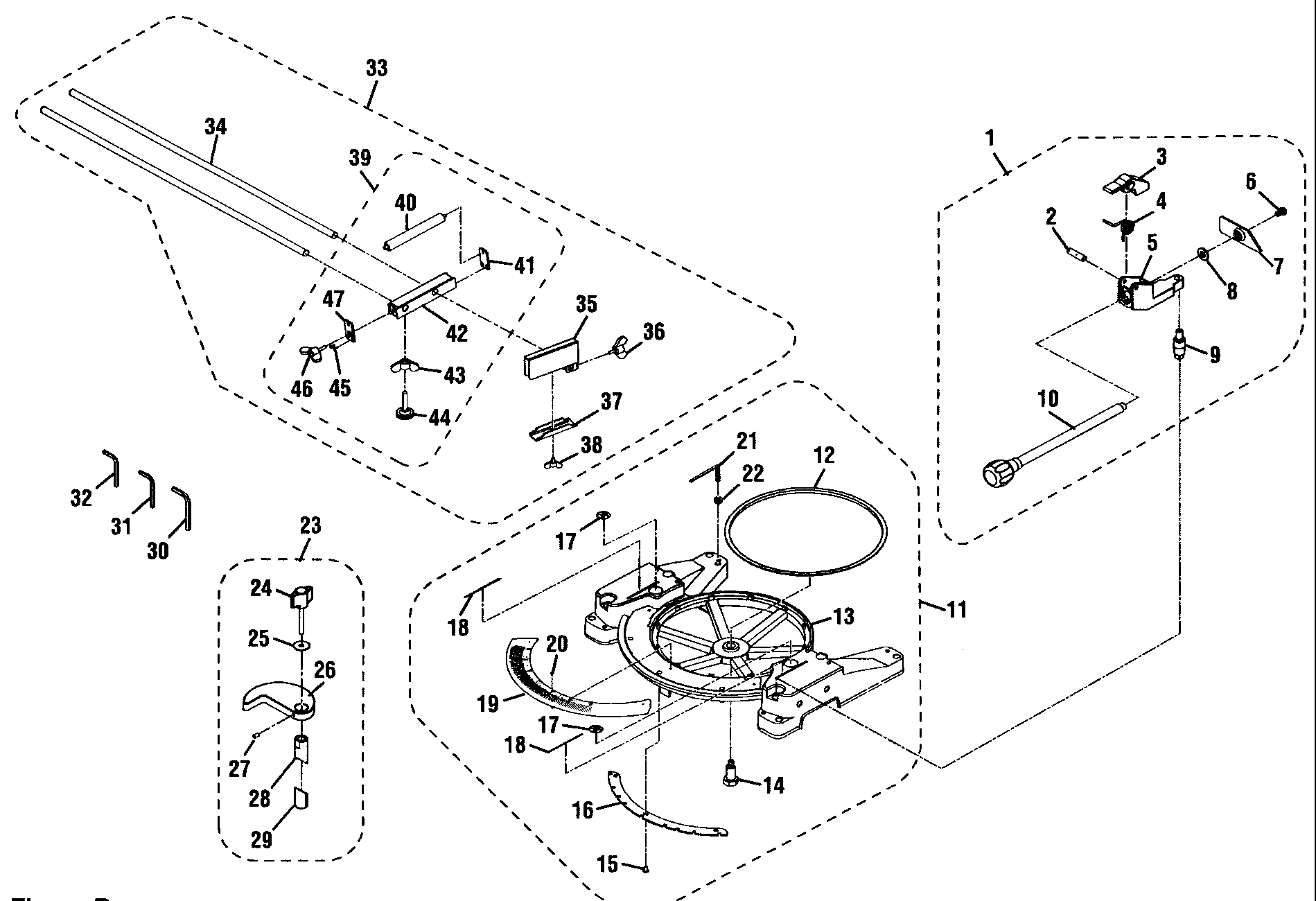

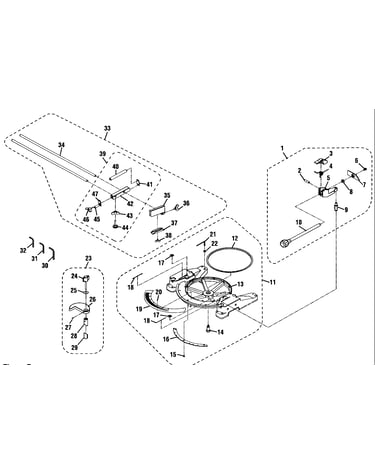

Base assy diagram

Clamp base

Part #545503000

The manufacturer no longer makes this part, and there's no substitute part

Screw 089100110036
#37

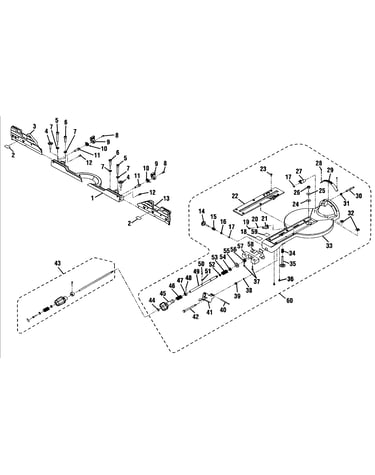

Table assy diagram

Screw

Part #089100110036

The manufacturer no longer makes this part, and there's no substitute part

Hex Key A07910420000
#30

Base assy diagram

Hex key

Part #A07910420000

The manufacturer no longer makes this part, and there's no substitute part

Washer 089100110012
#55

Table assy diagram

Washer

Part #089100110012

The manufacturer no longer makes this part, and there's no substitute part

Screw M5x10mm A16003050100
#8

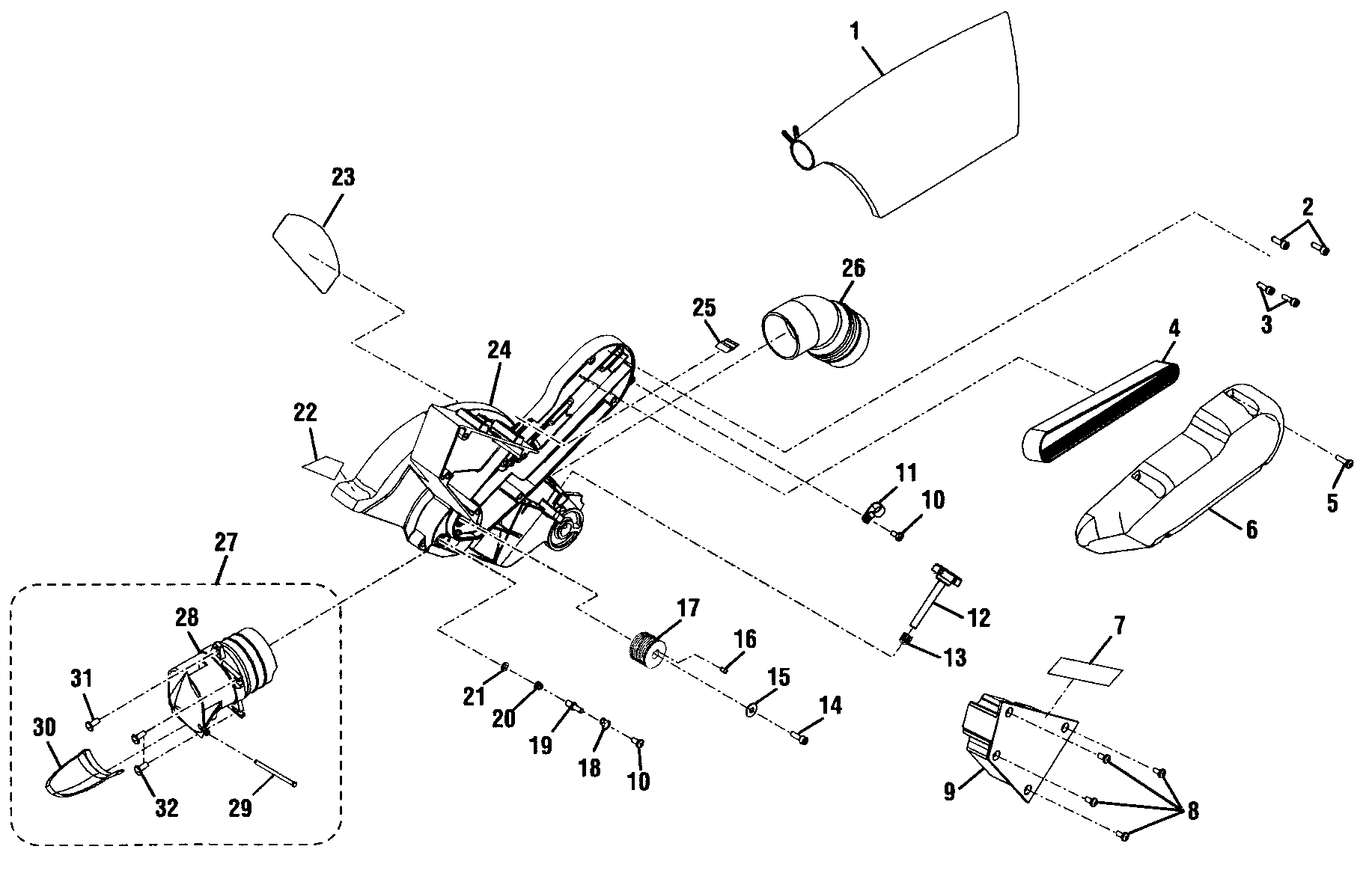

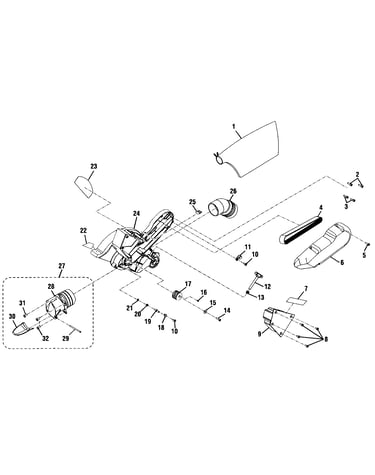

Dust collector assy diagram

Screw m5x10mm

Part #A16003050100

The manufacturer no longer makes this part, and there's no substitute part

Hang Tag 089100110247
#8

Upper guard assy diagram

Hang tag

Part #089100110247

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer A35010823020
#25

Base assy diagram

Flat washer

Part #A35010823020

The manufacturer no longer makes this part, and there's no substitute part

Collector 089100110116
#28

Dust collector assy diagram

Collector

Part #089100110116

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 545329000
#23

Dust collector assy diagram

Logo plate

Part #545329000

The manufacturer no longer makes this part, and there's no substitute part
