Model # 53681984 Official Craftsman 18" power reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 53681984 18" power reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

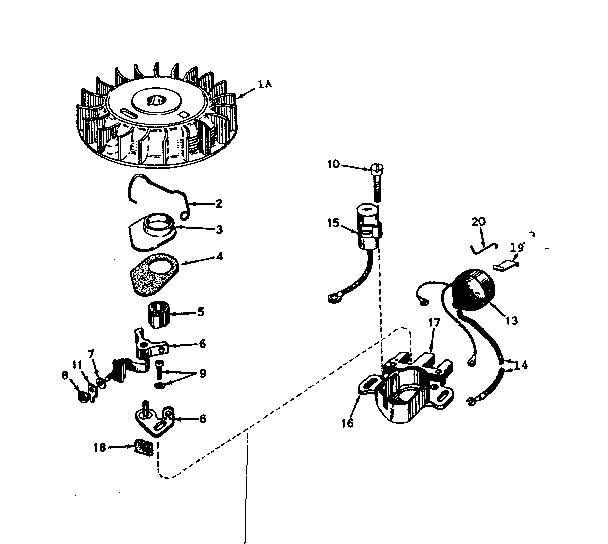

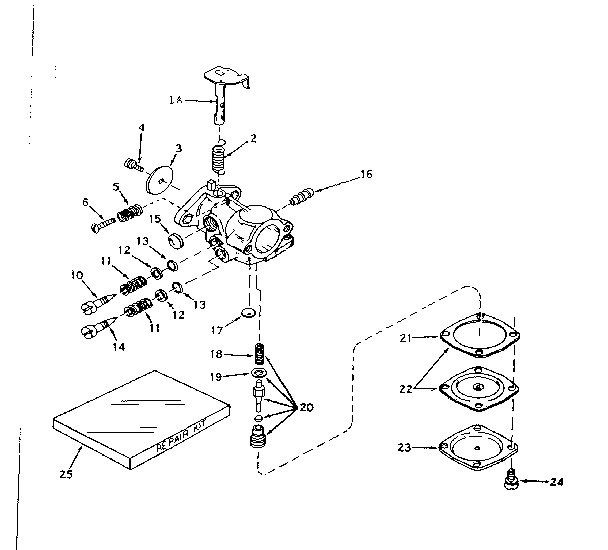

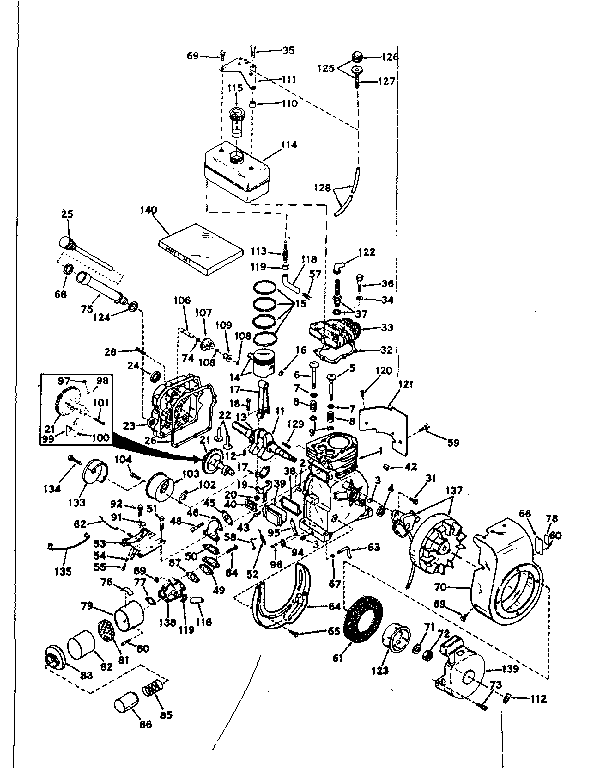

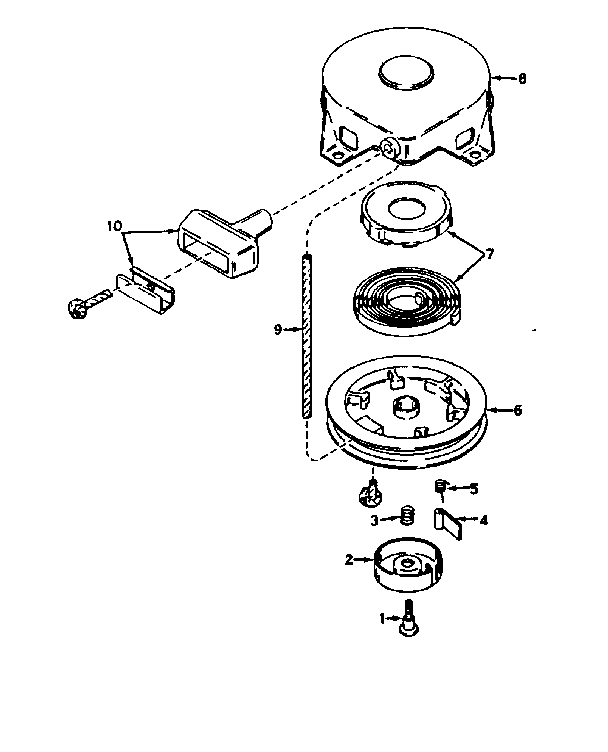

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 289 parts  |

Hex Lock Nut 9415988
#50

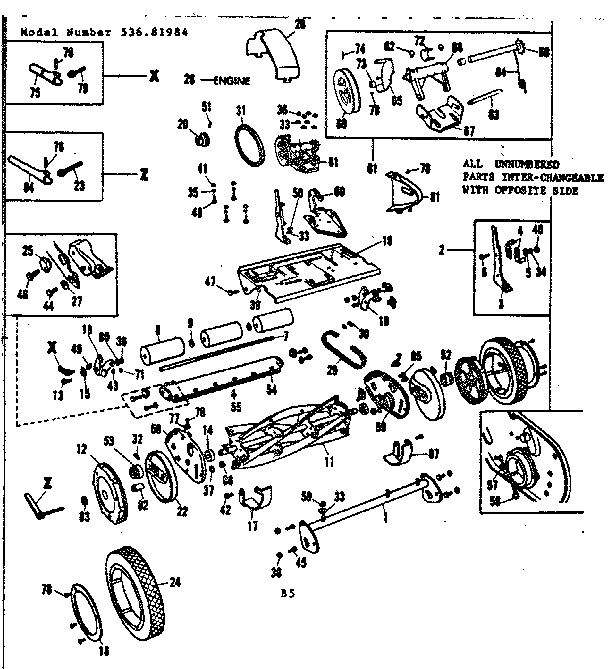

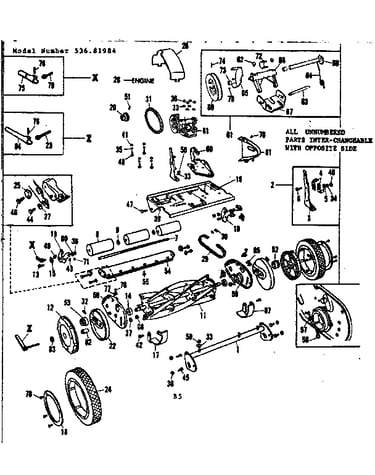

Reel assembly diagram

Hex lock nut

Part #9415988

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 9413447
#38

Reel assembly diagram

Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Washer 8728
#14

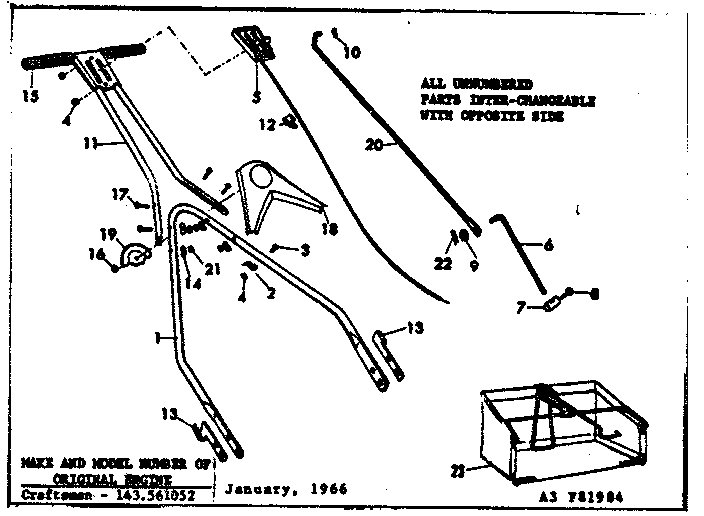

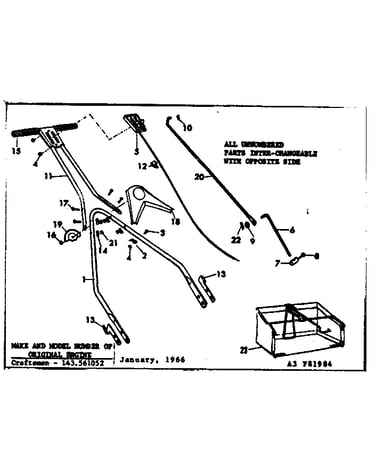

Handle assembly diagram

Washer

Part #8728

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 999602
#58

Reel assembly diagram

Screw

Part #999602

Replaced by #650517

?
Manufacturer substitution
This part replaces 999602. Substitute parts can look different from the original.
This item is not returnable
In Stock
Hex Nut 271166
#16

Handle assembly diagram

Hex nut

Part #271166

Replaced by #308459MA

?
Manufacturer substitution
This part replaces 271166. Substitute parts can look different from the original.
This item is not returnable
In Stock
Washer 120386
#5

Reel assembly diagram

Washer

Part #120386

The manufacturer no longer makes this part, and there's no substitute part

Car Bolt 120518
#6

Reel assembly diagram

Car bolt

Part #120518

Replaced by #703101

?
Manufacturer substitution
This part replaces 120518. Substitute parts can look different from the original.
This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
Washer 4230
#27

Reel assembly diagram

Washer

Part #4230

Replaced by #783641MA

?
Manufacturer substitution
This part replaces 4230. Substitute parts can look different from the original.
In Stock
Screw 191245
#85

Reel assembly diagram

Screw

Part #191245

The manufacturer no longer makes this part, and there's no substitute part

Scraper Sprocket 25164
#21

Reel assembly diagram

Scraper sprocket

Part #25164

The manufacturer no longer makes this part, and there's no substitute part
