Thermador
Electric Wall Oven

Model # ME301EP01 Official Thermador wall oven

Here are the diagrams and repair parts for Official Thermador ME301EP01 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

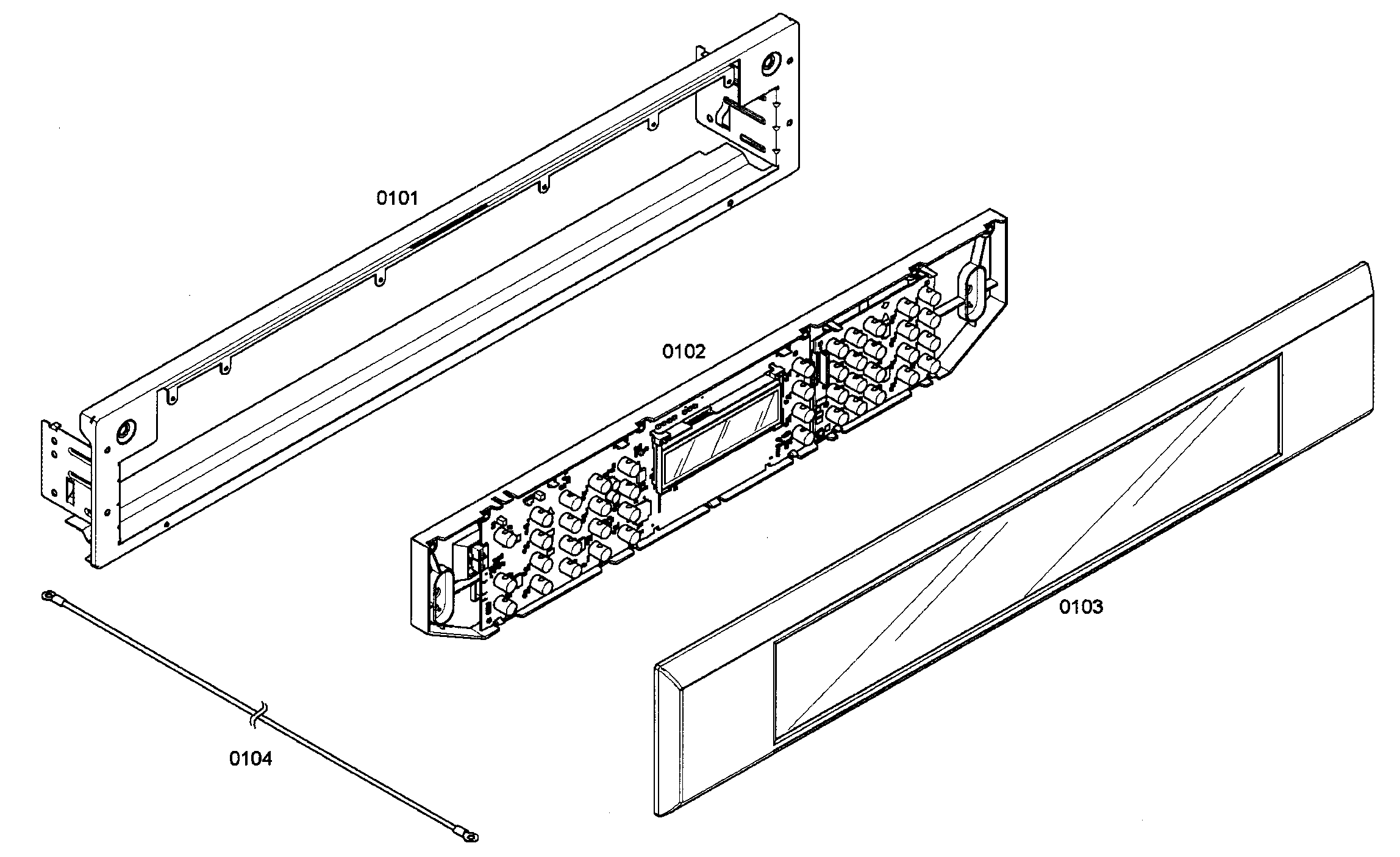

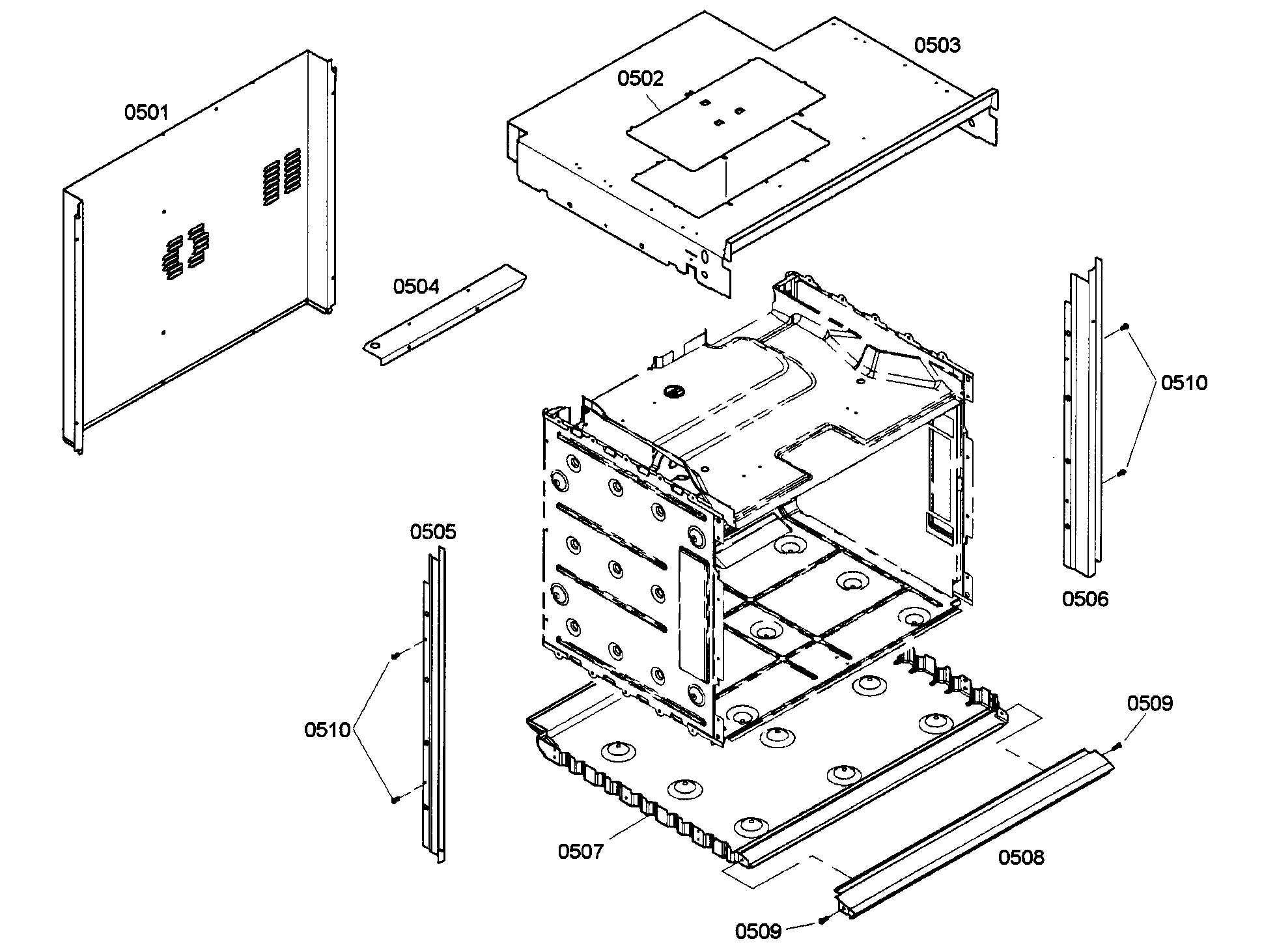

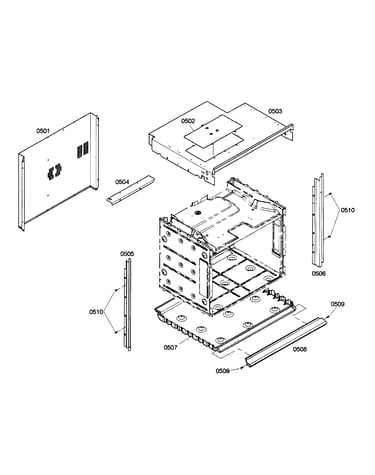

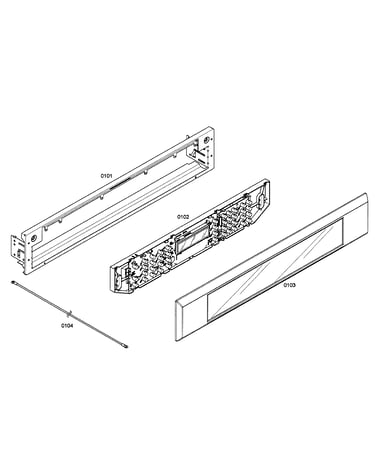

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Control Module 646641
#203

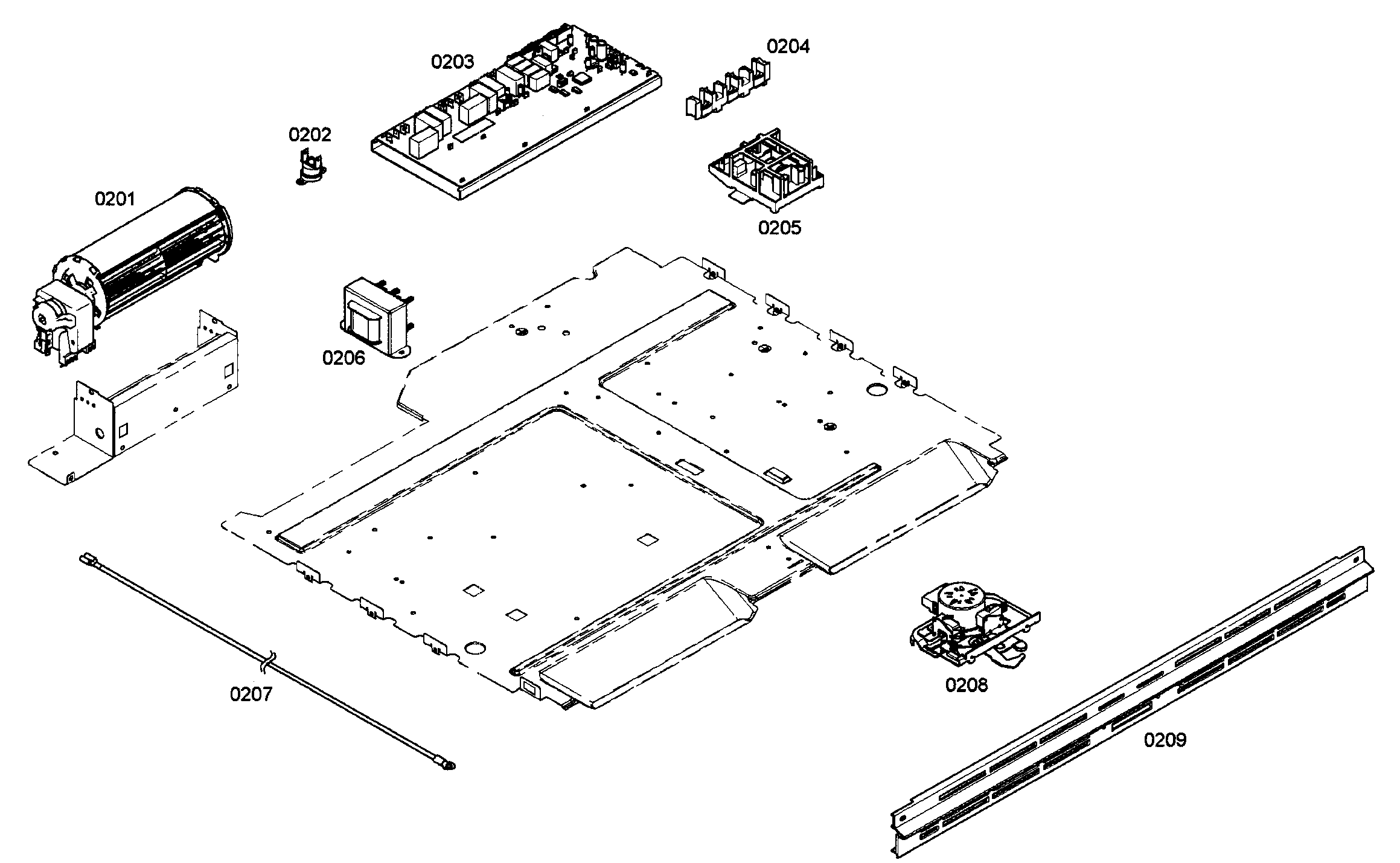

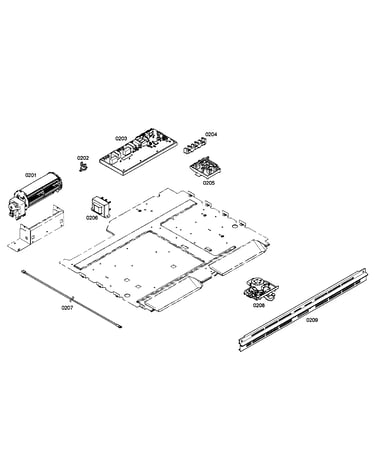

Pcb's assy diagram

Control module

Part #646641

Replaced by #12022212

?
Manufacturer substitution
This part replaces 646641. Substitute parts can look different from the original.
This item is not returnable
$321.71 |
$12.00 OFF Phone Price : $333.71
In Stock
Control Module 648782
#203A

Pcb's assy diagram

Control module

Part #648782

Replaced by #12022212

?
Manufacturer substitution
This part replaces 648782. Substitute parts can look different from the original.
This item is not returnable
$321.71 |
$12.00 OFF Phone Price : $333.71
In Stock
Shelf 478316
#602

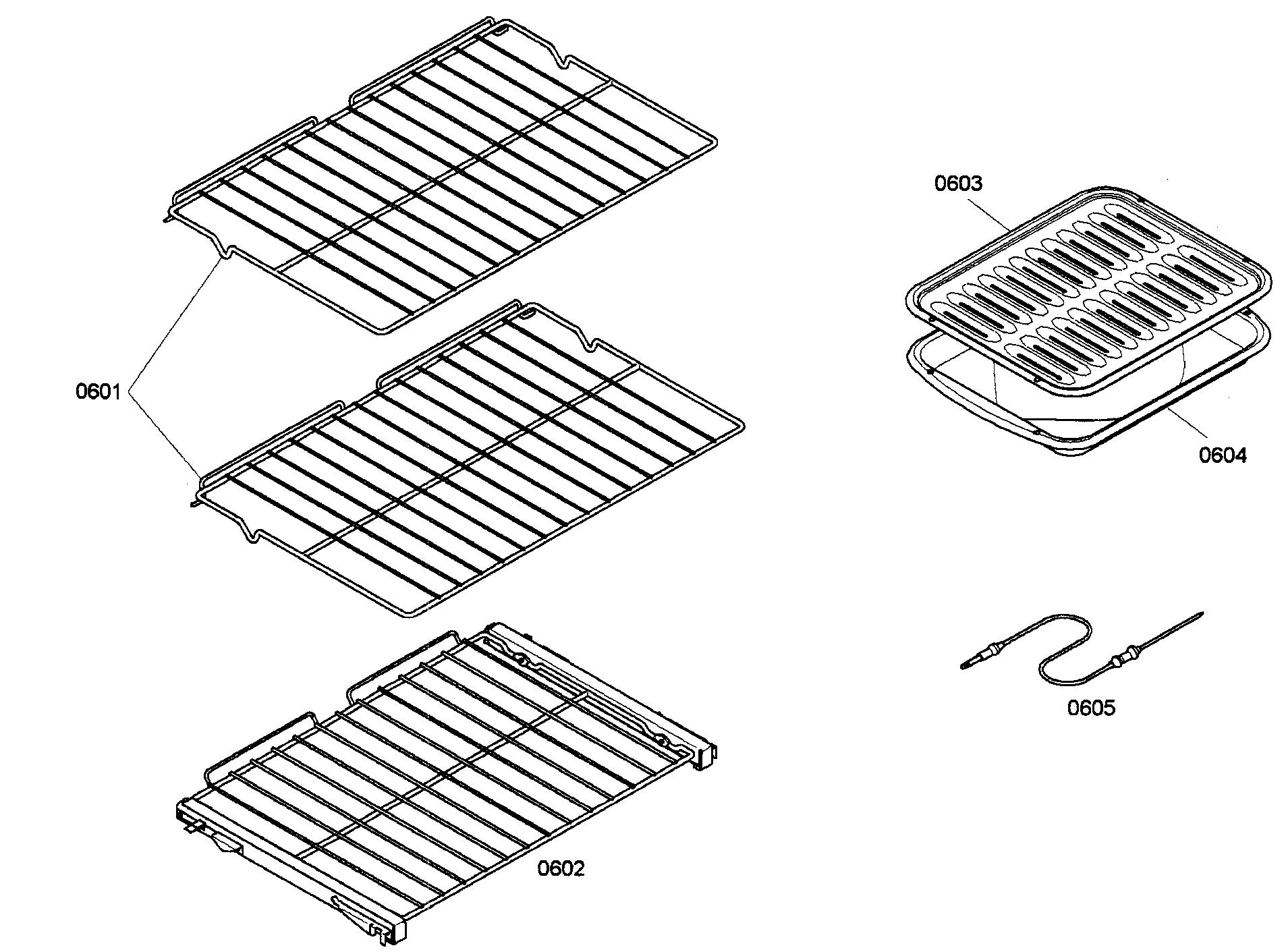

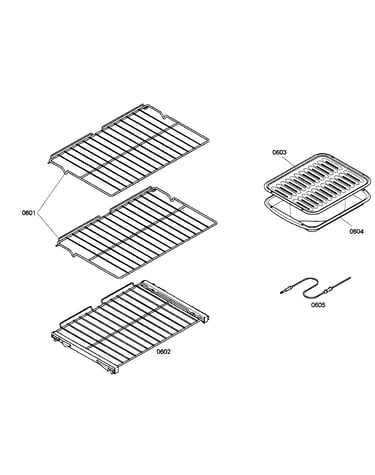

Racks diagram

Shelf

Part #478316

Replaced by #00478316

?
Manufacturer substitution
This part replaces 478316. Substitute parts can look different from the original.
$394.03 |
$12.00 OFF Phone Price : $406.03
In Stock
Glass 680088
#404

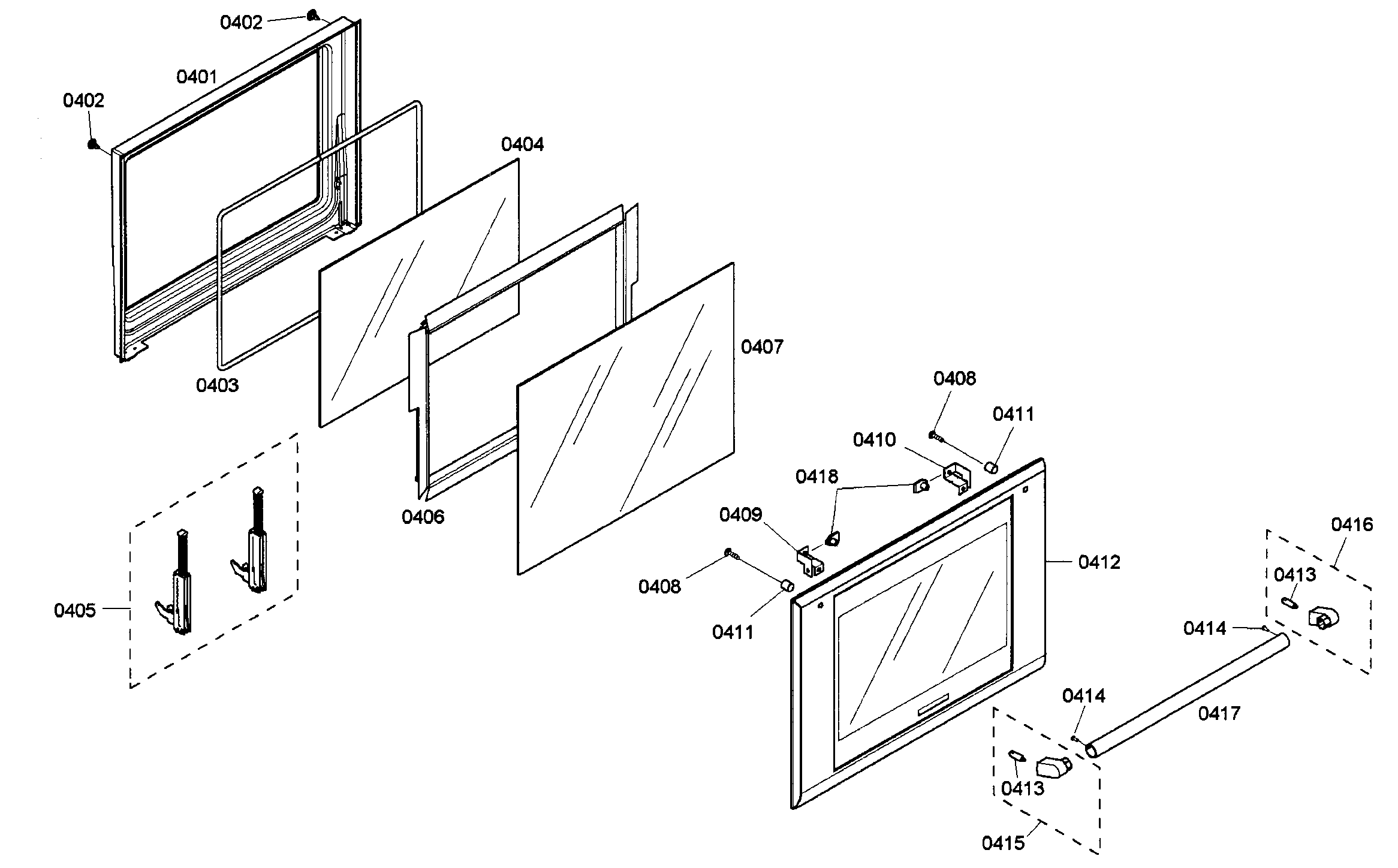

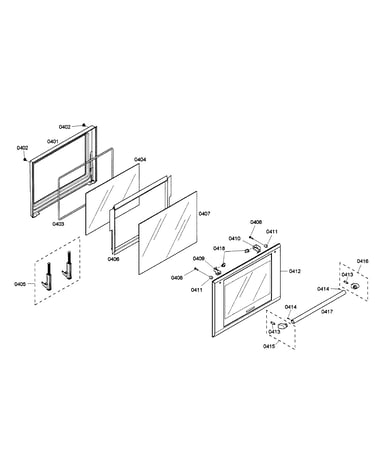

Door assy diagram

Glass

Part #680088

Replaced by #00770023

?
Manufacturer substitution
This part replaces 680088. Substitute parts can look different from the original.
$182.39 |
6% OFF Phone Price : $194.39
In Stock
Seal 144652
#403

Door assy diagram

Seal

Part #144652

Replaced by #00144652

?
Manufacturer substitution
This part replaces 144652. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Glass Panel 478310
#407

Door assy diagram

Glass panel

Part #478310

Replaced by #00478310

?
Manufacturer substitution
This part replaces 478310. Substitute parts can look different from the original.
$137.56 |
8% OFF Phone Price : $149.56
In Stock
Temperature Limit 612548
#202

Pcb's assy diagram

Temperature limit

Part #612548

Replaced by #00617877

?
Manufacturer substitution
This part replaces 612548. Substitute parts can look different from the original.
$29.36
In Stock
Bracket 613179
#410

Door assy diagram

Bracket

Part #613179

Replaced by #00613179

?
Manufacturer substitution
This part replaces 613179. Substitute parts can look different from the original.
$23.49
In Stock
Spacer 603860
#311

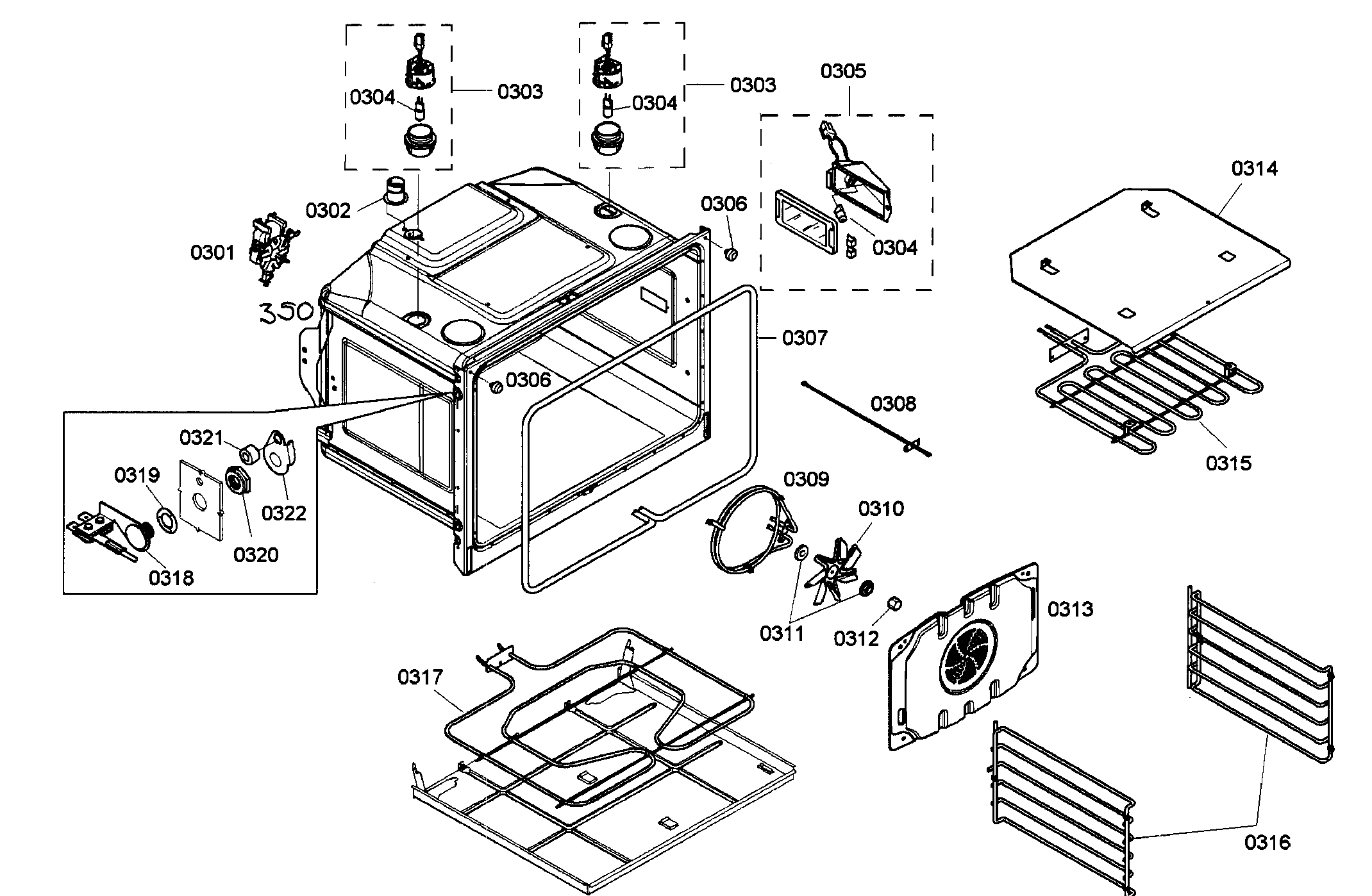

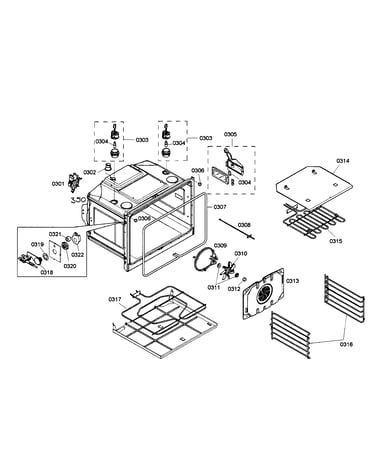

Cabinet assy diagram

Spacer

Part #603860

Replaced by #00603860

?
Manufacturer substitution
This part replaces 603860. Substitute parts can look different from the original.
$23.29
In Stock
Spacer 427919
#306

Cabinet assy diagram

Spacer

Part #427919

Replaced by #00427919

?
Manufacturer substitution
This part replaces 427919. Substitute parts can look different from the original.
$19.80
In Stock
