Model # BS902 Official Ryobi 9" band saw

Here are the diagrams and repair parts for Official Ryobi BS902 9" band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

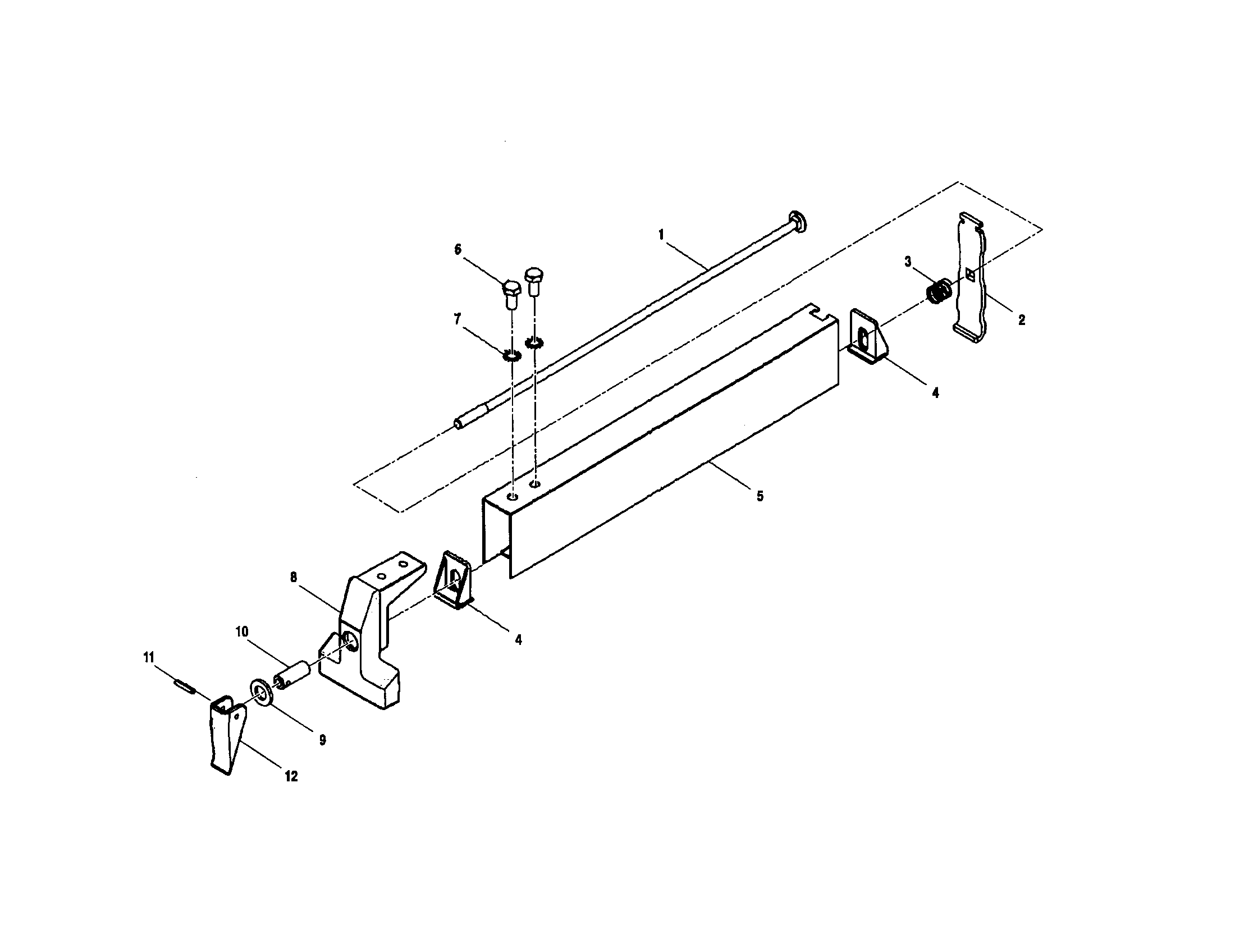

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Pan Screw Assemble (m5 X 8mm)(standard Hardware Item-may Be Purchased Locally.) 020716-000
#66

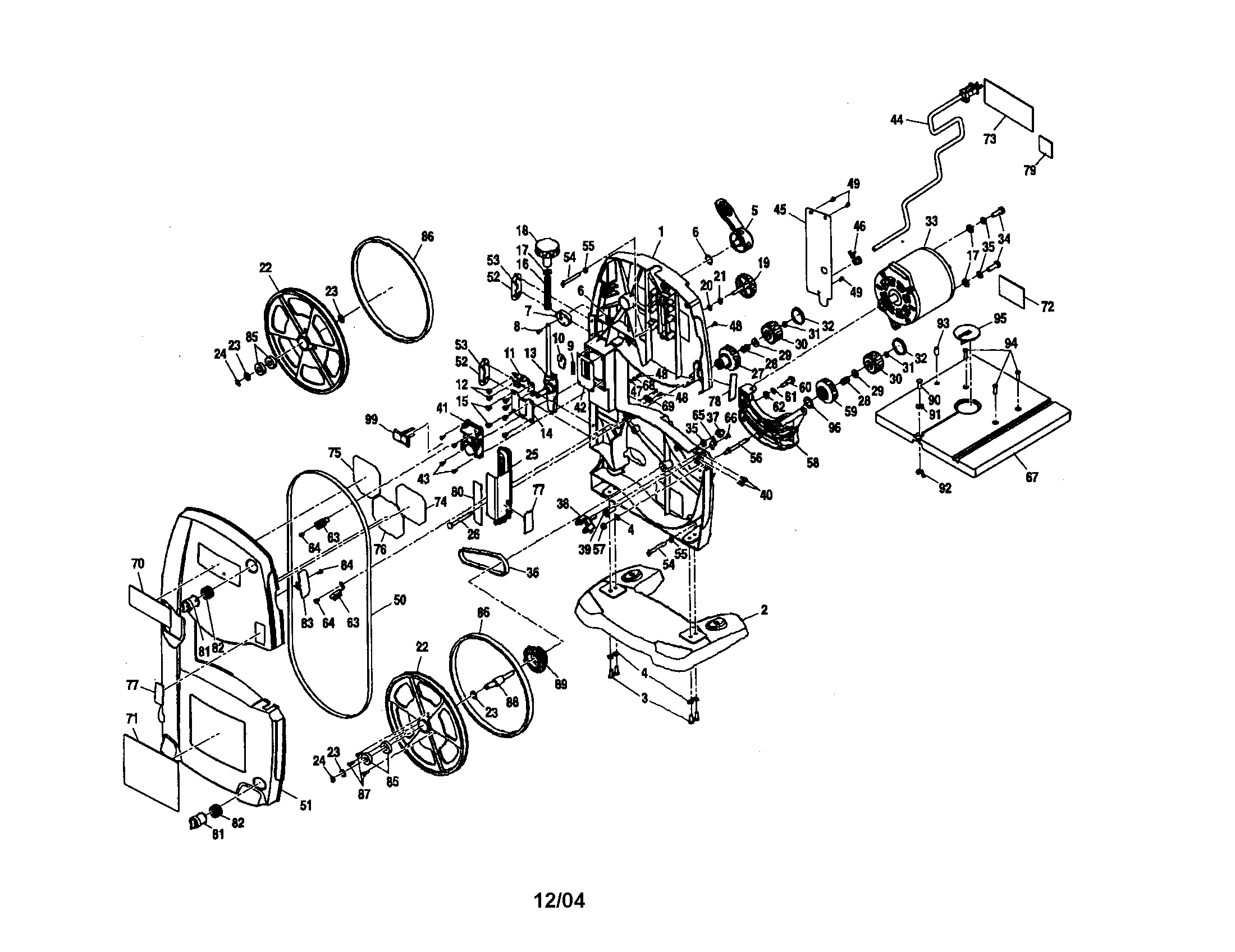

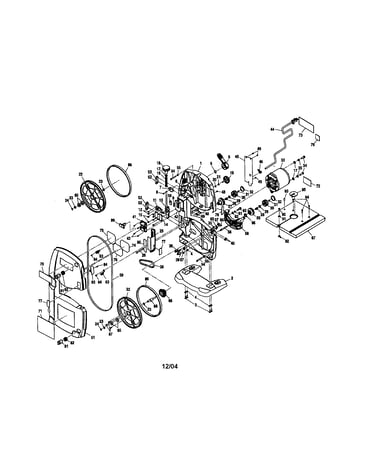

Frame/base/wheel/motor/blade diagram

Pan screw assemble (m5 x 8mm)(standard hardware item-may be purchased locally.)

Part #020716-000

The manufacturer no longer makes this part, and there's no substitute part

Screw (m5 X 10mm) (2) (standard Hardware Item-may Be Purchased Locally) 020601-003
Screw (m5 x 10mm) (2) (standard hardware item-may be purchased locally)

Part #020601-003

The manufacturer no longer makes this part, and there's no substitute part

Lever Cam 303649-000
#5

Frame/base/wheel/motor/blade diagram

Lever cam

Part #303649-000

The manufacturer no longer makes this part, and there's no substitute part

Screw (m6 X 8mm) (4) (standard Hardware Item-may Be Purchased Locally) 020102-023
#12

Frame/base/wheel/motor/blade diagram

Screw (m6 x 8mm) (4) (standard hardware item-may be purchased locally)

Part #020102-023

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 270689-000
#42

Frame/base/wheel/motor/blade diagram

Switch cover

Part #270689-000

The manufacturer no longer makes this part, and there's no substitute part

Frame 224072-000
#1

Frame/base/wheel/motor/blade diagram

Frame

Part #224072-000

The manufacturer no longer makes this part, and there's no substitute part

Bend Relief 913001-000
#46

Frame/base/wheel/motor/blade diagram

Bend relief

Part #913001-000

The manufacturer no longer makes this part, and there's no substitute part

90* Block Guide 060044-000
#3

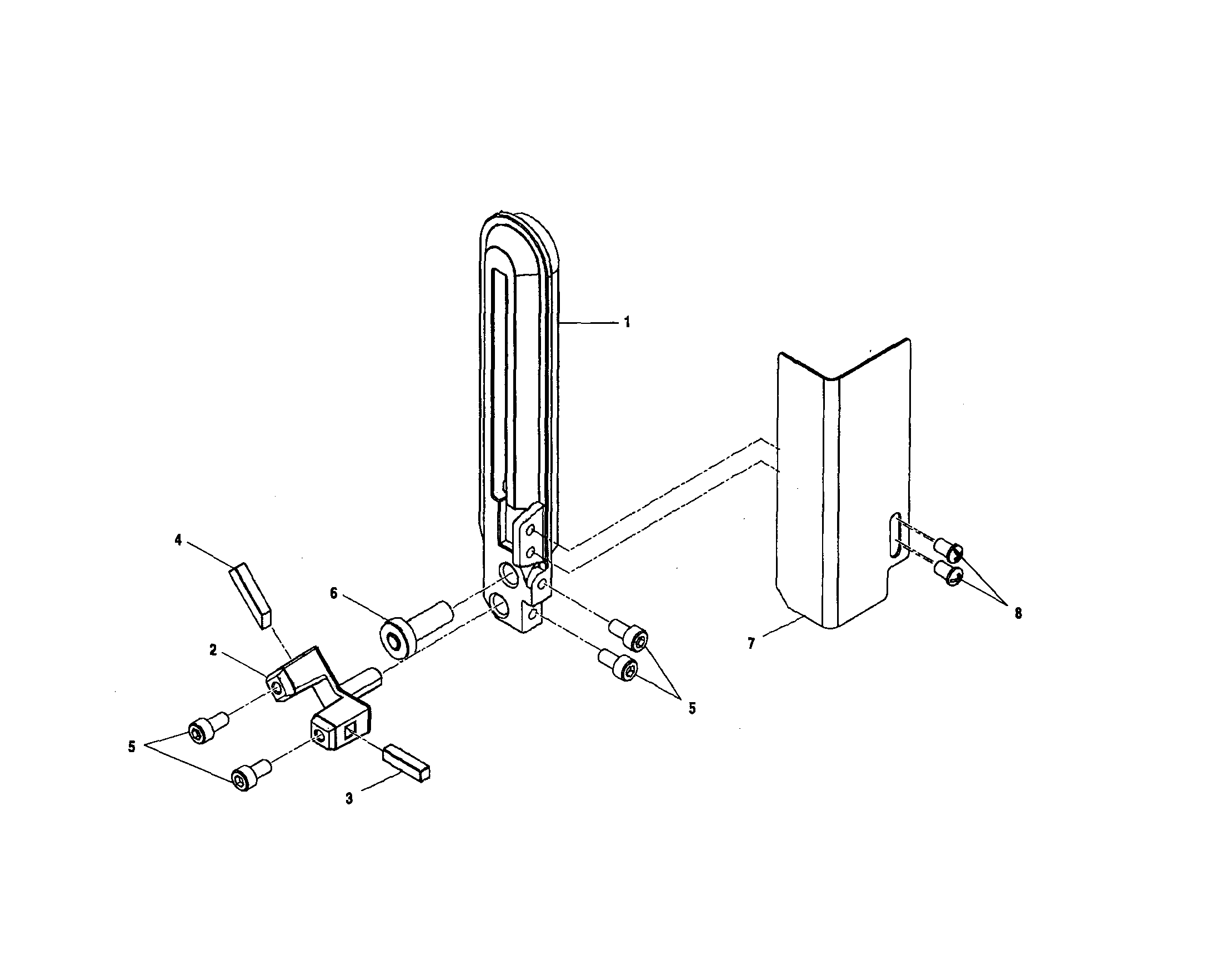

Upper slide/guide-blade diagram

90* block guide

Part #060044-000

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut (m6)(2)(standard Hardware Item-may Be Purchased Locally.) 022111-007
#55

Frame/base/wheel/motor/blade diagram

Hex nut (m6)(2)(standard hardware item-may be purchased locally.)

Part #022111-007

The manufacturer no longer makes this part, and there's no substitute part

Washer 021101-039
#7

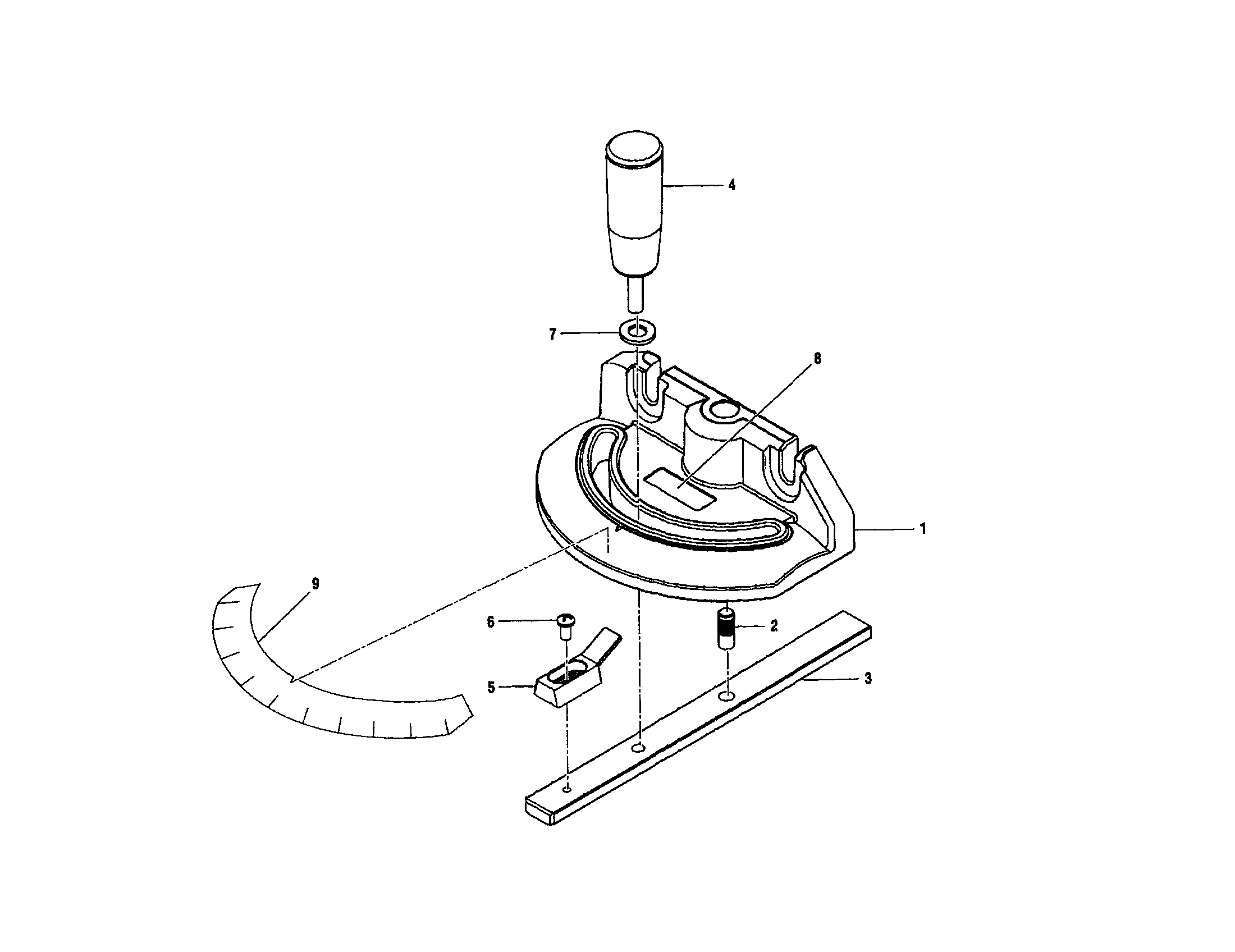

Miter gauge assembly diagram

Washer

Part #021101-039

The manufacturer no longer makes this part, and there's no substitute part
