Model # ZISS420DKCSS Official GE refrigerator

Here are the diagrams and repair parts for Official GE ZISS420DKCSS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

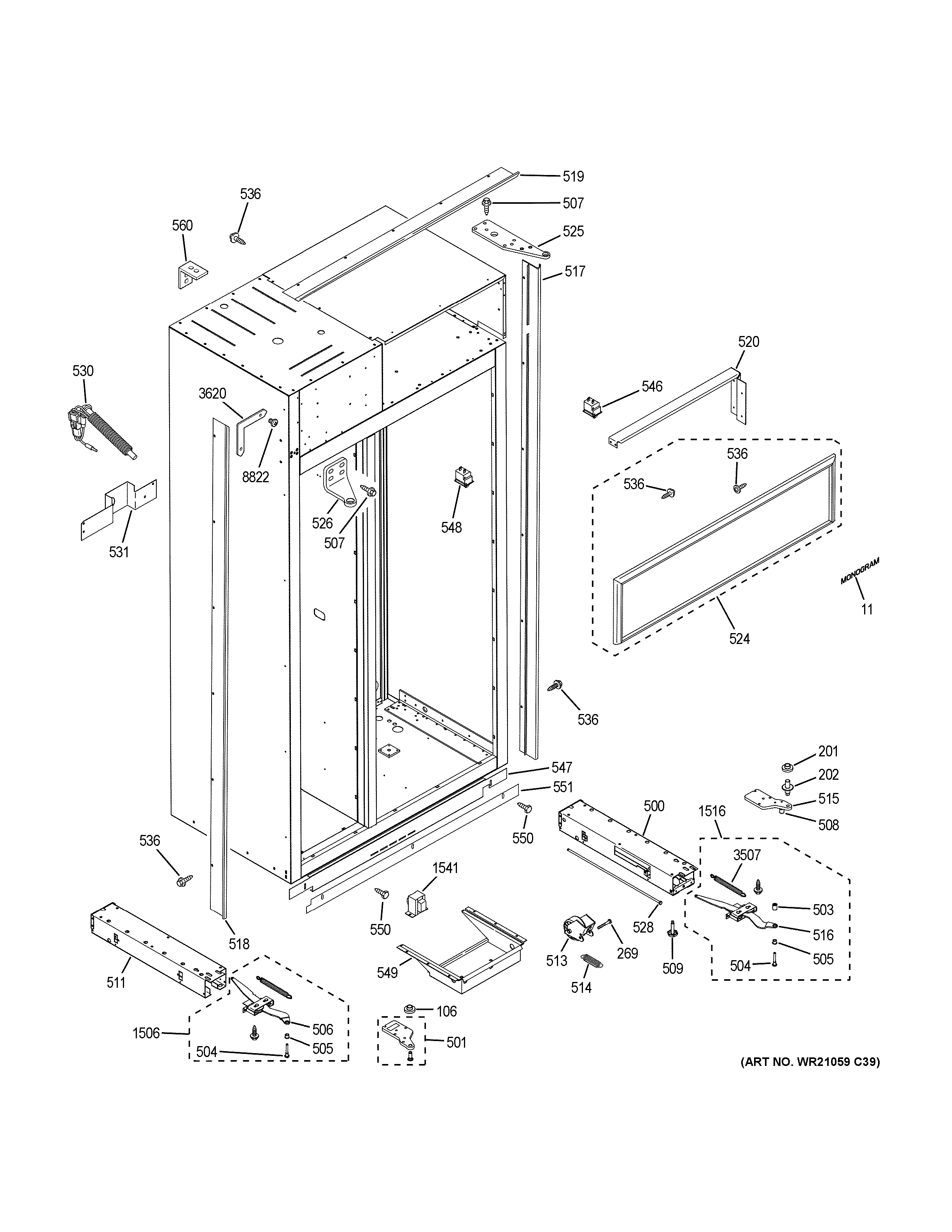

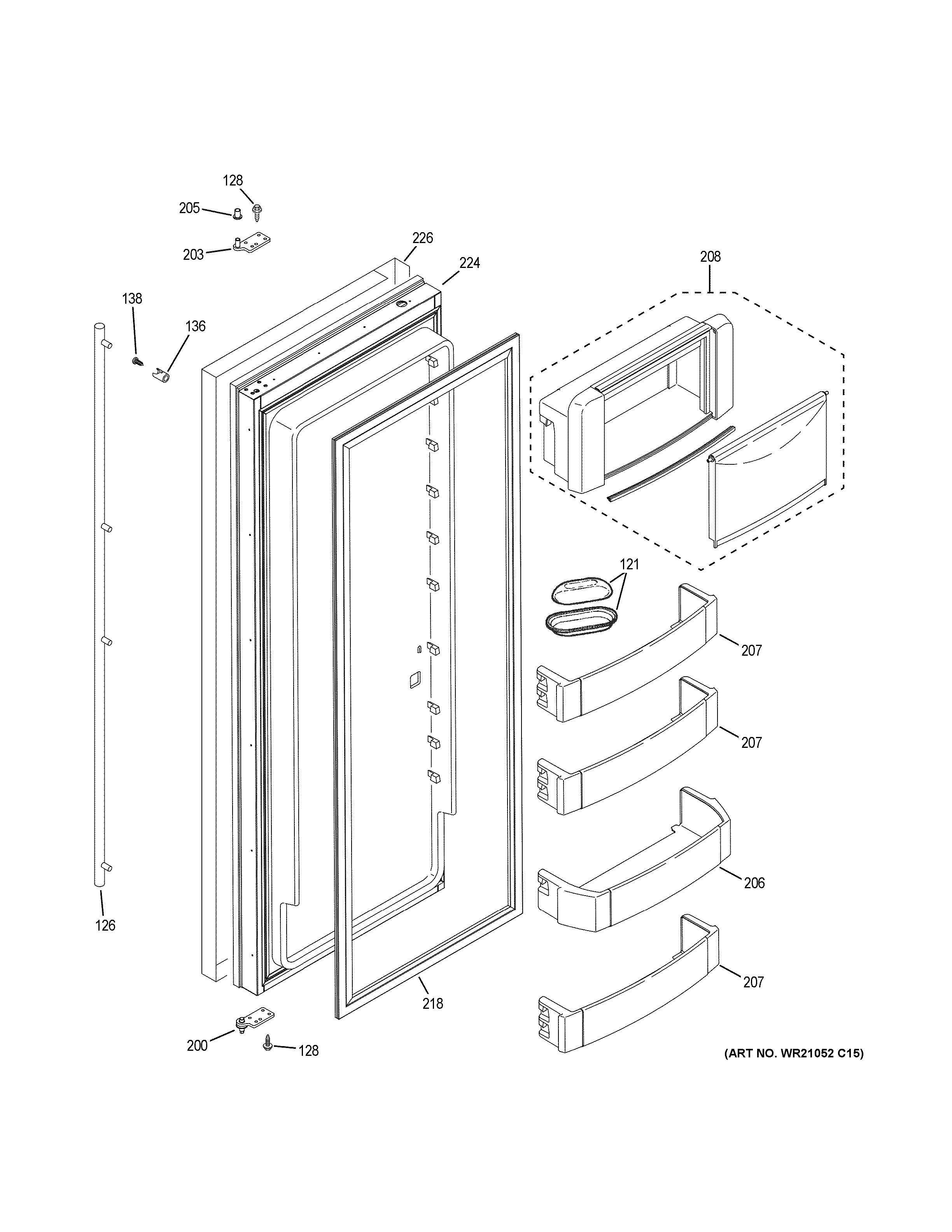

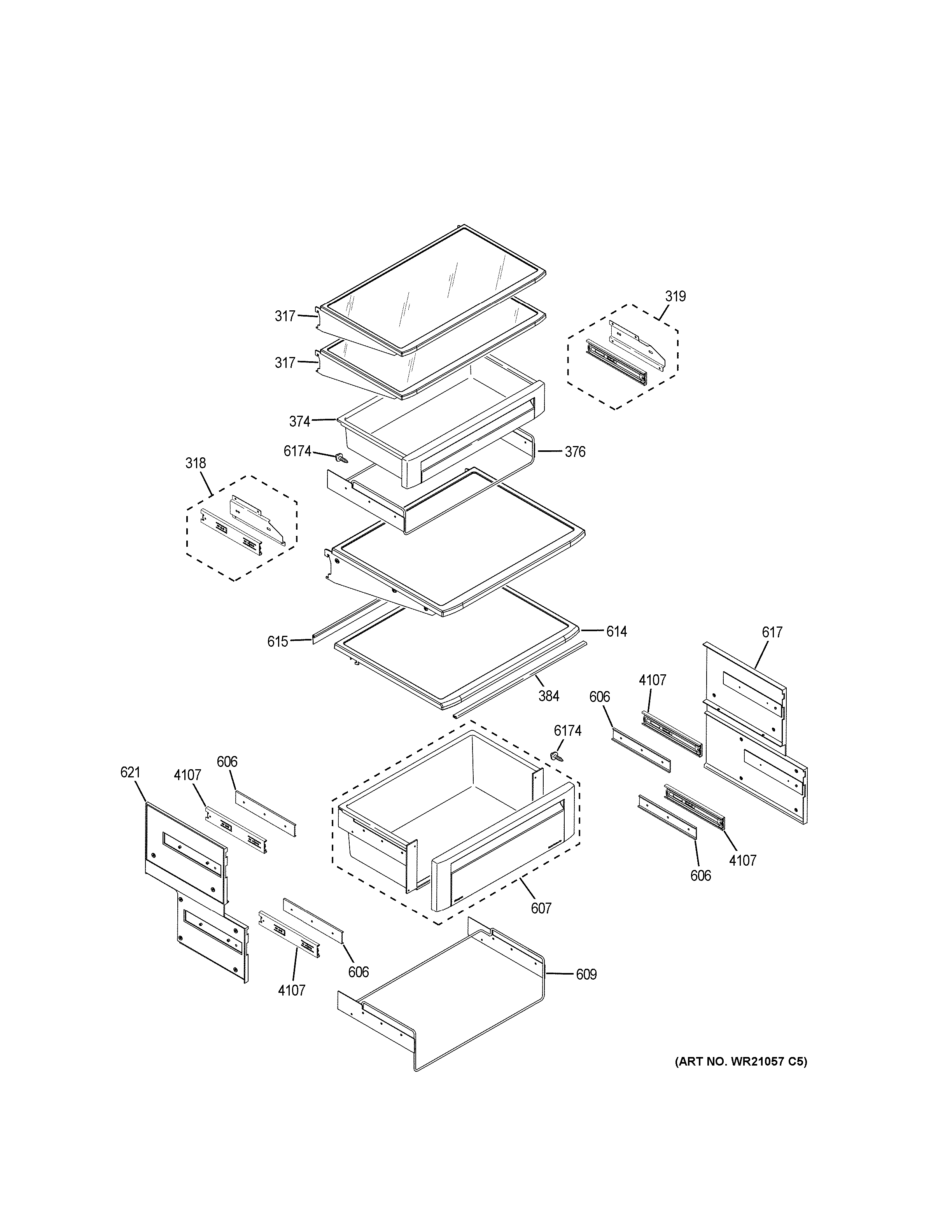

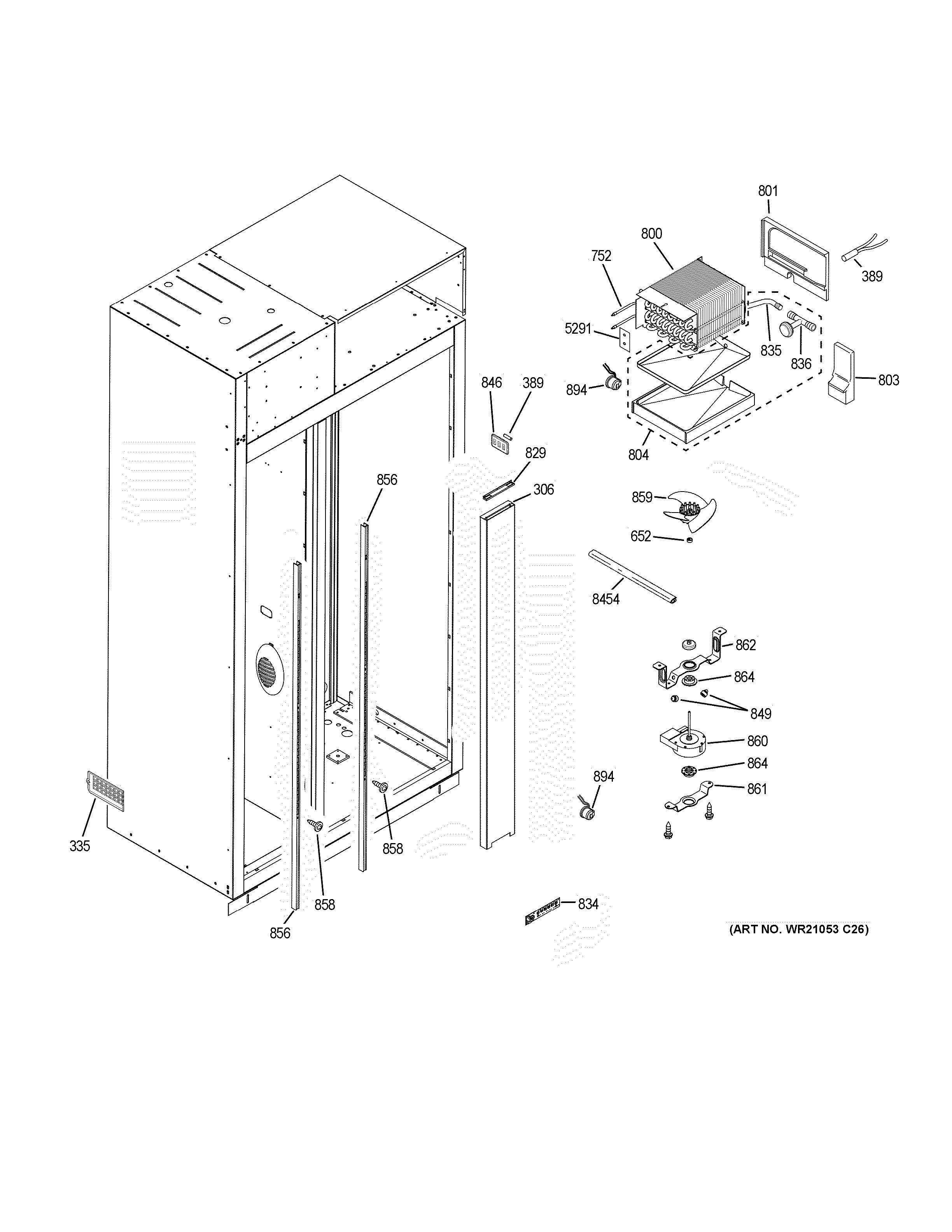

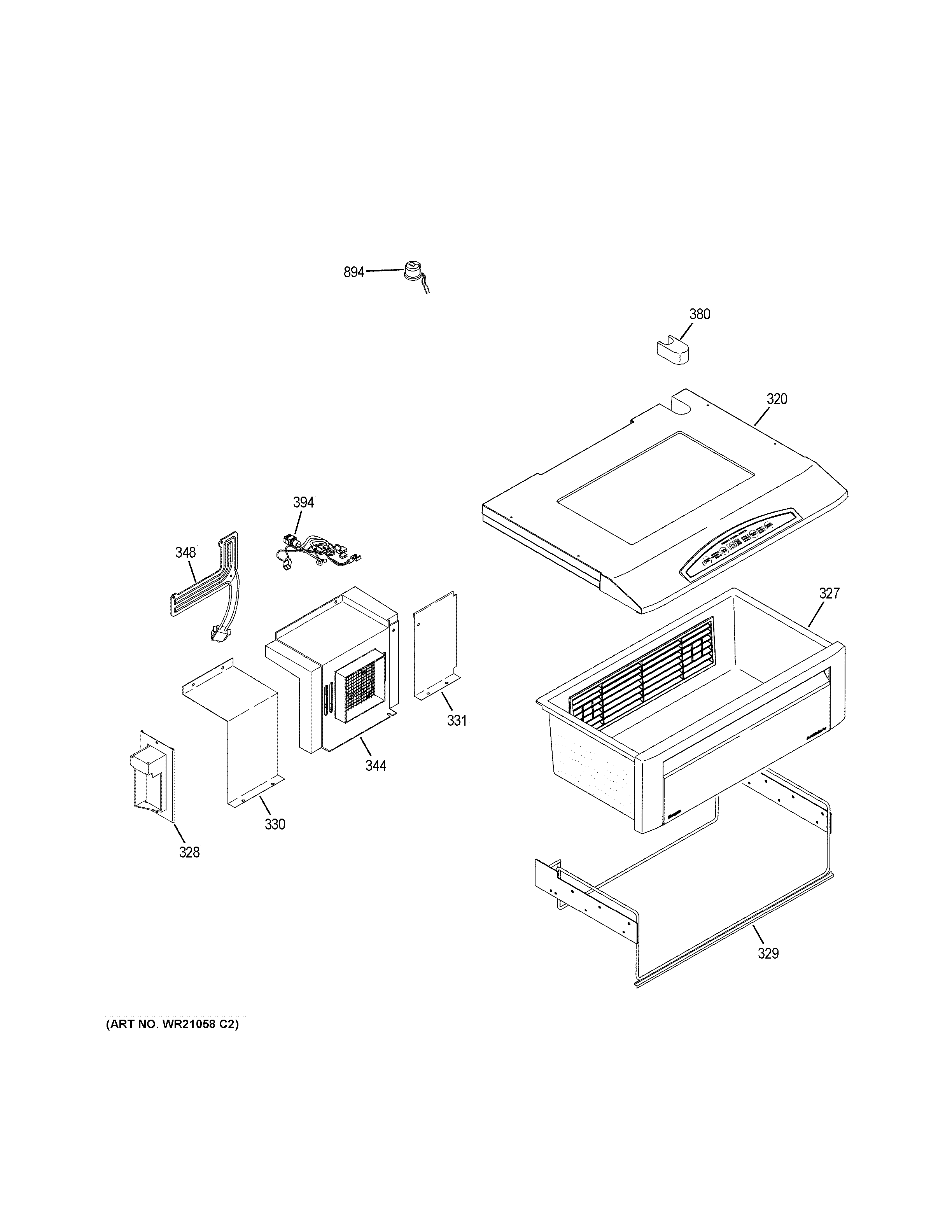

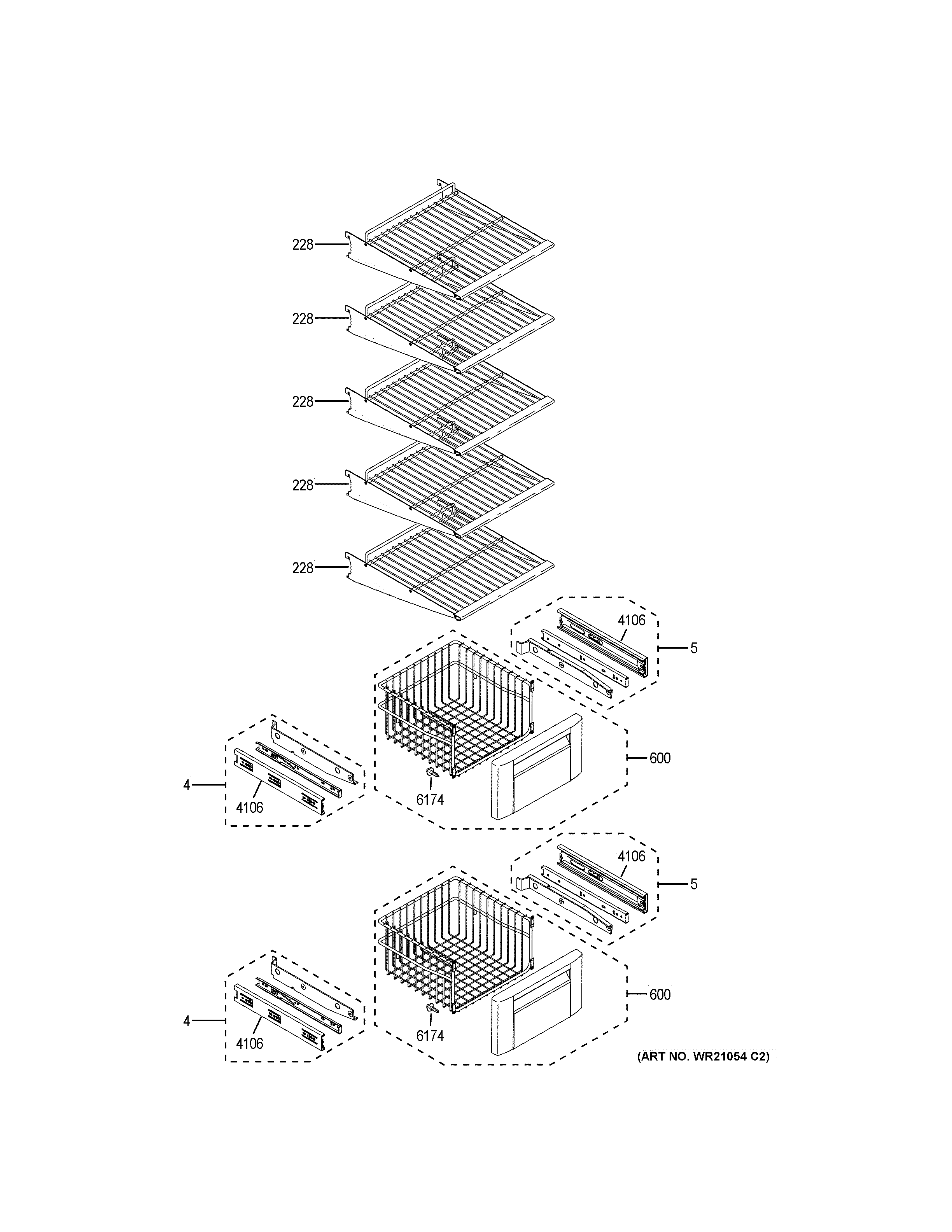

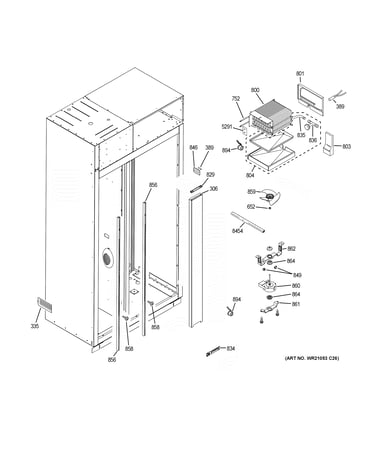

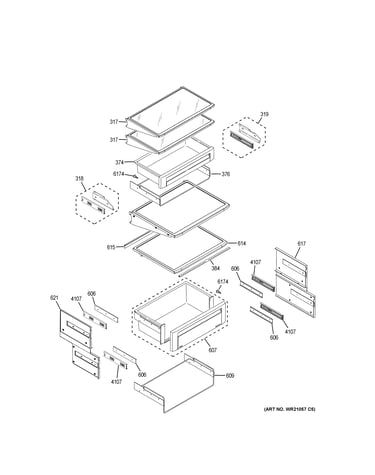

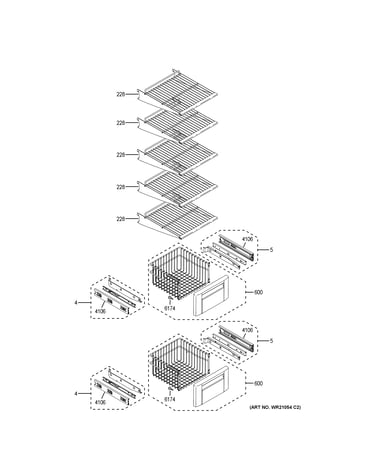

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Ice Maker WR30X28705
#810

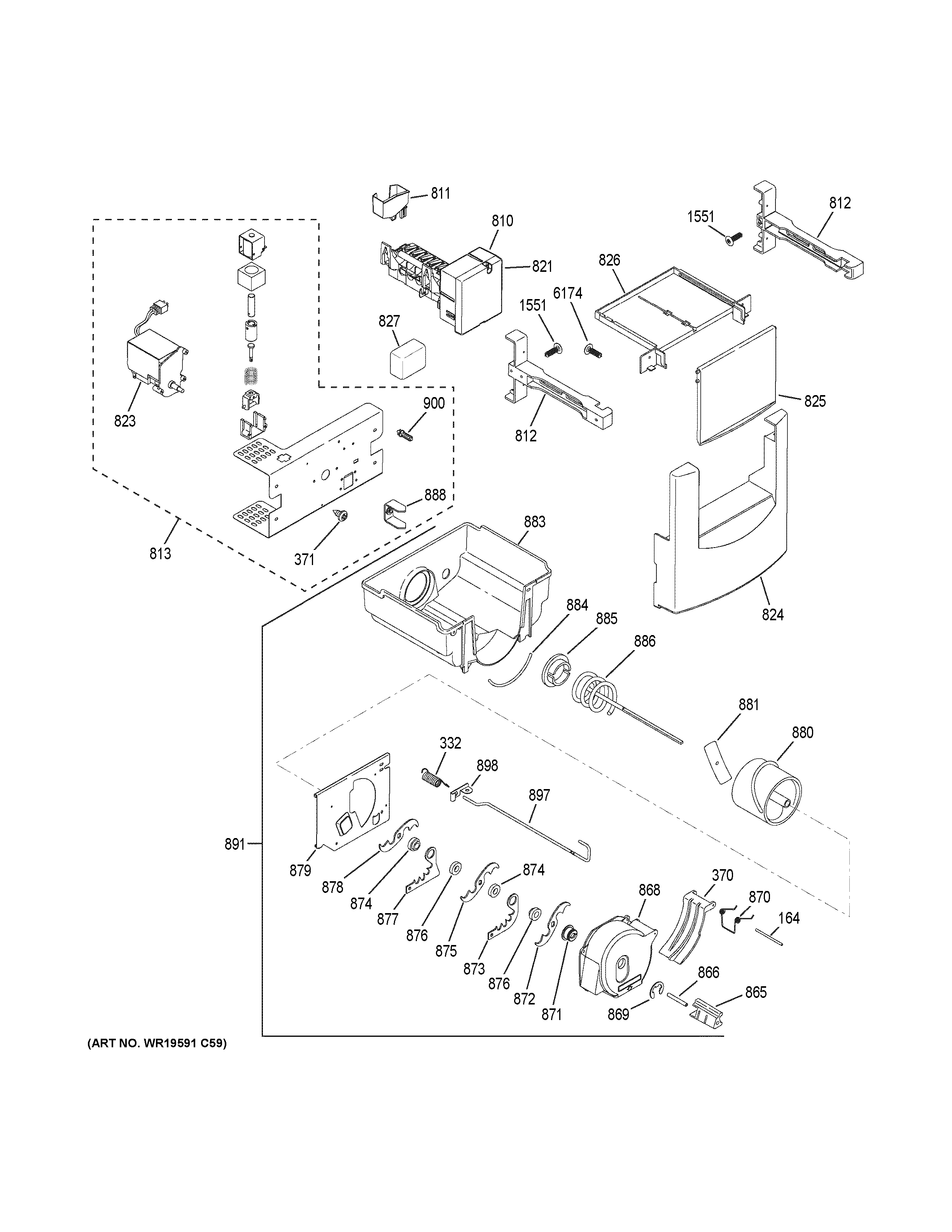

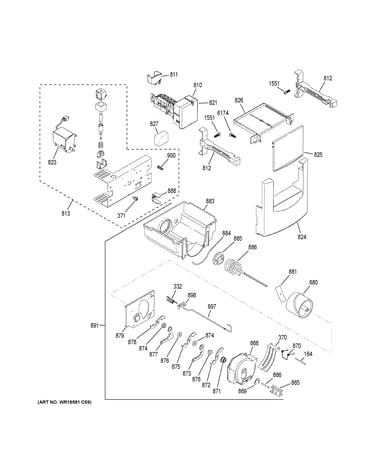

Ice maker & dispenser diagram

Ice maker

Part #WR30X28705

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X28705. Substitute parts can look different from the original.
BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Toe Kick WR74X10125
#706

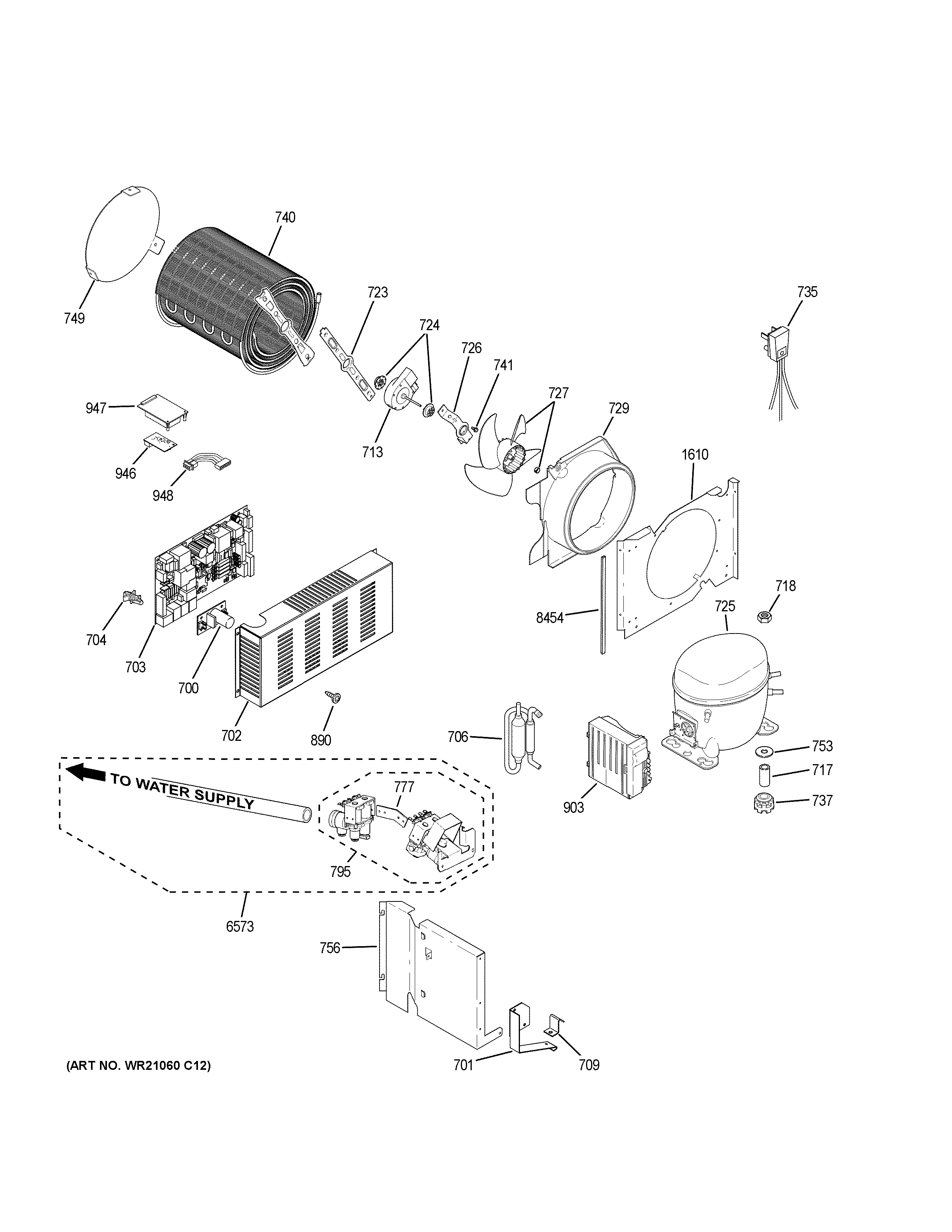

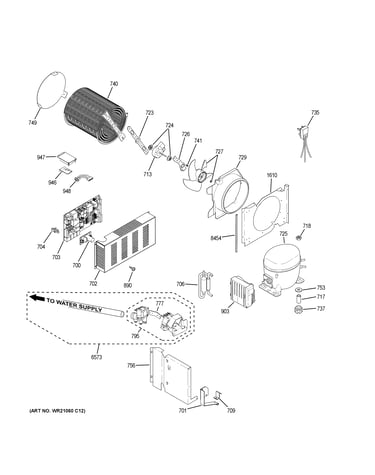

Machine compartment diagram

Toe kick

Part #WR74X10125

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR74X10125. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Dr Reces Asm WR17X3093
#119

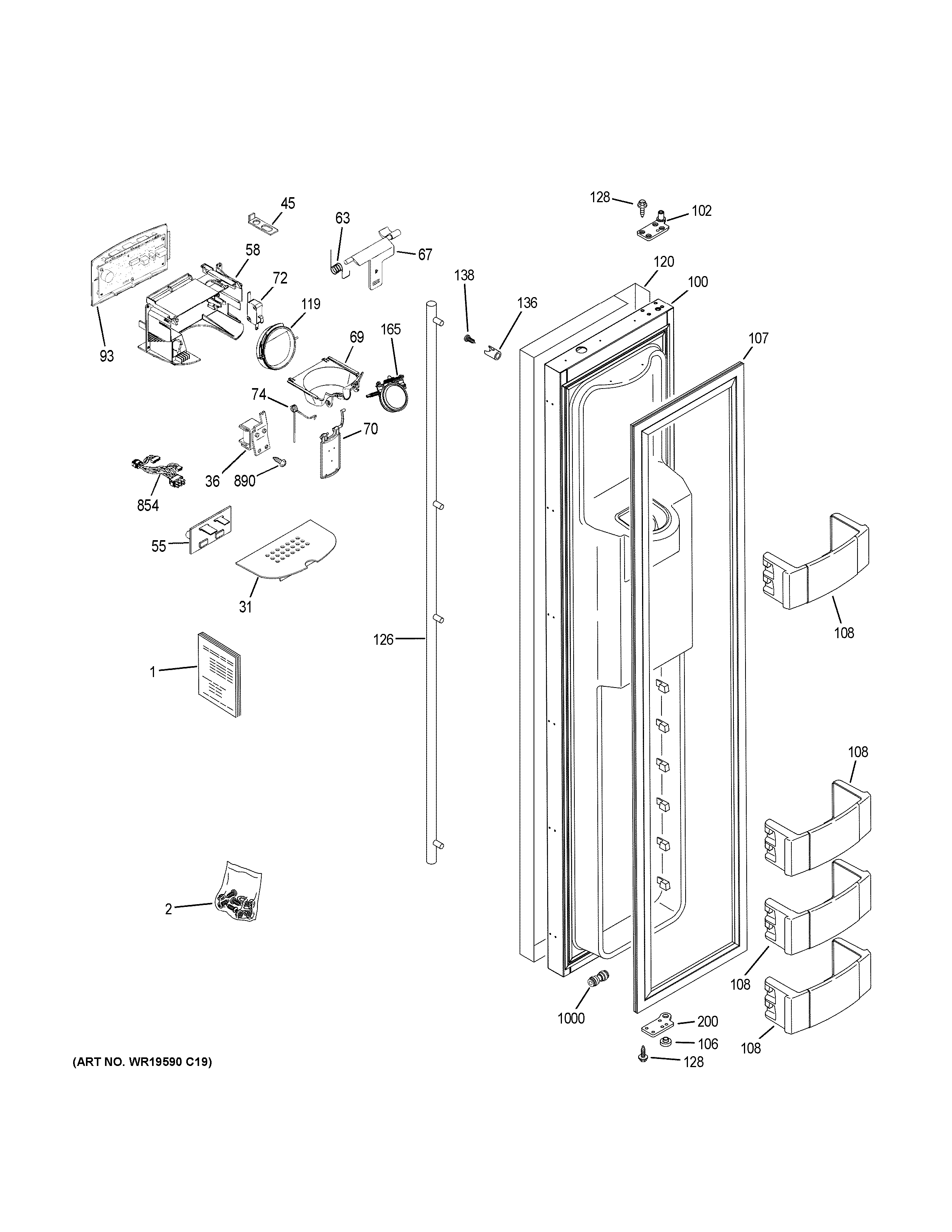

Freezer door diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Ge Profile Refrigerator Dispenser Ice Chute Door Crank WR17X10706
#67

Freezer door diagram

Ge profile refrigerator dispenser ice chute door crank

Part #WR17X10706

BEST SELLER
This item is not returnable
$6.86 |
13% OFF Phone Price : $7.86
In Stock
Refrigerator Water Filter MWFP
#303

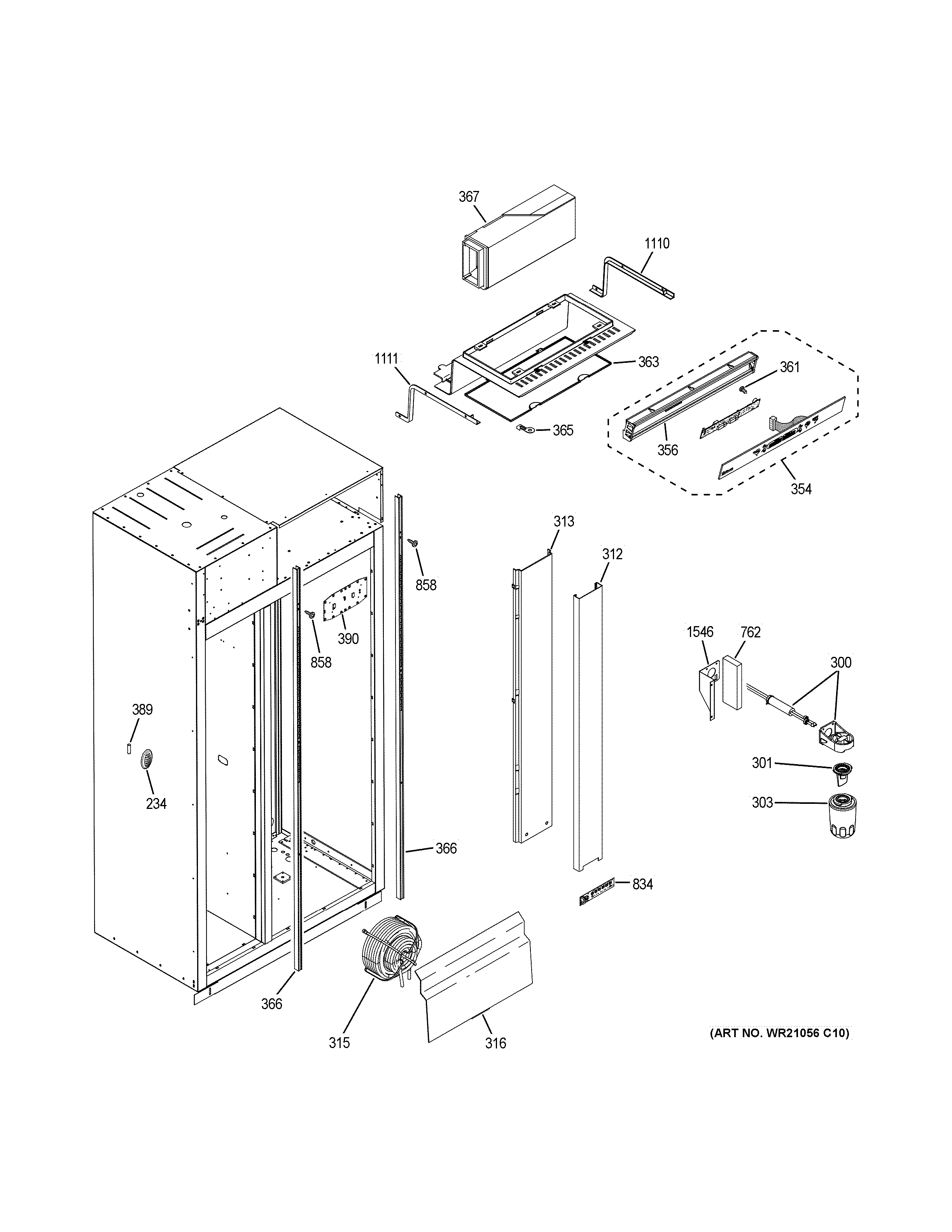

Fresh food section diagram

Refrigerator water filter

Part #MWFP

BEST SELLER
$64.22
In Stock
Ge Profile Refrigerator Dispenser Lever Spring WR02X10585
#63

Freezer door diagram

Ge profile refrigerator dispenser lever spring

Part #WR02X10585

BEST SELLER
$7.91 |
11% OFF Phone Price : $8.91
In Stock
Refrigerator Defrost Bi-metal Thermostat WR50X29776
Refrigerator defrost bi-metal thermostat

Part #WR50X29776

BEST SELLER
$54.62 |
10% OFF Phone Price : $60.62
In Stock
Board T Main Sxs Vs Bi WR55X27071
#703

Machine compartment diagram

Board t main sxs vs bi

Part #WR55X27071

Replaced by #WR55X41845

?
Manufacturer substitution
This part replaces WR55X27071. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$238.96
In Stock
Refrigerator Dispenser Switch (replaces Wr23x10224) WR23X10783
#72

Freezer door diagram

Refrigerator dispenser switch (replaces wr23x10224)

Part #WR23X10783

BEST SELLER
$57.84 |
9% OFF Phone Price : $63.84
In Stock
