Model # LGQ8857JQ3 Official Whirlpool dryer

Here are the diagrams and repair parts for Official Whirlpool LGQ8857JQ3 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Dryer Thermal Fuse 3392519
#7

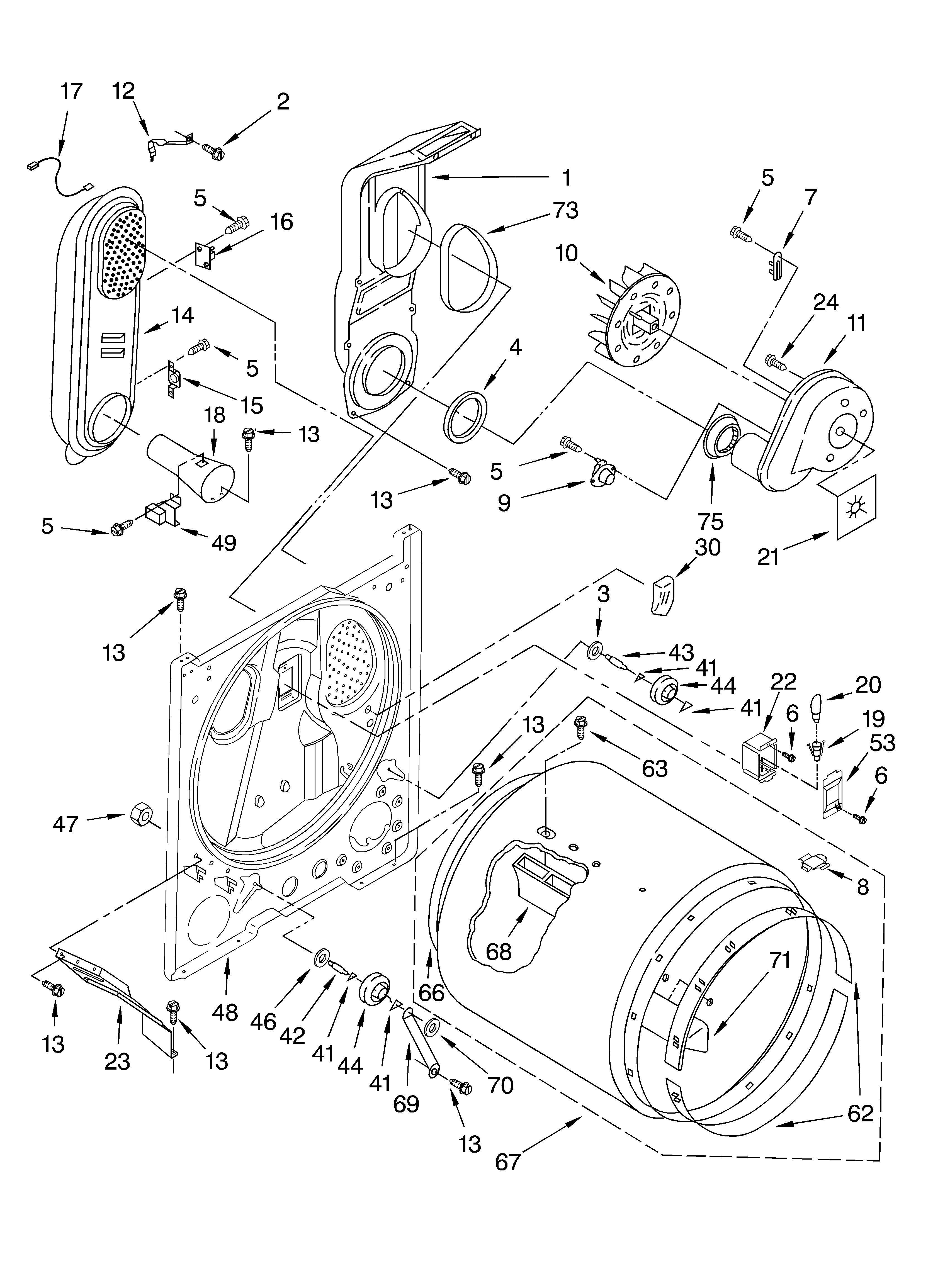

Bulkhead diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Dryer Drum Belt 8066065
#56

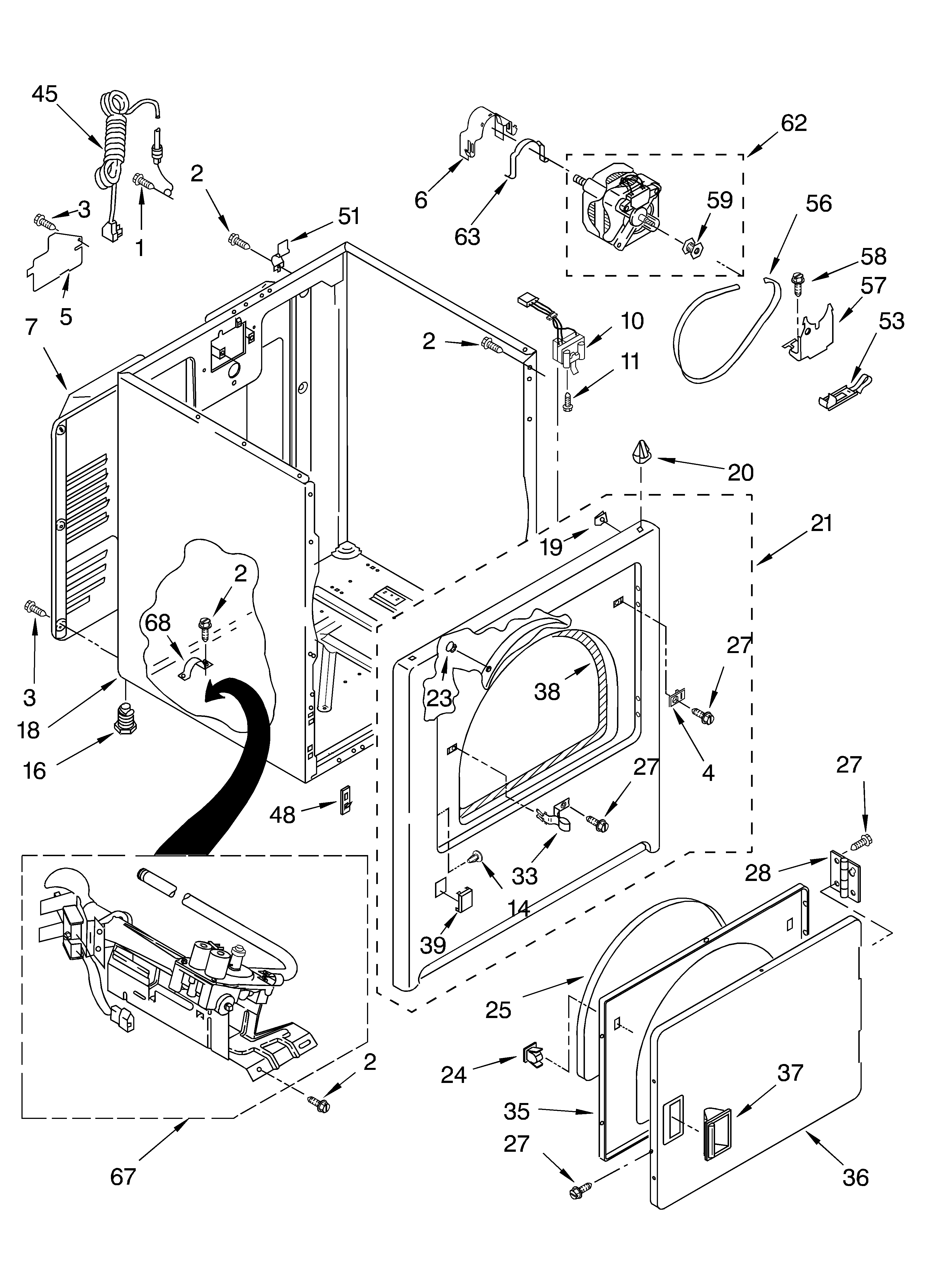

Cabinet diagram

Dryer drum belt

Part #8066065

Replaced by #341241

?
Manufacturer substitution
This part replaces 8066065. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Dryer Valve Coil Kit 694540
#13

8318272 burner diagram

Dryer valve coil kit

Part #694540

Replaced by #279834

?
Manufacturer substitution
This part replaces 694540. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Dryer Gas Valve Coil Kit 694539
#14

8318272 burner diagram

Dryer gas valve coil kit

Part #694539

Replaced by #279834

?
Manufacturer substitution
This part replaces 694539. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Idler Pulley 3394332
#53

Cabinet diagram

Idler pulley

Part #3394332

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 3394332. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Dryer Repair Kit 279948
#NI

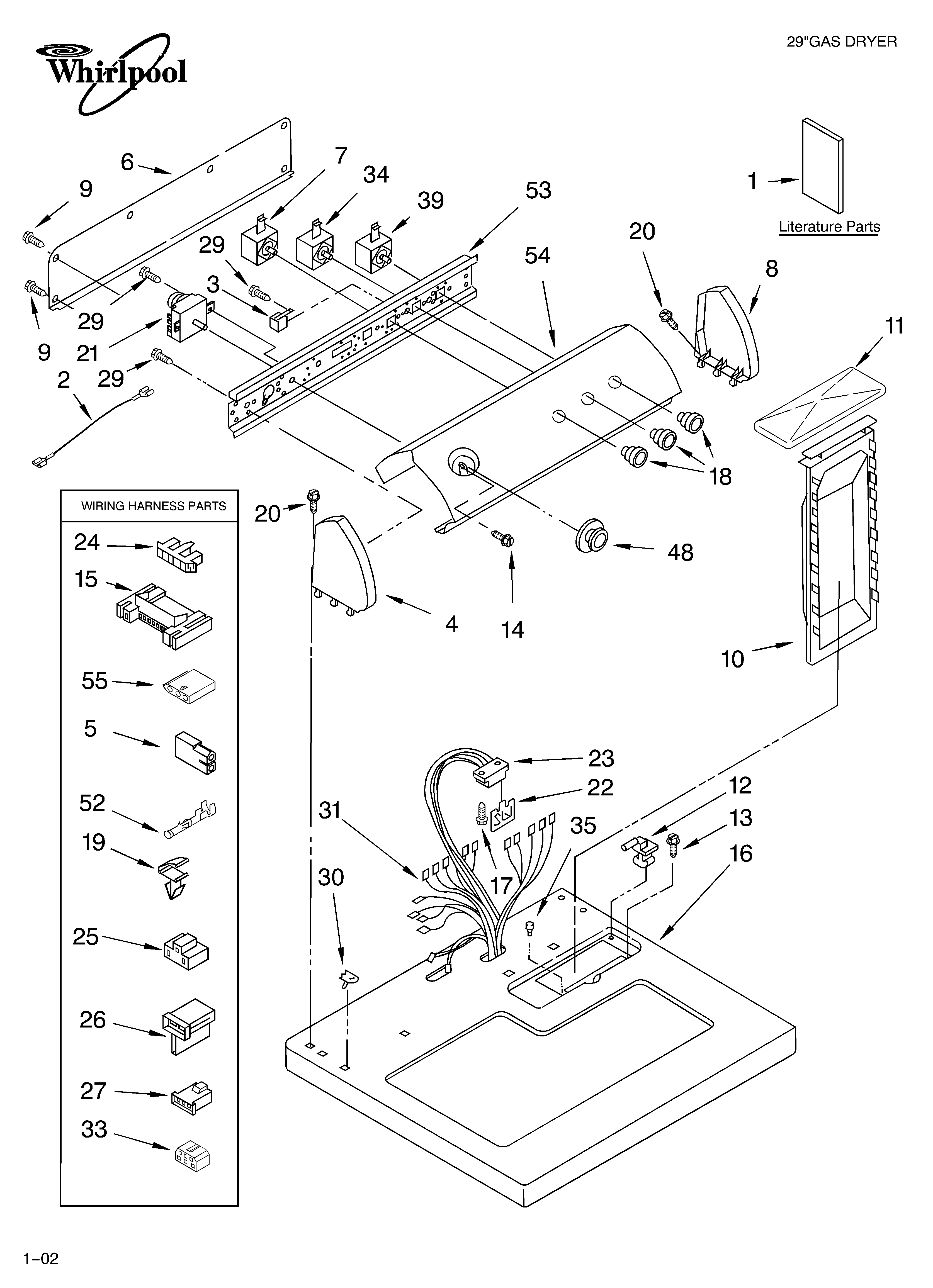

Top and console/literature diagram
