Model # 315243000 Official Craftsman 10" compound miter saw

Here are the diagrams and repair parts for Official Craftsman 315243000 10" compound miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

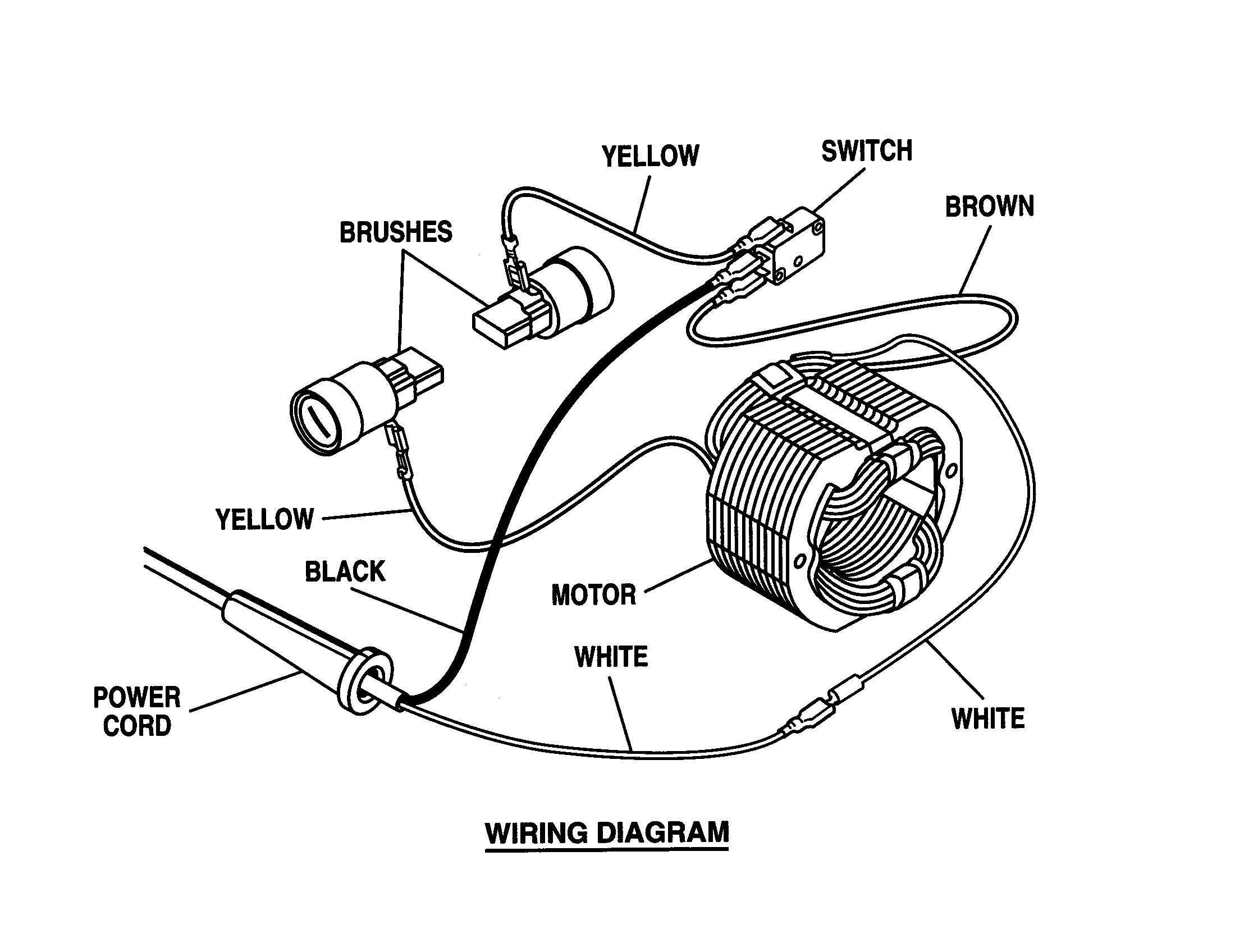

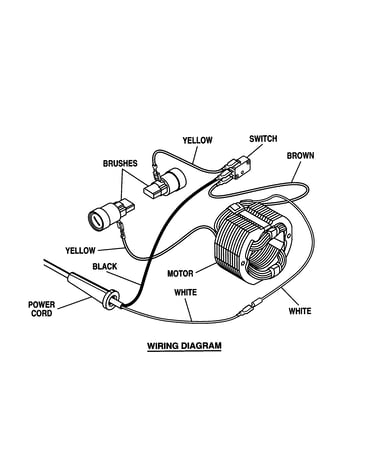

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |

Screw 180031-002
#8

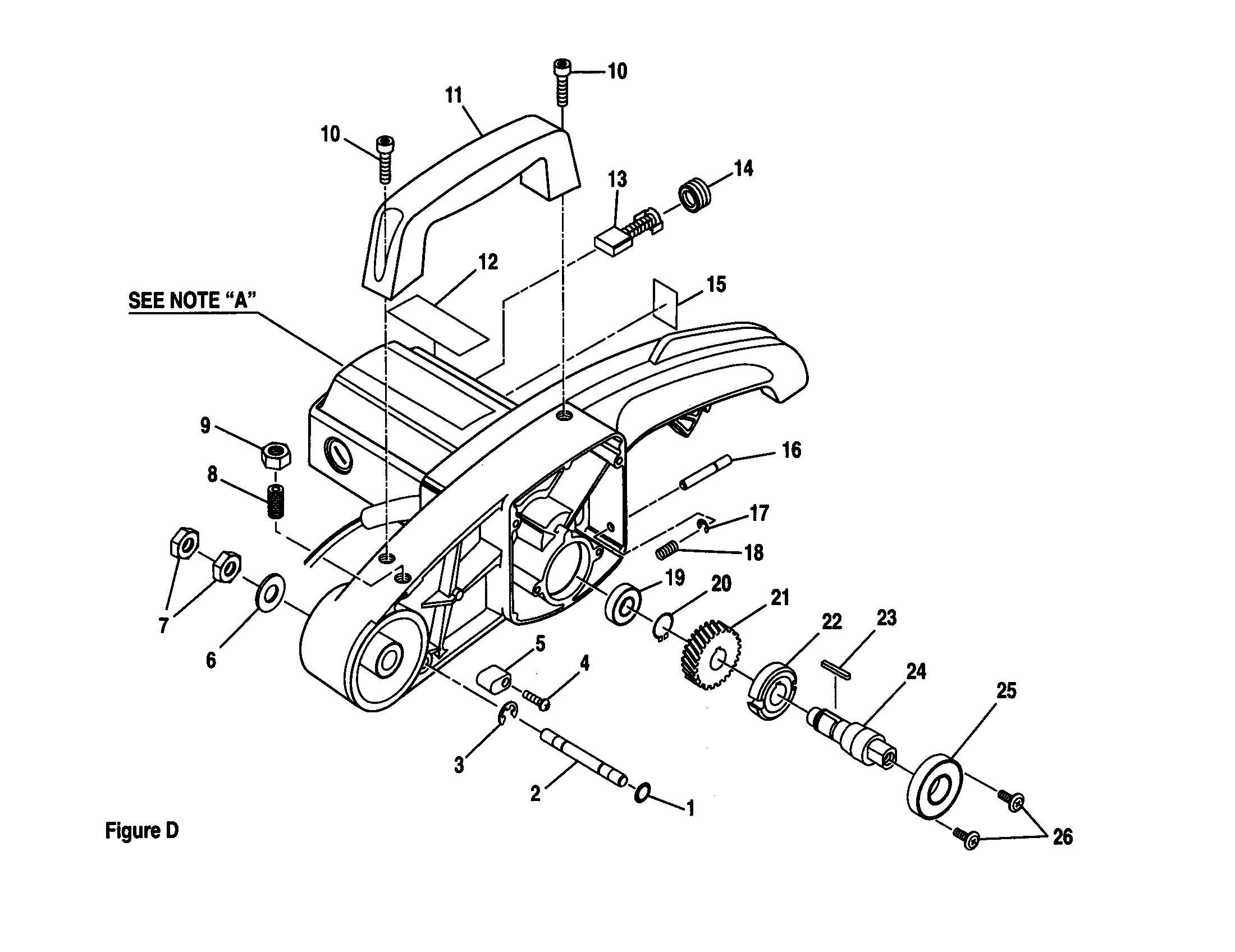

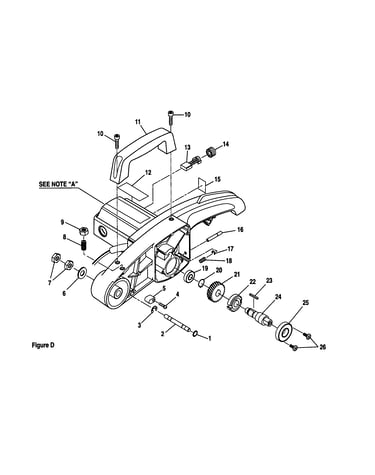

Handle diagram

Screw

Part #180031-002

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 976576-001
#2

Handle diagram

Lock pin

Part #976576-001

The manufacturer no longer makes this part, and there's no substitute part

6 Hex Key 976605-001
#28

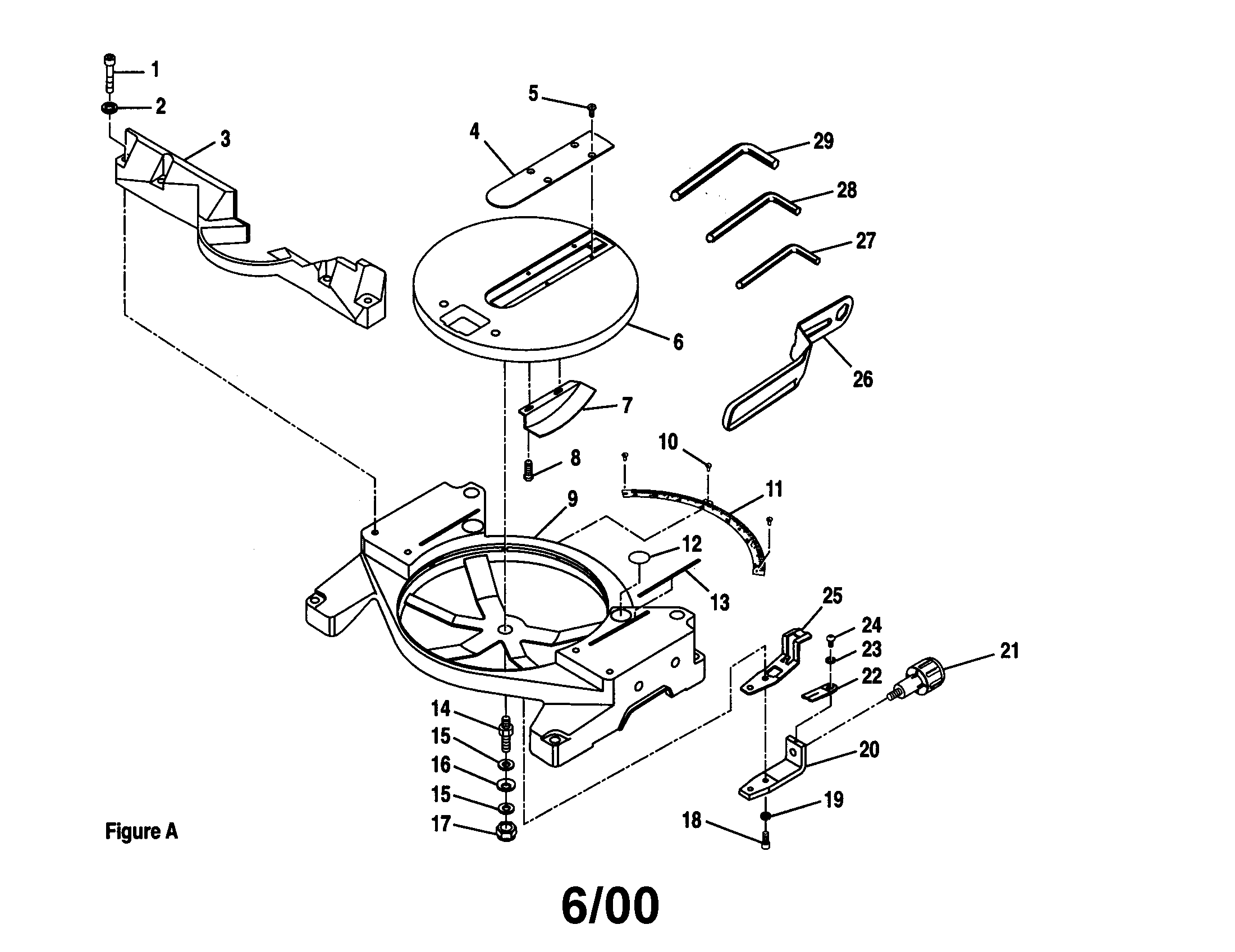

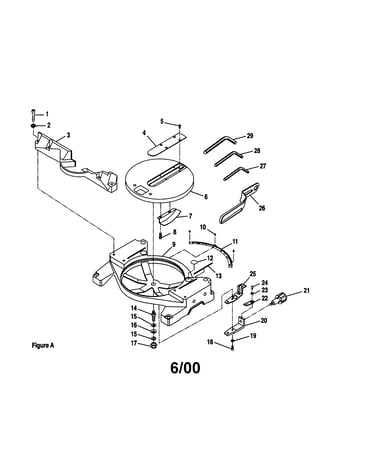

Table/cover plate diagram

6 hex key

Part #976605-001

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade Cover Bolt 976600-001
#10

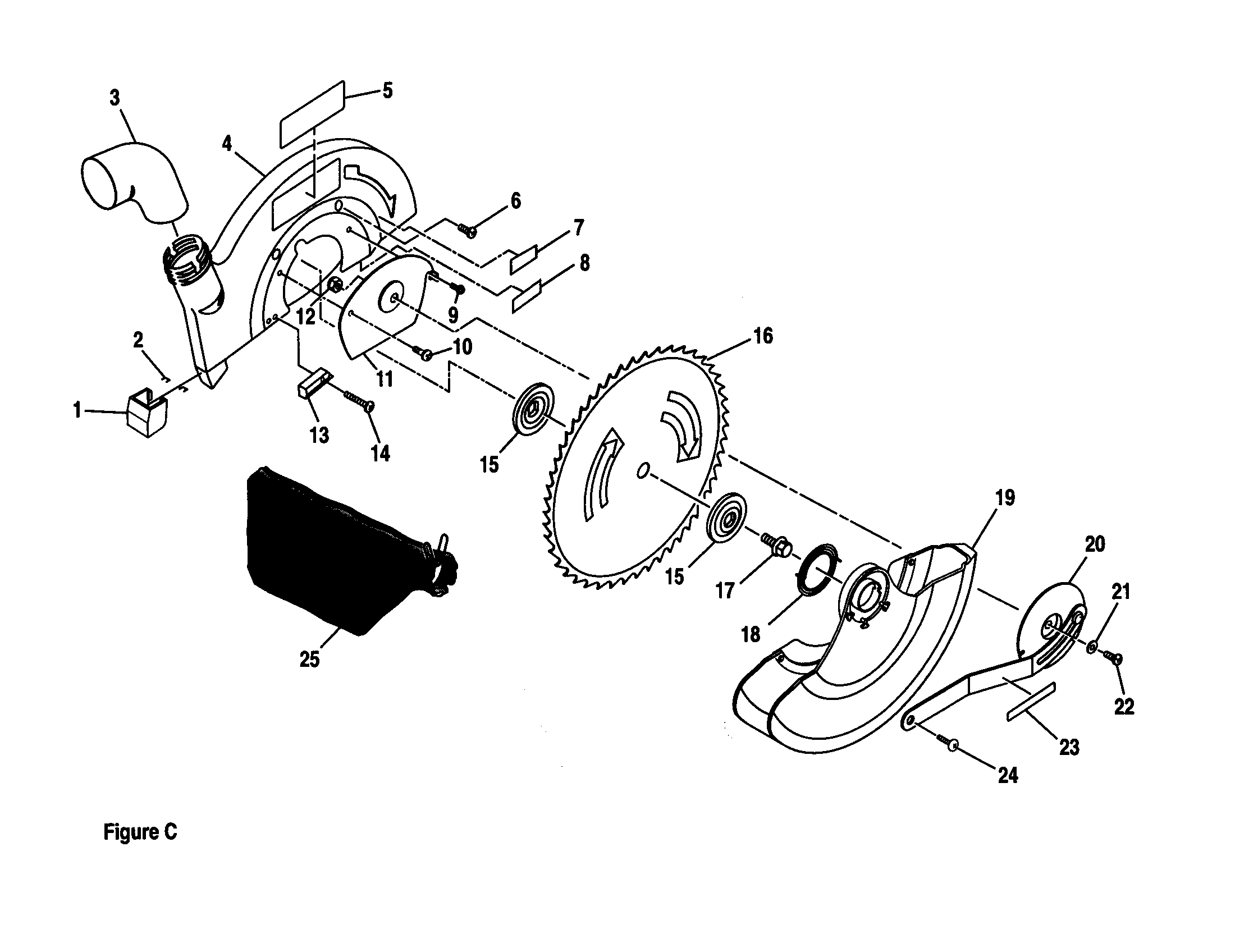

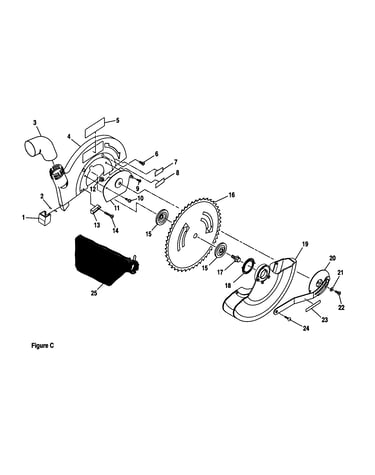

Blade guards/blade diagram

Miter saw blade cover bolt

Part #976600-001

The manufacturer no longer makes this part, and there's no substitute part

E-ring 976651-001
#17

Handle diagram

E-ring

Part #976651-001

The manufacturer no longer makes this part, and there's no substitute part

Dust Guide 976567-001
#3

Blade guards/blade diagram

Dust guide

Part #976567-001

The manufacturer no longer makes this part, and there's no substitute part

Pointer 976525-001
#13

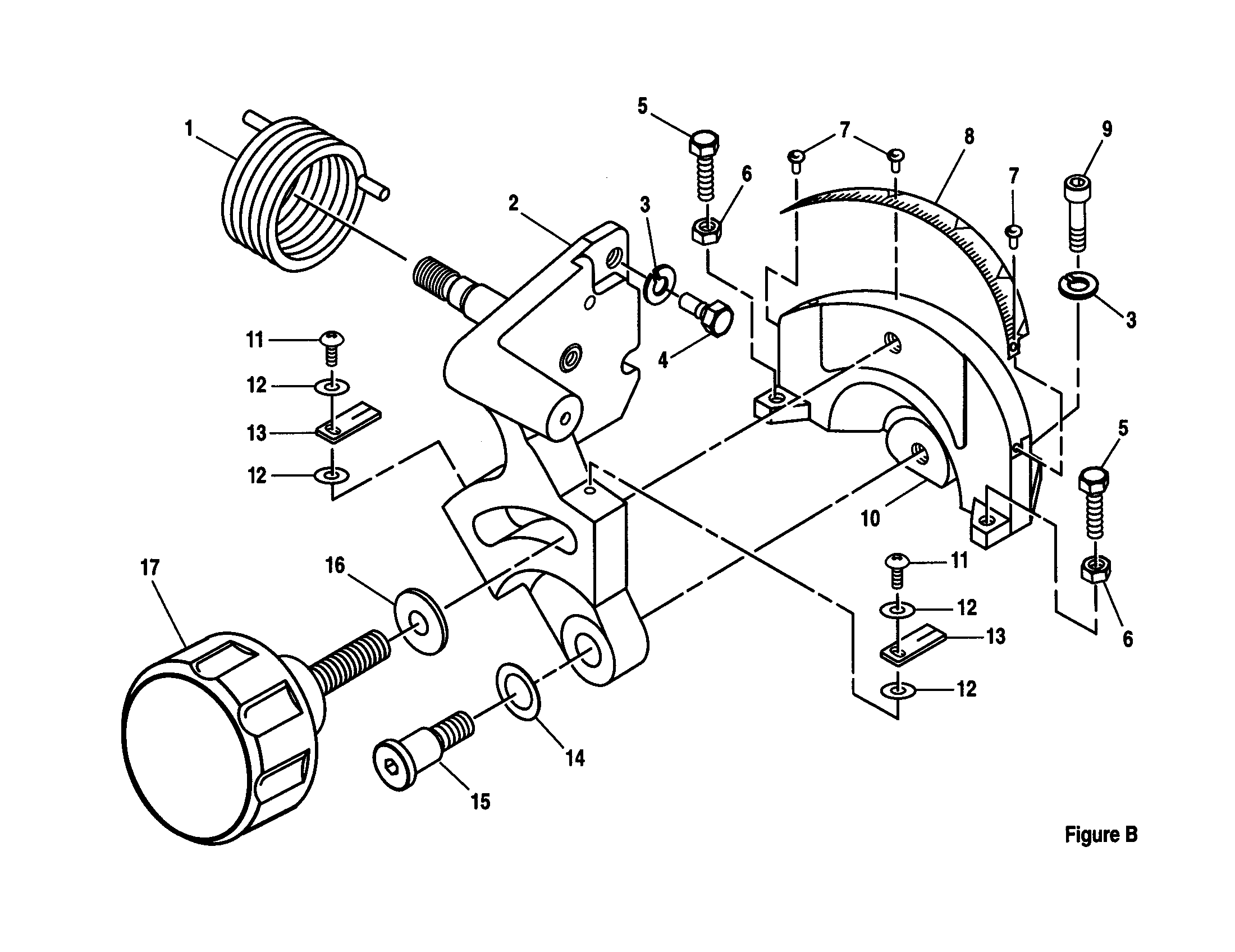

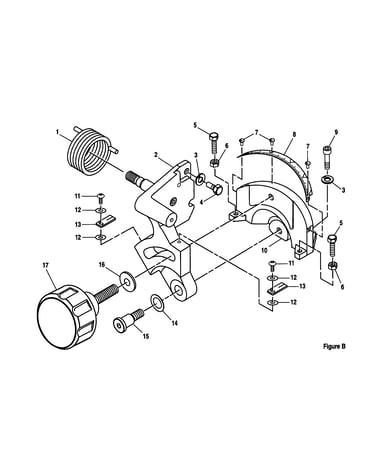

Bevel pivot bracket assembly diagram

Pointer

Part #976525-001

The manufacturer no longer makes this part, and there's no substitute part

Handle 976505-001
#21

Table/cover plate diagram

Handle

Part #976505-001

The manufacturer no longer makes this part, and there's no substitute part

Square Key 976654-001
#23

Handle diagram

Square key

Part #976654-001

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 578313-006
#24

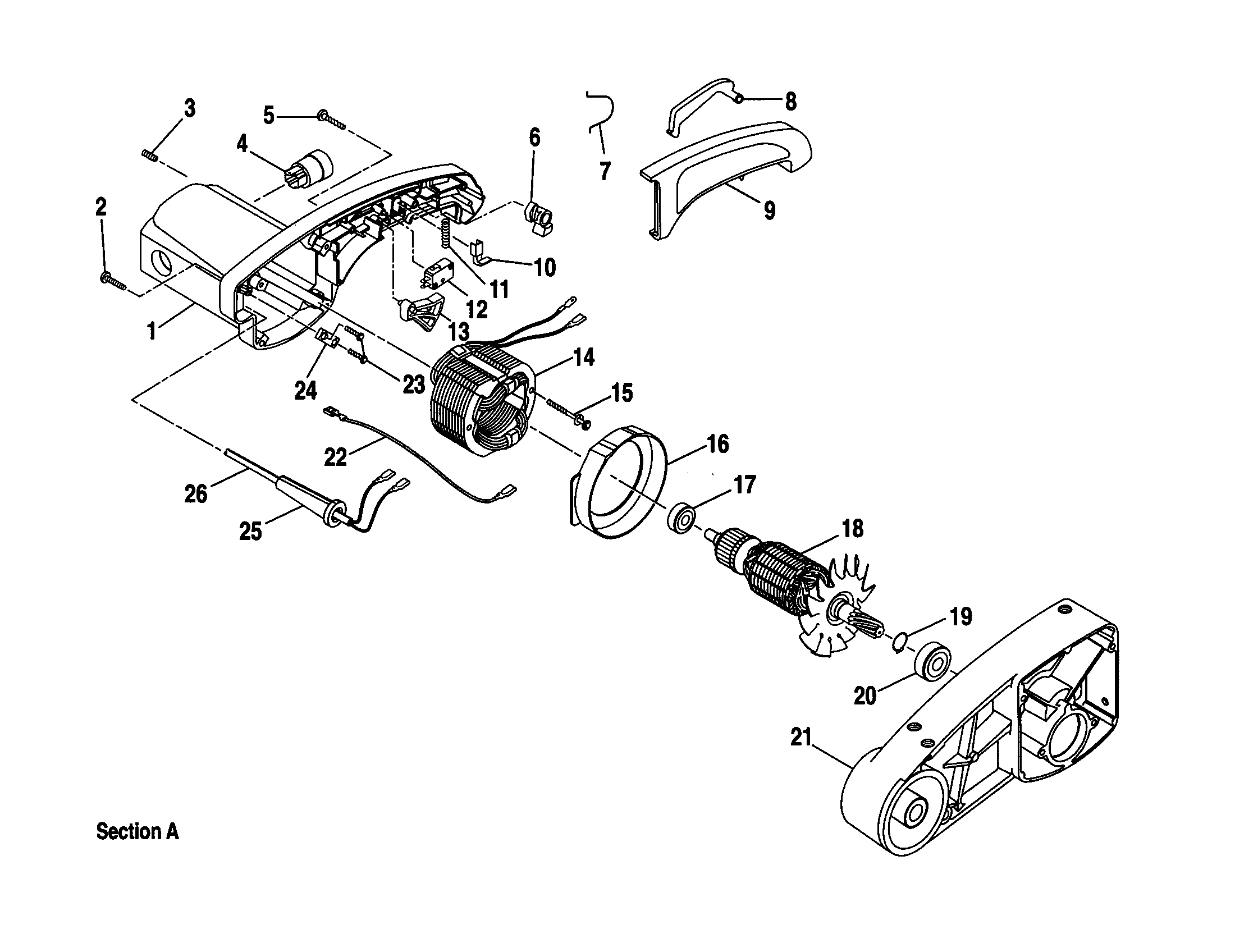

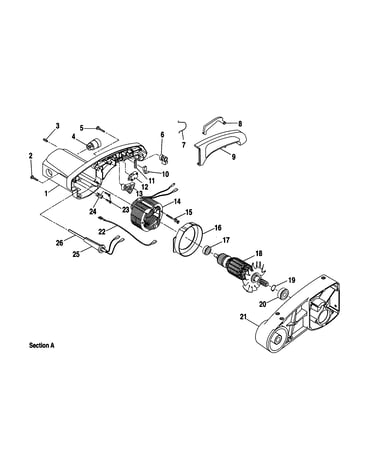

Motor assembly diagram

Cord clamp

Part #578313-006

The manufacturer no longer makes this part, and there's no substitute part
