Model # VVXR1040T2AB Official Hotpoint washer

Here are the diagrams and repair parts for Official Hotpoint VVXR1040T2AB washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Split Ring WH2X1195
#313

Tub, basket & agitator diagram

Split ring

Part #WH2X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH2X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Tub Mounting Hub Washer (replaces Wh02x1199) WH2X1199
#315

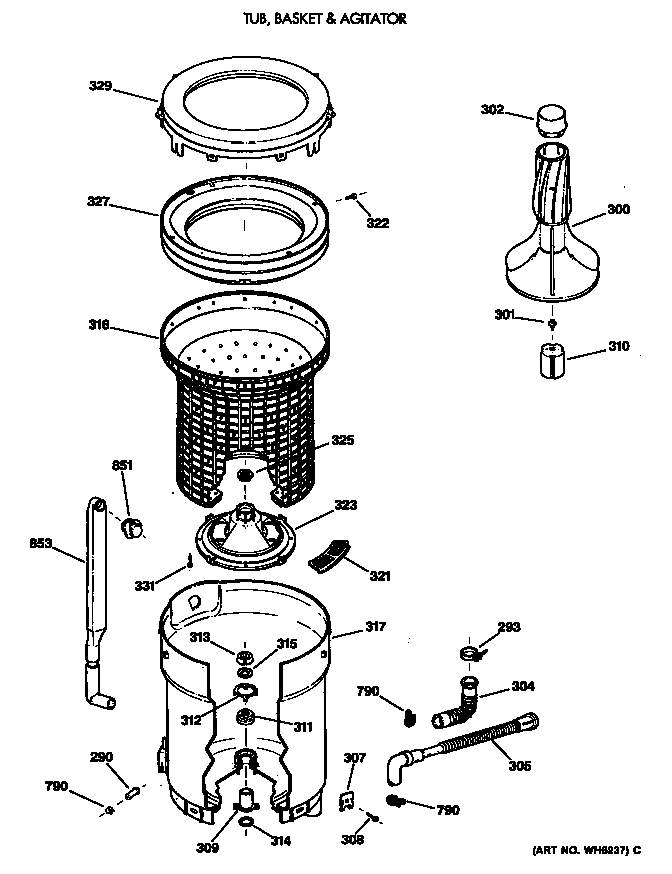

Tub, basket & agitator diagram

Washer tub mounting hub washer (replaces wh02x1199)

Part #WH2X1199

BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Pump Bracket Label WH23X81
#650

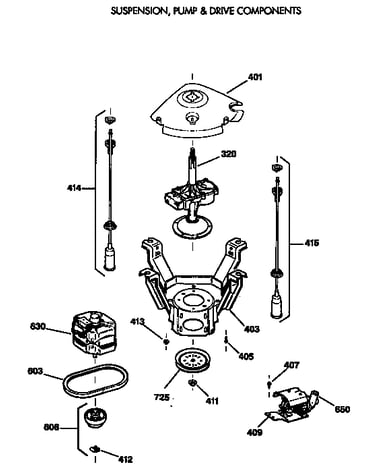

Suspension, pump & drive components diagram

Pump bracket label

Part #WH23X81

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X81. Substitute parts can look different from the original.
BEST SELLER
$62.84 |
9% OFF Phone Price : $68.84
In Stock
Washer Dampening Strap (replaces Wh01x2727) WH1X2727
#370

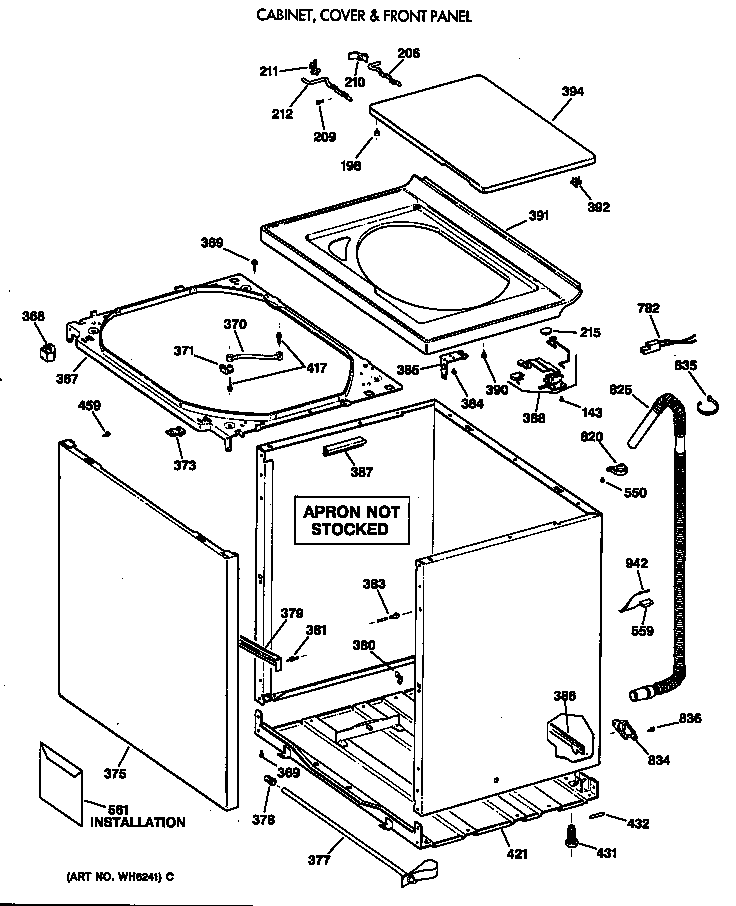

Cabinet, cover & front panel diagram

Washer dampening strap (replaces wh01x2727)

Part #WH1X2727

BEST SELLER
$10.16 |
16% OFF Phone Price : $12.16
In Stock
Washer Timer Knob Clip (replaces Wh01x2117, Wh1x1499, Wh1x1610, Wh2x561) WH1X2117
#9

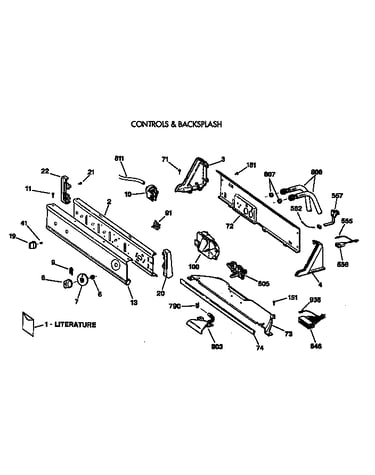

Controls & backsplash diagram

Washer timer knob clip (replaces wh01x2117, wh1x1499, wh1x1610, wh2x561)

Part #WH1X2117

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Drive Belt (replaces Wh01x2026, Wh1x1904) WH1X2026
#603

Suspension, pump & drive components diagram

Washer drive belt (replaces wh01x2026, wh1x1904)

Part #WH1X2026

BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Washer Water-level Pressure Switch Hose (replaces Wh41x0365) WH41X365
#811

Controls & backsplash diagram

Washer water-level pressure switch hose (replaces wh41x0365)

Part #WH41X365

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Drain Hose Support Clip (replaces Wh16x0513) WH16X513
#834

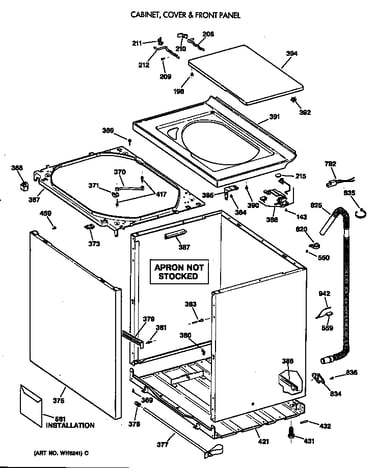

Cabinet, cover & front panel diagram

Washer drain hose support clip (replaces wh16x0513)

Part #WH16X513

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Scr&washer WH2X694
#417

Cabinet, cover & front panel diagram

Scr&washer

Part #WH2X694

Replaced by #WH2X694D

?
Manufacturer substitution
This part replaces WH2X694. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Washer Screw WH2X1201
#405

Suspension, pump & drive components diagram

Washer screw

Part #WH2X1201

$6.51 |
13% OFF Phone Price : $7.51
In Stock
