Amana
Upright Freezer

Model # AFU2004AW-PAFU2004AW0 Official Amana upright freezer

Here are the diagrams and repair parts for Official Amana AFU2004AW-PAFU2004AW0 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Use C3680308 R9800565
#1

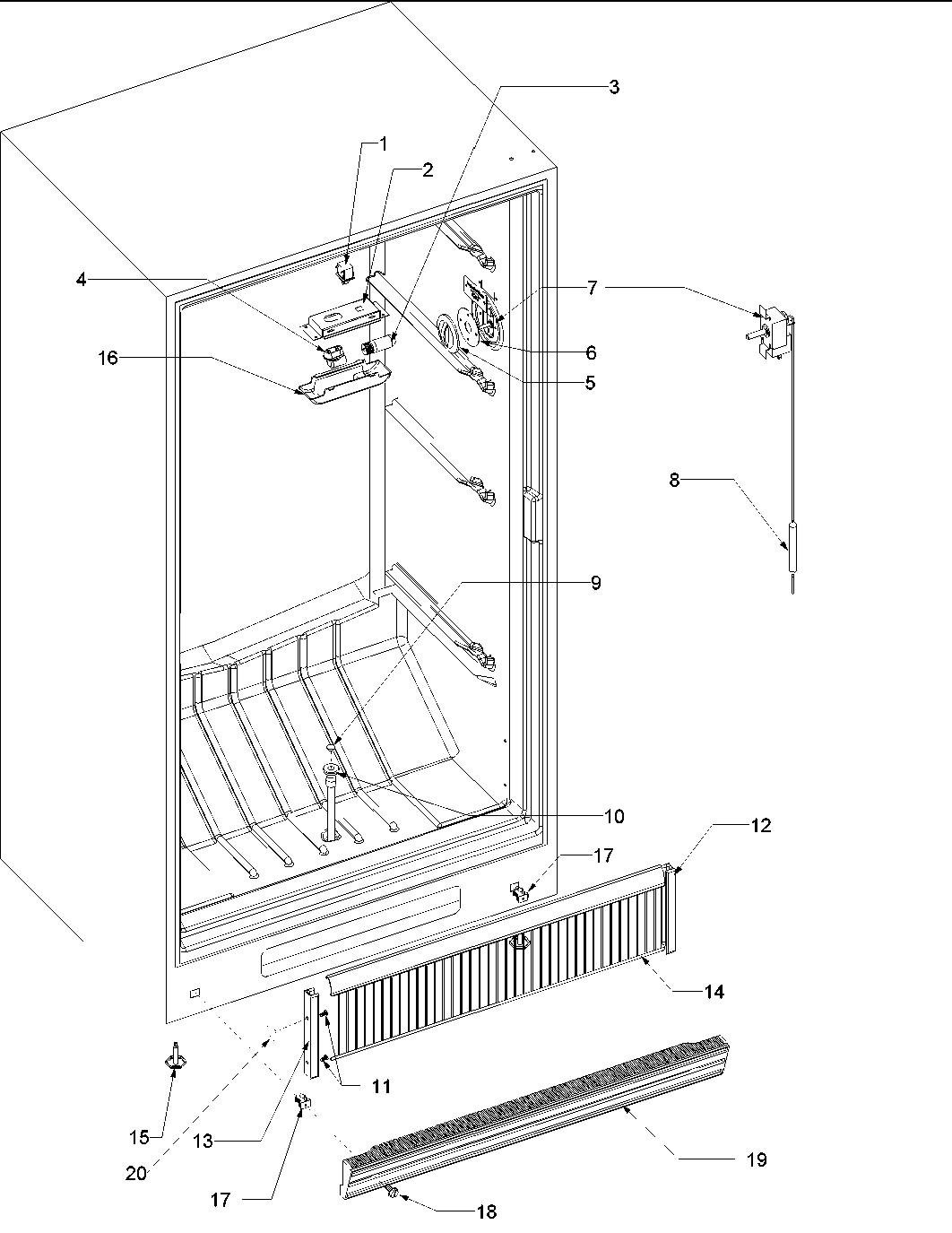

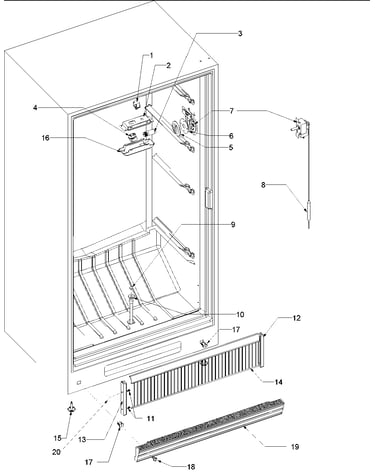

Freezer compartment diagram

Use c3680308

Part #R9800565

Replaced by #W11384469

?
Manufacturer substitution
This part replaces R9800565. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Capacitor Assembly R0213187
#9

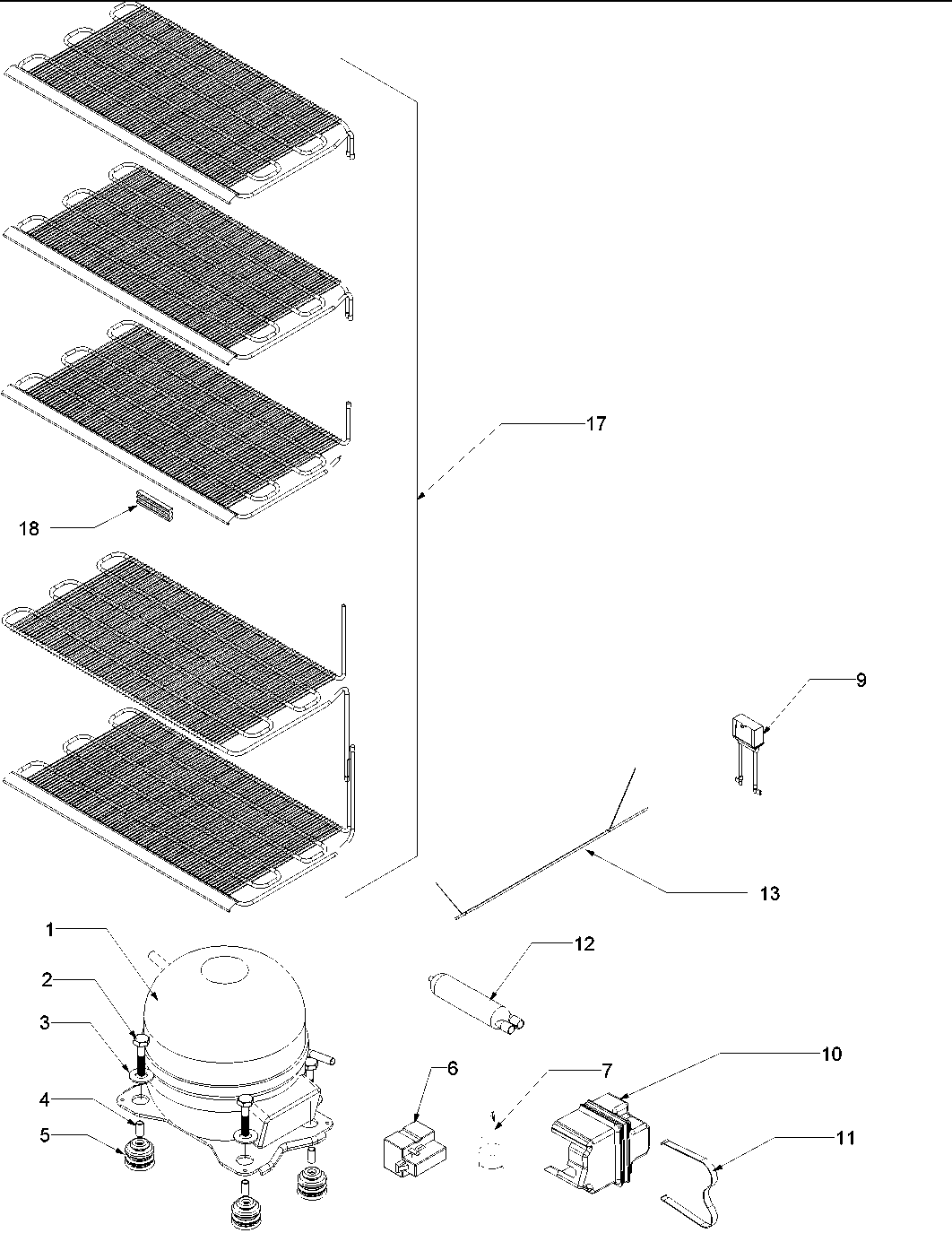

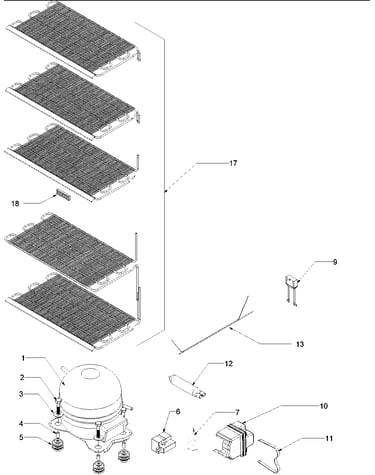

Machine compartment diagram

Capacitor assembly

Part #R0213187

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces R0213187. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Assy,compres R0131156
#1

Machine compartment diagram

Assy,compres

Part #R0131156

Replaced by #W10309994

?
Manufacturer substitution
This part replaces R0131156. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Use M0211533 R9800539
#28

Door assembly diagram

Use m0211533

Part #R9800539

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces R9800539. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Temperature Sleeve R0213106
#8

Freezer compartment diagram

Temperature sleeve

Part #R0213106

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces R0213106. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Gasket R0213256
#5

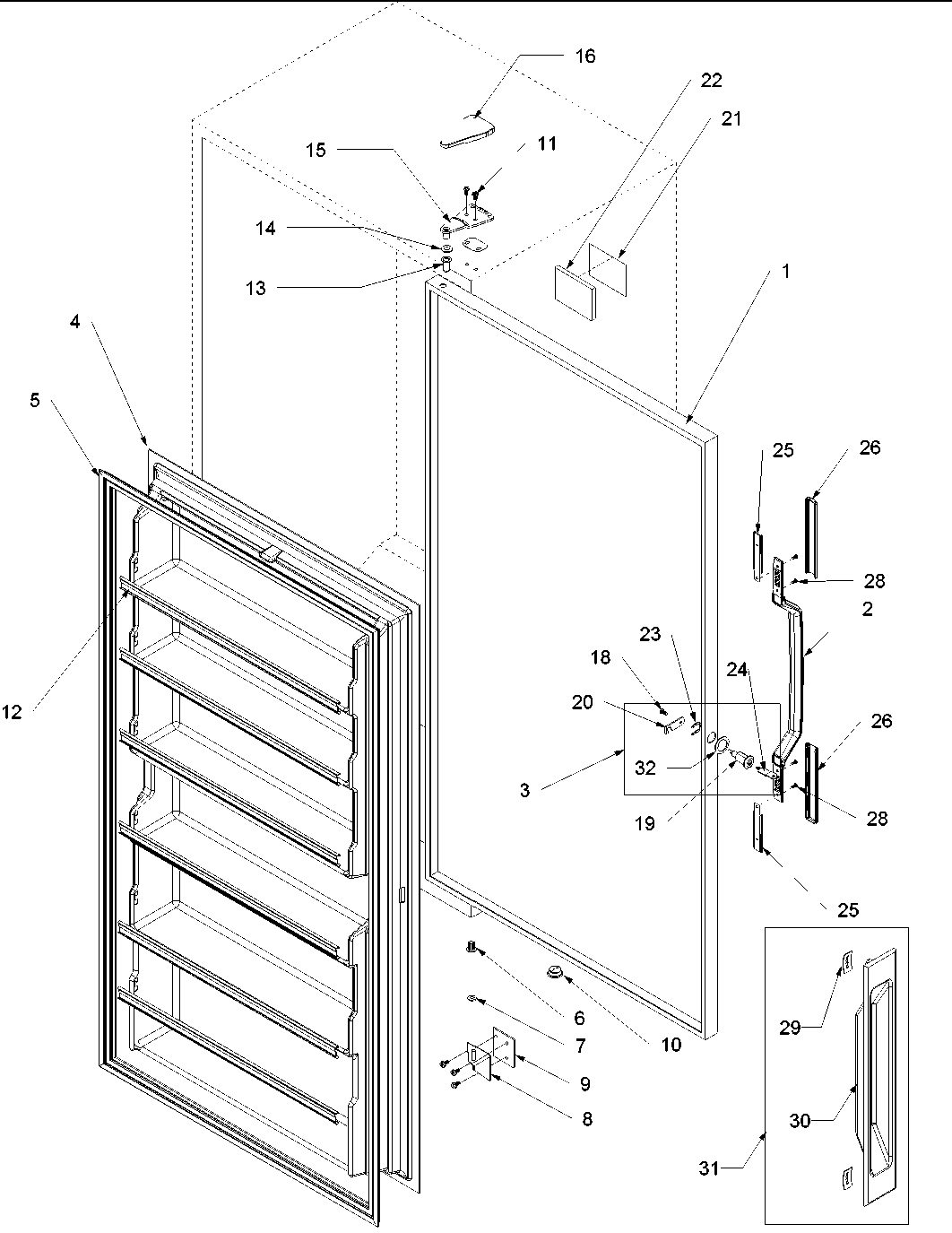

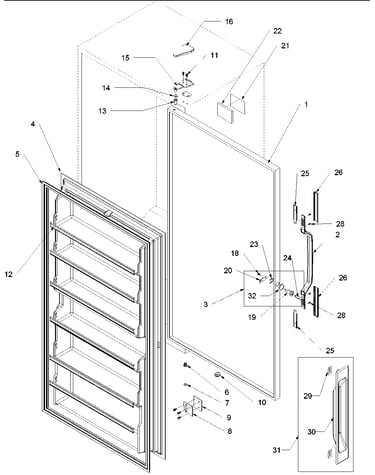

Door assembly diagram

Gasket

Part #R0213256

Replaced by #WP4-81049-001

?
Manufacturer substitution
This part replaces R0213256. Substitute parts can look different from the original.
$221.81 |
5% OFF Phone Price : $233.81
In Stock
Hi Washer R9800583
Hi washer

Part #R9800583

Replaced by #W10851331

?
Manufacturer substitution
This part replaces R9800583. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Kick Plate R0213261
#19

Freezer compartment diagram

Kick plate

Part #R0213261

Replaced by #WP4-60461-002

?
Manufacturer substitution
This part replaces R0213261. Substitute parts can look different from the original.
$43.99 |
12% OFF Phone Price : $49.99
In Stock
Use R9800553 R9800544
#20

Door assembly diagram

Use r9800553

Part #R9800544

Replaced by #3-35284-001

?
Manufacturer substitution
This part replaces R9800544. Substitute parts can look different from the original.
$20.56 |
23% OFF Phone Price : $26.56
In Stock
Drier B2150504
#12

Machine compartment diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
$76.50 |
7% OFF Phone Price : $82.50
In Stock
