Model # SE950PEKW0 Official Whirlpool gas range
Here are the diagrams and repair parts for Official Whirlpool SE950PEKW0 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

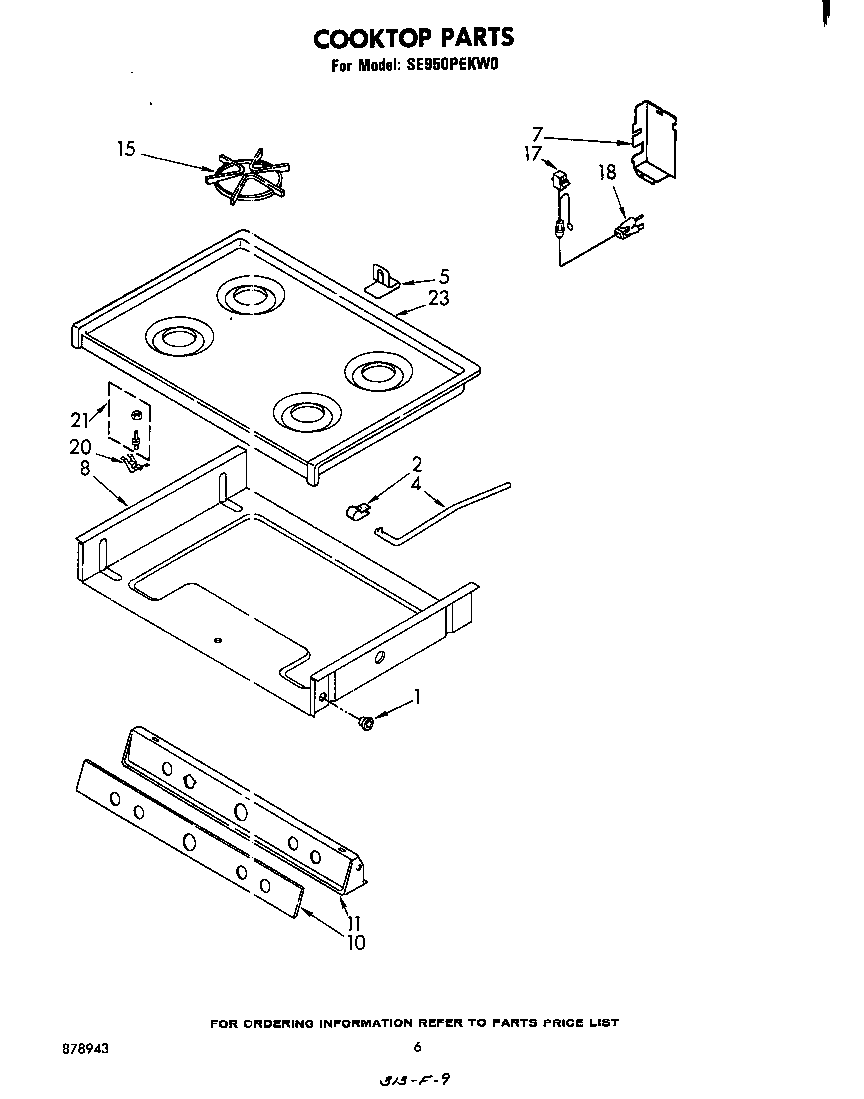

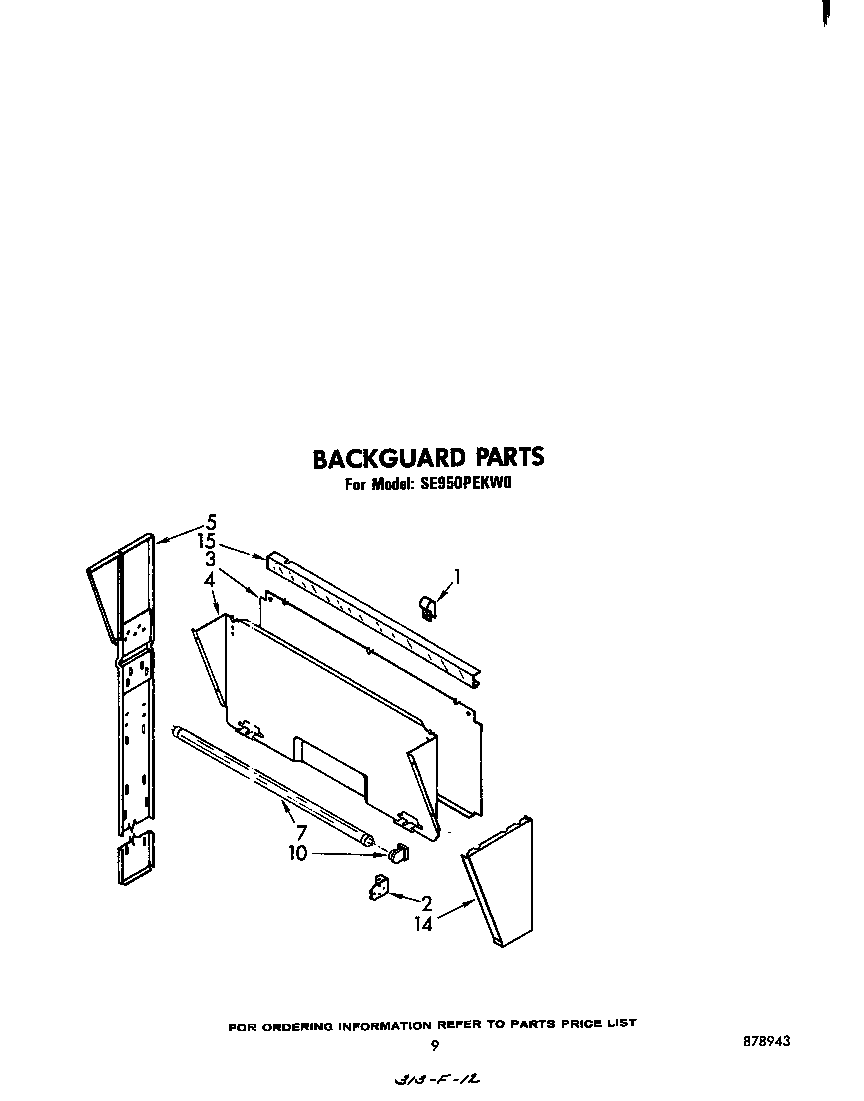

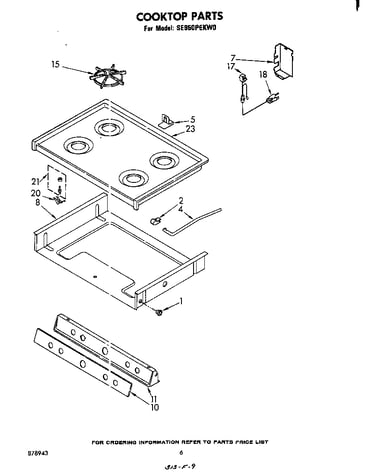

SELECT DIAGRAM
Browse Parts forSE950PEKW0 Ranges
- Light bulb
Part #878937
Replaced by #8009
?Manufacturer substitutionThis part replaces 878937. Substitute parts can look different from the original.This item is not returnable$12.57 |14% OFF Phone Price : $14.57In Stock - #3

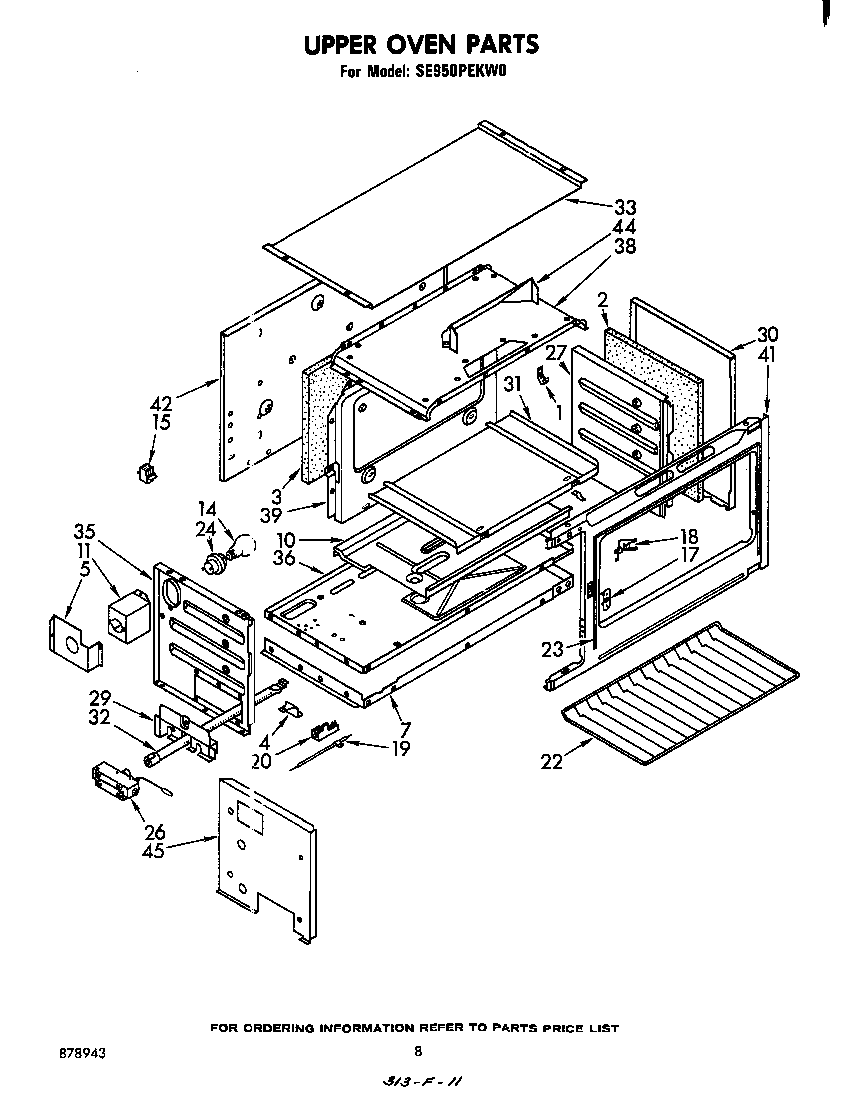

Upper oven diagram
InsulationPart #878445
Replaced by #WPW10208653
?Manufacturer substitutionThis part replaces 878445. Substitute parts can look different from the original.$39.39 |13% OFF Phone Price : $45.39In Stock - #5

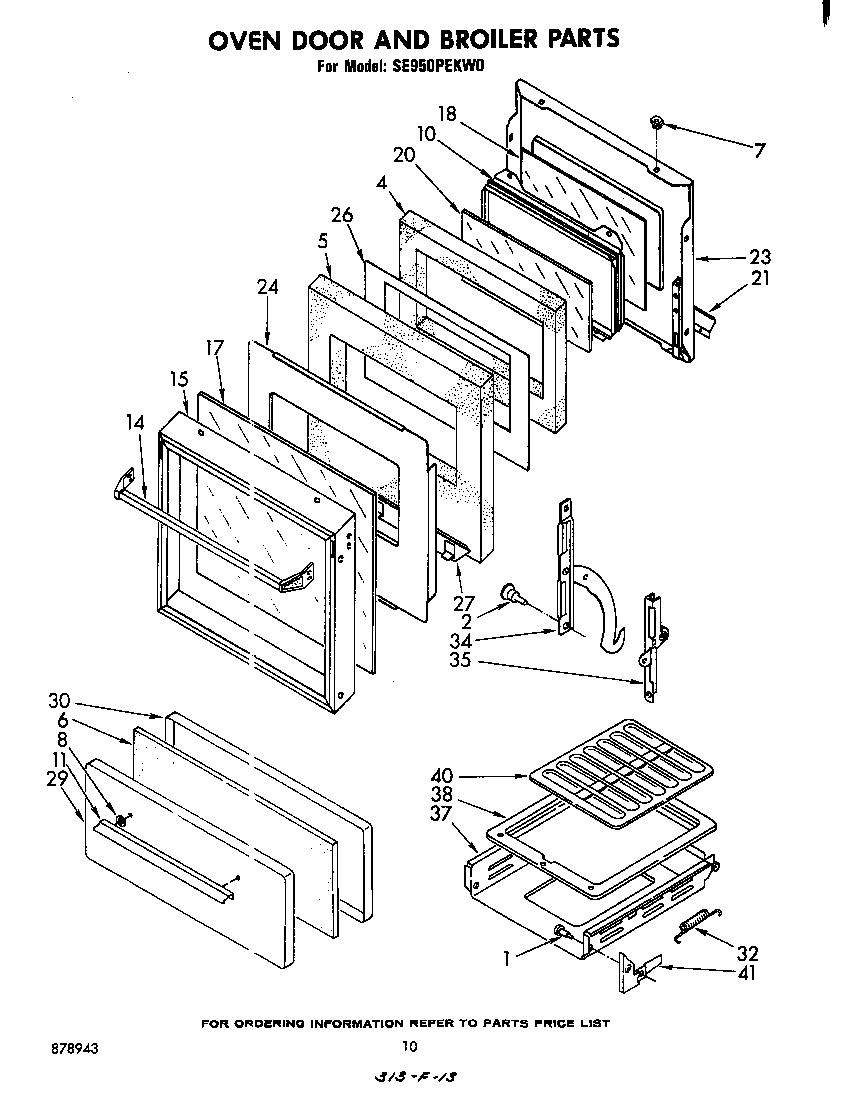

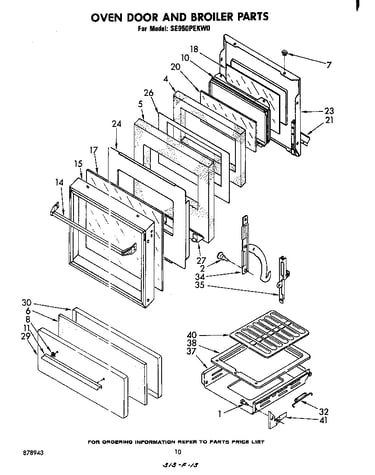

Oven door and broiler diagram
InsulationPart #878089
Replaced by #WPW10208653
?Manufacturer substitutionThis part replaces 878089. Substitute parts can look different from the original.$39.39 |13% OFF Phone Price : $45.39In Stock - #7

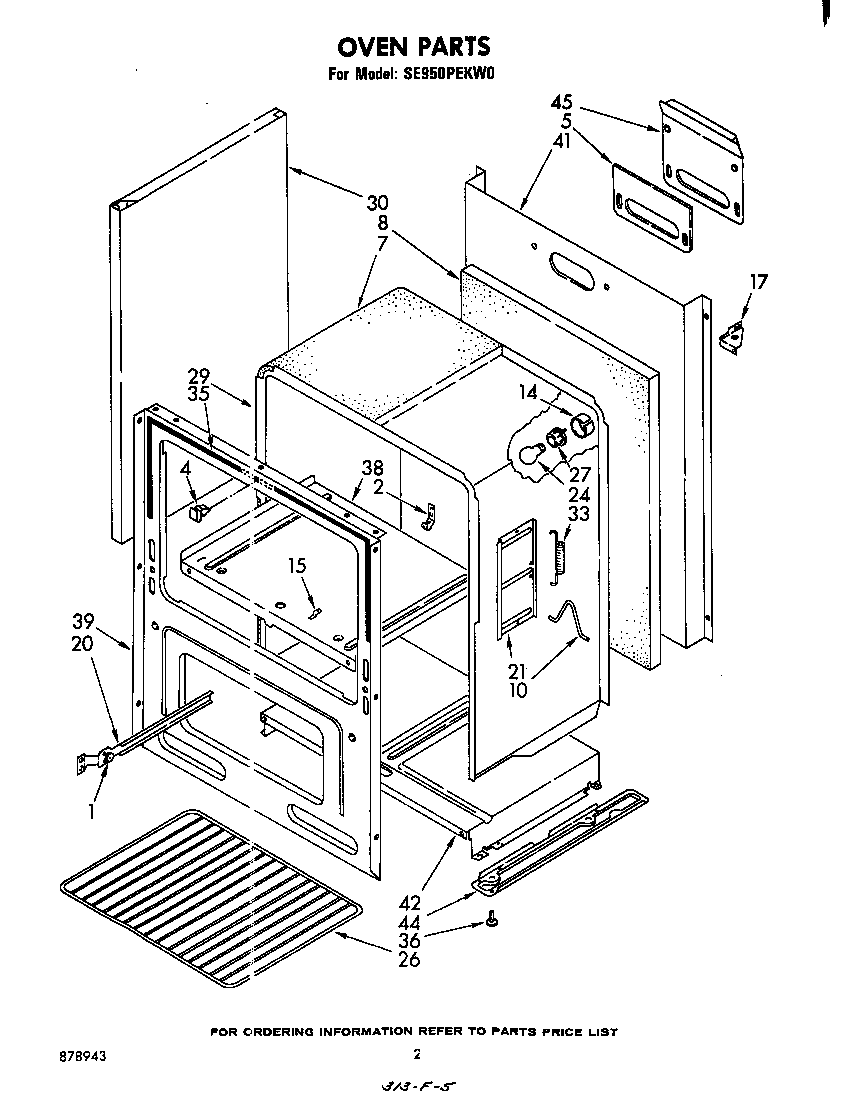

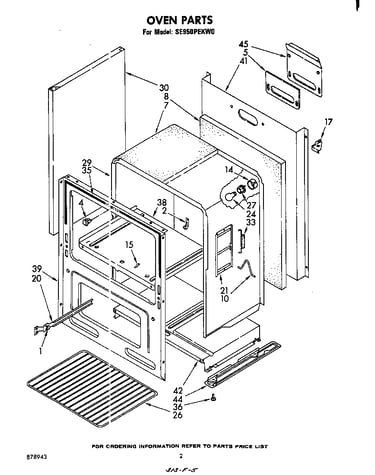

Oven diagram
InsulationPart #878092
Replaced by #WPW10208653
?Manufacturer substitutionThis part replaces 878092. Substitute parts can look different from the original.$39.39 |13% OFF Phone Price : $45.39In Stock - #8
Oven diagram
InsulationPart #878093
Replaced by #WPW10208653
?Manufacturer substitutionThis part replaces 878093. Substitute parts can look different from the original.$39.39 |13% OFF Phone Price : $45.39In Stock - #2
Upper oven diagram
InsulationPart #878444
Replaced by #WPW10208653
?Manufacturer substitutionThis part replaces 878444. Substitute parts can look different from the original.$39.39 |13% OFF Phone Price : $45.39In Stock - #7
Oven door and broiler diagram
NutPart #878095
Replaced by #98460
?Manufacturer substitutionThis part replaces 878095. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #38

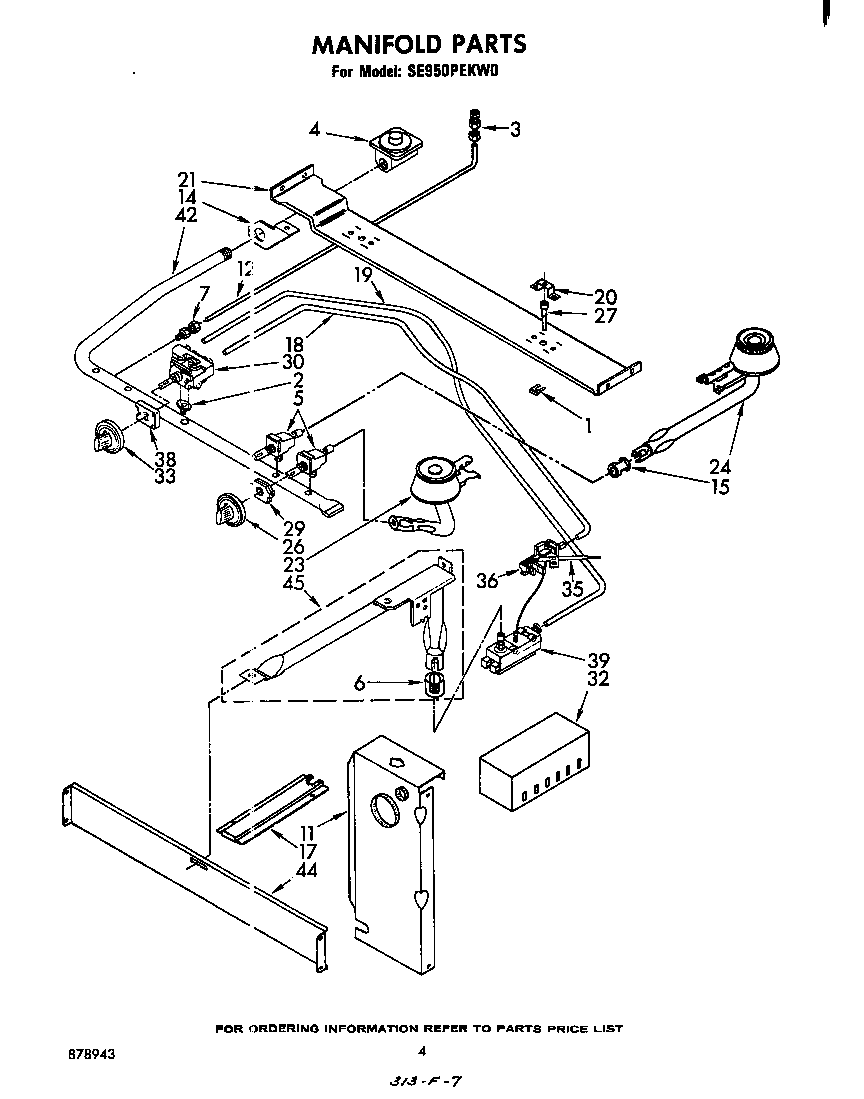

Manifold diagram
Igniter switchPart #878009
Replaced by #WP878009
?Manufacturer substitutionThis part replaces 878009. Substitute parts can look different from the original.$98.06In Stock - #38

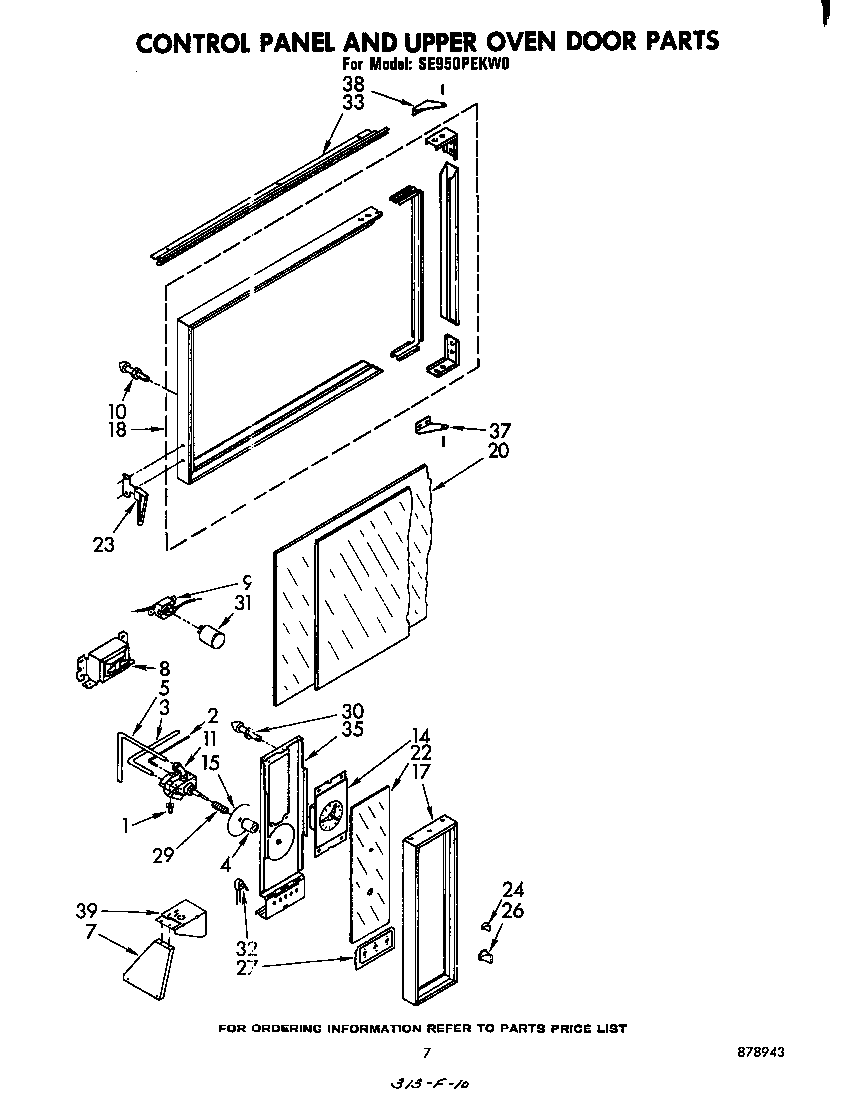

Control panel and upper oven diagram
Door hingePart #878520
The manufacturer no longer makes this part, and there's no substitute part
- #41A
Oven door and broiler diagram
Door hingePart #878183
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair difficulty
Time required
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
Learn how the self-clean cycle works in an oven.…
You might be surprised by these 4 tips for using your oven better.…
Learn how to troubleshoot problems with your range that cause an F10 error to be displayed.…
