Model # U5491-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5491-900 upright vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
U5491-900 Vacuum Cleaners
Vacuum Handle 39466123
#1B

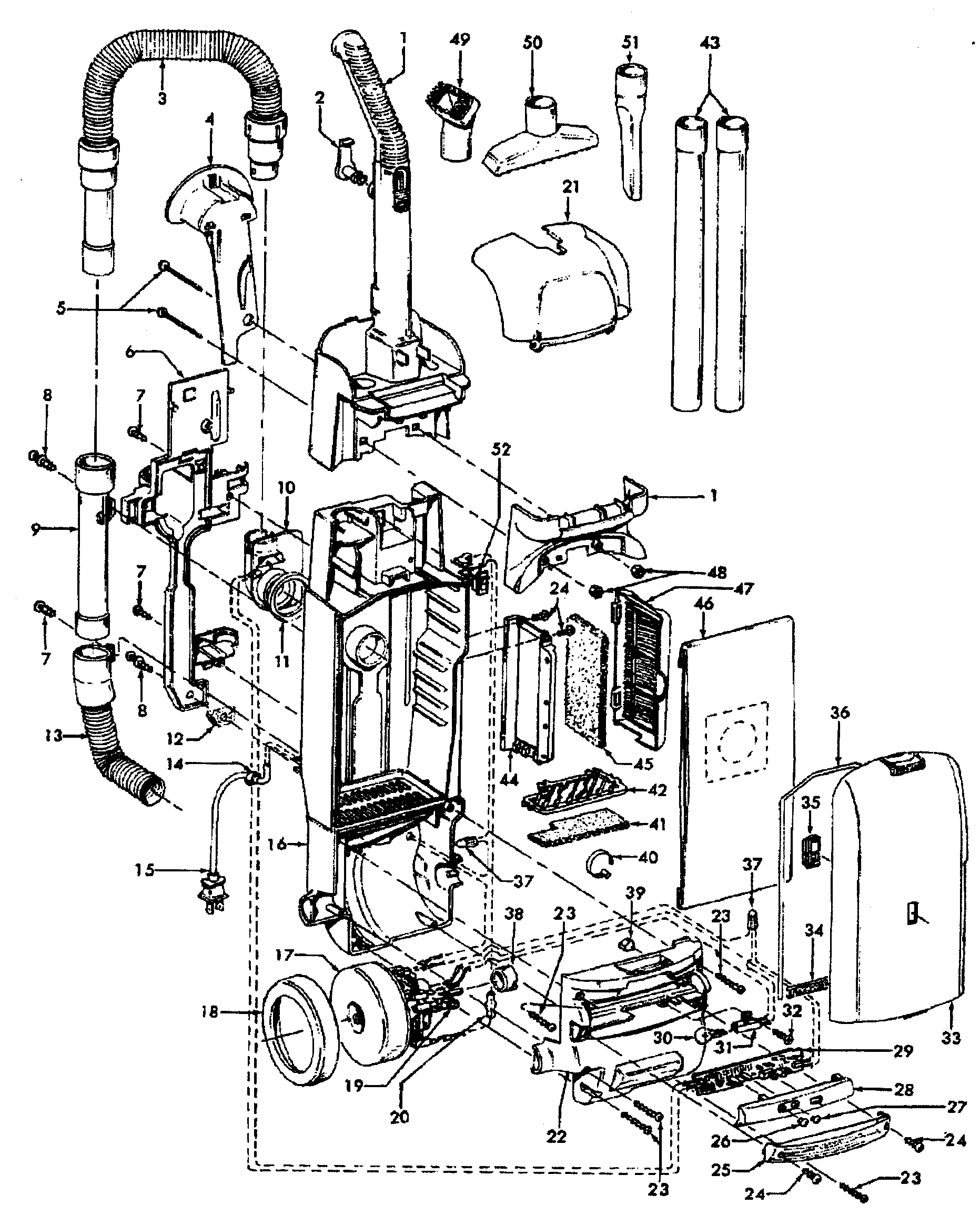

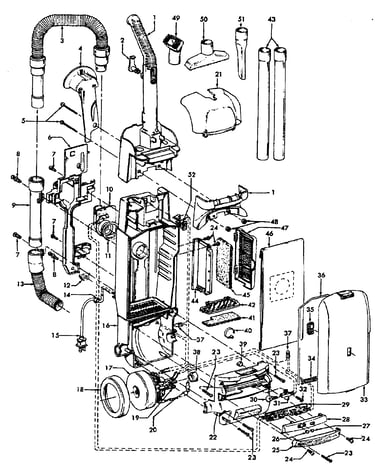

Housing assy diagram

Vacuum handle

Part #39466123

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Allergen Filtration Bag, 3-pack 4010100Y
#46

Housing assy diagram

Vacuum allergen filtration bag, 3-pack

Part #4010100Y

The manufacturer no longer makes this part, and there's no substitute part

Clamp 36171044
#7

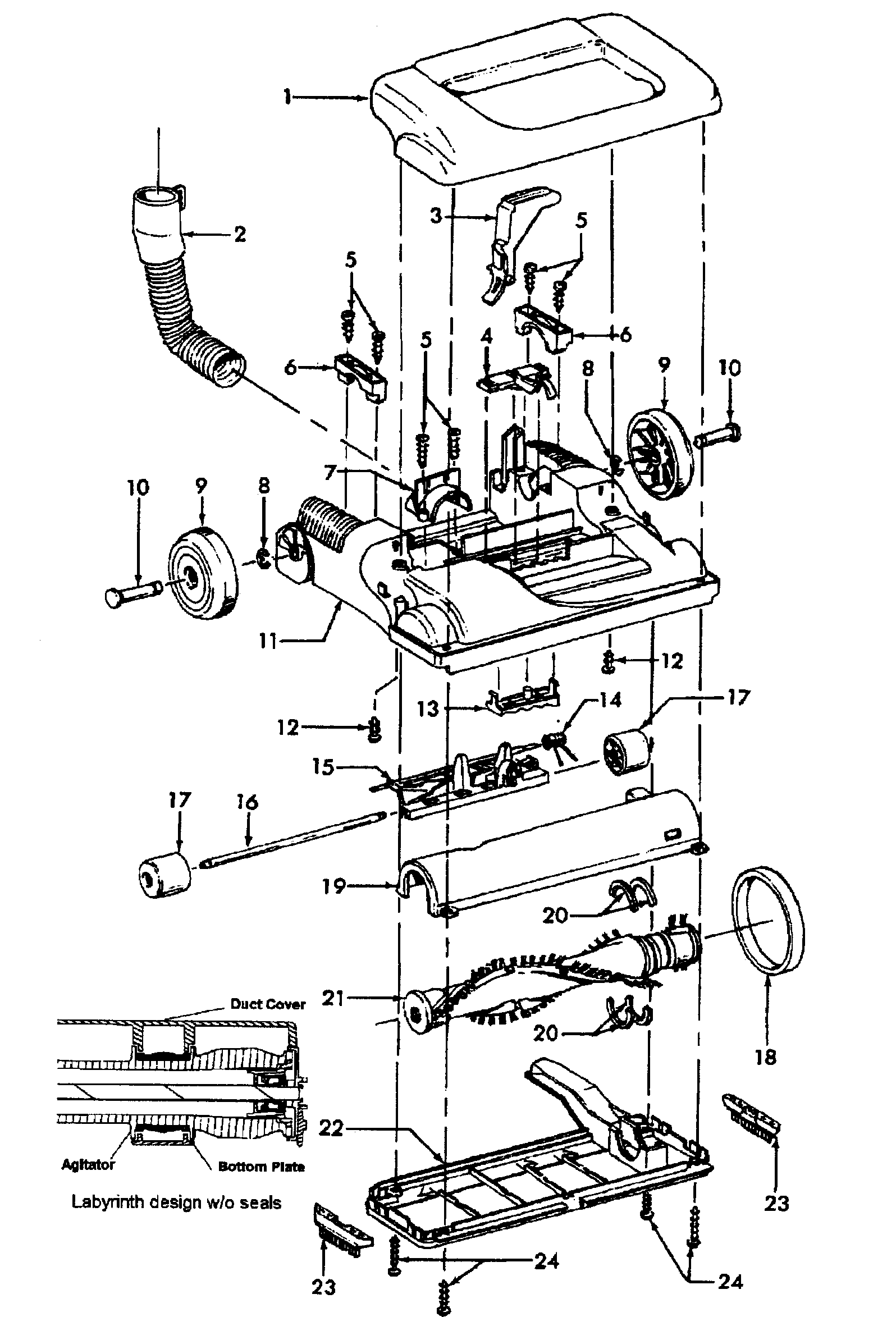

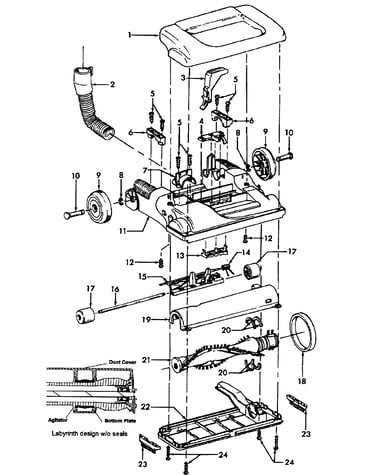

Base assy diagram

Clamp

Part #36171044

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord Strain Relief 27482230
#14

Housing assy diagram

Vacuum power cord strain relief

Part #27482230

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528033
#18

Base assy diagram

Vacuum beater bar belt

Part #38528033

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Edge Brush 39511004
#23

Base assy diagram

Vacuum edge brush

Part #39511004

The manufacturer no longer makes this part, and there's no substitute part

Cord Wrap 39442056
#2A

Housing assy diagram

Cord wrap

Part #39442056

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag Level Indicator 51151010
#35

Housing assy diagram

Vacuum bag level indicator

Part #51151010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Cover 40309026
Vacuum beater bar cover

Part #40309026

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522105
#17A

Base assy diagram

Vacuum wheel

Part #38522105

The manufacturer no longer makes this part, and there's no substitute part
