Model # QS330BC Official Broan range hood

Here are the diagrams and repair parts for Official Broan QS330BC range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Range Hood Light Socket R111630
#22

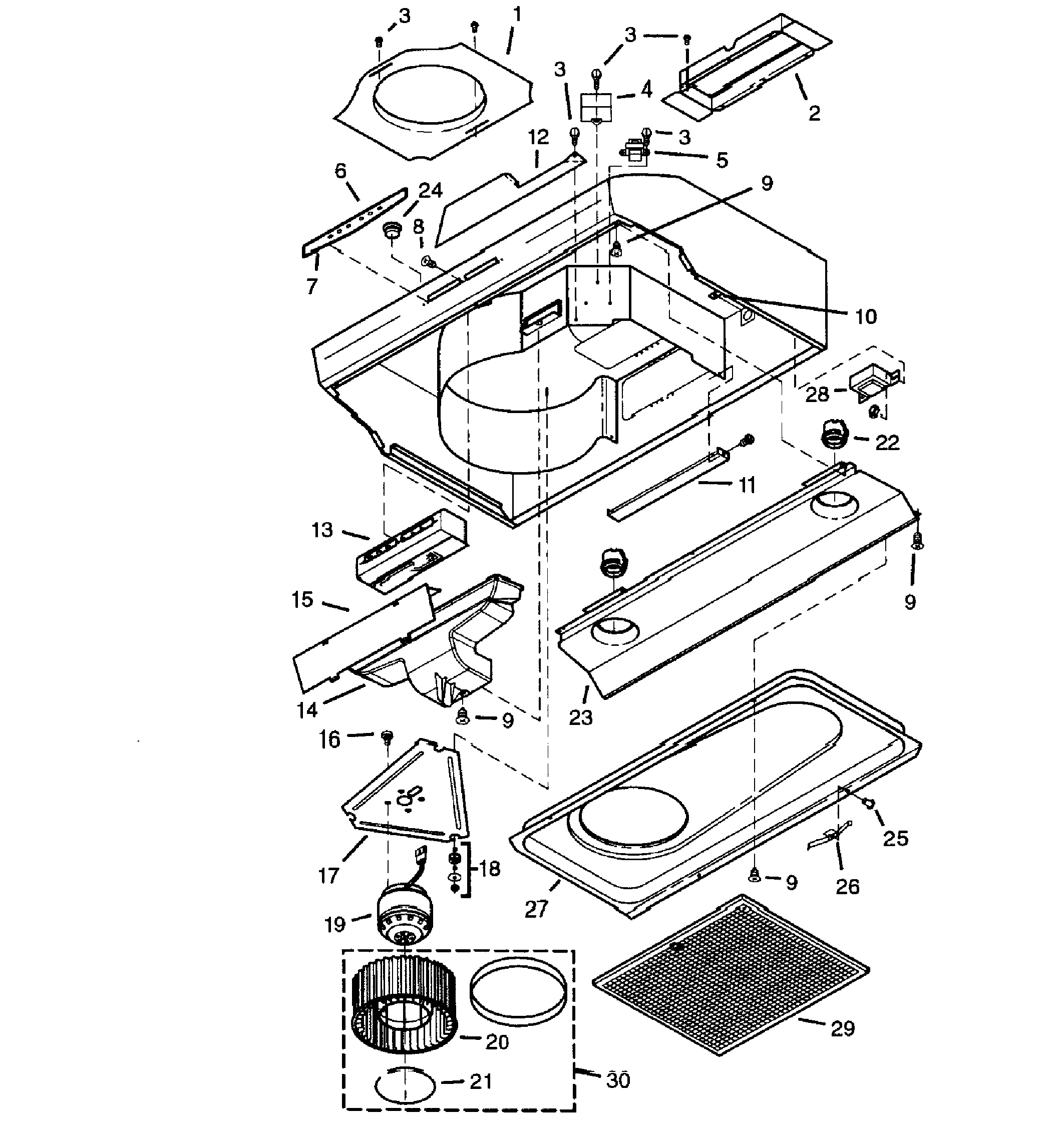

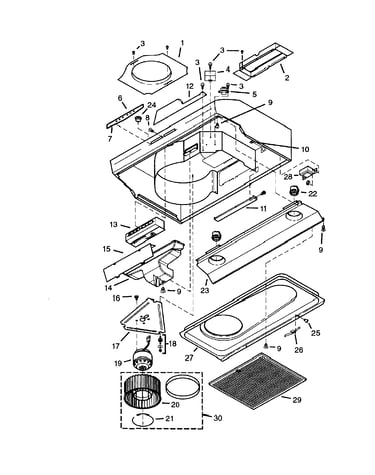

Range hood assy diagram

Range hood light socket

Part #R111630

Replaced by #SR111630

?
Manufacturer substitution
This part replaces R111630. Substitute parts can look different from the original.
BEST SELLER
$41.57 |
13% OFF Phone Price : $47.57
In Stock
Range Hood Charcoal Filter 99010308
#NI

Range hood assy diagram

Range hood charcoal filter

Part #99010308

Replaced by #S99010308

?
Manufacturer substitution
This part replaces 99010308. Substitute parts can look different from the original.
$60.99 |
9% OFF Phone Price : $66.99
In Stock
Range Hood Blower Wheel R531068
#20

Range hood assy diagram

Range hood blower wheel

Part #R531068

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Screw R602017
#3

Range hood assy diagram

Range hood screw

Part #R602017

This item is not returnable
$4.88
In Stock
Range Hood Cover R680512
#27

Range hood assy diagram

Range hood cover

Part #R680512

Replaced by #SR680512

?
Manufacturer substitution
This part replaces R680512. Substitute parts can look different from the original.
$112.08
In Stock
Range Hood Screw R601535
#8

Range hood assy diagram

Range hood screw

Part #R601535

Replaced by #SR601535

?
Manufacturer substitution
This part replaces R601535. Substitute parts can look different from the original.
This item is not returnable
$5.46
In Stock
Range Hood Transformer R501031
#5

Range hood assy diagram

Range hood transformer

Part #R501031

The manufacturer no longer makes this part, and there's no substitute part

Baffle R401646
#15

Range hood assy diagram

Baffle

Part #R401646

Replaced by #SR401647

?
Manufacturer substitution
This part replaces R401646. Substitute parts can look different from the original.
$22.23
In Stock
Range Hood Wire Harness R111668
#NI

Range hood assy diagram

Range hood wire harness

Part #R111668

Replaced by #SR111668

?
Manufacturer substitution
This part replaces R111668. Substitute parts can look different from the original.
$86.67
In Stock
Spring R169016
#26

Range hood assy diagram

Spring

Part #R169016

Replaced by #SR169016

?
Manufacturer substitution
This part replaces R169016. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
