Hedge Trimmer

Model # 517797680 Official Craftsman hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 517797680 hedge trimmer, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
517797680 Hedge Trimmer
Air Filter Cover 00919
#71

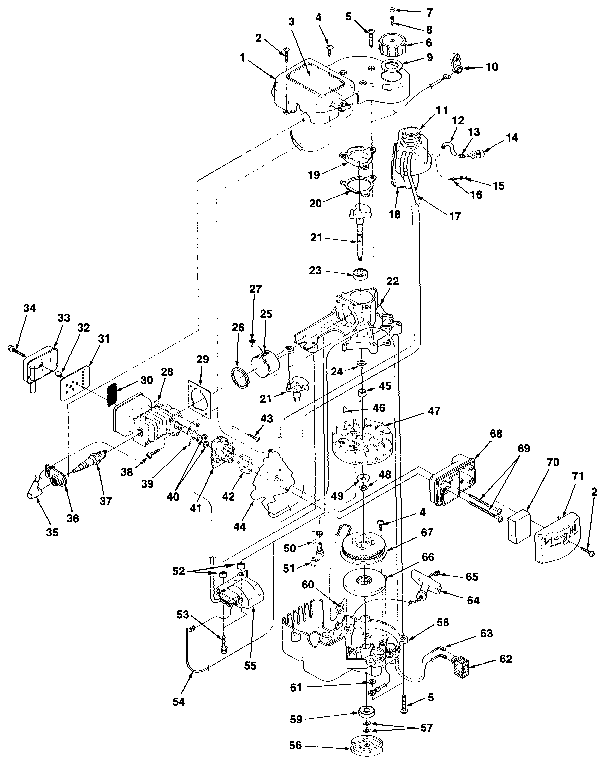

Engine diagram

Air filter cover

Part #00919

The manufacturer no longer makes this part, and there's no substitute part

Screw 82538
Screw

Part #82538

The manufacturer no longer makes this part, and there's no substitute part

Gasket 98766-A
#42

Engine diagram

Gasket

Part #98766-A

The manufacturer no longer makes this part, and there's no substitute part

Nut 81191
#48

Engine diagram

Nut

Part #81191

The manufacturer no longer makes this part, and there's no substitute part

Shield 01010-A
#36

Engine diagram

Shield

Part #01010-A

The manufacturer no longer makes this part, and there's no substitute part

Gear Box Assembly A-01526
#20

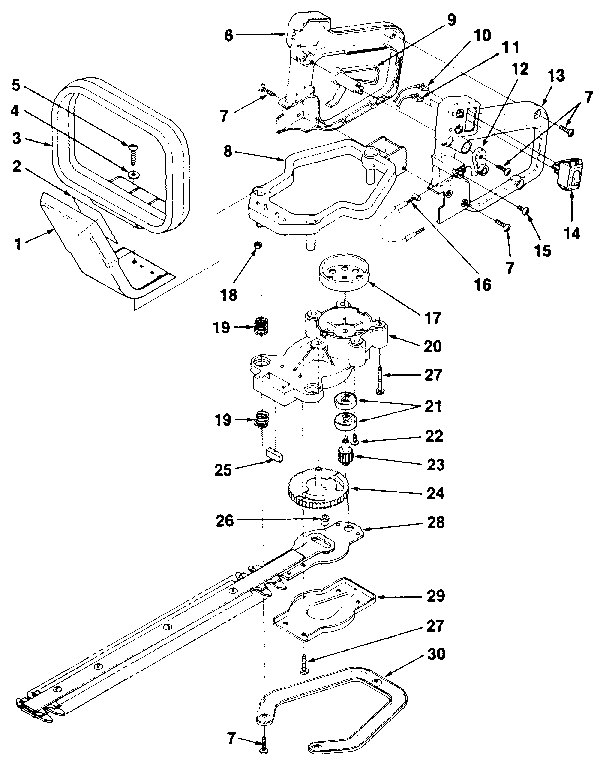

Gear box assembly diagram

Gear box assembly

Part #A-01526

The manufacturer no longer makes this part, and there's no substitute part

Washer 01325
#49

Engine diagram

Washer

Part #01325

The manufacturer no longer makes this part, and there's no substitute part

Screw 82540
#34

Engine diagram

Screw

Part #82540

The manufacturer no longer makes this part, and there's no substitute part

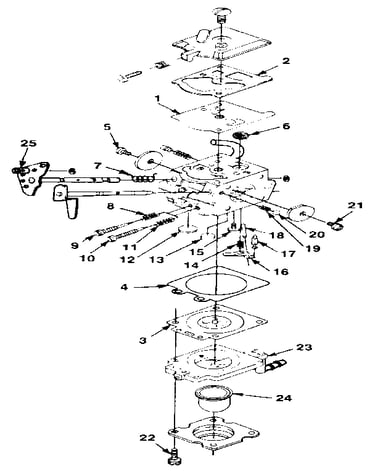

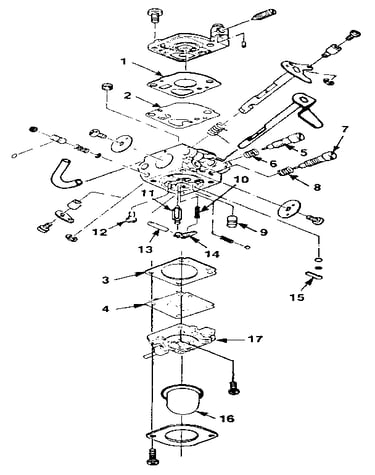

Carburetor A-00962-A
#44

Engine diagram

Carburetor

Part #A-00962-A

The manufacturer no longer makes this part, and there's no substitute part

Ring 65261
#27

Engine diagram

Ring

Part #65261

The manufacturer no longer makes this part, and there's no substitute part
