Model # HGSI42TS/00 Official Thermador island chimney hood

Here are the diagrams and repair parts for Official Thermador HGSI42TS-00 island chimney hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Fan Drum 263976
#3

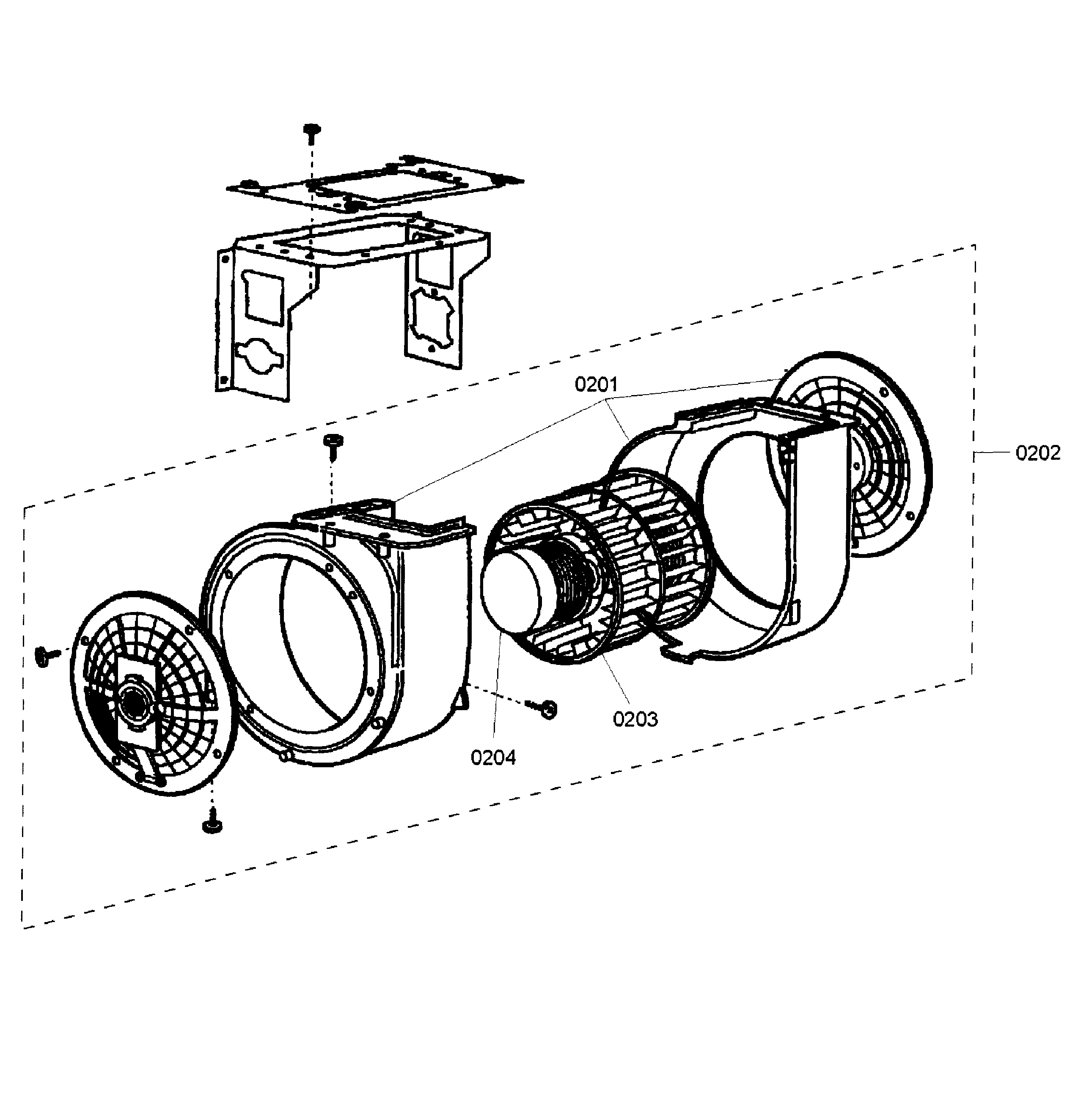

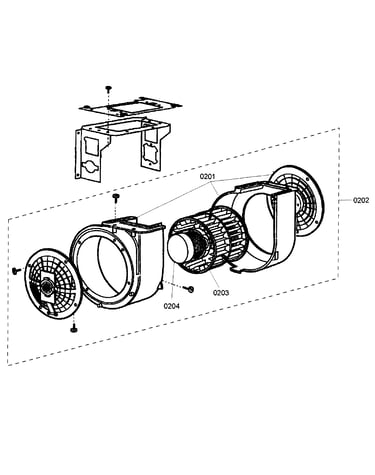

Blower assy diagram

Fan drum

Part #263976

The manufacturer no longer makes this part, and there's no substitute part

Collar 487415
#13

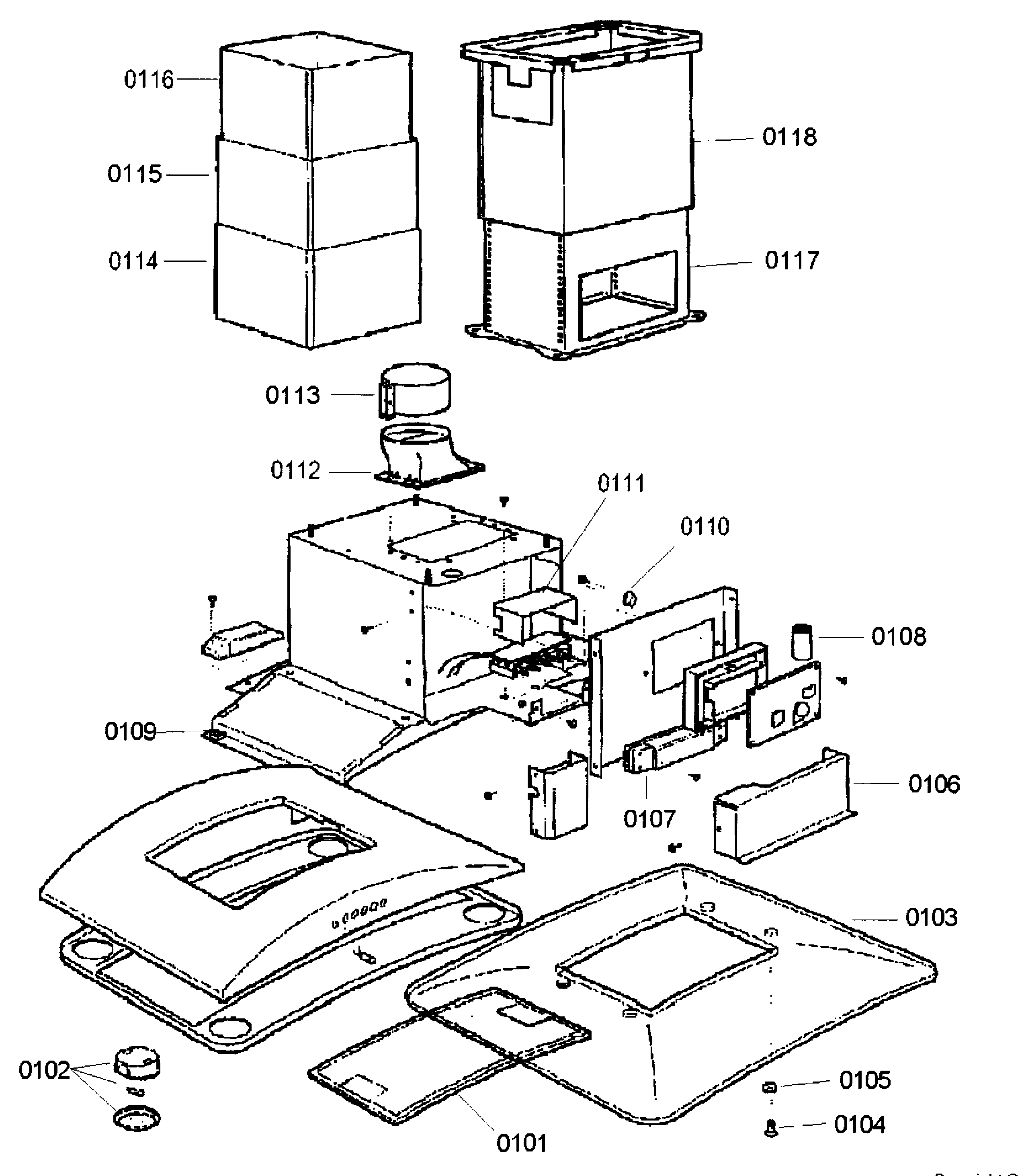

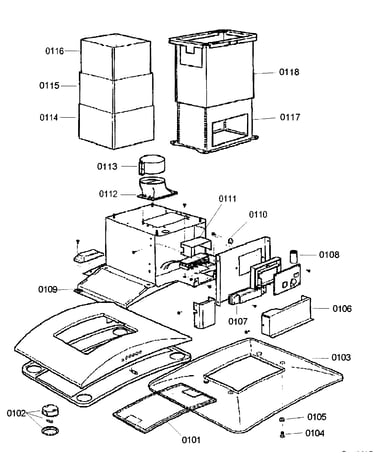

Range hood diagram

Collar

Part #487415

The manufacturer no longer makes this part, and there's no substitute part

Transformer 487423
#7

Range hood diagram

Transformer

Part #487423

The manufacturer no longer makes this part, and there's no substitute part

Frame 487451
#17

Range hood diagram

Frame

Part #487451

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Grease Filter 487411
#1

Range hood diagram

Range hood grease filter

Part #487411

The manufacturer no longer makes this part, and there's no substitute part

Housing 369010
#1

Blower assy diagram

Housing

Part #369010

The manufacturer no longer makes this part, and there's no substitute part

Lamp 415273
#2

Range hood diagram

Lamp

Part #415273

The manufacturer no longer makes this part, and there's no substitute part

Cover 171621
#5

Range hood diagram

Cover

Part #171621

The manufacturer no longer makes this part, and there's no substitute part

Cover 369026
#16

Range hood diagram

Cover

Part #369026

The manufacturer no longer makes this part, and there's no substitute part

Cover 487439
#6

Range hood diagram

Cover

Part #487439

The manufacturer no longer makes this part, and there's no substitute part
