Model # 5803167-3 Official Craftsman alternator
Here are the diagrams and repair parts for Official Craftsman 5803167-3 alternator, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
5803167-3 Alternator
#16

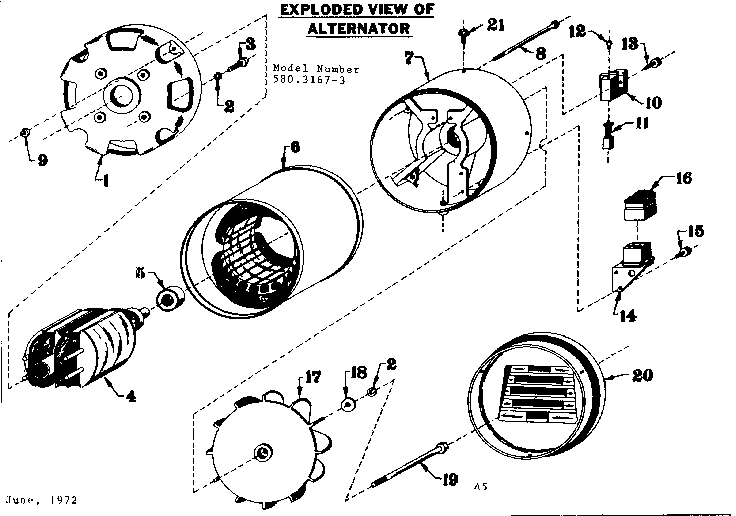

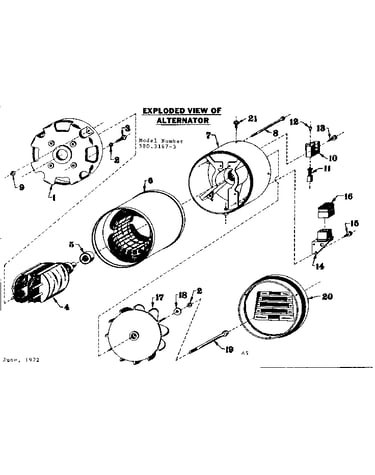

Stator assembly diagram
Rectifier
Part #B-22695
The manufacturer no longer makes this part, and there's no substitute part
#1

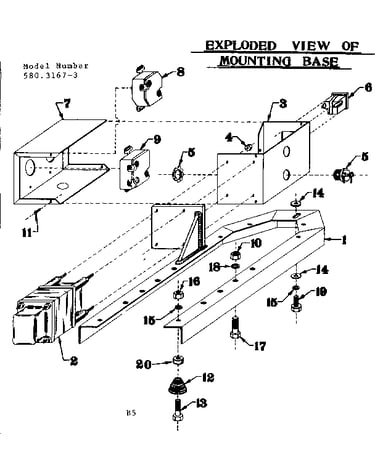

Mounting base diagram
Mount base
Part #24243
The manufacturer no longer makes this part, and there's no substitute part
#2

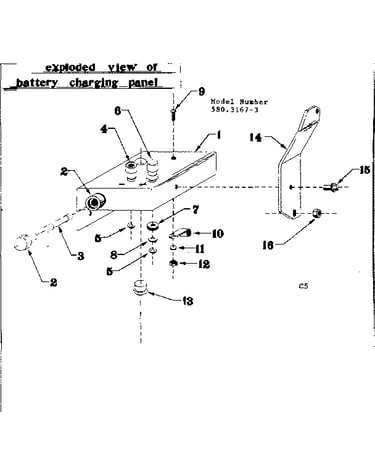

Battery charging panel diagram
Holder
Part #22669
The manufacturer no longer makes this part, and there's no substitute part
#2
Handle diagram
Handle
Part #A-24242
The manufacturer no longer makes this part, and there's no substitute part
#3
Handle diagram
Handle grip
Part #23712
The manufacturer no longer makes this part, and there's no substitute part
#1
Battery charging panel diagram
Panel
Part #25489
The manufacturer no longer makes this part, and there's no substitute part
#1
Stator assembly diagram
Adapter housing
Part #24381-A
The manufacturer no longer makes this part, and there's no substitute part
#13
Mounting base diagram
Cap screw
Part #22128
The manufacturer no longer makes this part, and there's no substitute part
#19
Stator assembly diagram
Screw
Part #24421
The manufacturer no longer makes this part, and there's no substitute part
#2
Mounting base diagram
Reactor asm
Part #CB-24241
The manufacturer no longer makes this part, and there's no substitute part
