Model # 665133225 Official Kenmore Elite drawer dishwasher

Here are the diagrams and repair parts for Official Kenmore Elite 665133225 drawer dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

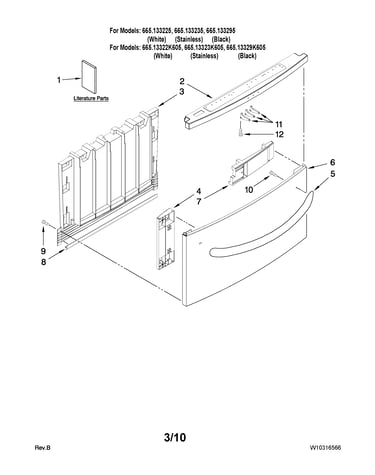

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Clamp 6-919982
#23

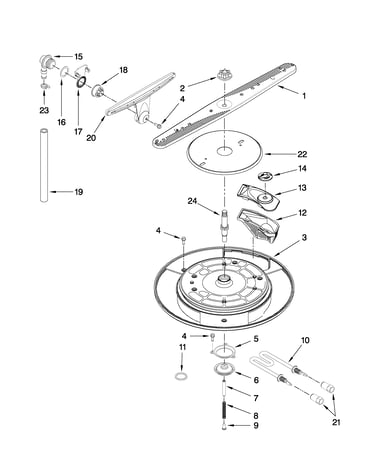

Wash system parts diagram

Clamp

Part #6-919982

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 6-919982. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp 6-920322
#22

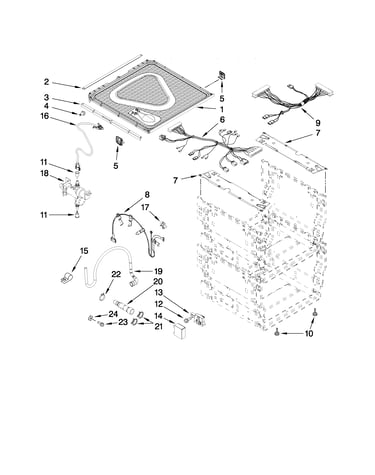

Frame and lid parts diagram

Clamp

Part #6-920322

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 6-920322. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
O-ring 6-917029
#16

Wash system parts diagram

O-ring

Part #6-917029

Replaced by #WP99002857

?
Manufacturer substitution
This part replaces 6-917029. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dishwasher Turbidity Sensor W10120019
#20

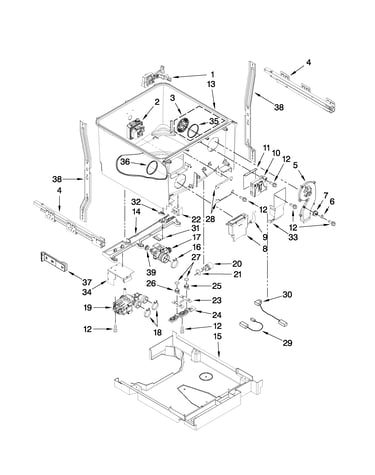

Tub parts diagram

Dishwasher turbidity sensor

Part #W10120019

Replaced by #WPW10120019

?
Manufacturer substitution
This part replaces W10120019. Substitute parts can look different from the original.
$151.28
In Stock
Cap Washer 6-918306
#2

Wash system parts diagram

Cap washer

Part #6-918306

Replaced by #WP99003083

?
Manufacturer substitution
This part replaces 6-918306. Substitute parts can look different from the original.
This item is not returnable
$6.90 |
13% OFF Phone Price : $7.90
In Stock
Dishwasher Drain Pump 6-920639
#17

Tub parts diagram

Dishwasher drain pump

Part #6-920639

The manufacturer no longer makes this part, and there's no substitute part

Dishwasher Vent Fan Motor Assembly W10155595
#5

Tub parts diagram

Dishwasher vent fan motor assembly

Part #W10155595

Replaced by #WPW10155595

?
Manufacturer substitution
This part replaces W10155595. Substitute parts can look different from the original.
$119.48 |
9% OFF Phone Price : $131.48
In Stock
Dishwasher Air Inlet Seal W10286124
#36

Tub parts diagram

Dishwasher air inlet seal

Part #W10286124

Replaced by #WPW10286124

?
Manufacturer substitution
This part replaces W10286124. Substitute parts can look different from the original.
This item is not returnable
$9.19 |
10% OFF Phone Price : $10.19
In Stock
Dishwasher Water Inlet Valve W10200339
#18

Frame and lid parts diagram

Dishwasher water inlet valve

Part #W10200339

$98.58
In Stock
Dishwasher Dishrack 99003657
#10

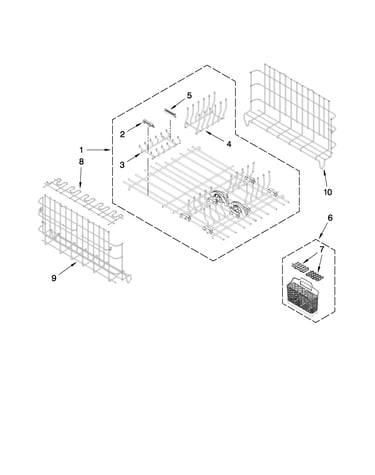

Upper and lower dishrack parts diagram

Dishwasher dishrack

Part #99003657

Replaced by #WP99003657

?
Manufacturer substitution
This part replaces 99003657. Substitute parts can look different from the original.
$164.04
In Stock
