Model # 3639321191 Official Kenmore electric range
Here are the diagrams and repair parts for Official Kenmore 3639321191 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

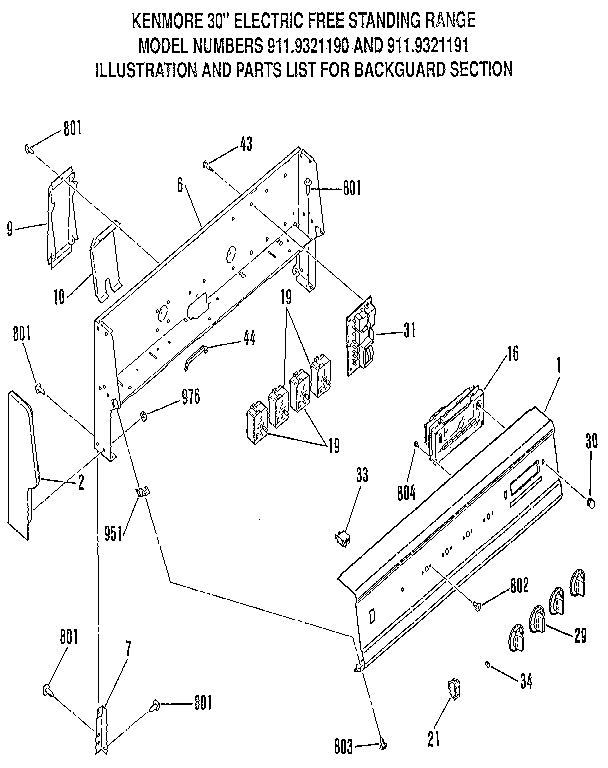

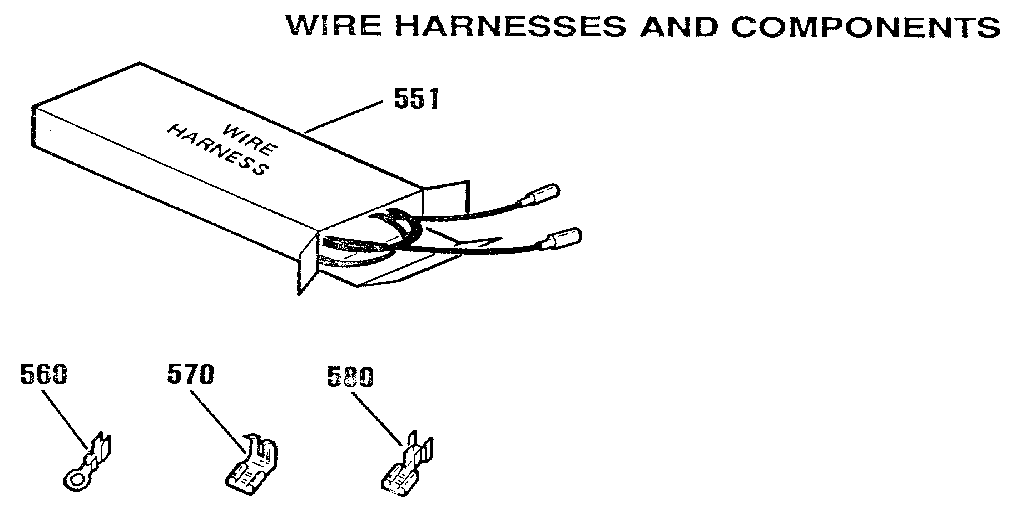

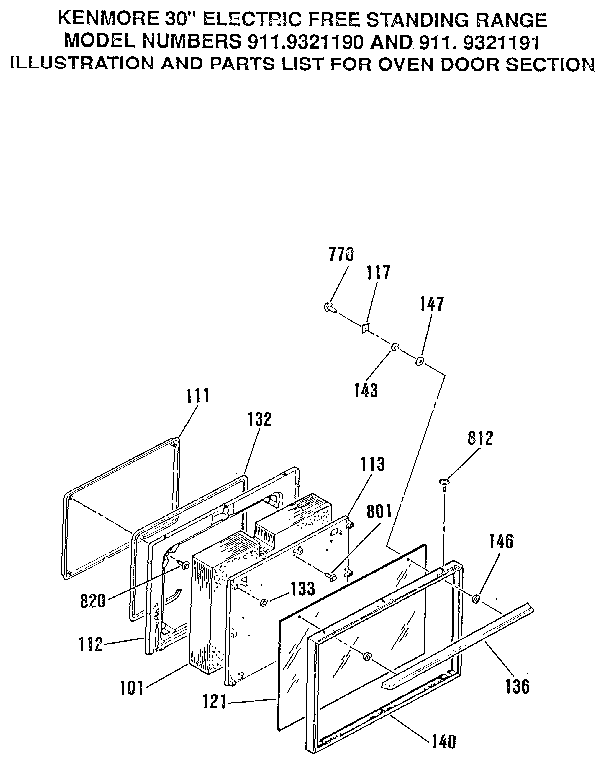

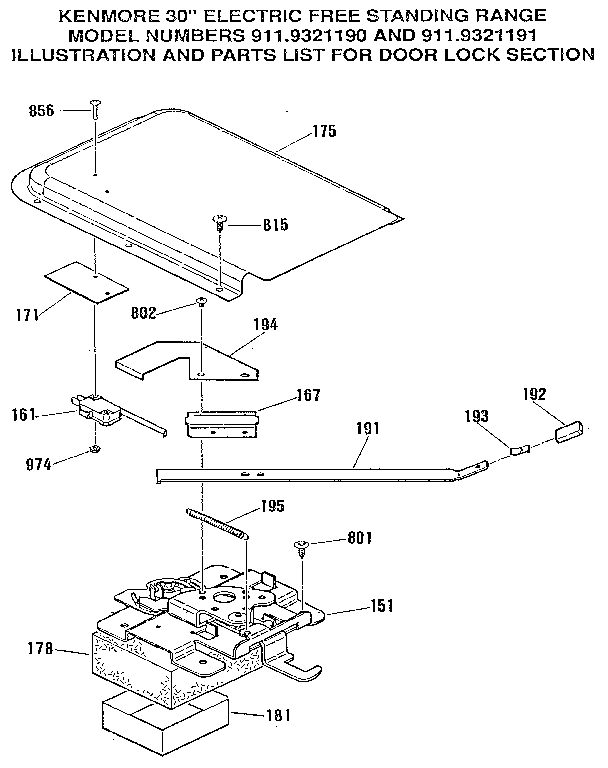

SELECT DIAGRAM
Browse Parts for3639321191 Ranges
- #257

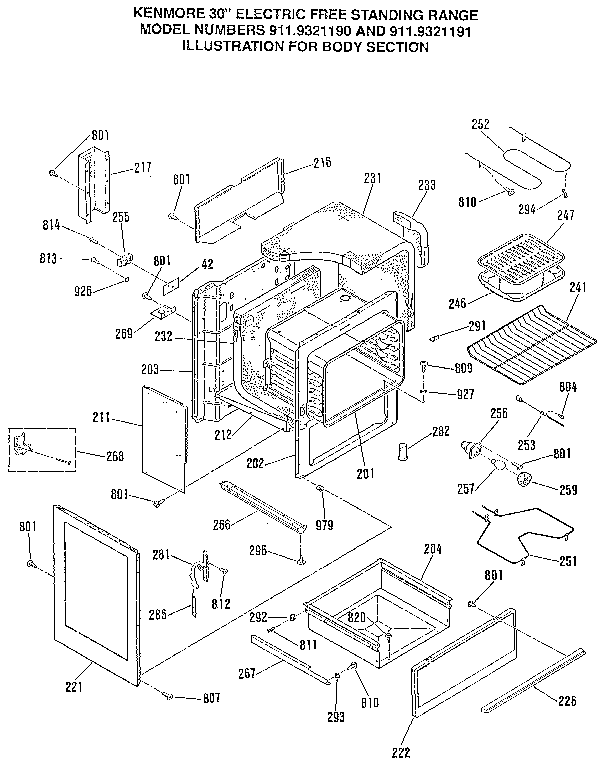

Body section diagram
40a15 bulbPart #STD372401
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #251
Body section diagram
Bake elementPart #WB44M0001
Replaced by #WB44K5012
?Manufacturer substitutionThis part replaces WB44M0001. Substitute parts can look different from the original.$46.49 |11% OFF Phone Price : $52.49In Stock - #253
Body section diagram
Wb20x106Part #WB08K5007
Replaced by #WB21X5301
?Manufacturer substitutionThis part replaces WB08K5007. Substitute parts can look different from the original.$103.13 |10% OFF Phone Price : $115.13In Stock - #82

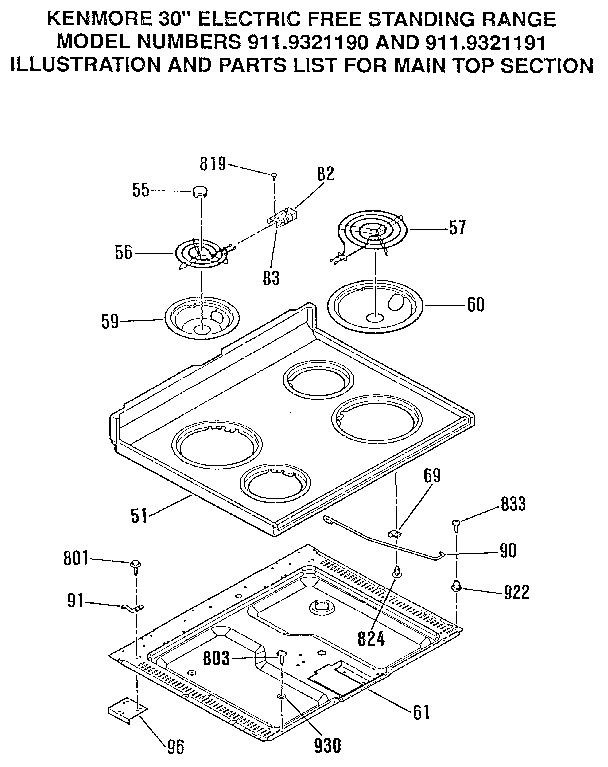

Main top section diagram
Terminal blockPart #WB17X0210
Replaced by #WB17X210
?Manufacturer substitutionThis part replaces WB17X0210. Substitute parts can look different from the original.$58.17 |9% OFF Phone Price : $64.17In Stock - #294
Body section diagram
Broil supportPart #WB02X9719
Replaced by #WB2X9719
?Manufacturer substitutionThis part replaces WB02X9719. Substitute parts can look different from the original.$9.64 |9% OFF Phone Price : $10.64In Stock - #281A
Body section diagram
HingePart #WB14X0103
Replaced by #WB14X103
?Manufacturer substitutionThis part replaces WB14X0103. Substitute parts can look different from the original.$52.20 |10% OFF Phone Price : $58.20In Stock - #57
Main top section diagram
Surf unit 8"Part #WB30X0253
Replaced by #WB30X253
?Manufacturer substitutionThis part replaces WB30X0253. Substitute parts can look different from the original.$64.90 |8% OFF Phone Price : $70.90In Stock - #60
Main top section diagram
8 brn bwl chPart #WB31K5025
Replaced by #WB31K5025
?Manufacturer substitutionThis part replaces WB31K5025. Substitute parts can look different from the original.$21.23 |22% OFF Phone Price : $27.23In Stock - #59
Main top section diagram
Brn bwl 6"Part #WB31K5024
Replaced by #WB31K5024
?Manufacturer substitutionThis part replaces WB31K5024. Substitute parts can look different from the original.$17.18 |10% OFF Phone Price : $19.18In Stock - Screw 10
Part #WB01M0001
Replaced by #WB1M1
?Manufacturer substitutionThis part replaces WB01M0001. Substitute parts can look different from the original.This item is not returnable$7.17 |12% OFF Phone Price : $8.17In Stock
