Model # 11087470220 Official Sears gas dryer

Here are the diagrams and repair parts for Official Sears 11087470220 gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for11087470220 Gas Dryer

  • Drum Belt 349533
    #30

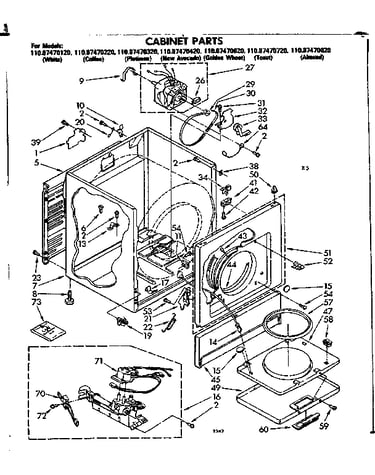

    Cabinet parts diagram

    Drum belt

    Part #349533

    Replaced by #341241

    ?
    Manufacturer substitution
    This part replaces 349533. Substitute parts can look different from the original.
    BEST SELLER
    $9.89
    9% OFF Phone Price : $10.89
    In Stock
  • Motor 695075
    #27

    Cabinet parts diagram

    Motor

    Part #695075

    Replaced by #279827

    ?
    Manufacturer substitution
    This part replaces 695075. Substitute parts can look different from the original.
    BEST SELLER
    $81.17
    7% OFF Phone Price : $87.17
    In Stock
  • Switch 337351
    #26

    Cabinet parts diagram

    Switch

    Part #337351

    Replaced by #279827

    ?
    Manufacturer substitution
    This part replaces 337351. Substitute parts can look different from the original.
    BEST SELLER
    $81.17
    7% OFF Phone Price : $87.17
    In Stock
  • Dryer Igniter 660991
    #70

    Cabinet parts diagram

    Dryer igniter

    Part #660991

    Replaced by #279311

    ?
    Manufacturer substitution
    This part replaces 660991. Substitute parts can look different from the original.
    BEST SELLER
    $24.98
    19% OFF Phone Price : $30.98
    In Stock
  • Catch 690081
    #58

    Cabinet parts diagram

    Catch

    Part #690081

    Replaced by #279570

    ?
    Manufacturer substitution
    This part replaces 690081. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.25
    19% OFF Phone Price : $5.25
    In Stock
  • Strike 693717
    #52

    Cabinet parts diagram

    Strike

    Part #693717

    Replaced by #279570

    ?
    Manufacturer substitution
    This part replaces 693717. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.25
    19% OFF Phone Price : $5.25
    In Stock
  • Dryer Door Switch 347207
    #41

    Cabinet parts diagram

    Dryer door switch

    Part #347207

    Replaced by #W10820036

    ?
    Manufacturer substitution
    This part replaces 347207. Substitute parts can look different from the original.
    BEST SELLER
    $21.44
    22% OFF Phone Price : $27.44
    In Stock
  • Dryer Tri-ring Retainer 690997
    #20

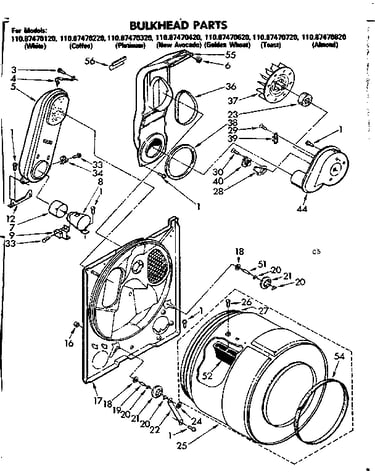

    Bulkhead parts diagram

    Dryer tri-ring retainer

    Part #690997

    Replaced by #WPW10512946

    ?
    Manufacturer substitution
    This part replaces 690997. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $7.11
    12% OFF Phone Price : $8.11
    In Stock
  • Dryer Radiant Sensor 338906
    #9

    Bulkhead parts diagram

    Dryer radiant sensor

    Part #338906

    Replaced by #WP338906

    ?
    Manufacturer substitution
    This part replaces 338906. Substitute parts can look different from the original.
    BEST SELLER
    $25.83
    19% OFF Phone Price : $31.83
    In Stock
  • Shaft 347364
    #19

    Bulkhead parts diagram

    Shaft

    Part #347364

    Replaced by #WPW10359270

    ?
    Manufacturer substitution
    This part replaces 347364. Substitute parts can look different from the original.
    BEST SELLER
    $36.51
    14% OFF Phone Price : $42.51
    In Stock
