Heating & Cooling Combined Unit

Model # PGMG75F115A Official ICP heating & cooling unit

Here are the diagrams and repair parts for Official ICP PGMG75F115A heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

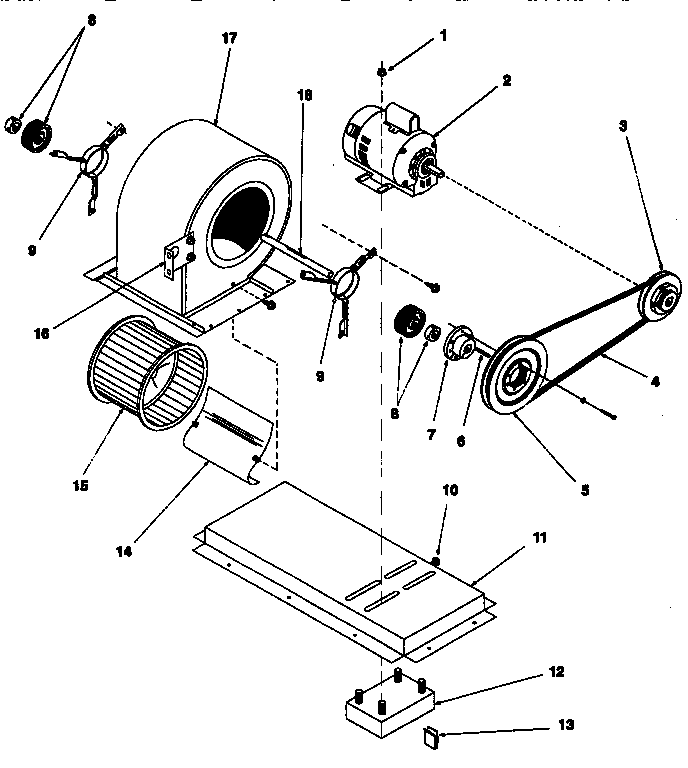

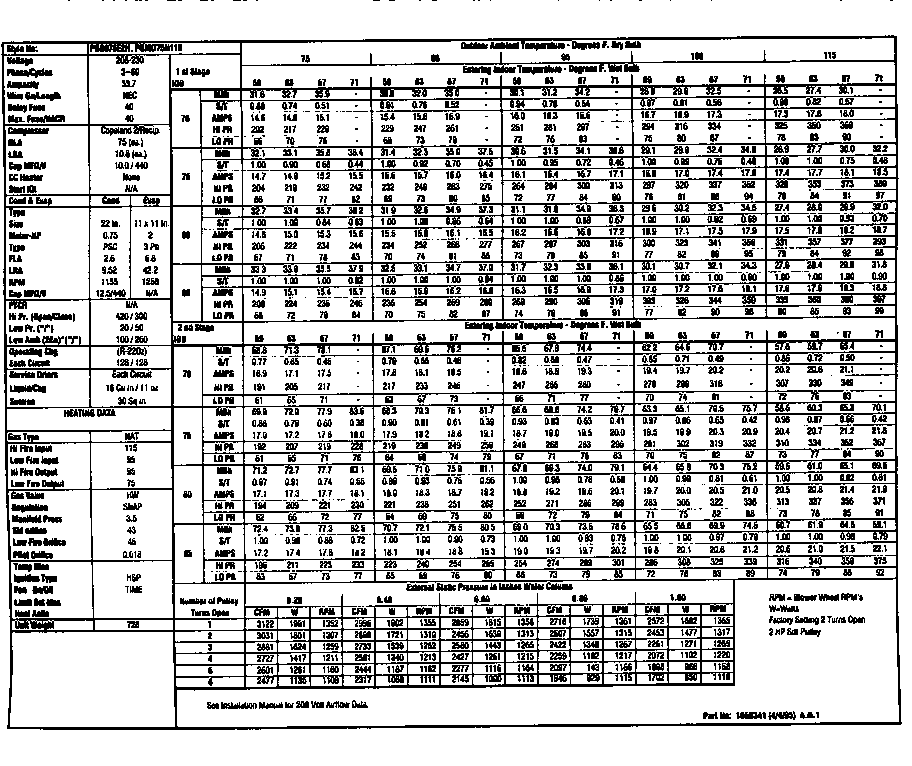

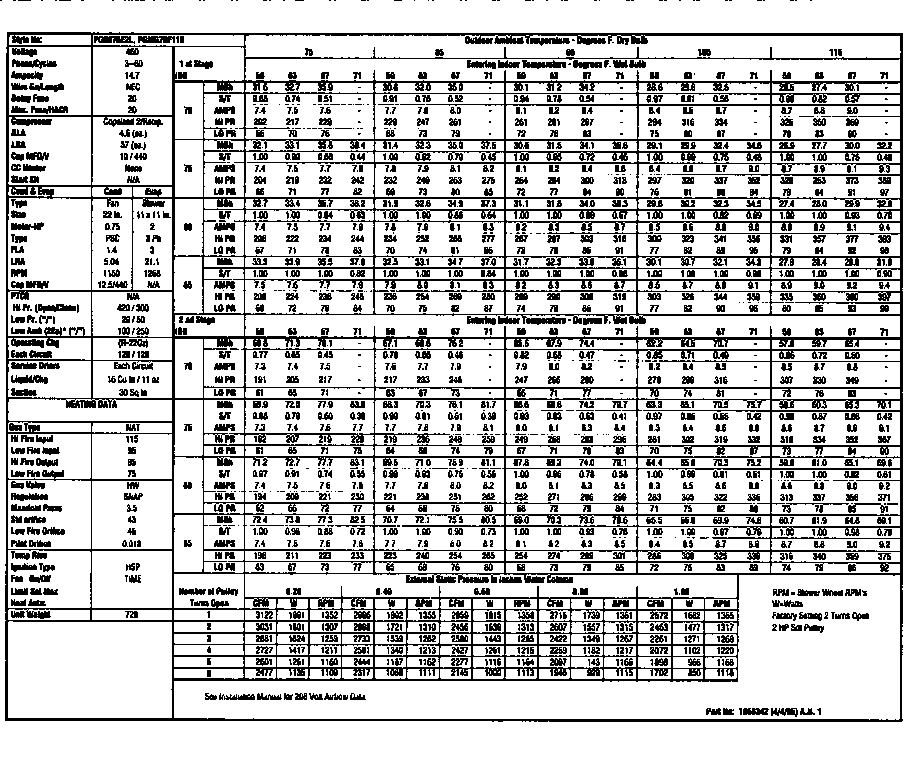

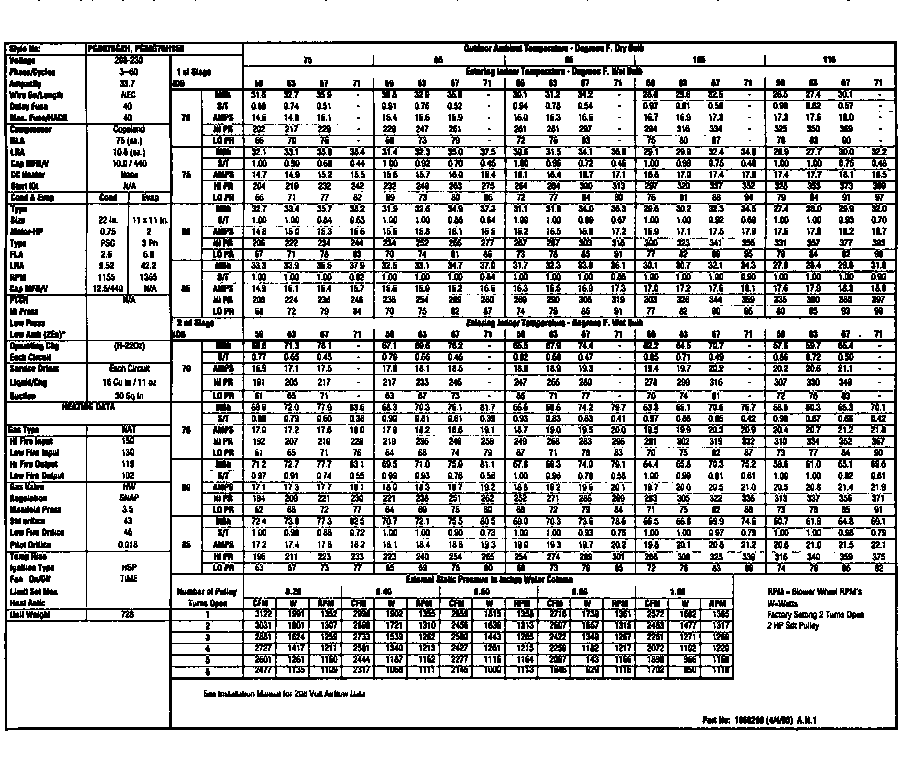

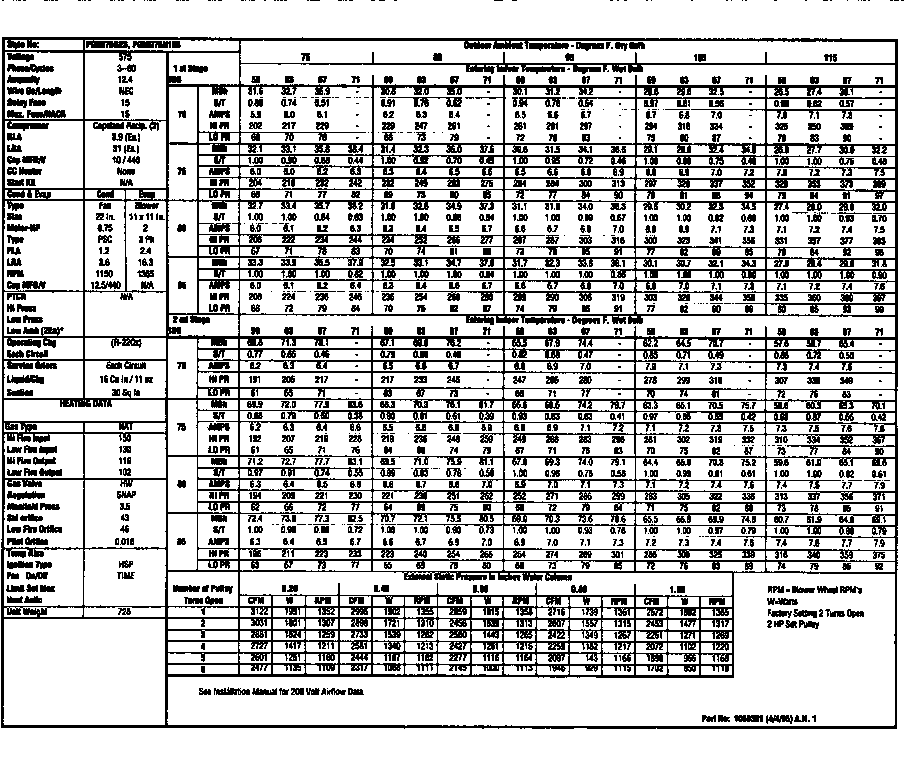

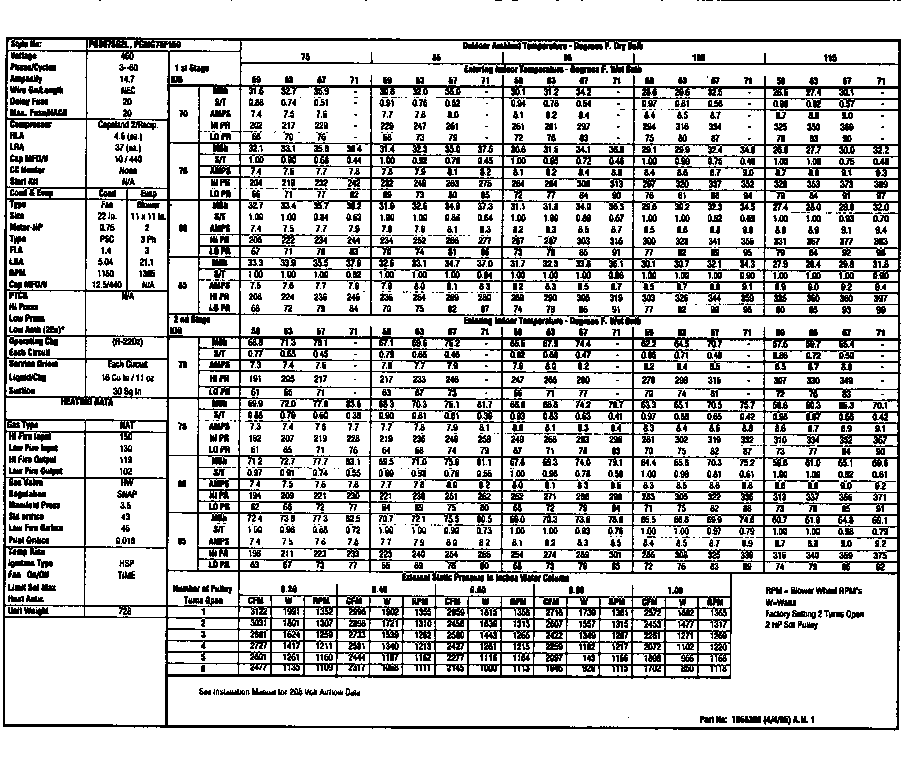

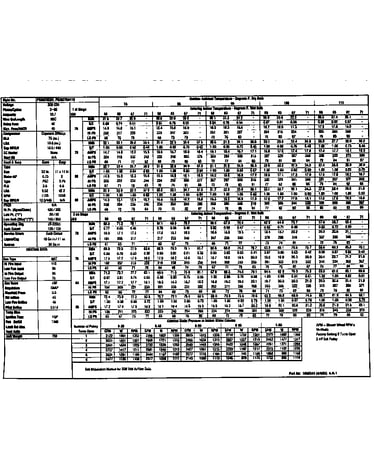

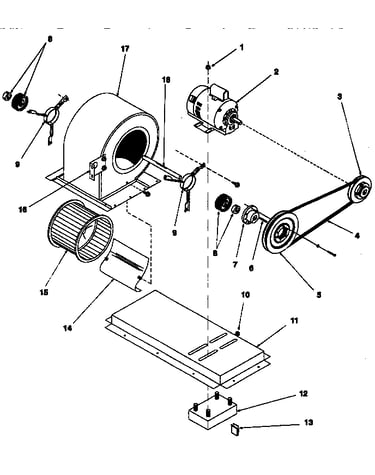

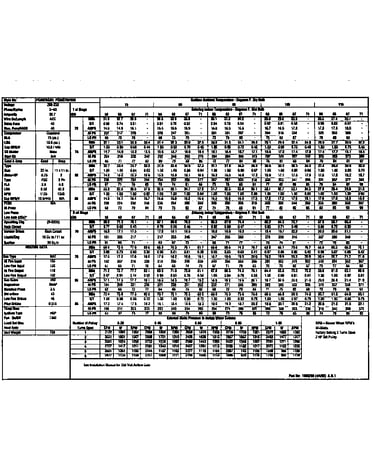

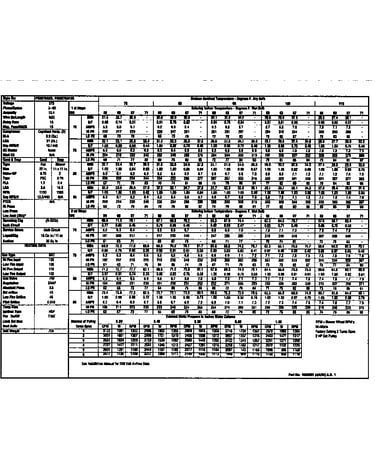

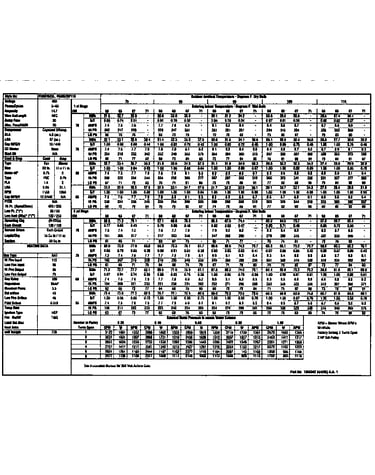

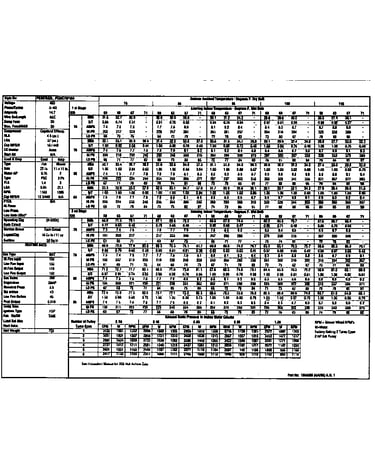

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Cap Rnrd 1094965
#30

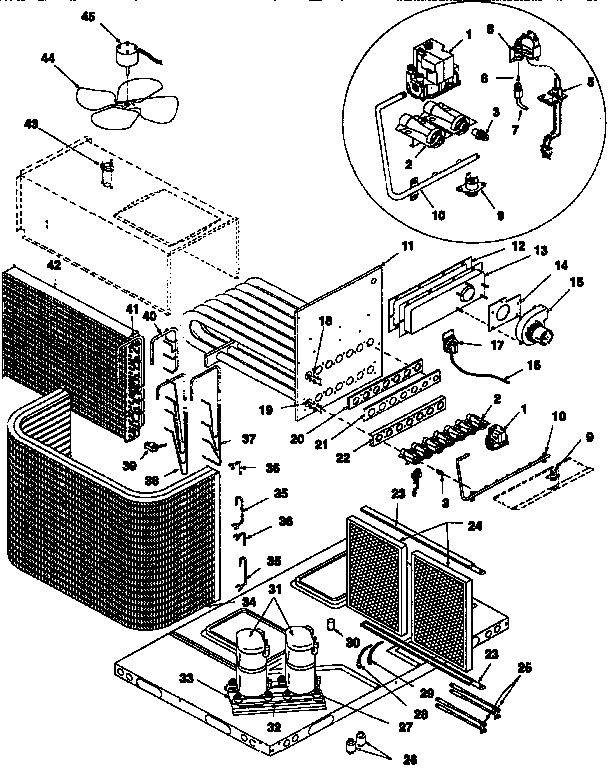

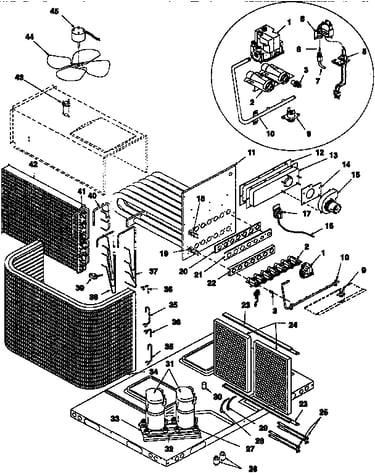

Functional diagram

Cap rnrd

Part #1094965

Replaced by #12932

?
Manufacturer substitution
This part replaces 1094965. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.35
In Stock
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#5

Functional diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Cont Fan Tmr 1009837
#9

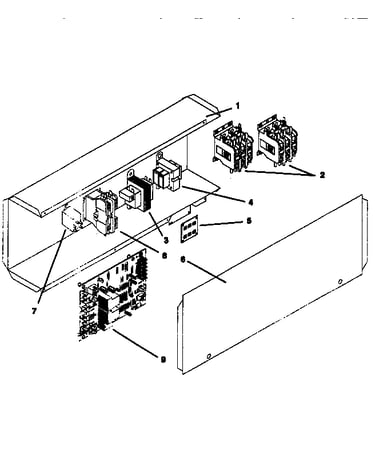

Control box diagram

Cont fan tmr

Part #1009837

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009837. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Dryer Filter 713894
#26

Functional diagram

Dryer filter

Part #713894

$69.76
In Stock
Plate Restri 1054392
#21

Functional diagram

Plate restri

Part #1054392

$78.80
In Stock
Extension Bl 1054461
#17

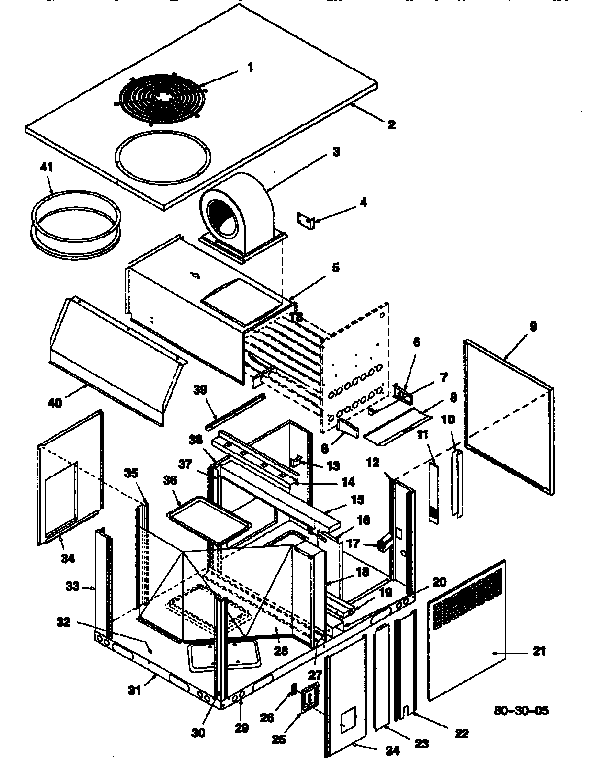

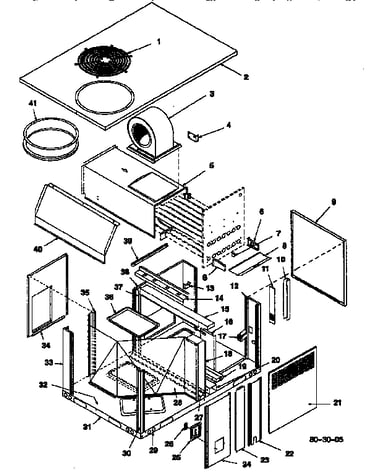

Non-functional diagram

Extension bl

Part #1054461

$158.46
In Stock
Manifold Se 1054414
#10

Functional diagram

Manifold se

Part #1054414

$22.93
In Stock
Panel Top P 1068157
#2

Non-functional diagram

Panel top p

Part #1068157

$176.98
In Stock
Mtr Cnd / / 1054575
#45

Functional diagram

Mtr cnd / /

Part #1054575

$662.82
In Stock
Hood Flue Al 1054621
#10

Non-functional diagram

Hood flue al

Part #1054621

$228.16
In Stock
