Craftsman
Wet/Dry Vacuum

Model # 12512005 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 12512005 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Shop Vacuum Filter (red Stripe) 17816
#16

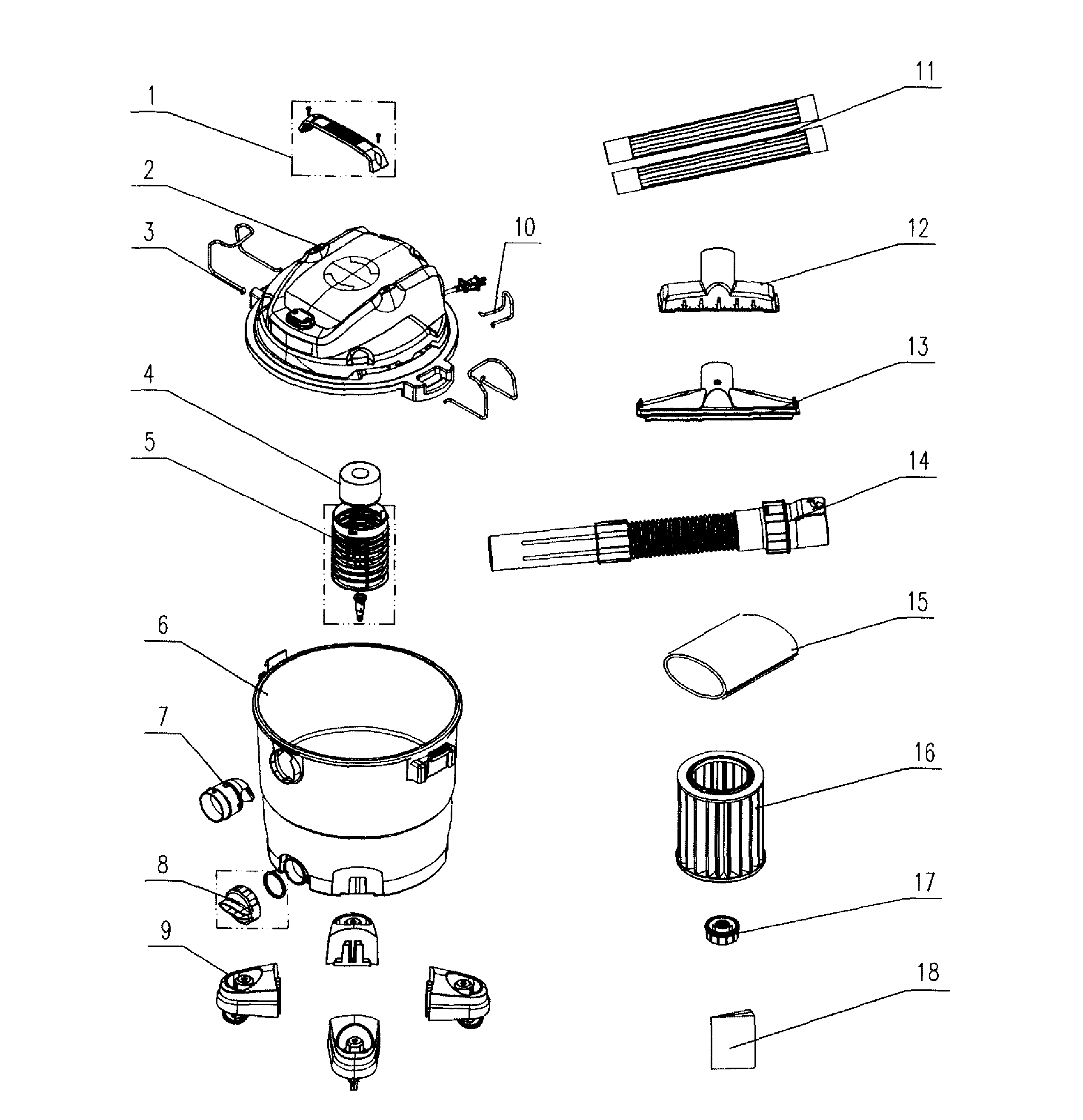

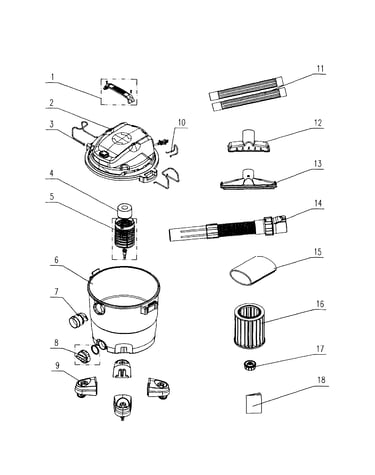

Vacuum assy diagram

Shop vacuum filter (red stripe)

Part #17816

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Filter Cage Assembly VJ51PF.10.04.W2.00
#5

Vacuum assy diagram

Shop vacuum filter cage assembly

Part #VJ51PF.10.04.W2.00

Replaced by #551006104

?
Manufacturer substitution
This part replaces VJ51PF.10.04.W2.00. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.29 |
14% OFF Phone Price : $7.29
In Stock
Retainer FV9543.11.01
#17

Vacuum assy diagram

Retainer

Part #FV9543.11.01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Foam Filter Sleeve 17888
#15

Vacuum assy diagram

Shop vacuum foam filter sleeve

Part #17888

The manufacturer no longer makes this part, and there's no substitute part

Wet/dry Vacuum Drain Cap VB01PF.X0.02
#8

Vacuum assy diagram

Wet/dry vacuum drain cap

Part #VB01PF.X0.02

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Floor Nozzle (replaces 17841) 16577
#13

Vacuum assy diagram

Shop vacuum floor nozzle (replaces 17841)

Part #16577

This item is not returnable
$14.69 |
12% OFF Phone Price : $16.69
In Stock
Inlet Hose TVQTXK.13.01.99
#7

Vacuum assy diagram

Inlet hose

Part #TVQTXK.13.01.99

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Utility Nozzle 16576
#12

Vacuum assy diagram

Shop vacuum utility nozzle

Part #16576

This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Handle VJF1PF.X0.01
#1

Vacuum assy diagram

Handle

Part #VJF1PF.X0.01

Replaced by #551011101

?
Manufacturer substitution
This part replaces VJF1PF.X0.01. Substitute parts can look different from the original.
This item is not returnable
$3.23
In Stock
Hose Storage Rack VJG1PF.10.03
#3

Vacuum assy diagram

Hose storage rack

Part #VJG1PF.10.03

Replaced by #551015102

?
Manufacturer substitution
This part replaces VJG1PF.10.03. Substitute parts can look different from the original.
$9.00
In Stock
