Model # MM275TY1 Official DeWalt lawn mower

Here are the diagrams and repair parts for Official DeWalt MM275TY1 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

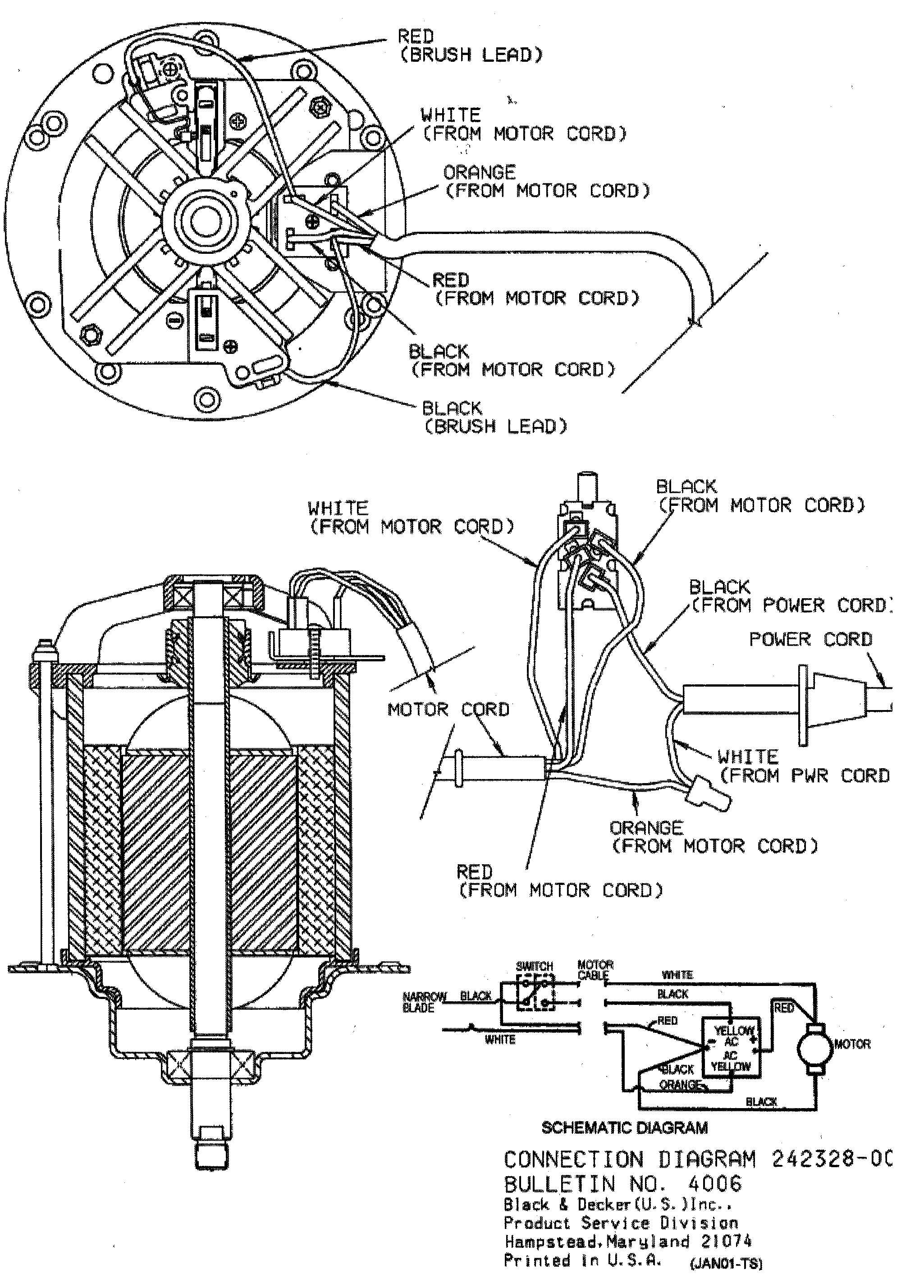

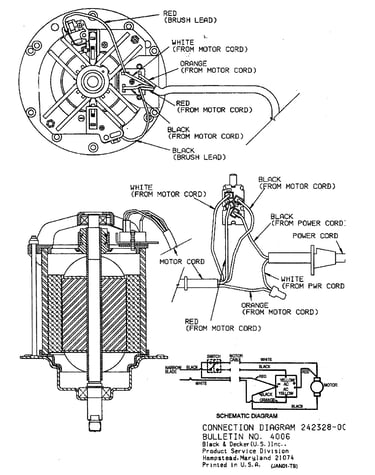

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Dewalt Lawn Mower Push Nut 241658-03
#13

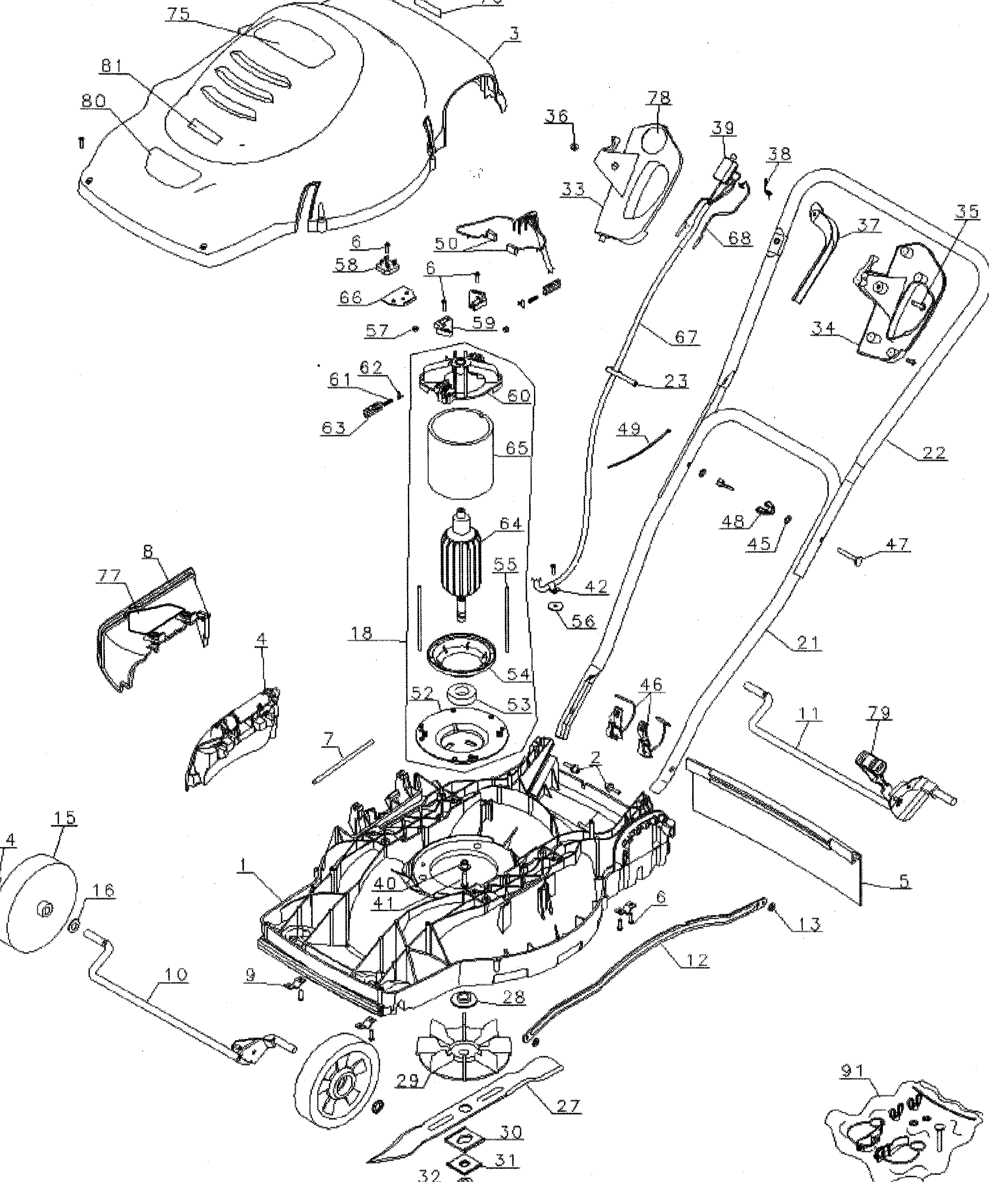

Lawn mower diagram

Dewalt lawn mower push nut

Part #241658-03

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lawn Mower Rear Skirt 243547-00
#5

Lawn mower diagram

Dewalt lawn mower rear skirt

Part #243547-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lawn Mower Motor Brush Cap 242253-01
#59

Lawn mower diagram

Dewalt lawn mower motor brush cap

Part #242253-01

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lawn Mower Screw 99292-18
#35

Lawn mower diagram

Dewalt lawn mower screw

Part #99292-18

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lawn Mower Blade Spacer, Upper 680812-00
#28

Lawn mower diagram

Dewalt lawn mower blade spacer, upper

Part #680812-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Hex Nut 243842-00
#57

Lawn mower diagram

Dewalt hex nut

Part #243842-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Handle 243498-00
#21

Lawn mower diagram

Dewalt handle

Part #243498-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lawn Mower Blade Spacer, Lower 92715-00
#31

Lawn mower diagram

Dewalt lawn mower blade spacer, lower

Part #92715-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lawn Mower On/off Switch Lead Wire 242869-00
#68

Lawn mower diagram

Dewalt lawn mower on/off switch lead wire

Part #242869-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Eye Bolt 241948-01
#23

Lawn mower diagram

Dewalt eye bolt

Part #241948-01

The manufacturer no longer makes this part, and there's no substitute part
