Model # FUM14DRARWH Official GE freezer - r series
Here are the diagrams and repair parts for Official GE FUM14DRARWH freezer - r series, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
FUM14DRARWH Freestanding Freezers
#8

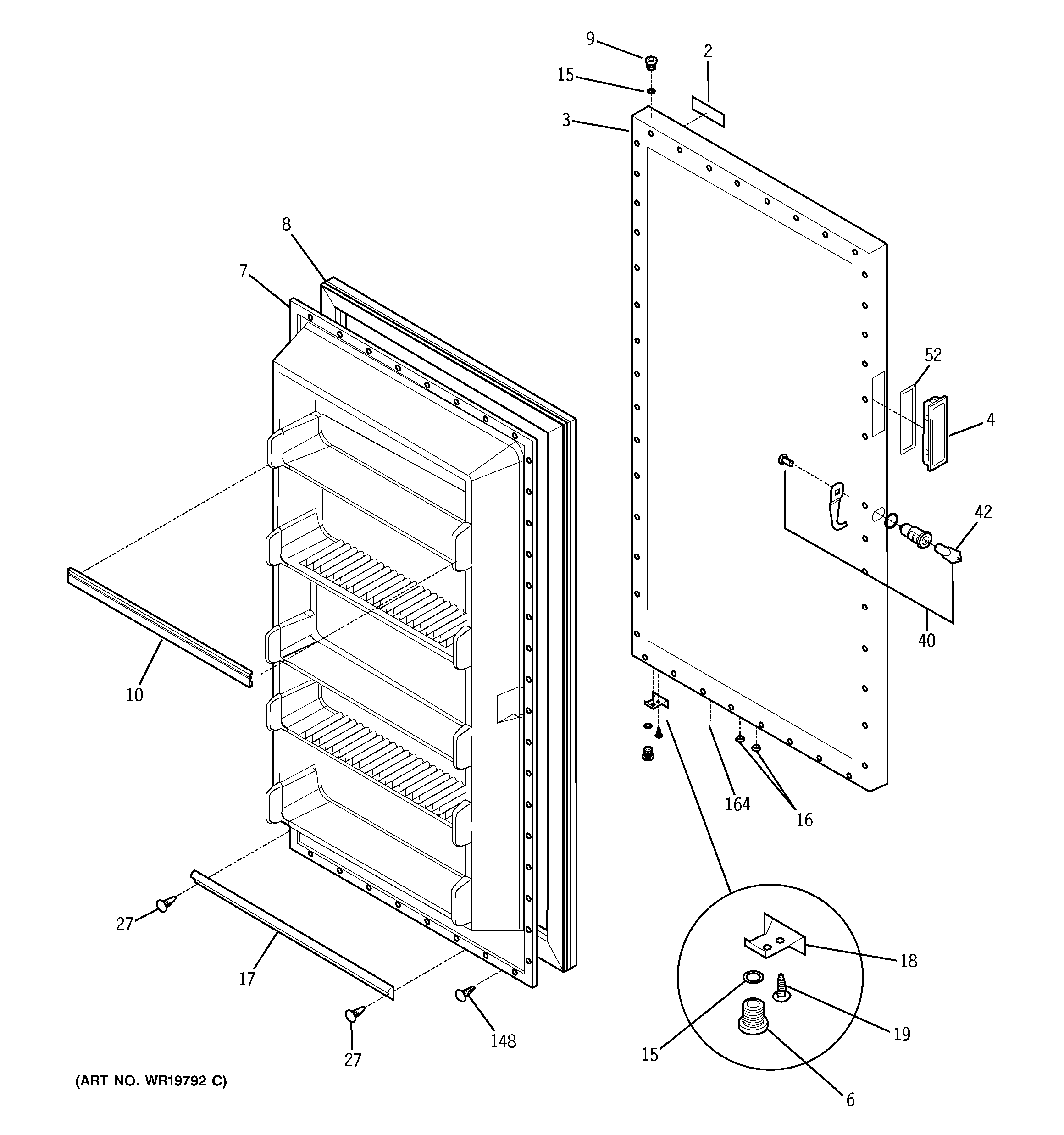

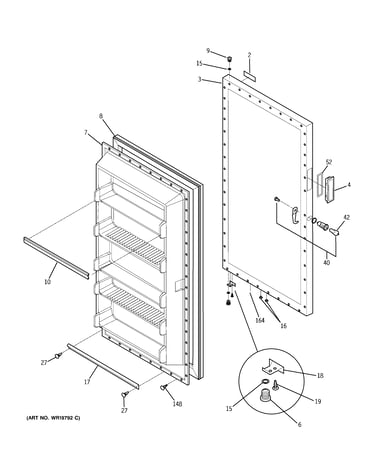

Freezer door diagram
Freezer door gasket
Part #WR24X10011
Replaced by #WR14X27587
?
Manufacturer substitution
This part replaces WR24X10011. Substitute parts can look different from the original.
$213.14
Back Order
#22

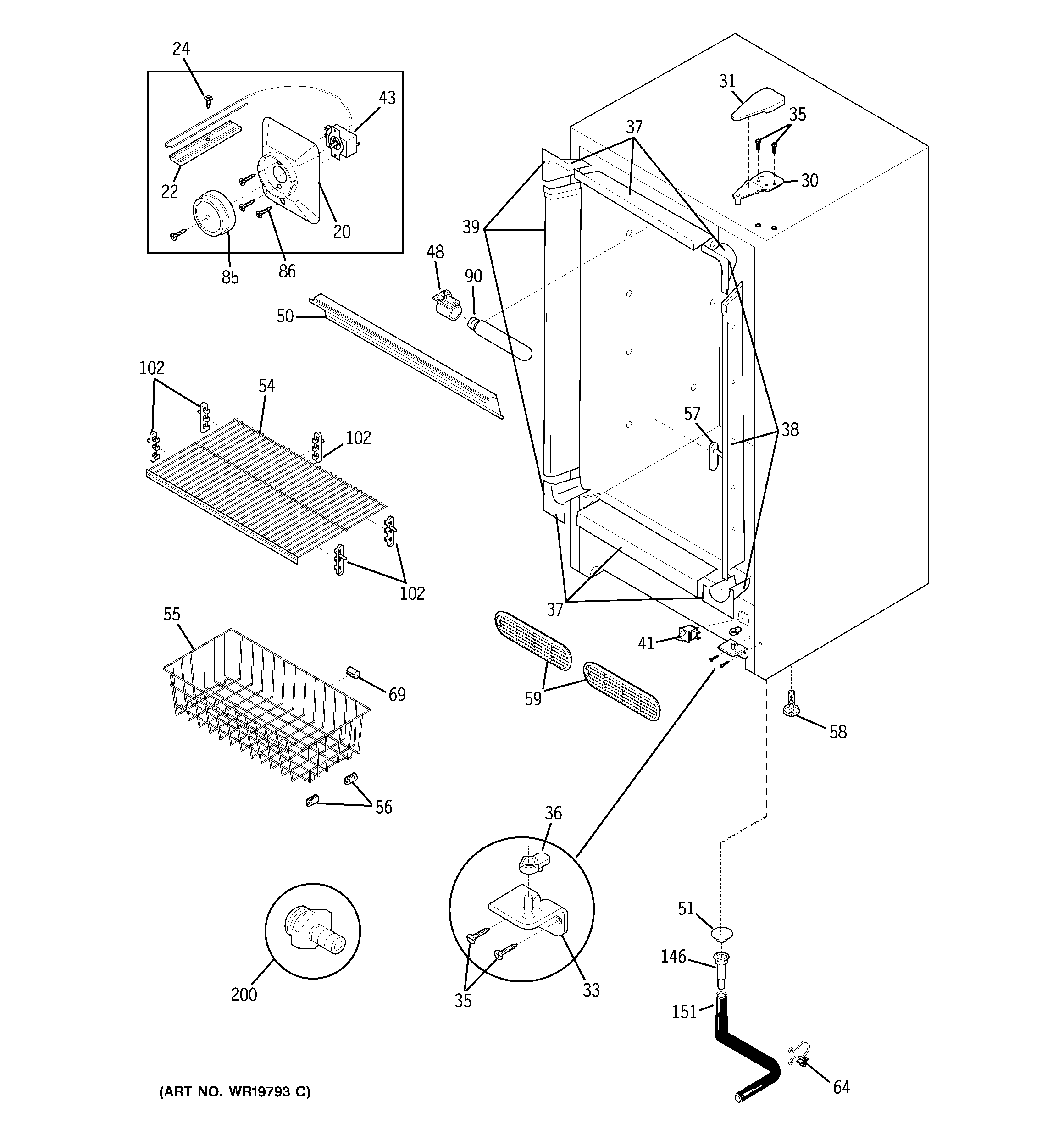

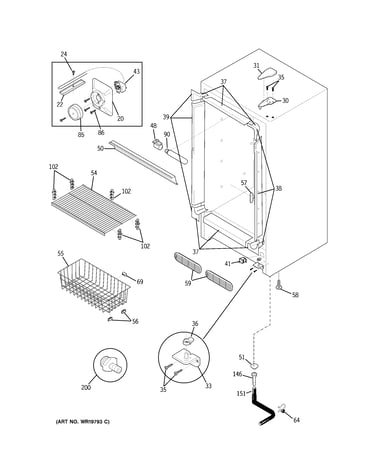

Cabinet diagram
Clamp capillary tube
Part #WR02X11441
$8.11
In Stock
#100

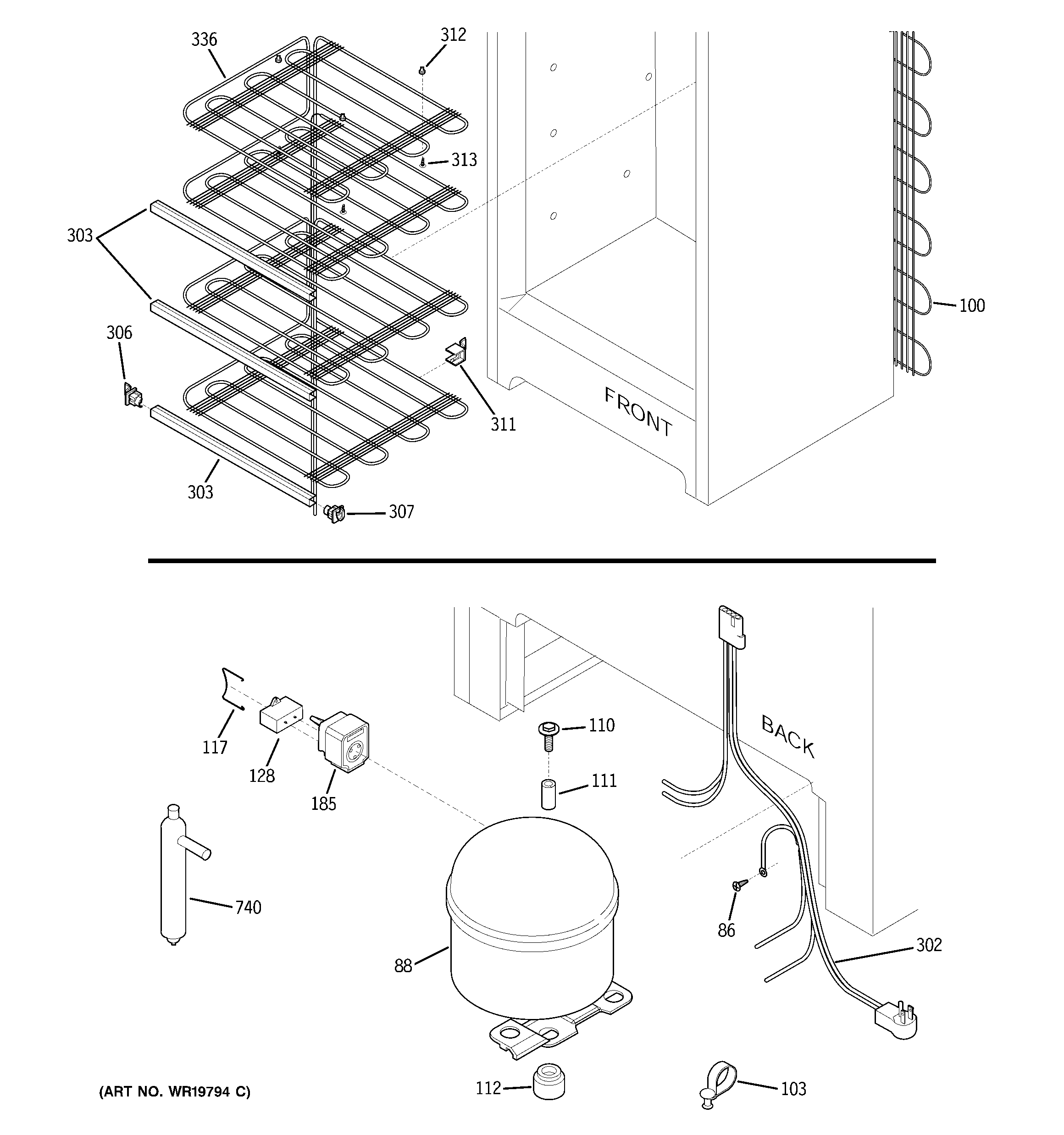

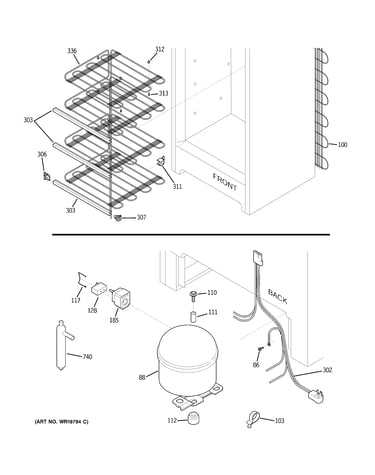

Unit parts diagram
Condenser
Part #WR84X5007
$279.53
In Stock
#85
Cabinet diagram
Temperature complete knob
Part #WR02X10860
$38.89 |
13% OFF Phone Price : $44.89
In Stock
#41
Cabinet diagram
Freezer door switch
Part #WR23X10303
$64.46 |
9% OFF Phone Price : $70.46
In Stock
#56
Cabinet diagram
Glide basket
Part #WR02X11444
$81.57 |
7% OFF Phone Price : $87.57
In Stock
#117
Unit parts diagram
Clip control
Part #WR02X12032
$15.33
In Stock
#312
Unit parts diagram
Grommet spacer
Part #WR01X2182
Replaced by #WR1X2182
?
Manufacturer substitution
This part replaces WR01X2182. Substitute parts can look different from the original.
This item is not returnable
$4.35
In Stock
#58
Cabinet diagram
Adjustment foot
Part #WR02X9485
Replaced by #WR2X9485
?
Manufacturer substitution
This part replaces WR02X9485. Substitute parts can look different from the original.
$20.43 |
23% OFF Phone Price : $26.43
In Stock
#111
Unit parts diagram
Mounting sleeve
Part #WR02X9497
Replaced by #WR2X9497
?
Manufacturer substitution
This part replaces WR02X9497. Substitute parts can look different from the original.
$45.51
In Stock
