Maytag
Refrigerator

Model # NNS207F2GA/5N78A Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag NNS207F2GA-5N78A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

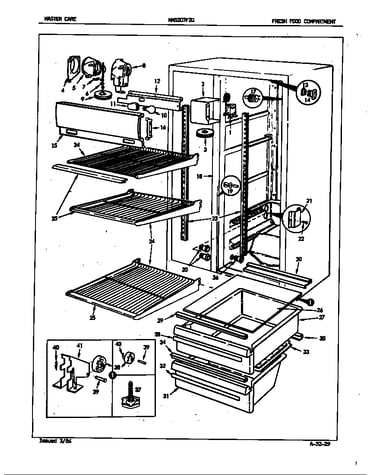

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Drier 13900
#28

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Drain Hose Clamp 9602-3
#24

Unit compartment & system diagram

Drain hose clamp

Part #9602-3

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 9602-3. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 9986-45
Screw

Part #9986-45

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 9986-45. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 400015-12
#4A

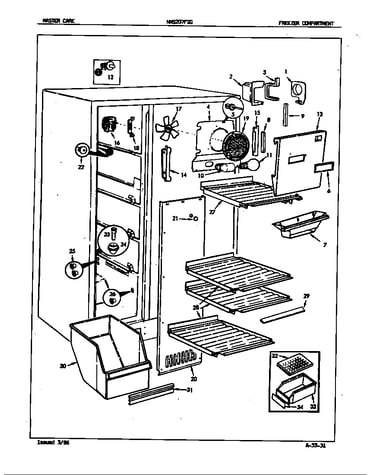

Freezer compartment diagram

Screw

Part #400015-12

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400015-12. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Condenser Blade 62934-2
#14

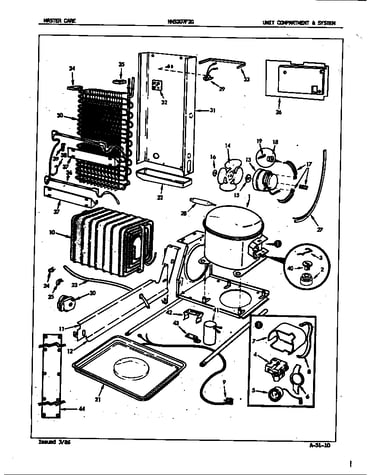

Unit compartment & system diagram

Refrigerator condenser blade

Part #62934-2

Replaced by #WP12587601

?
Manufacturer substitution
This part replaces 62934-2. Substitute parts can look different from the original.
$62.33 |
9% OFF Phone Price : $68.33
In Stock

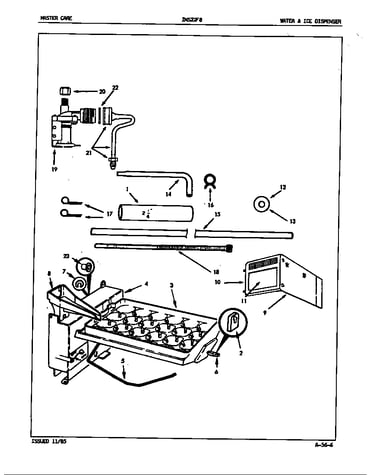

Ice Cube Tray 60112-1
#32

Freezer compartment diagram

Ice cube tray

Part #60112-1

Replaced by #WP61002140

?
Manufacturer substitution
This part replaces 60112-1. Substitute parts can look different from the original.
$19.32 |
9% OFF Phone Price : $21.32
In Stock
Screw 400022-1
#19A

Freezer compartment diagram

Screw

Part #400022-1

The manufacturer no longer makes this part, and there's no substitute part

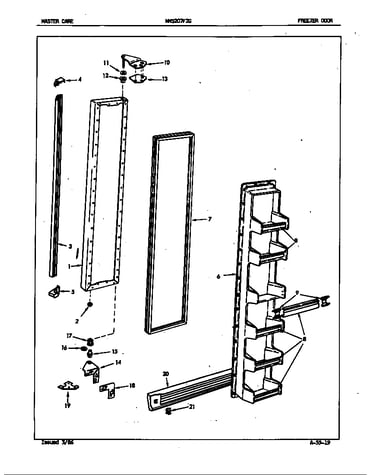

Refrigerator Door Hinge Nylon Washer 52185-1
Refrigerator door hinge nylon washer

Part #52185-1

Replaced by #WP52185-1

?
Manufacturer substitution
This part replaces 52185-1. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Light Bulb 24082-1
Refrigerator light bulb

Part #24082-1

Replaced by #WP67002552

?
Manufacturer substitution
This part replaces 24082-1. Substitute parts can look different from the original.
This item is not returnable
$3.59 |
22% OFF Phone Price : $4.59
In Stock
Refrigerator Door Shelf Retainer Clip 65245-1
Refrigerator door shelf retainer clip

Part #65245-1

Replaced by #WP65245-1

?
Manufacturer substitution
This part replaces 65245-1. Substitute parts can look different from the original.
$7.61 |
12% OFF Phone Price : $8.61
In Stock
