Craftsman
Gas Walk-Behind Mower

Model # 917376153 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376153 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 248 parts  |

Lock Nut 83923
Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Blade 141114
#47

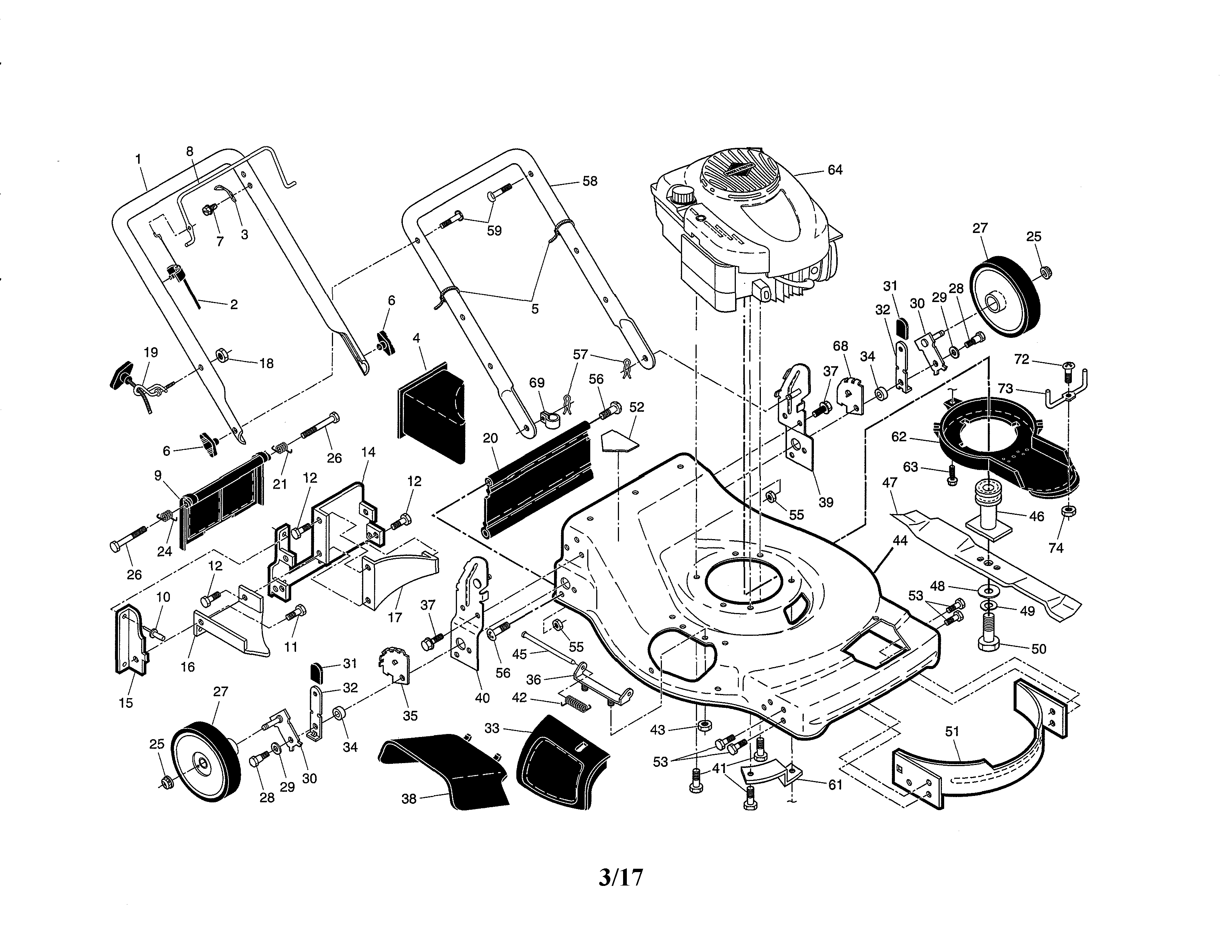

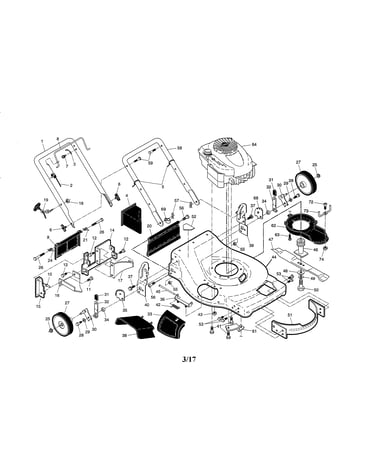

Engine/housing/handle diagram

Lawn mower blade

Part #141114

Replaced by #532406713

?
Manufacturer substitution
This part replaces 141114. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29
17% OFF Phone Price : $34.29
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

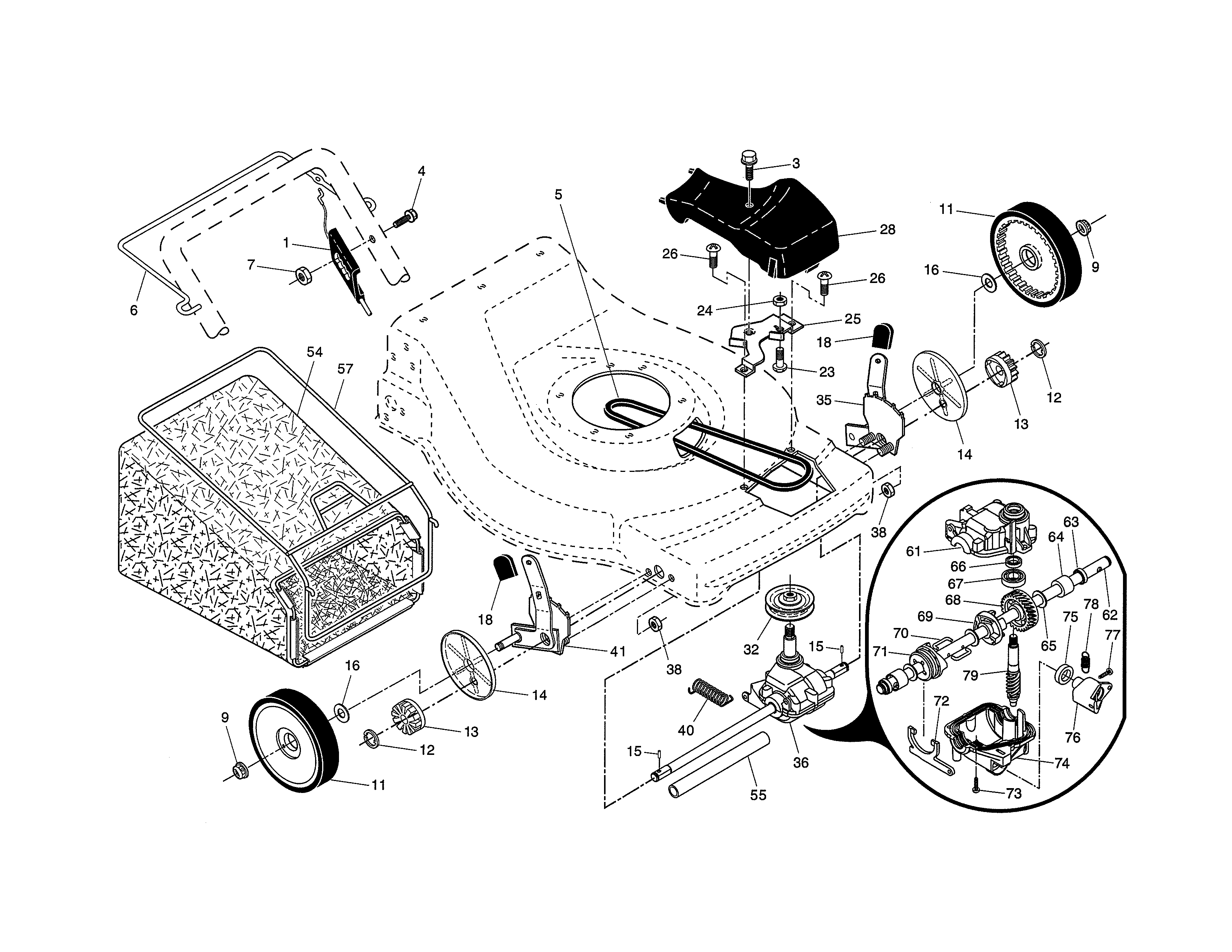

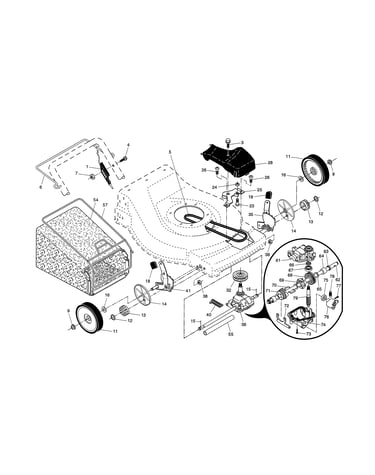

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Lock Nut 751592
#55

Engine/housing/handle diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
Lawn & Garden Equipment Hinge Screw 88652
Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Washer 67725
#16

Drive control/gear case/wheels diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Engine Control Cable 183567
#2

Engine/housing/handle diagram

Lawn mower engine control cable

Part #183567

Replaced by #532183567

?
Manufacturer substitution
This part replaces 183567. Substitute parts can look different from the original.
BEST SELLER
$19.98
9% OFF Phone Price : $21.98
In Stock
Lawn Mower Wheel 193909X460
#27

Engine/housing/handle diagram

Lawn mower wheel

Part #193909X460

Replaced by #532400542

?
Manufacturer substitution
This part replaces 193909X460. Substitute parts can look different from the original.
This item is not returnable
$30.64
16% OFF Phone Price : $36.64
In Stock
Height Spacer 401629
#34

Engine/housing/handle diagram

Height spacer

Part #401629

Replaced by #532401629

?
Manufacturer substitution
This part replaces 401629. Substitute parts can look different from the original.
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
