Model # KCDS250X1 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KCDS250X1 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 60 parts |

Garbage Disposal Mounting Gasket 4211334

#14

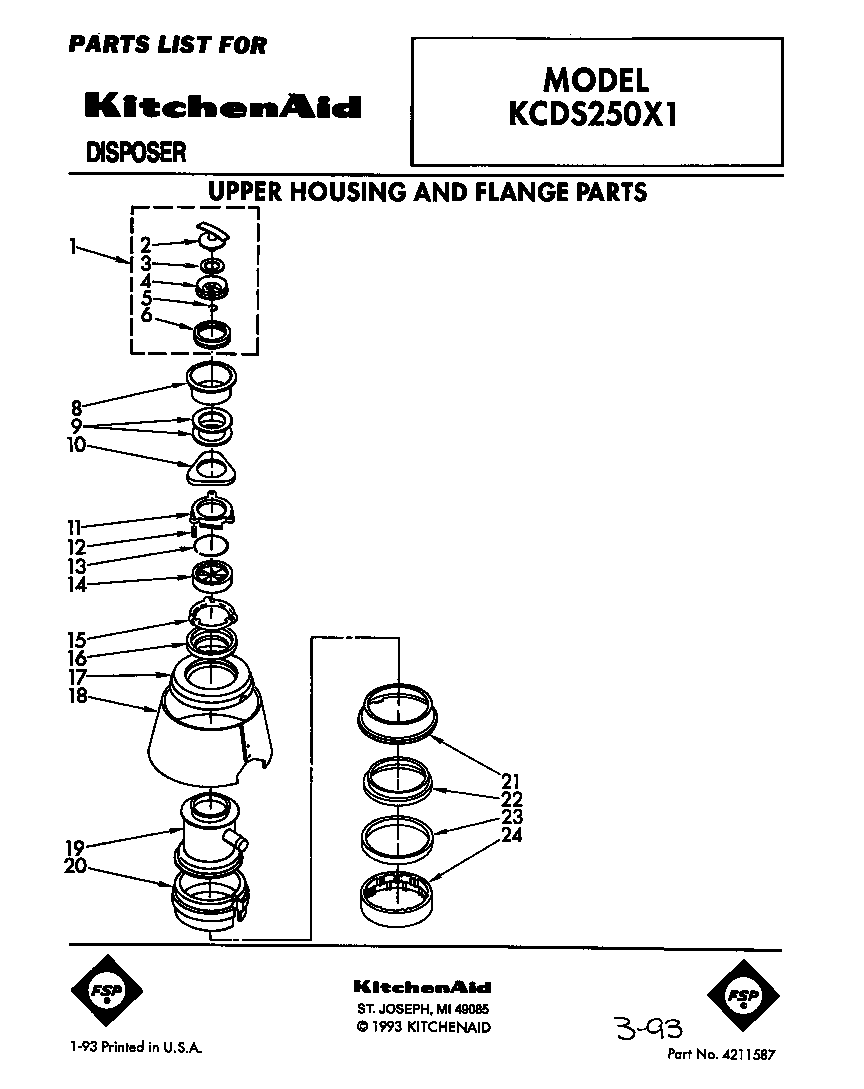

Upper housing and flange diagram

Garbage disposal mounting gasket

Part #4211334

Replaced by #WP4211334

This item is not returnable

$22.59 |

21% OFF Phone Price : $28.59

In Stock

Qty

#20

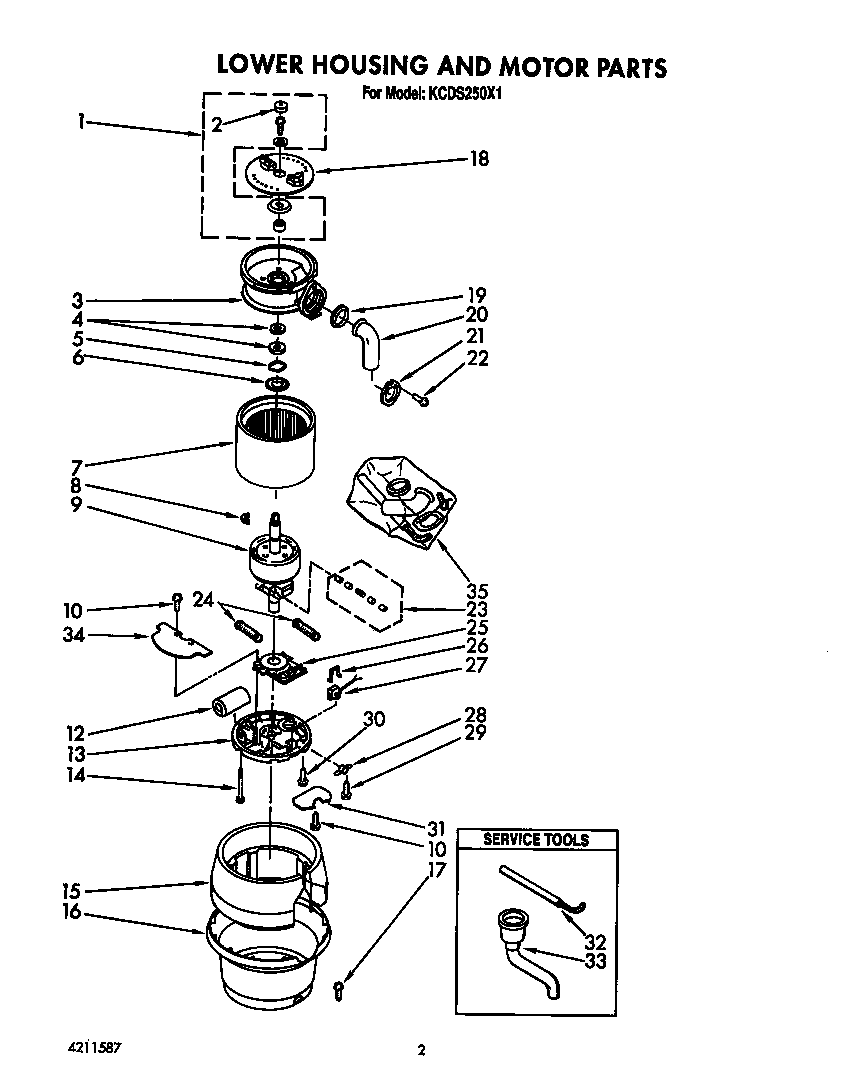

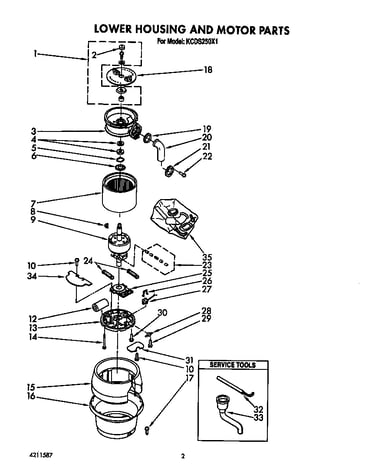

Lower housing and motor diagram

Tailpipe

Part #4211370

Replaced by #4211317

$29.89

In Stock

Qty

#33

Lower housing and motor diagram

Whirlpool adapter

Part #4211396

$240.89

In Stock

Qty

Whirlpool Garbage Disposal Mounting Flange 4211304

#11

Upper housing and flange diagram

Whirlpool garbage disposal mounting flange

Part #4211304

$55.09

In Stock

Qty

#10

Upper housing and flange diagram

Whirlpool flange

Part #4211303

$50.87

In Stock

Qty

Upper housing and flange diagram

Gasket

Part #4211355

This item is not returnable

$5.89

In Stock

Qty

Lower housing and motor diagram

Whirlpool sleeve

Part #4211578

$43.24

In Stock

Qty

#13

Upper housing and flange diagram

Whirlpool ring

Part #4211306

This item is not returnable

$7.49

In Stock

Qty

Whirlpool Garbage Disposal Mounting Flange Screw 4211305

#12

Upper housing and flange diagram

Whirlpool garbage disposal mounting flange screw

Part #4211305

$16.79 |

11% OFF Phone Price : $18.79

In Stock

Qty

Lower housing and motor diagram

Plug

Part #4211341

Replaced by #4211578

$43.24

In Stock

Qty
