Craftsman
Power Sander

Model # 315117280 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315117280 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

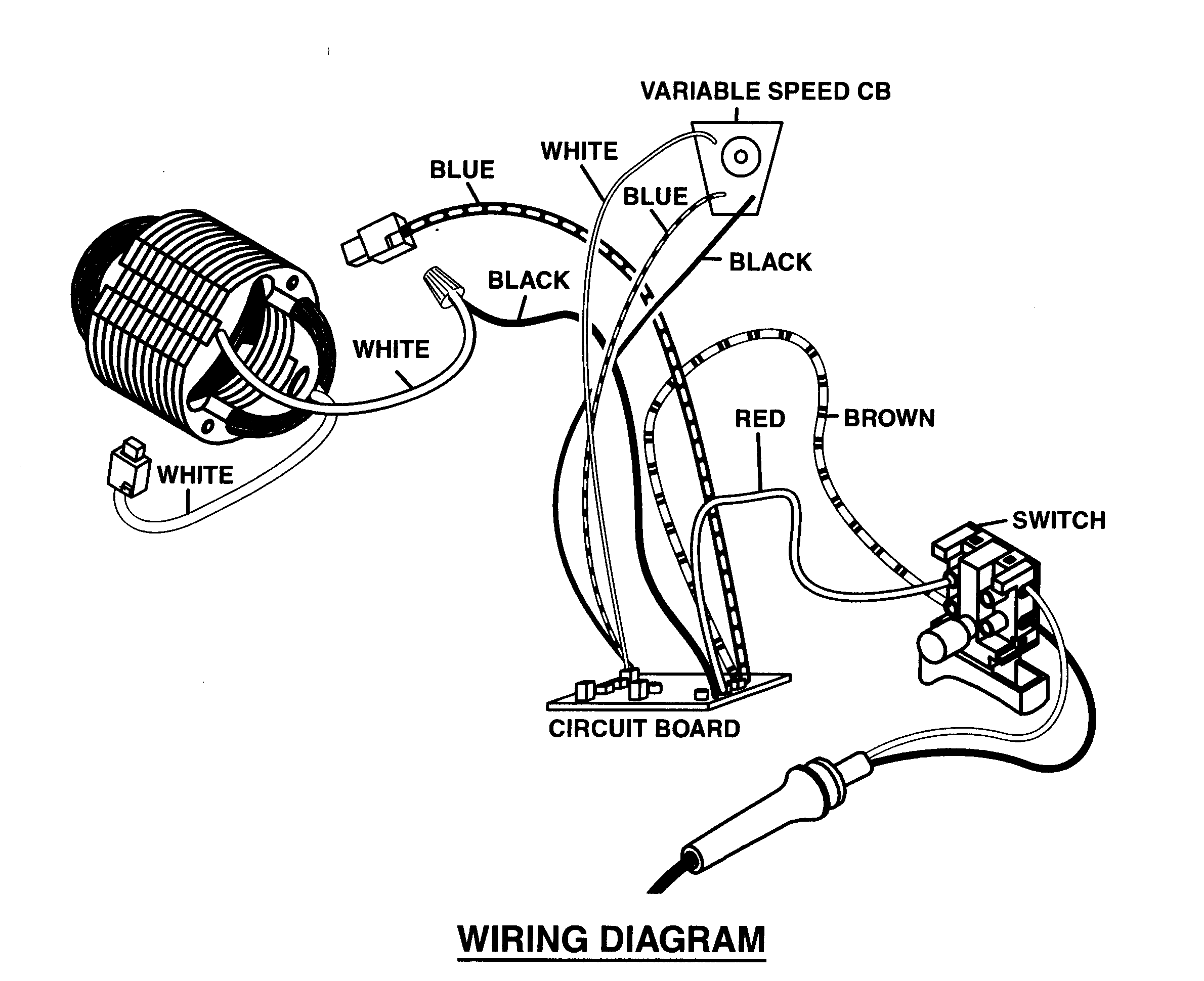

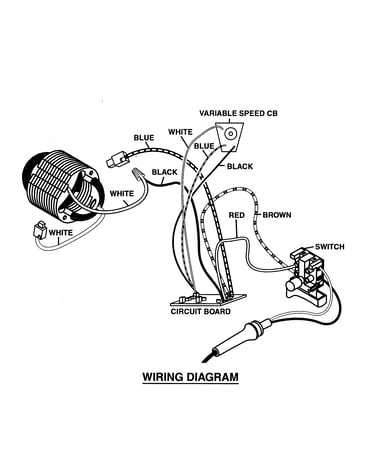

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Sander Drum Bearing 680768003
#25

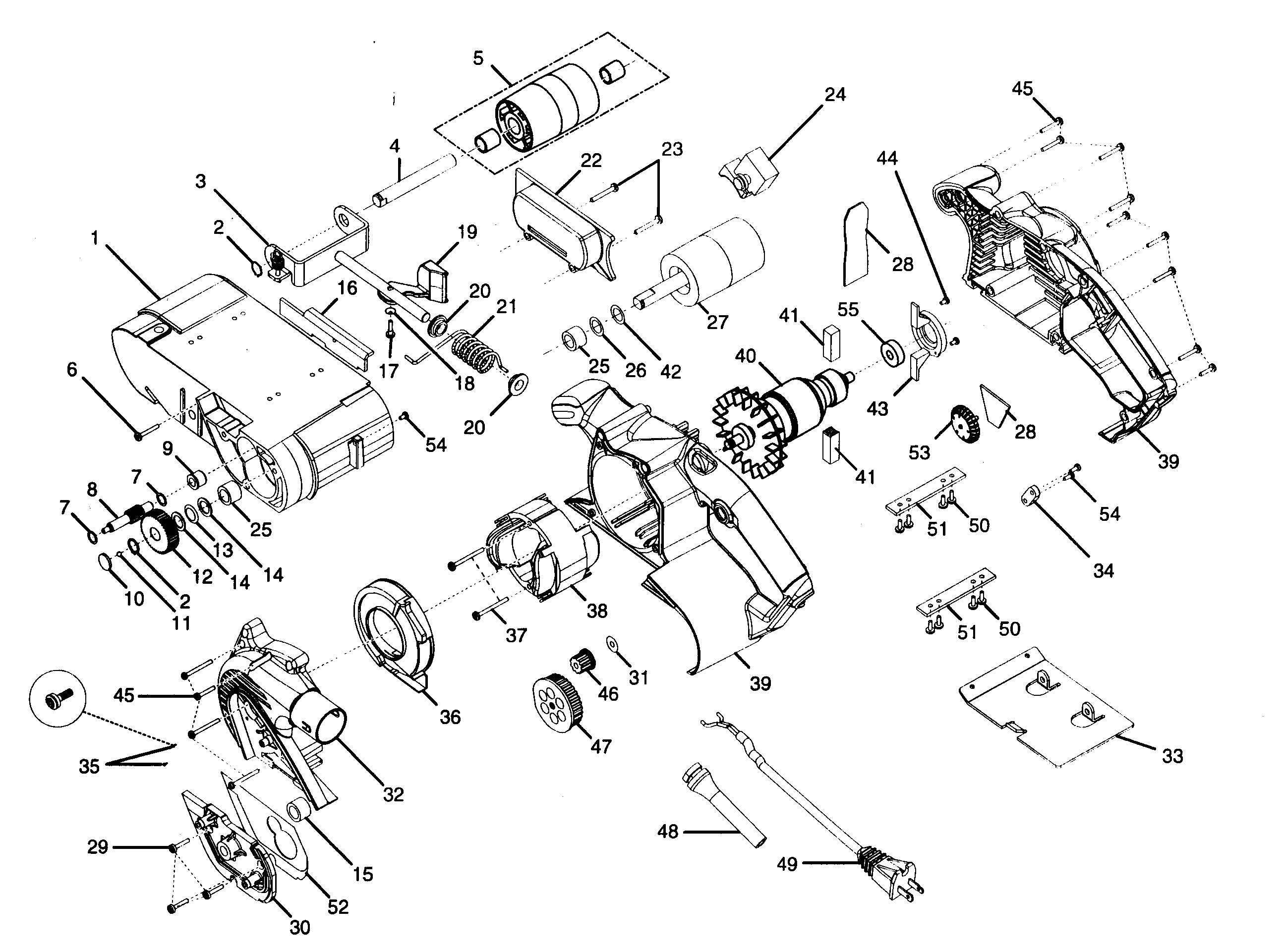

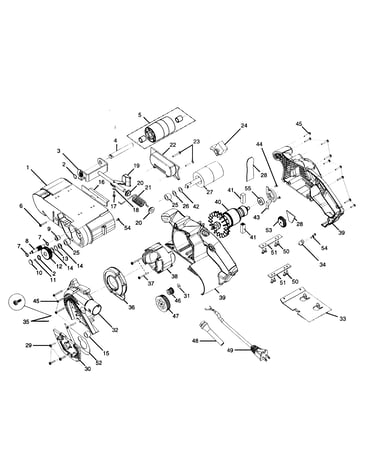

Housing assy diagram

Sander drum bearing

Part #680768003

The manufacturer no longer makes this part, and there's no substitute part

Washer 690709001
#10

Housing assy diagram

Washer

Part #690709001

The manufacturer no longer makes this part, and there's no substitute part

Roller 590480001
#27

Housing assy diagram

Roller

Part #590480001

The manufacturer no longer makes this part, and there's no substitute part

Pinion T610322001
#8

Housing assy diagram

Pinion

Part #T610322001

The manufacturer no longer makes this part, and there's no substitute part

Belt 590560001
#8

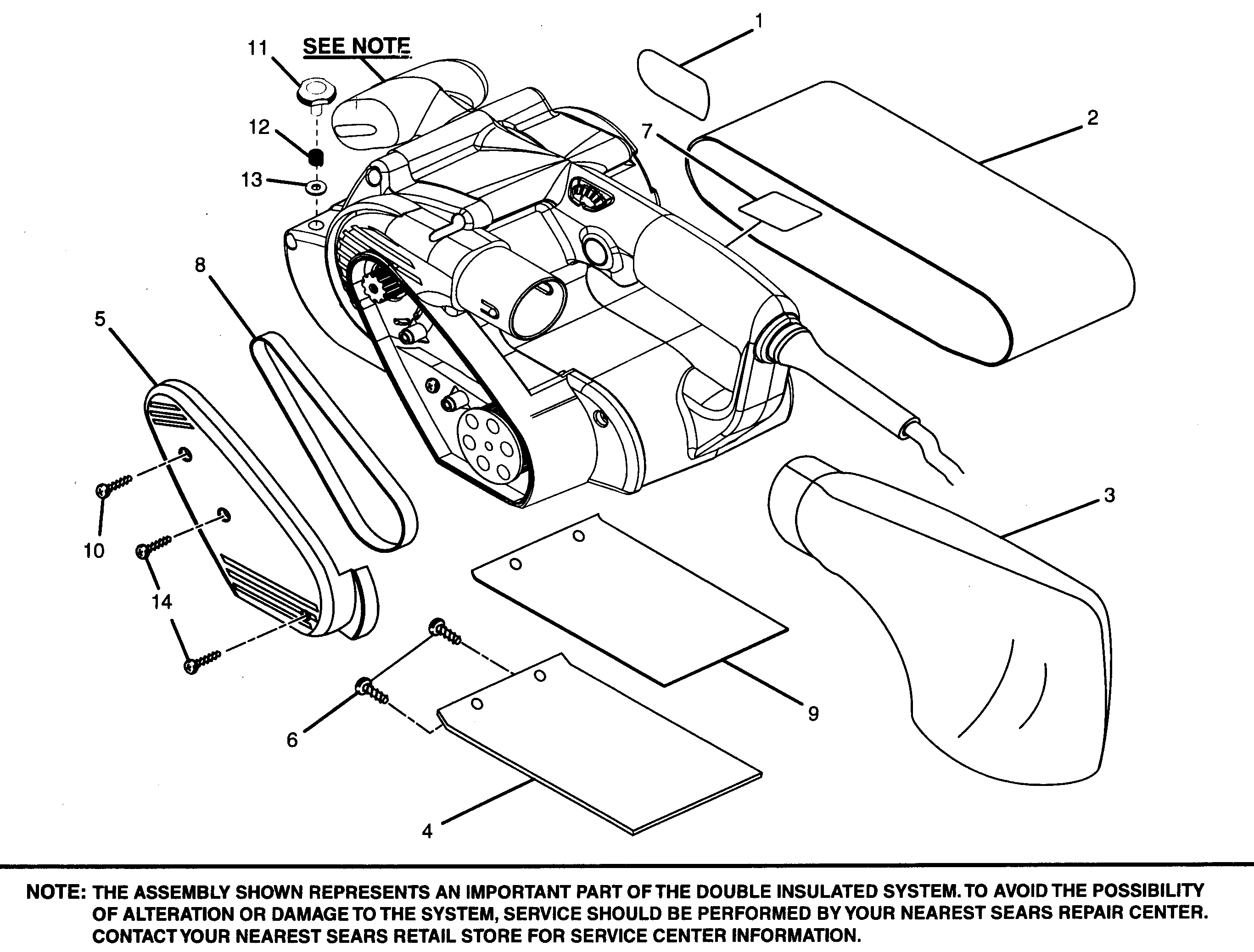

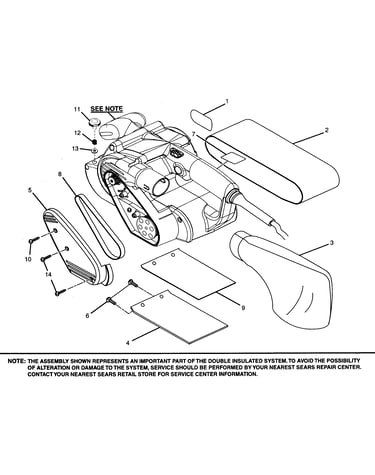

Sander diagram

Belt

Part #590560001

The manufacturer no longer makes this part, and there's no substitute part

Sander On/off Switch 760314001
#24

Housing assy diagram

Sander on/off switch

Part #760314001

The manufacturer no longer makes this part, and there's no substitute part

Screw 6627201
#10

Sander diagram

Screw

Part #6627201

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620804
#37

Housing assy diagram

Screw

Part #6620804

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620803
#45

Housing assy diagram

Screw

Part #6620803

The manufacturer no longer makes this part, and there's no substitute part

Screw 660112004
#6

Housing assy diagram

Screw

Part #660112004

The manufacturer no longer makes this part, and there's no substitute part
