Model # 867758010 Official Kenmore direct vent wall furnace

Here are the diagrams and repair parts for Official Kenmore 867758010 direct vent wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

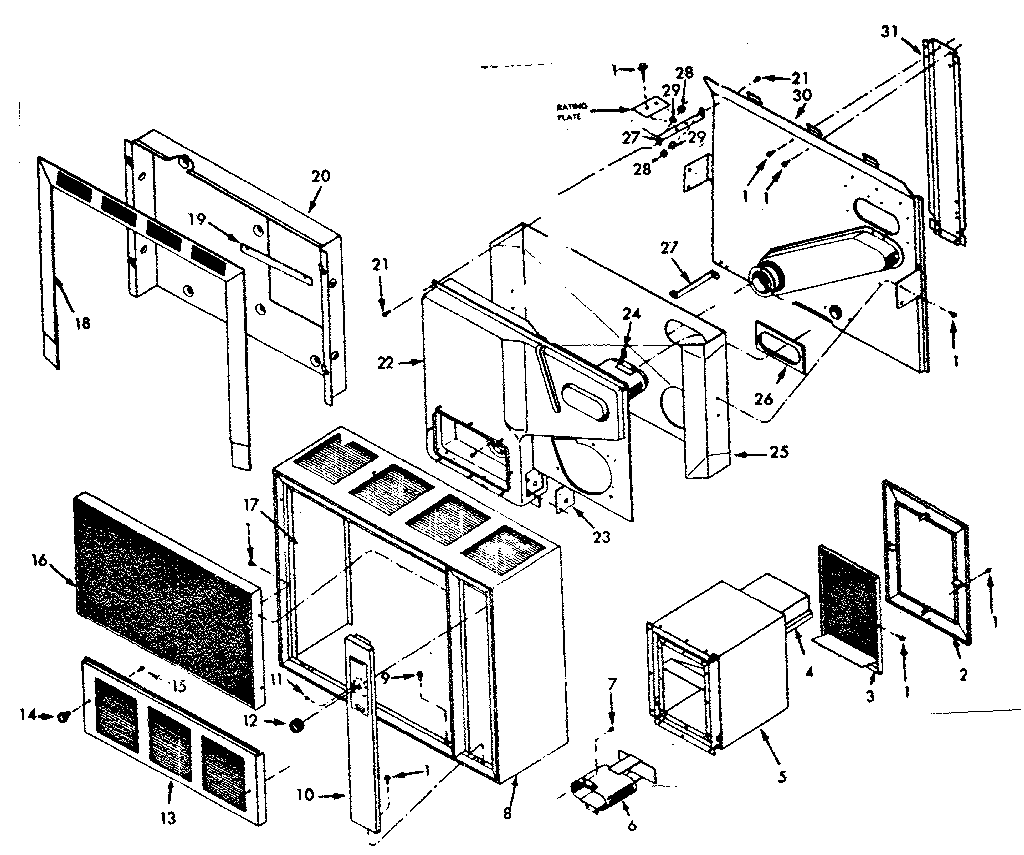

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Pilot Tubng 506468
#20

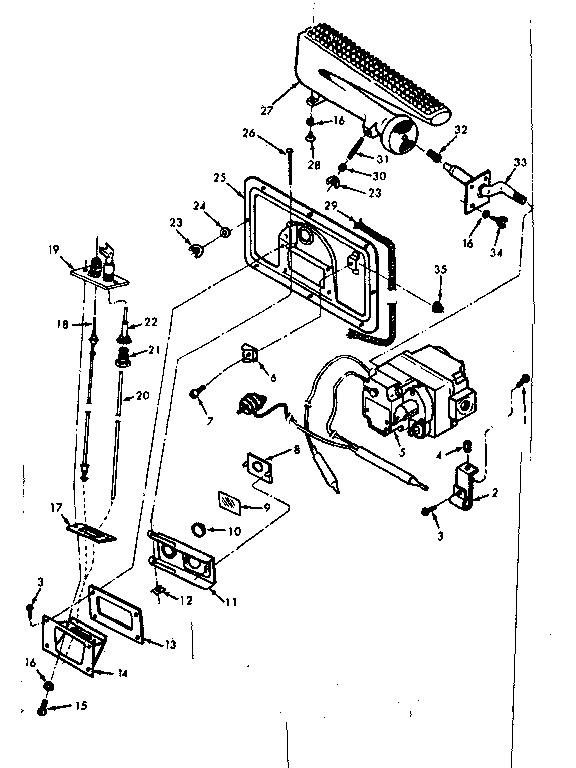

Burner assembly diagram

Pilot tubng

Part #506468

Replaced by #100108370

?
Manufacturer substitution
This part replaces 506468. Substitute parts can look different from the original.
$36.67
In Stock
Ferrule Nut 29441
#21

Burner assembly diagram

Ferrule nut

Part #29441

Replaced by #100108370

?
Manufacturer substitution
This part replaces 29441. Substitute parts can look different from the original.
$36.67
In Stock
Thermocouple 40096
#18

Burner assembly diagram

Thermocouple

Part #40096

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 40096. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Gas Valve 507208
#5B

Burner assembly diagram

Gas valve

Part #507208

The manufacturer no longer makes this part, and there's no substitute part

Pilot Gasket 502934
#17

Burner assembly diagram

Pilot gasket

Part #502934

The manufacturer no longer makes this part, and there's no substitute part

Grommet 64475
#10

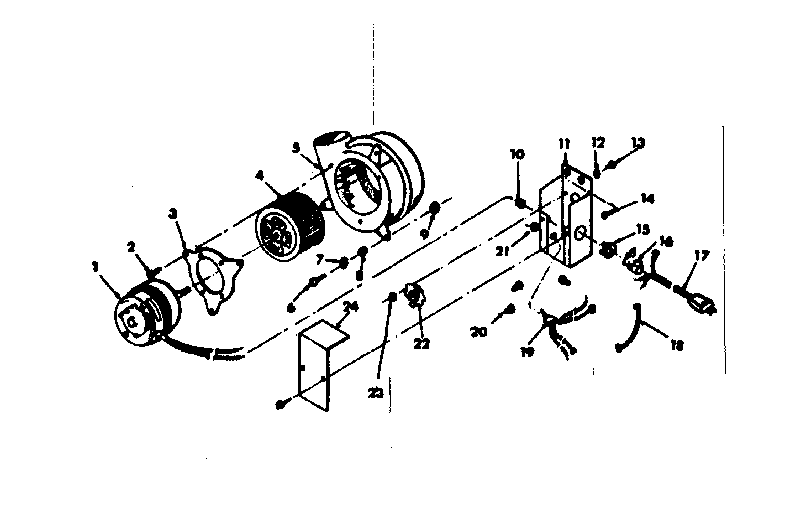

Blower assembly diagram

Grommet

Part #64475

The manufacturer no longer makes this part, and there's no substitute part

Catch Plate 47807
#6

Burner assembly diagram

Catch plate

Part #47807

The manufacturer no longer makes this part, and there's no substitute part

Screw STD511102
#15

Burner assembly diagram

Screw

Part #STD511102

The manufacturer no longer makes this part, and there's no substitute part

Nut STD541610
#23

Burner assembly diagram

Nut

Part #STD541610

The manufacturer no longer makes this part, and there's no substitute part

Nut 47193
#35

Burner assembly diagram

Nut

Part #47193

The manufacturer no longer makes this part, and there's no substitute part
