Model # GTS22ICSARCC Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE GTS22ICSARCC refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

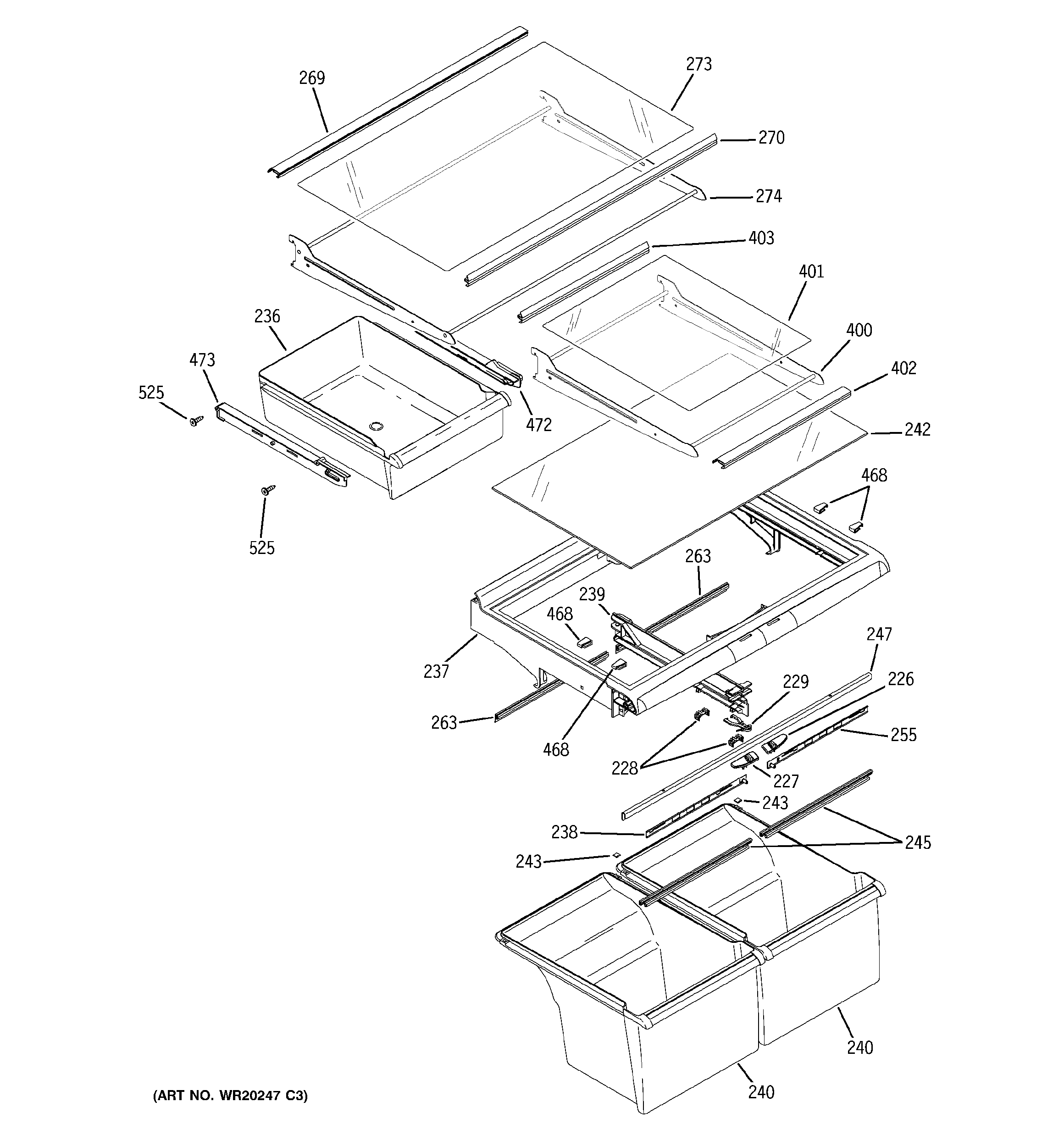

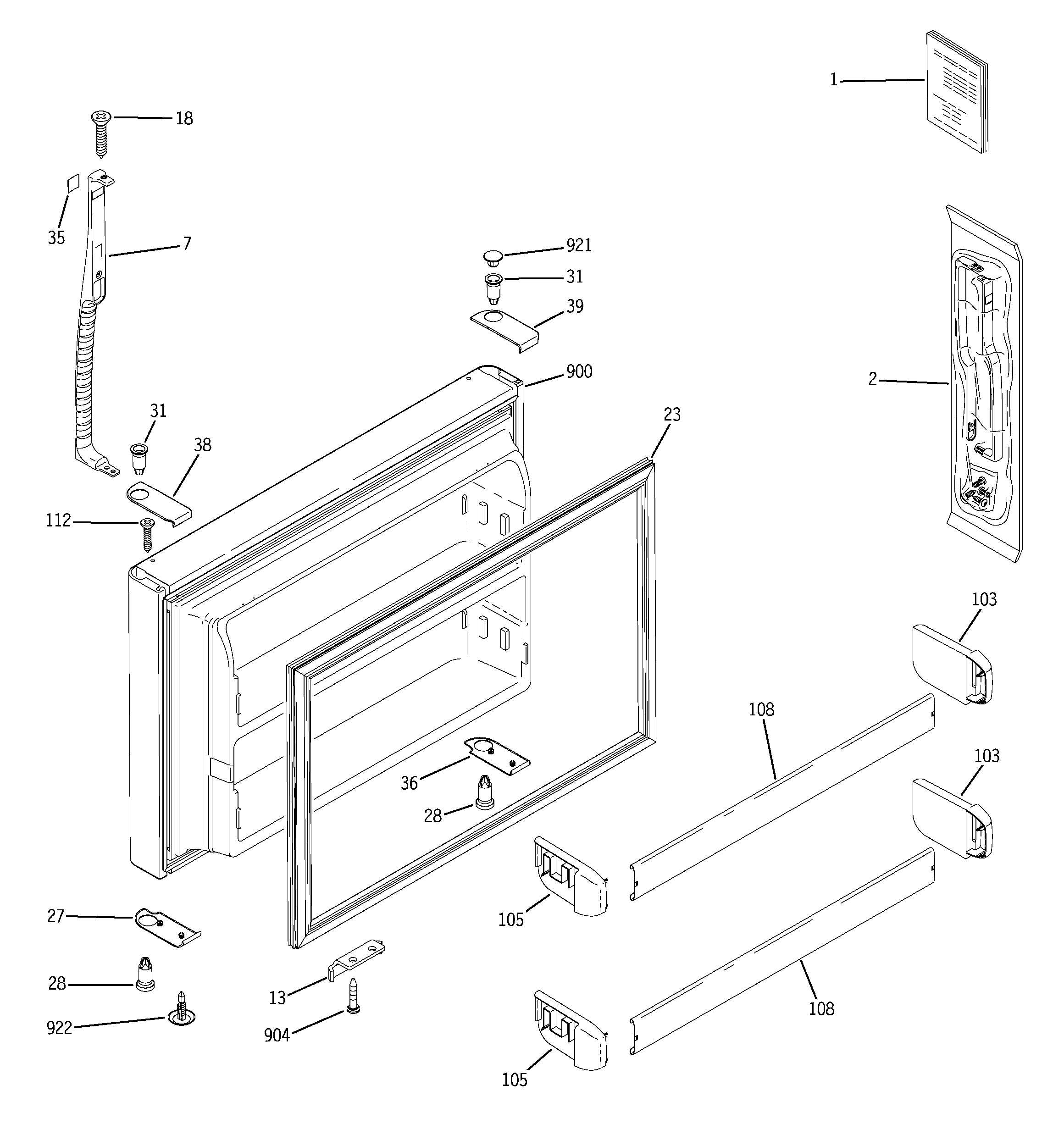

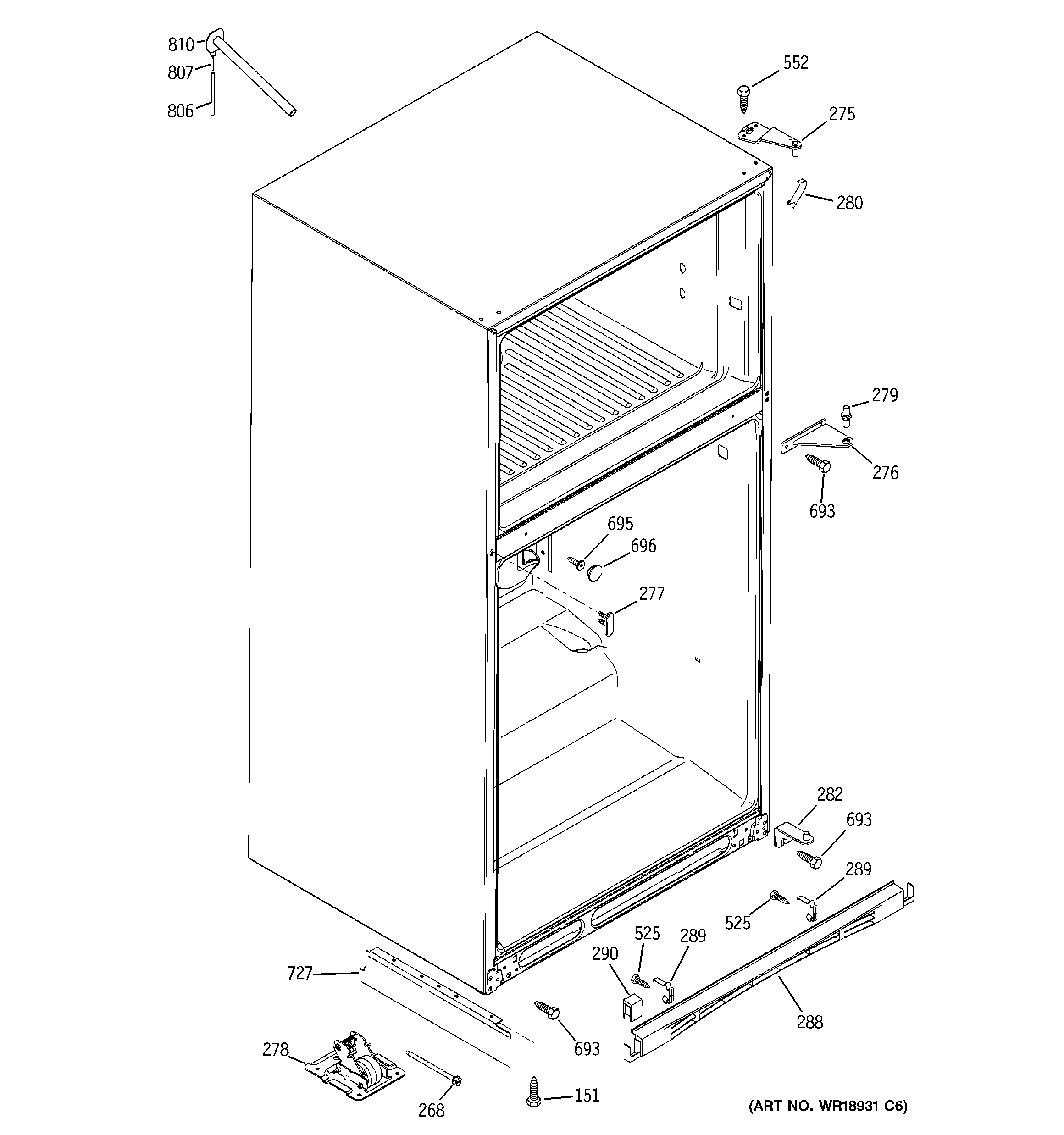

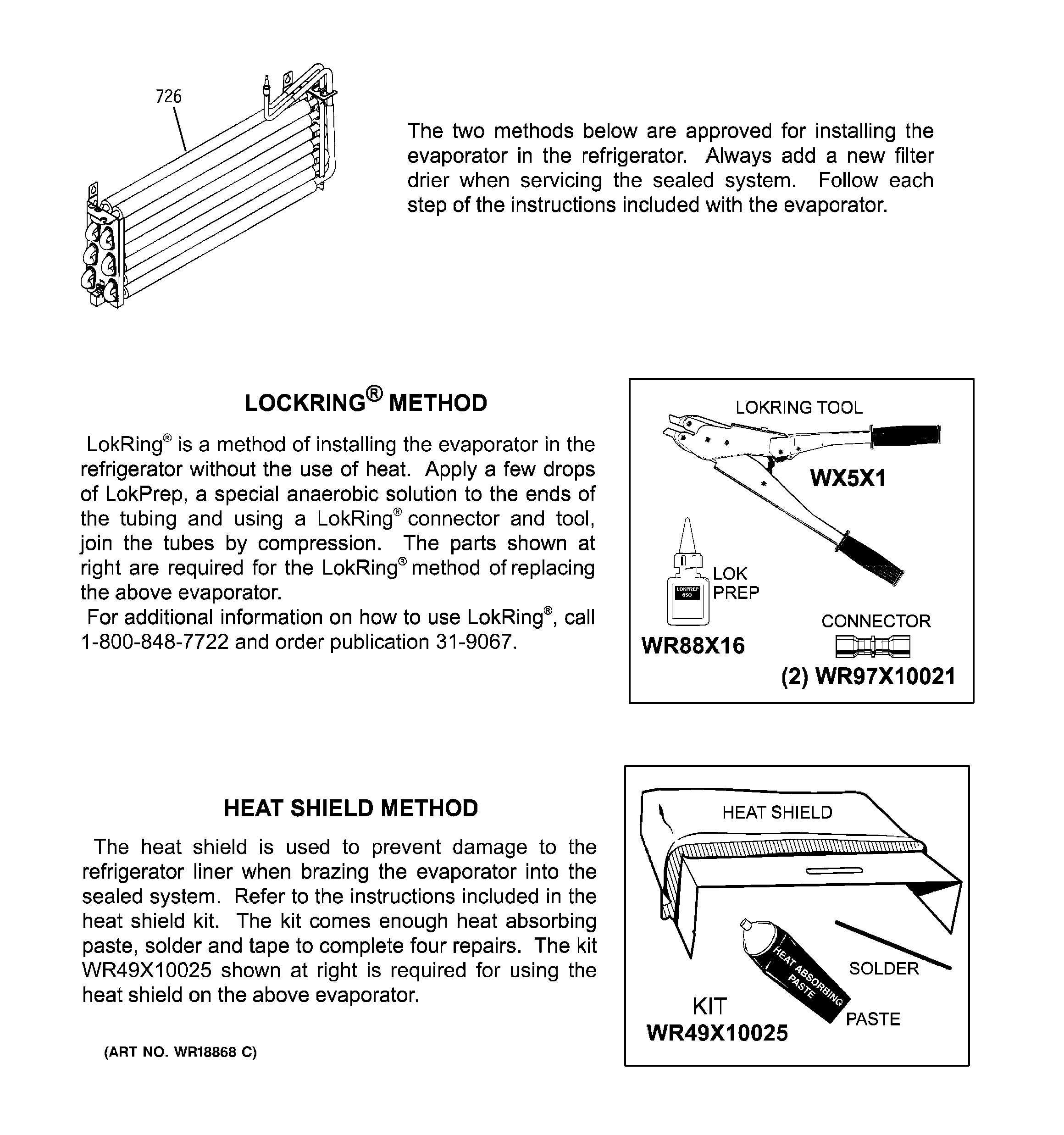

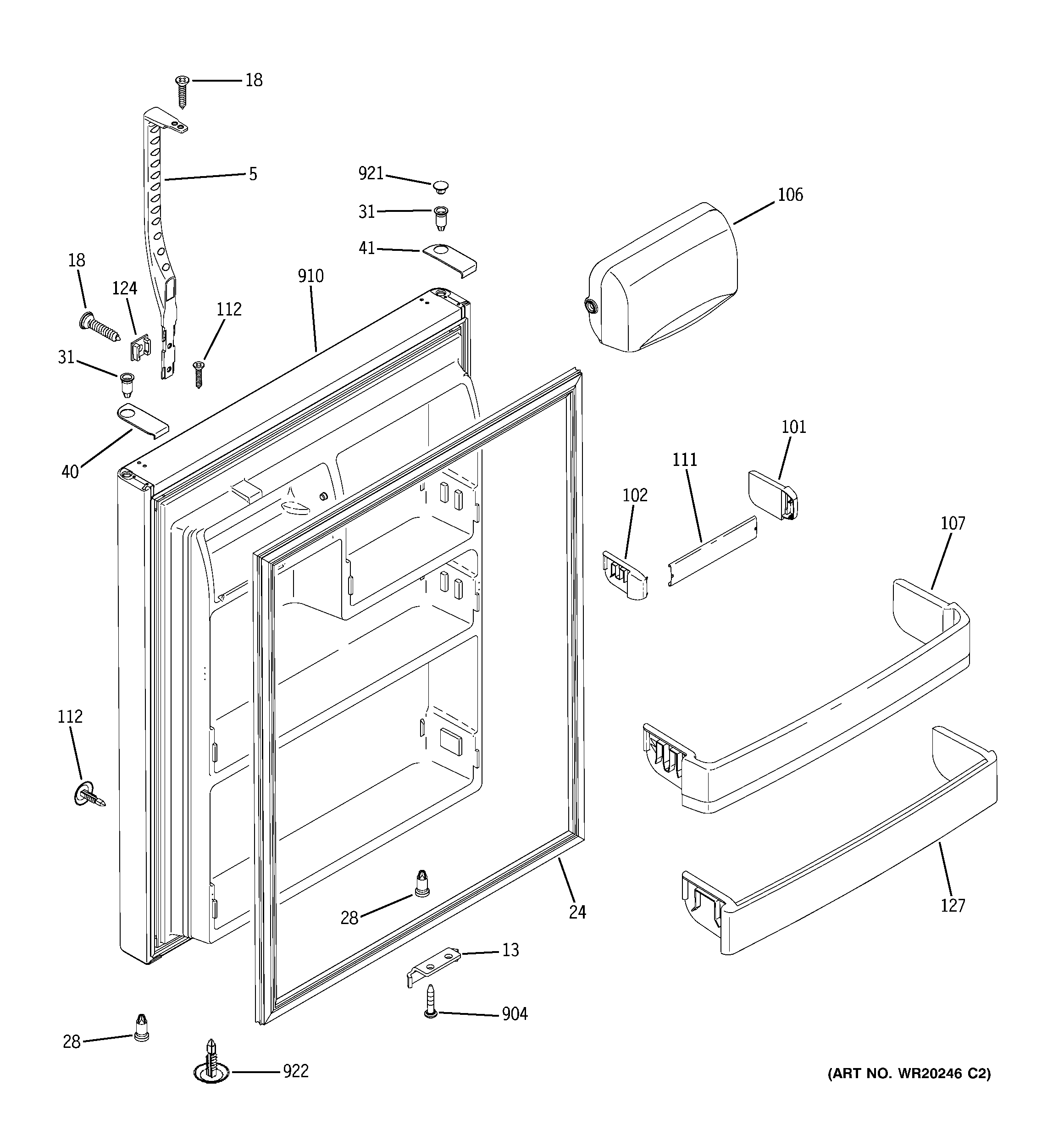

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |
Refrigerator Temperature Sensor WR55X10089
#605

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10089

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10089. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10087
#635

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10087

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10087. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10088
#203

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10088

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10088. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Ice Maker WR30X10043
#820

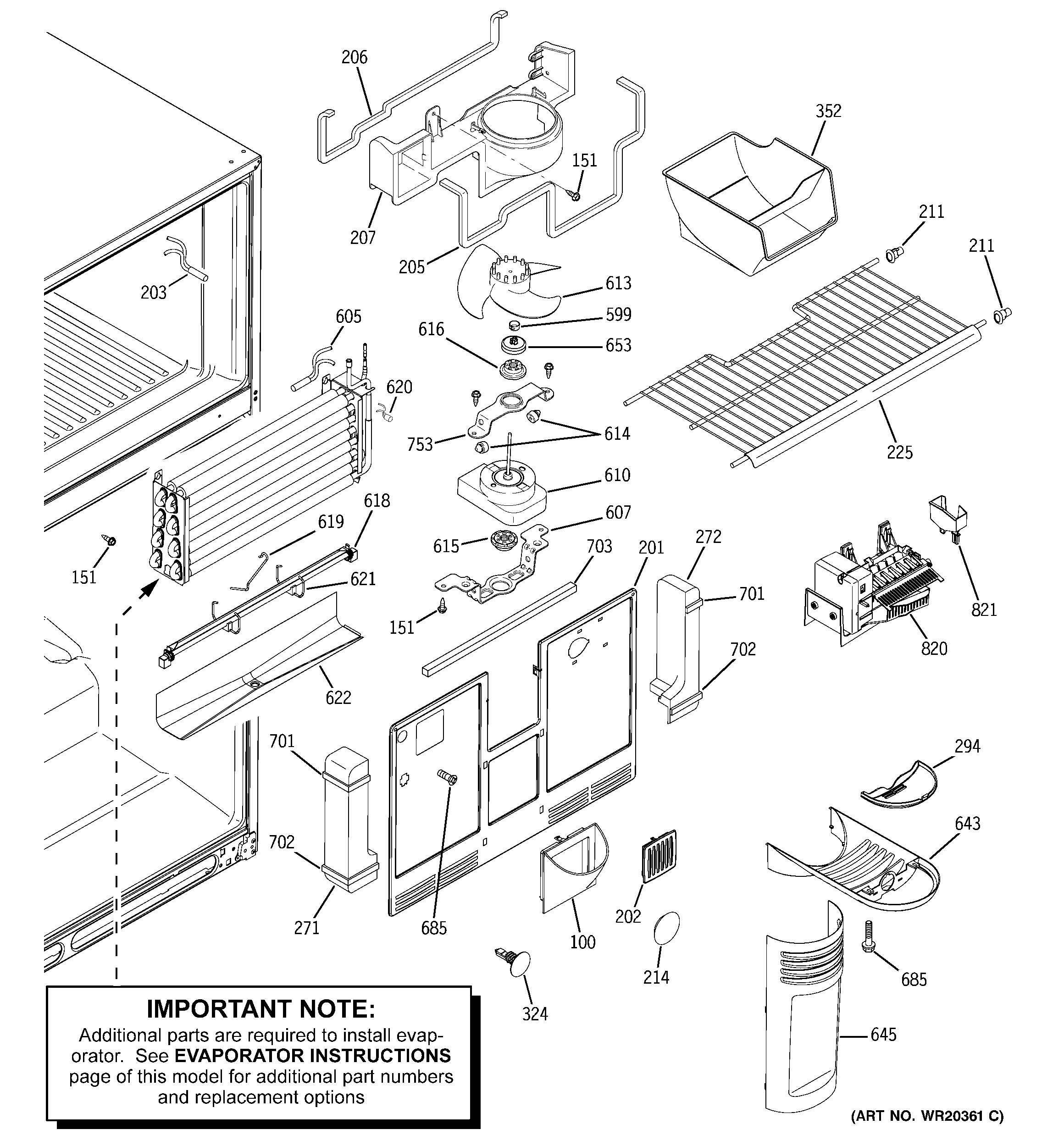

Freezer section diagram

Refrigerator ice maker

Part #WR30X10043

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10043. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#740

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
#435

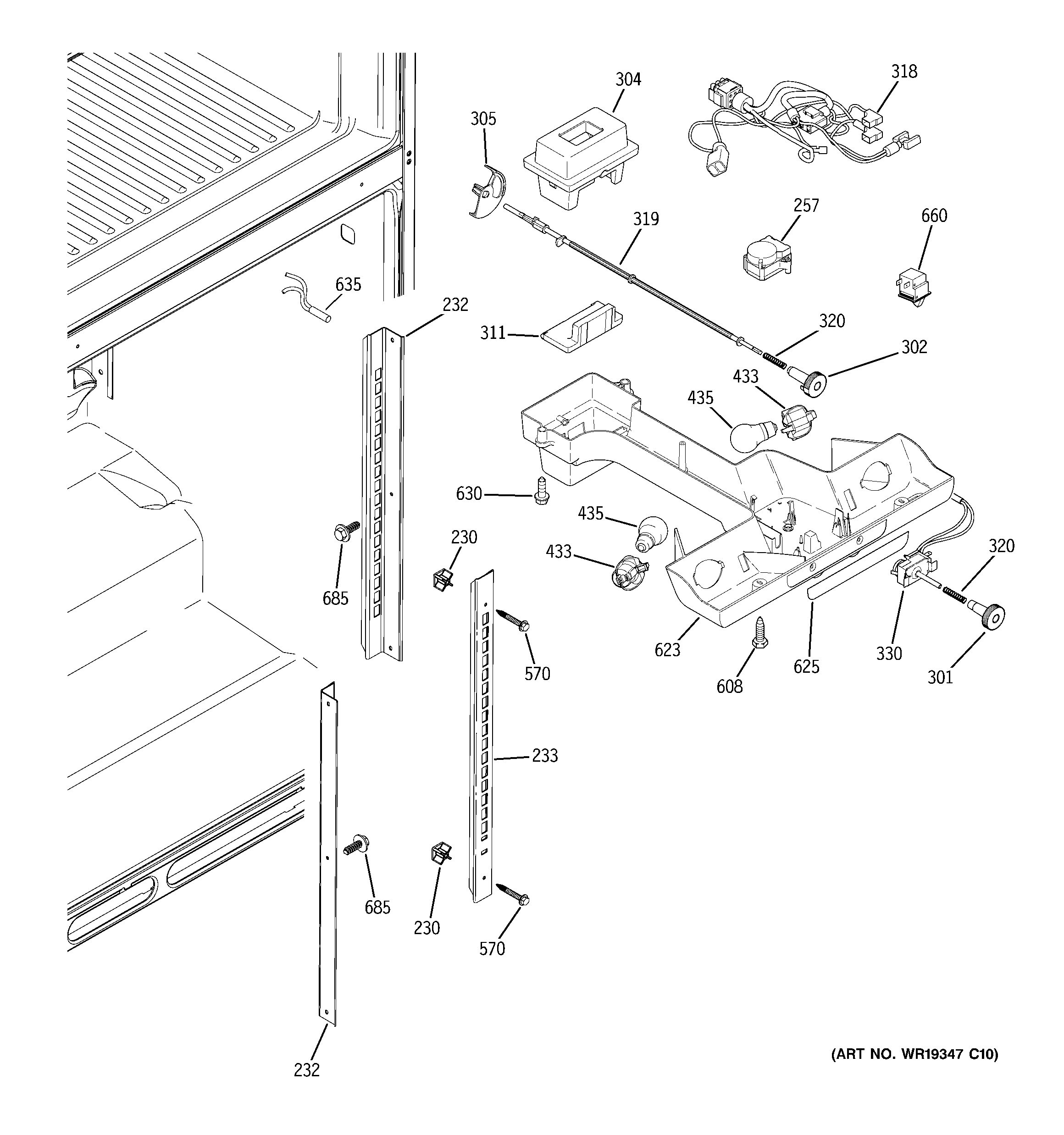

Fresh food section diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Comp Repl Kt WR87X10042
#725

Unit parts diagram

Comp repl kt

Part #WR87X10042

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10042. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Refrigerator Condenser Fan (replaces Wr60x10171) WR60X10220
#650

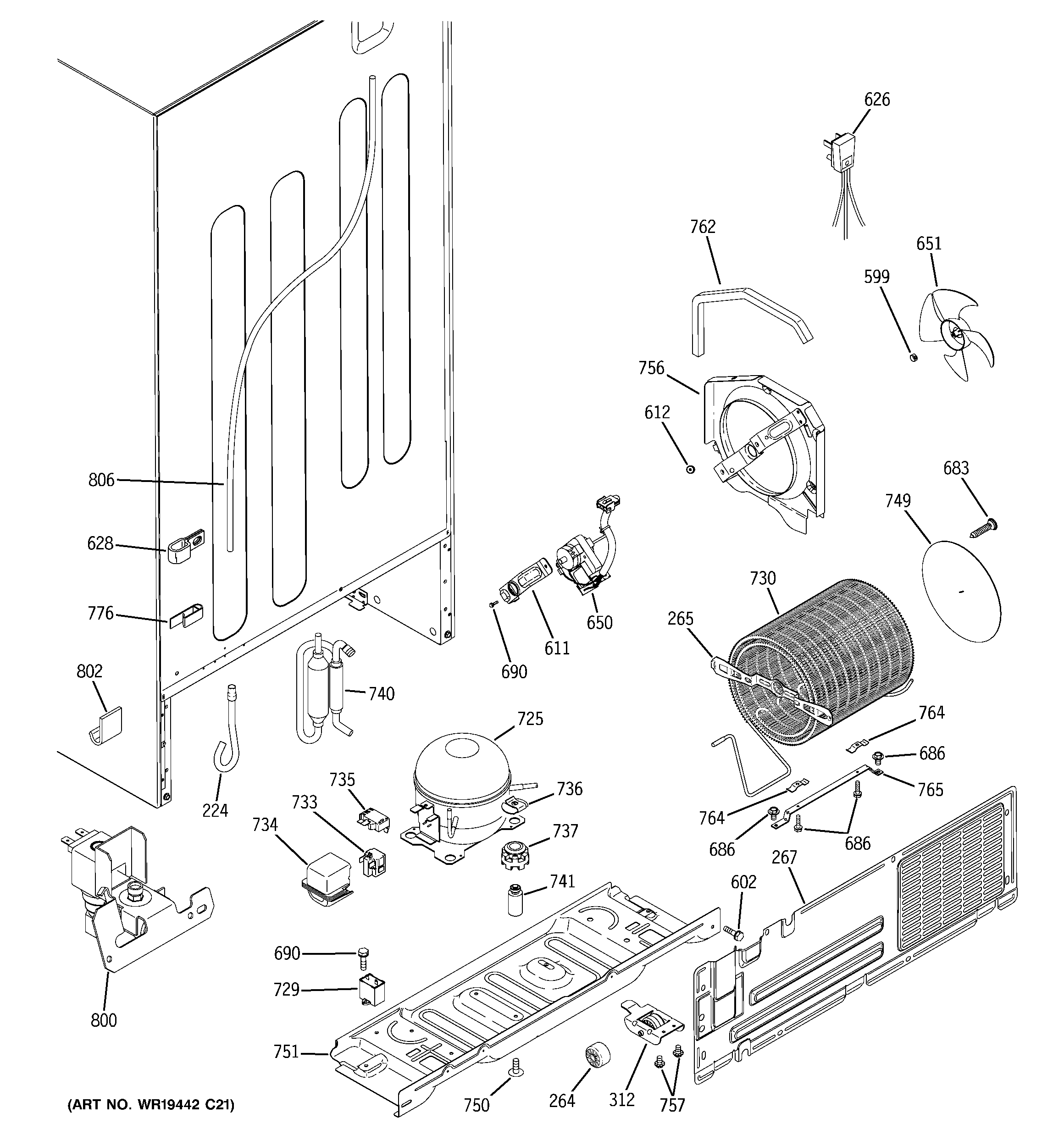

Unit parts diagram

Refrigerator condenser fan (replaces wr60x10171)

Part #WR60X10220

BEST SELLER
$42.92 |
12% OFF Phone Price : $48.92
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Unit parts diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#615

Freezer section diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
