Model # PTDN850GM0WW Official GE gas dryer
Here are the diagrams and repair parts for Official GE PTDN850GM0WW gas dryer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

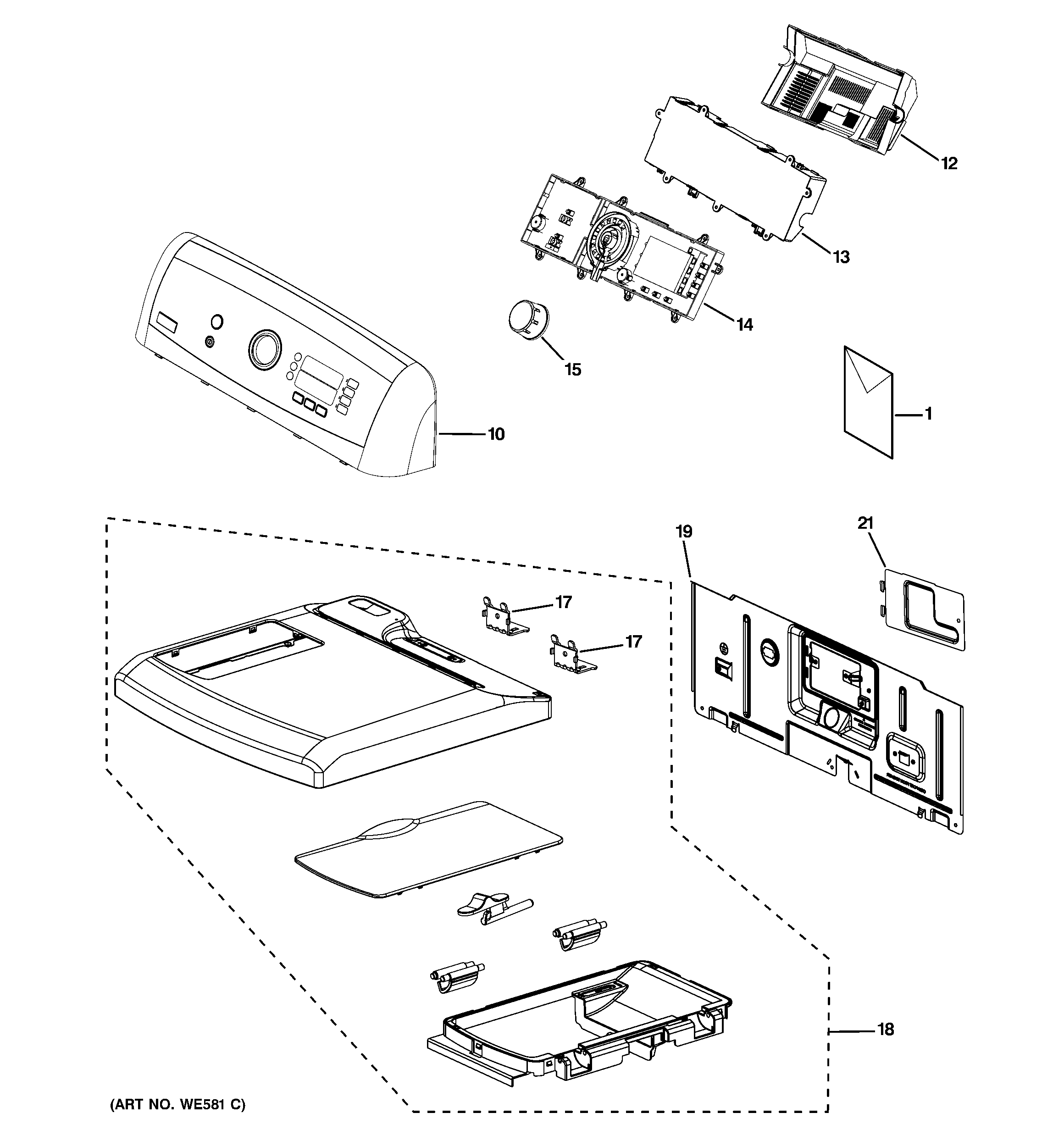

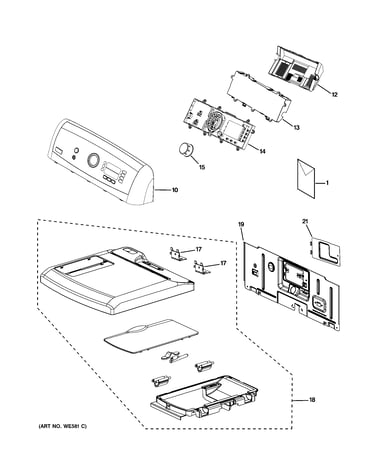

SELECT DIAGRAM
Browse Parts for
PTDN850GM0WW Gas Dryer
#731

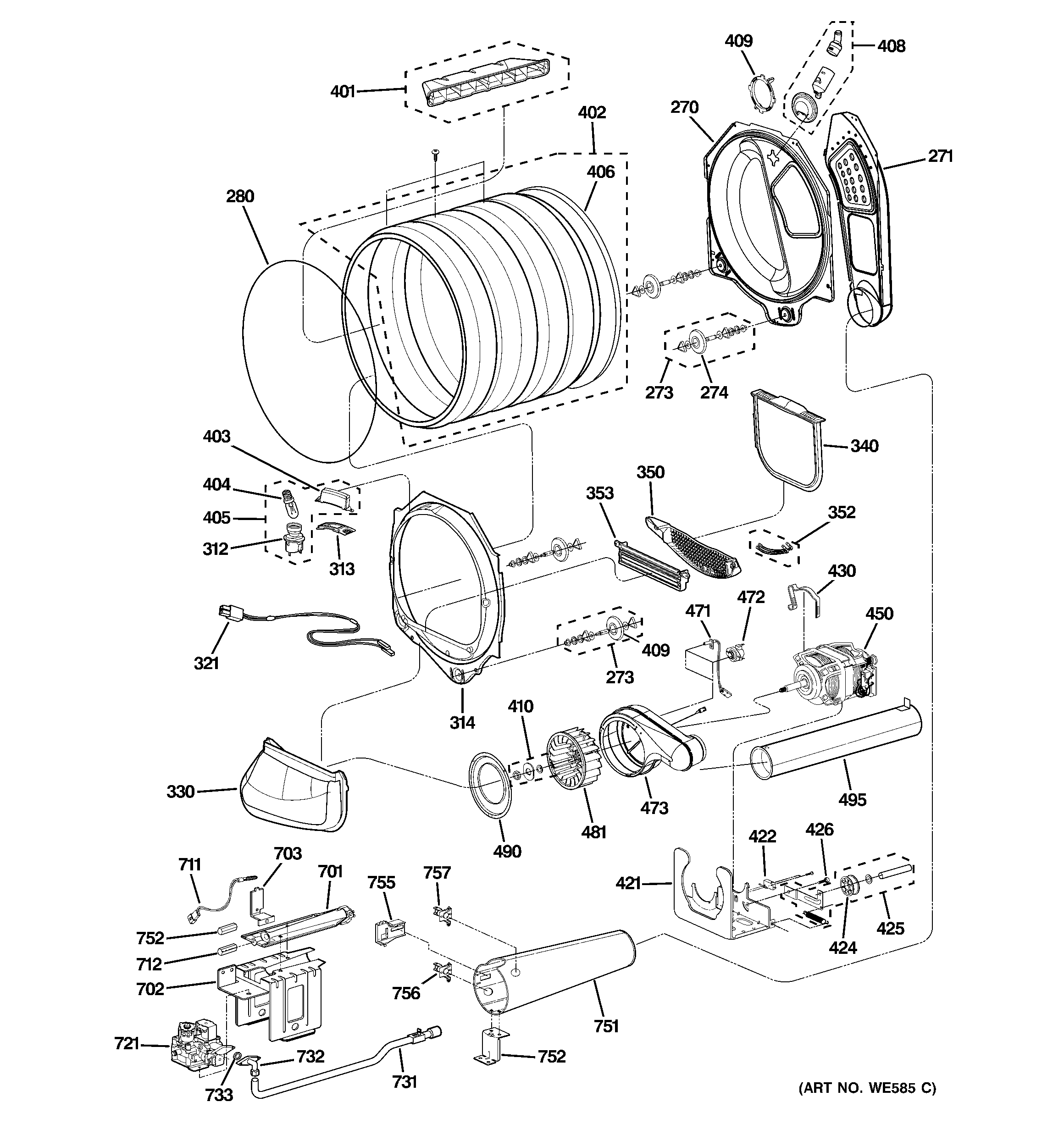

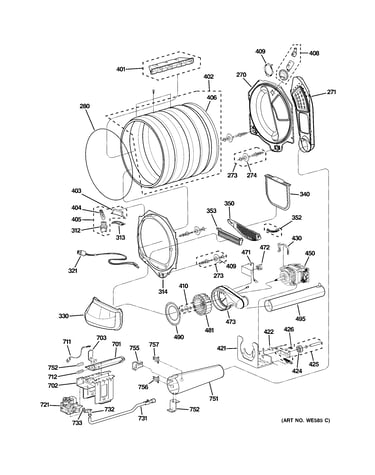

Drum, blower & motor diagram
Pipe
Part #WE01X10202
$47.90
In Stock
#711
Drum, blower & motor diagram
Dryer burner igniter
Part #WE04X10116
$169.93 |
7% OFF Phone Price : $181.93
In Stock
#273
Drum, blower & motor diagram
Dryer drum support roller
Part #WE03X10008
$53.29 |
10% OFF Phone Price : $59.29
In Stock
#280
Drum, blower & motor diagram
Dryer drum belt
Part #WE12X10011
$79.10 |
7% OFF Phone Price : $85.10
In Stock
#471
Drum, blower & motor diagram
Dryer thermistor
Part #WE04X10114
$55.09 |
10% OFF Phone Price : $61.09
In Stock
#121

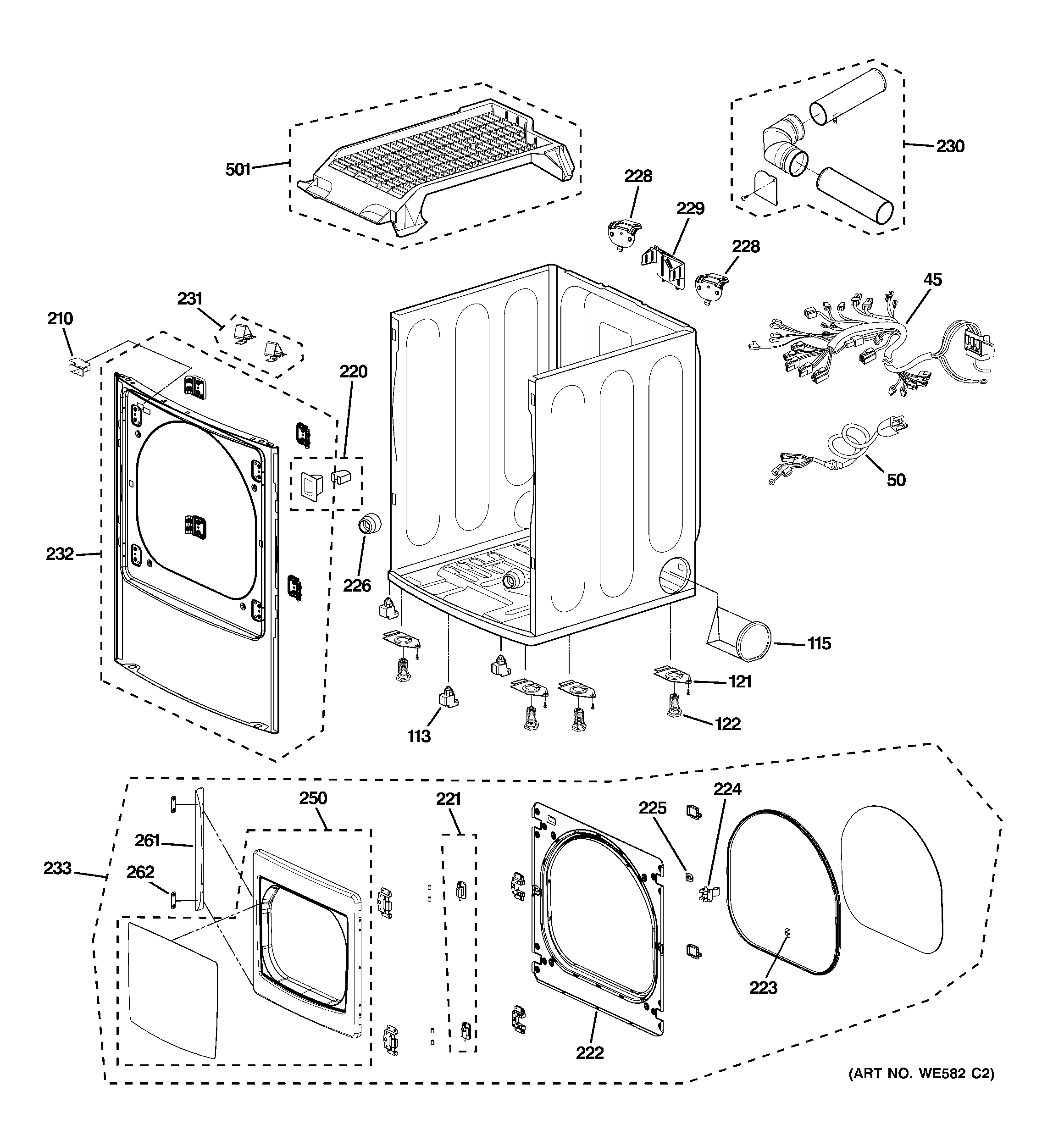

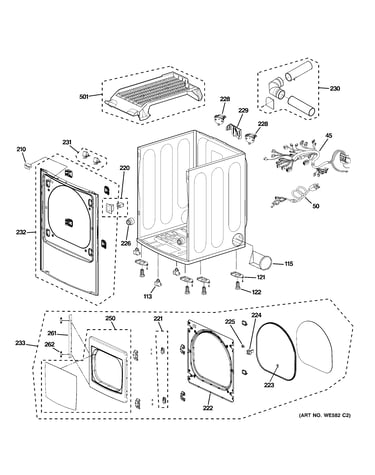

Cabinet, front panel & door diagram
Base bracket
Part #WE01X10183
The manufacturer no longer makes this part, and there's no substitute part
#113
Cabinet, front panel & door diagram
Mounting bracket
Part #WE01X10181
The manufacturer no longer makes this part, and there's no substitute part
#751
Drum, blower & motor diagram
Funnel
Part #WE14X10063
The manufacturer no longer makes this part, and there's no substitute part
#752
Drum, blower & motor diagram
Supporter hood
Part #WE01X10205
The manufacturer no longer makes this part, and there's no substitute part
#472
Drum, blower & motor diagram
Dryer thermostat
Part #WE04X10115
The manufacturer no longer makes this part, and there's no substitute part
