Model # T24IF70NSP/04 Official Thermador built-in freezer column

Here are the diagrams and repair parts for Official Thermador T24IF70NSP-04 built-in freezer column, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

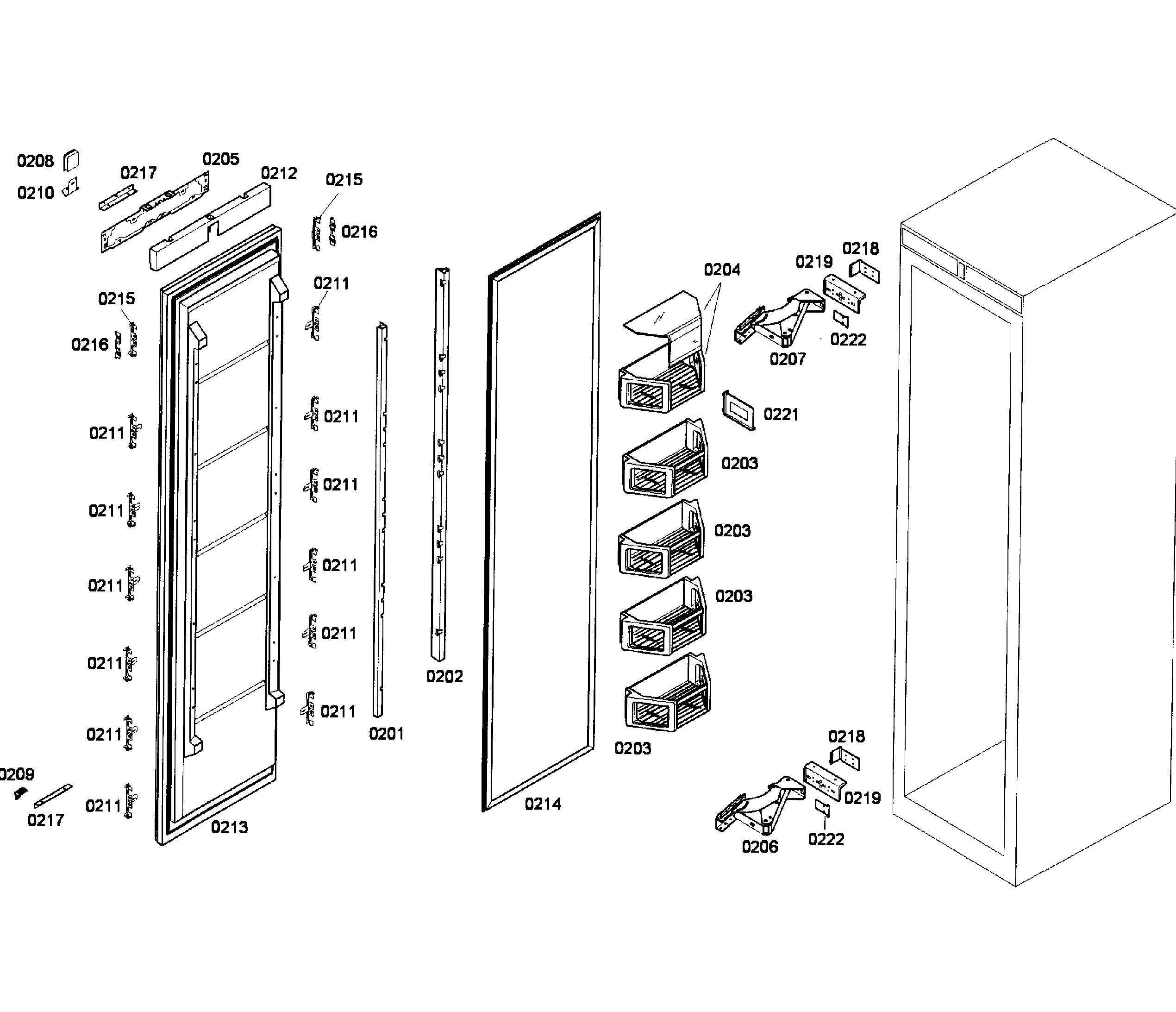

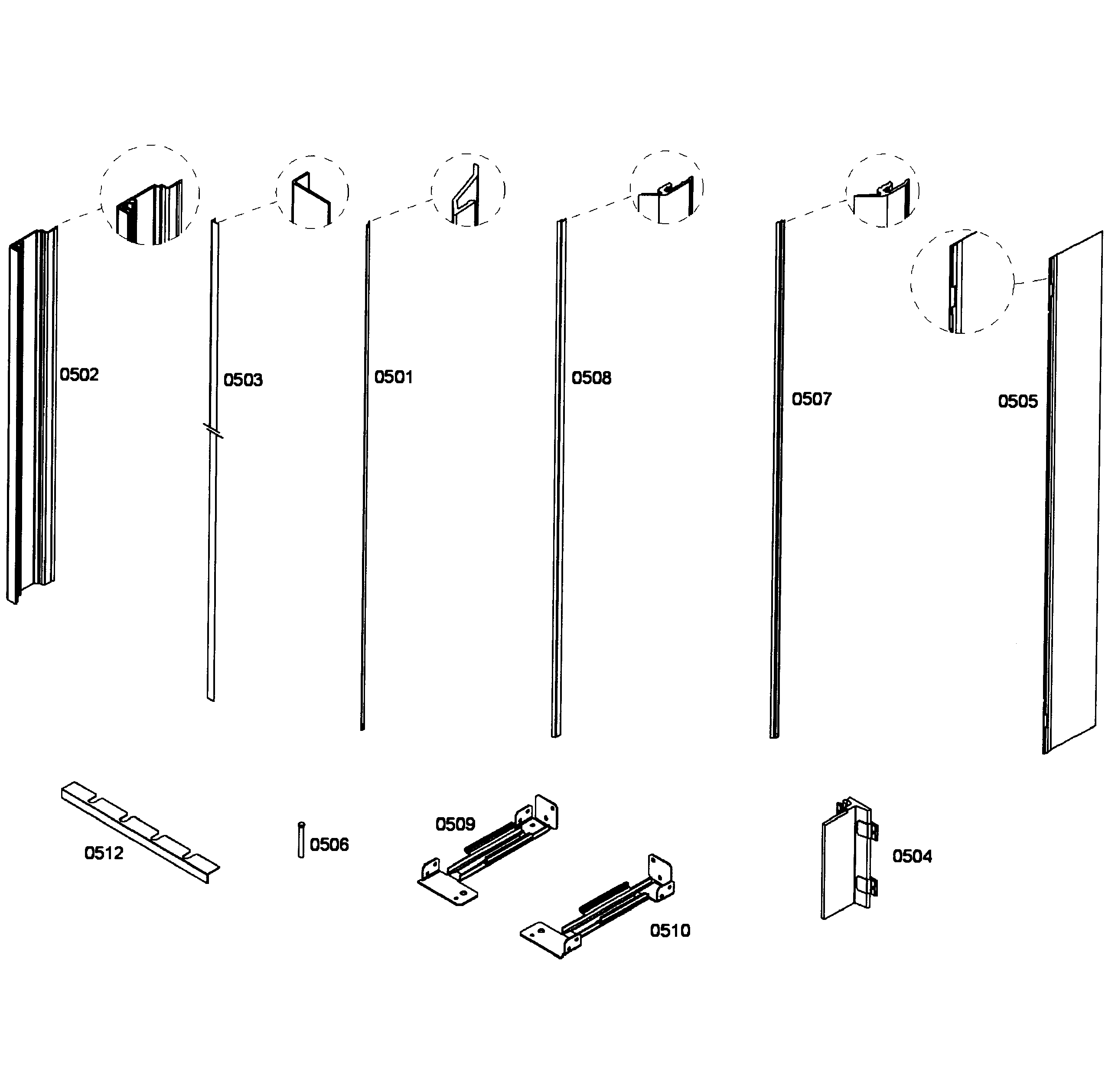

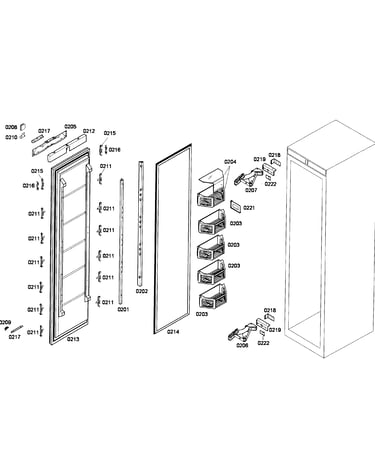

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Module 640768
#412

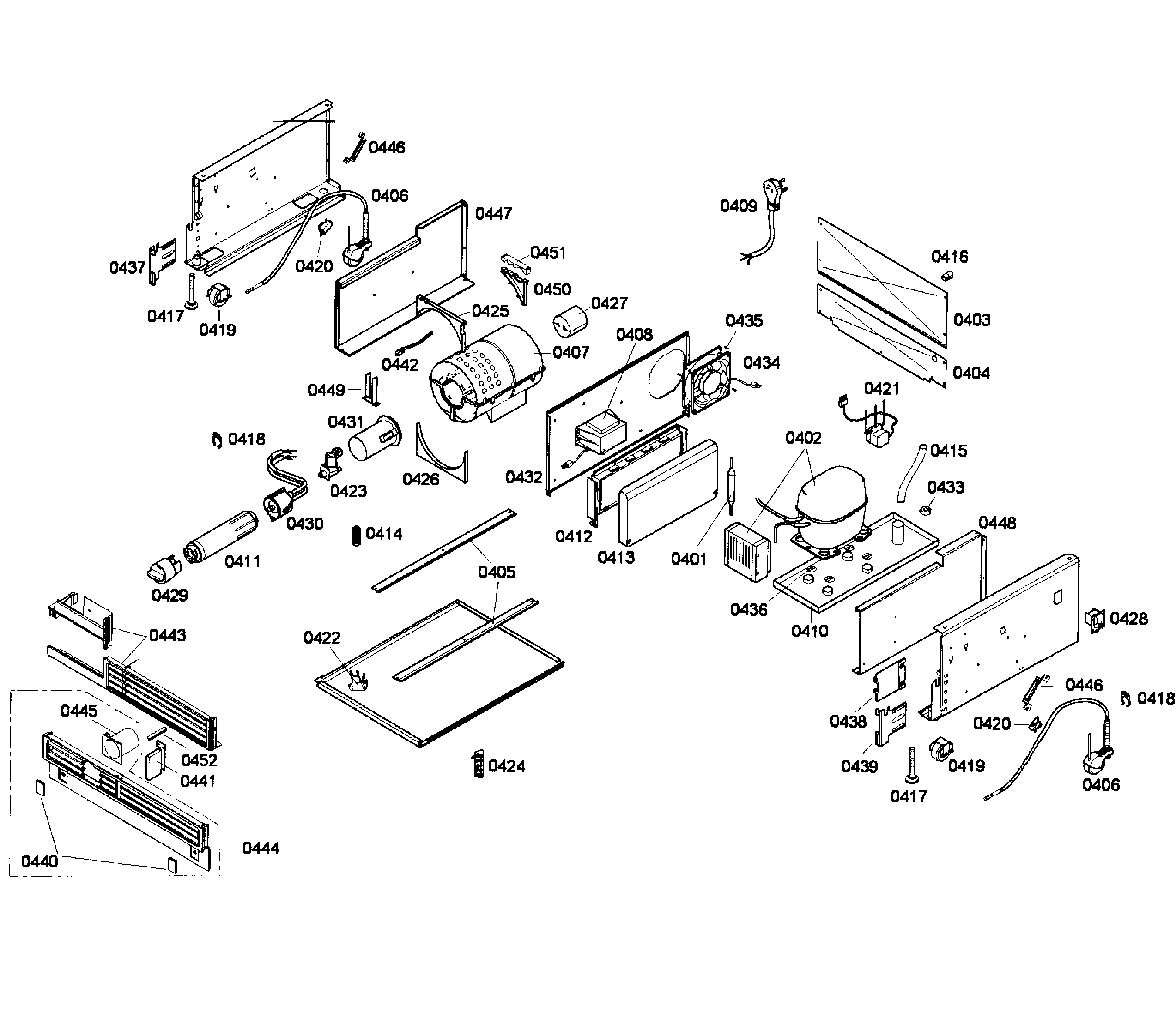

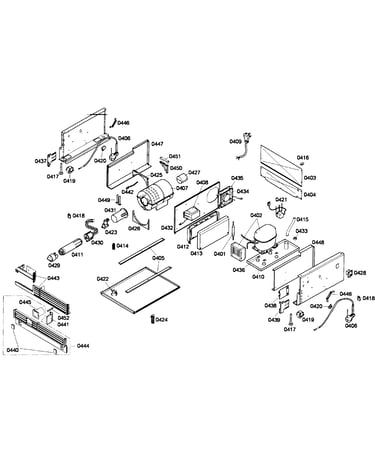

Compressor diagram

Module

Part #640768

Replaced by #00704585

?
Manufacturer substitution
This part replaces 640768. Substitute parts can look different from the original.
$187.09 |
6% OFF Phone Price : $199.09
In Stock
Ice Maker 640059
#318

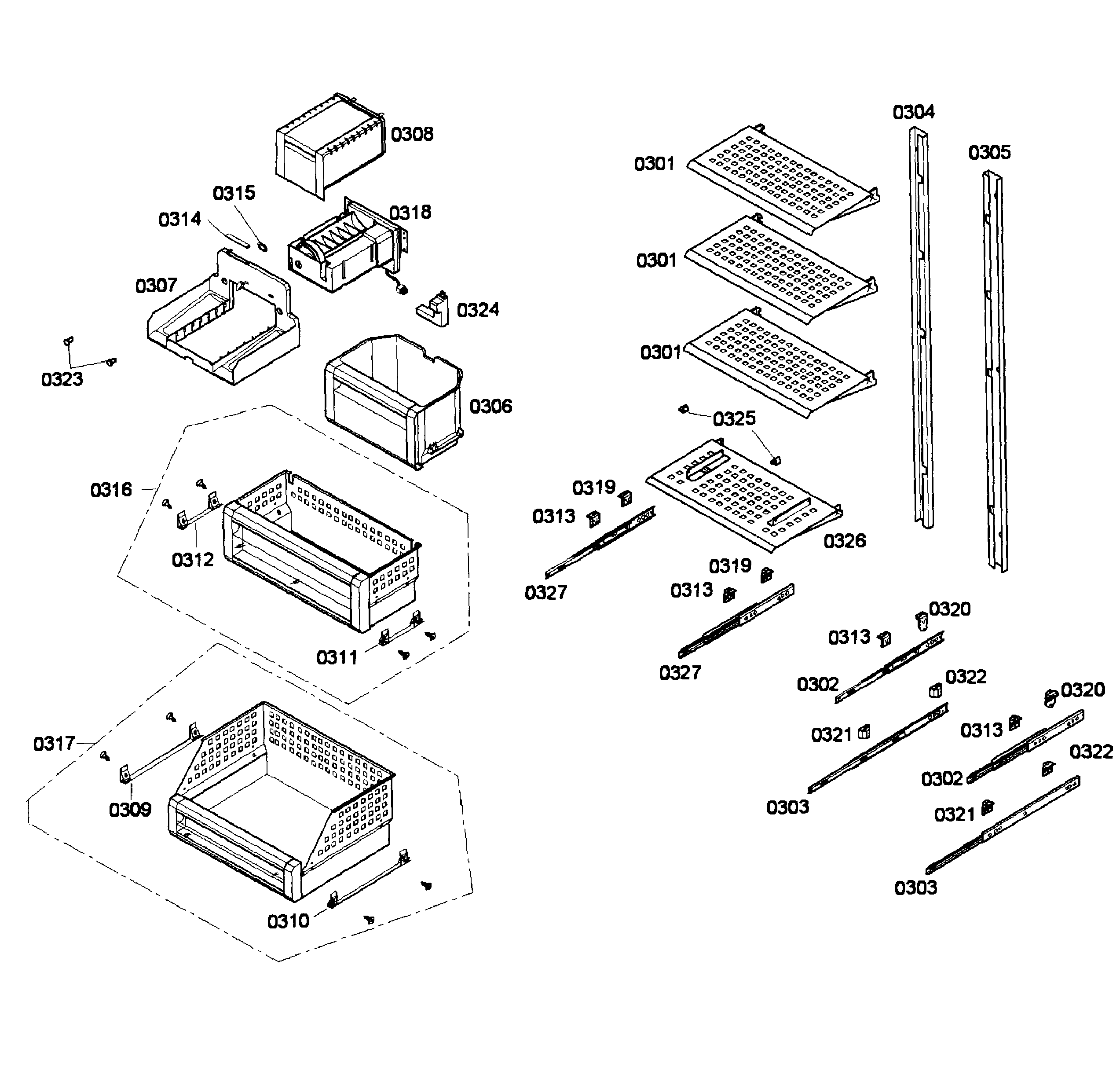

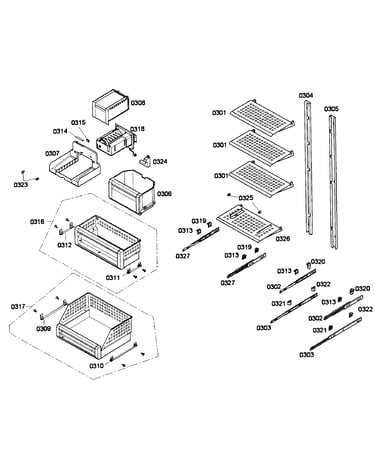

Shelfs diagram

Ice maker

Part #640059

Replaced by #11012681

?
Manufacturer substitution
This part replaces 640059. Substitute parts can look different from the original.
$774.49 |
$12.00 OFF Phone Price : $786.49
In Stock
Clip 603971
#313

Shelfs diagram

Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Clip 604685
#319

Shelfs diagram

Clip

Part #604685

Replaced by #00604685

?
Manufacturer substitution
This part replaces 604685. Substitute parts can look different from the original.
This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Fan 605322
#434

Compressor diagram

Fan

Part #605322

Replaced by #00652338

?
Manufacturer substitution
This part replaces 605322. Substitute parts can look different from the original.
$97.79 |
11% OFF Phone Price : $109.79
In Stock
Sensor 641078
#133

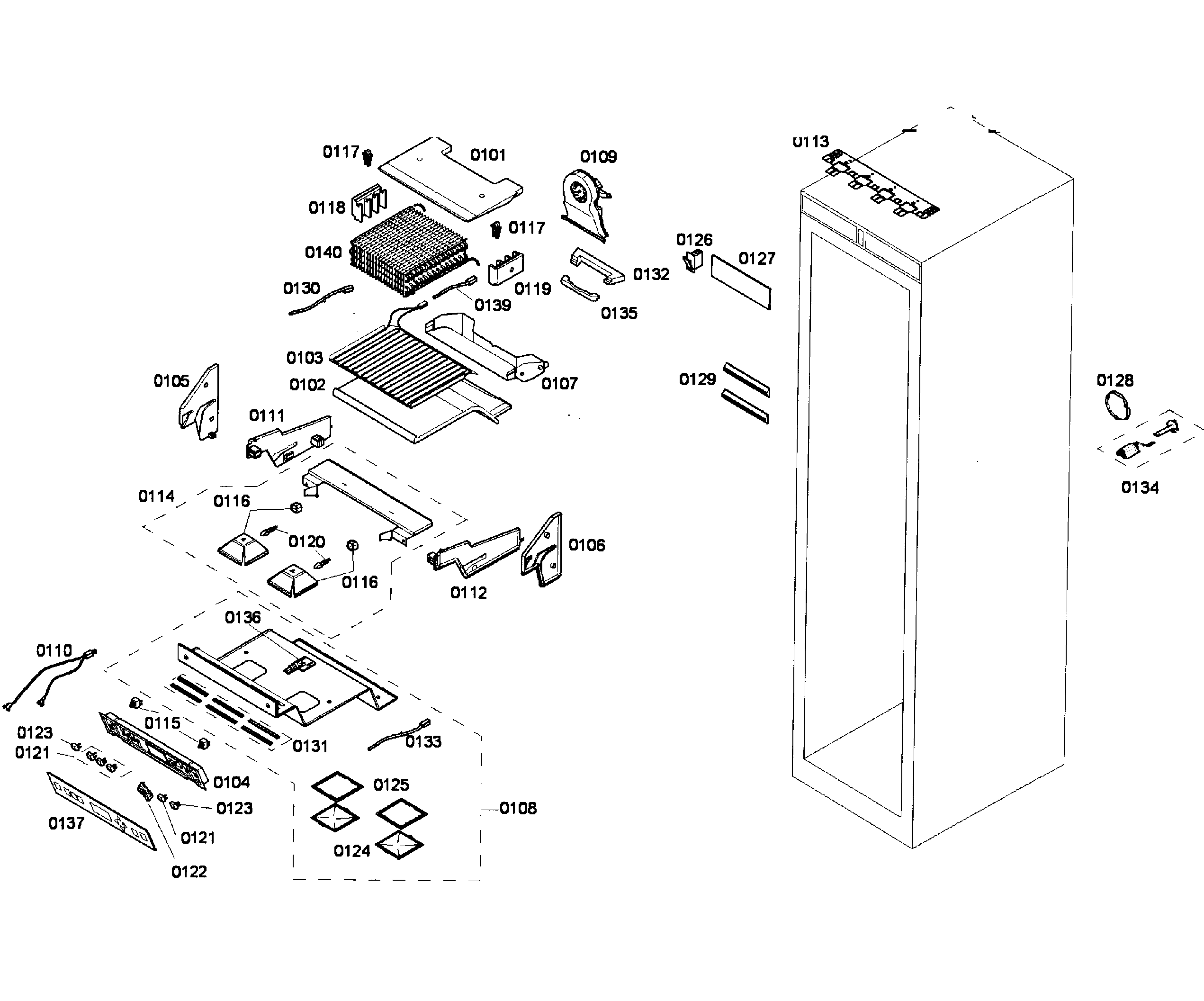

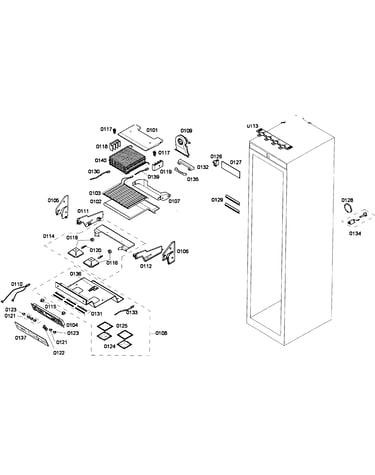

Cabinet parts diagram

Sensor

Part #641078

Replaced by #00641078

?
Manufacturer substitution
This part replaces 641078. Substitute parts can look different from the original.
$14.83
In Stock
Fixture 605405
#439

Compressor diagram

Fixture

Part #605405

Replaced by #00605405

?
Manufacturer substitution
This part replaces 605405. Substitute parts can look different from the original.
$23.91
In Stock
Holder 604674
#438

Compressor diagram

Holder

Part #604674

Replaced by #00604674

?
Manufacturer substitution
This part replaces 604674. Substitute parts can look different from the original.
$7.94
In Stock
Cover 499853
#413

Compressor diagram

Cover

Part #499853

Replaced by #00499853

?
Manufacturer substitution
This part replaces 499853. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
Back Order
Panel 244501
#453

Compressor diagram

Panel

Part #244501

Replaced by #00686111

?
Manufacturer substitution
This part replaces 244501. Substitute parts can look different from the original.
$53.96
In Stock
