Kenmore Elite
Microwave/Hood Combo

Model # 40188522900 Official Kenmore Elite microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore Elite 40188522900 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Microwave Magnetron (replaces Om75p21esgn) OM75P-21-ESGN
#7

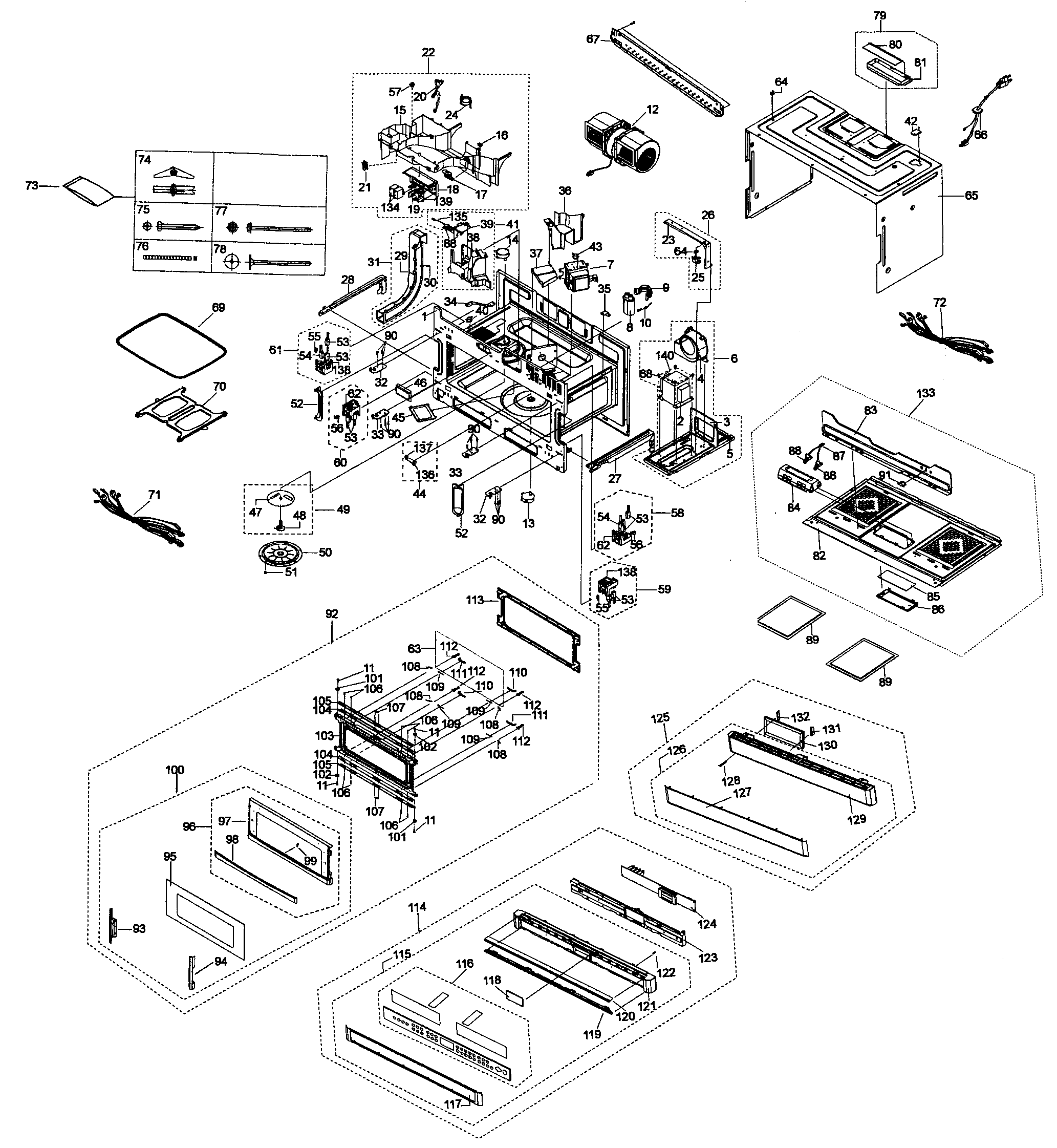

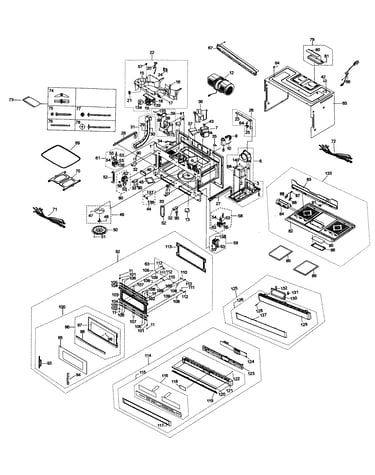

Cabinet parts diagram

Microwave magnetron (replaces om75p21esgn)

Part #OM75P-21-ESGN

BEST SELLER
$132.51 |
8% OFF Phone Price : $144.51
In Stock
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#53

Cabinet parts diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$18.27 |
10% OFF Phone Price : $20.27
Back Order
Microwave High-voltage Diode DE59-00002A
#134

Cabinet parts diagram

Microwave high-voltage diode

Part #DE59-00002A

BEST SELLER
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Microwave Halogen Light Bulb (replaces 4713001165) 4713-001165
#88

Cabinet parts diagram

Microwave halogen light bulb (replaces 4713001165)

Part #4713-001165

BEST SELLER
$29.37 |
17% OFF Phone Price : $35.37
In Stock
Microwave Vent Damper Cover DE71-60051B
#80

Cabinet parts diagram

Microwave vent damper cover

Part #DE71-60051B

BEST SELLER
This item is not returnable
$4.09 |
20% OFF Phone Price : $5.09
In Stock
Microwave Door Micro-switch 3405-001033
#54

Cabinet parts diagram

Microwave door micro-switch

Part #3405-001033

BEST SELLER
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Microwave Humidity Sensor (replaces De32-60013a) DE32-60011A
#57

Cabinet parts diagram

Microwave humidity sensor (replaces de32-60013a)

Part #DE32-60011A

BEST SELLER
$69.73 |
8% OFF Phone Price : $75.73
In Stock
Microwave High-voltage Capacitor (replaces 2501-001110, 2501-001279) 2501-001035
#8

Cabinet parts diagram

Microwave high-voltage capacitor (replaces 2501-001110, 2501-001279)

Part #2501-001035

BEST SELLER
$90.15 |
6% OFF Phone Price : $96.15
In Stock
Lever Switch 2501-001279
#56A

Cabinet parts diagram

Lever switch

Part #2501-001279

Replaced by #2501-001035

?
Manufacturer substitution
This part replaces 2501-001279. Substitute parts can look different from the original.
BEST SELLER
$90.15 |
6% OFF Phone Price : $96.15
In Stock
Thermostat DE47-20040A
#118A

Cabinet parts diagram

Thermostat

Part #DE47-20040A

Replaced by #DE47-20060A

?
Manufacturer substitution
This part replaces DE47-20040A. Substitute parts can look different from the original.
This item is not returnable
$16.00 |
11% OFF Phone Price : $18.00
In Stock
