Model # 41793052202 Official Kenmore dryer

Here are the diagrams and repair parts for Official Kenmore 41793052202 dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

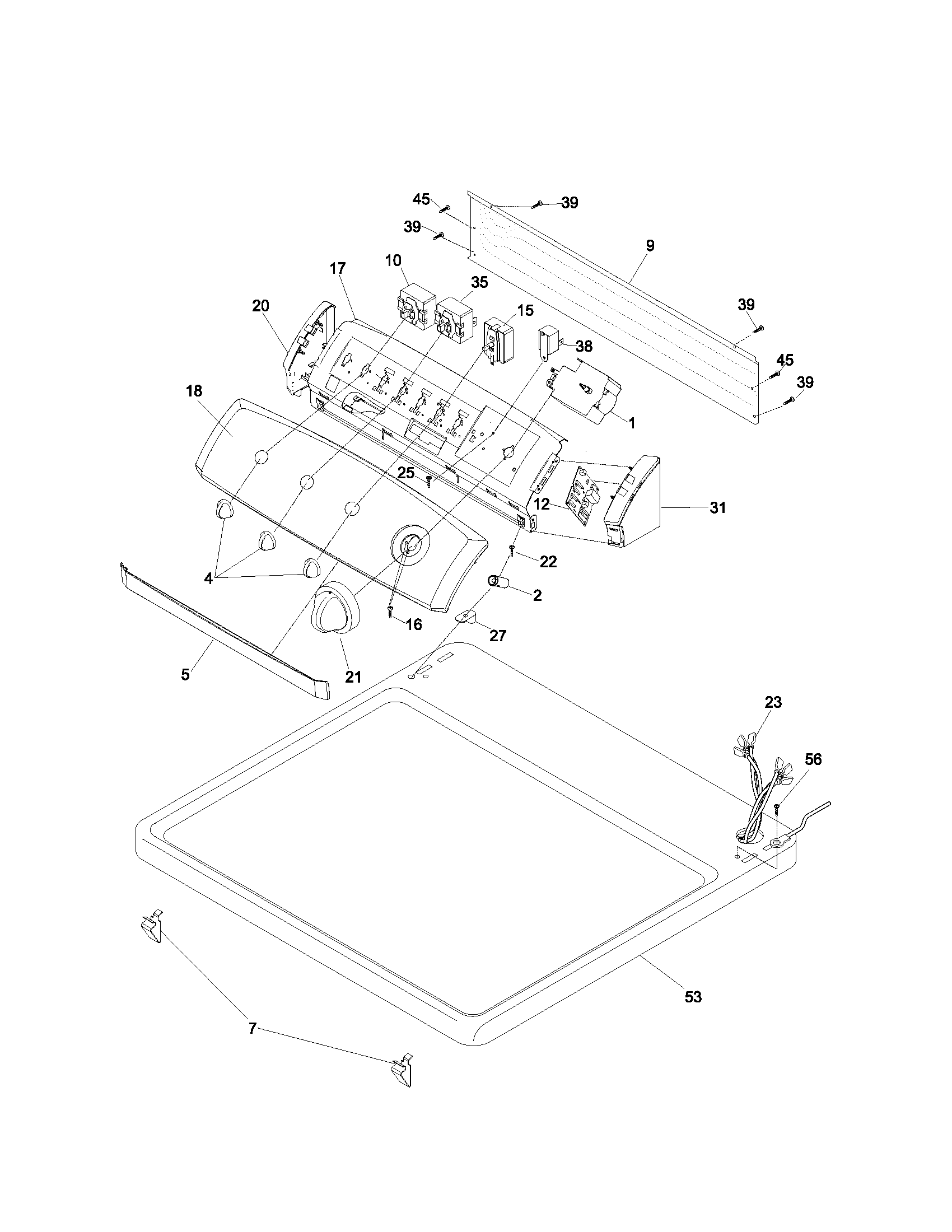

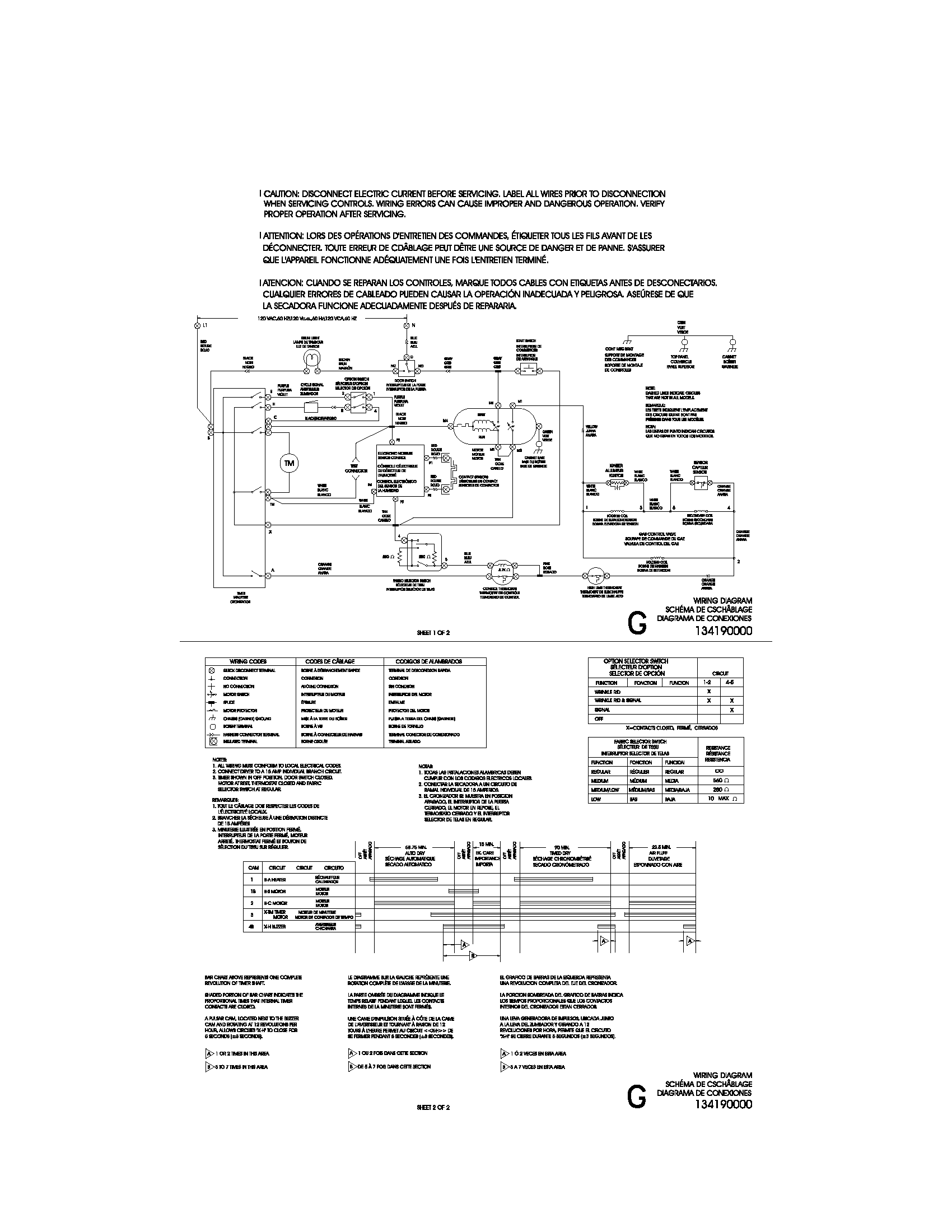

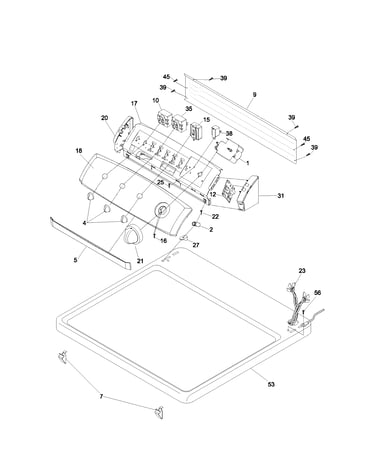

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
41793052202 Dryer
Belt 134163400
#25

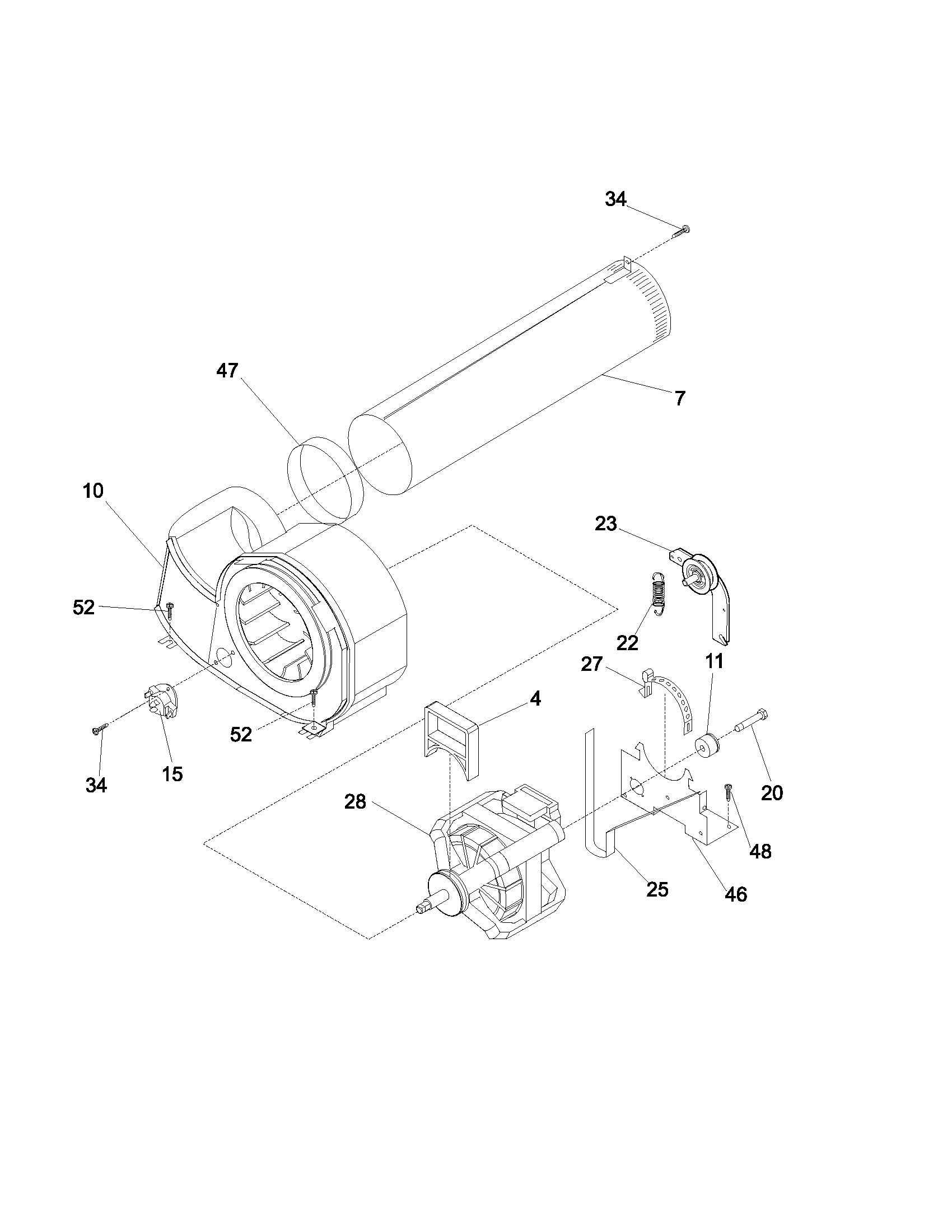

Motor diagram

Belt

Part #134163400

Replaced by #134503600

?
Manufacturer substitution
This part replaces 134163400. Substitute parts can look different from the original.
4.17 (24)
BEST SELLER
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Dryer Drum Bearing Kit (replaces 000142850, 142850, 3281153, Q000142850, Wq142850) 5303281153
#NI

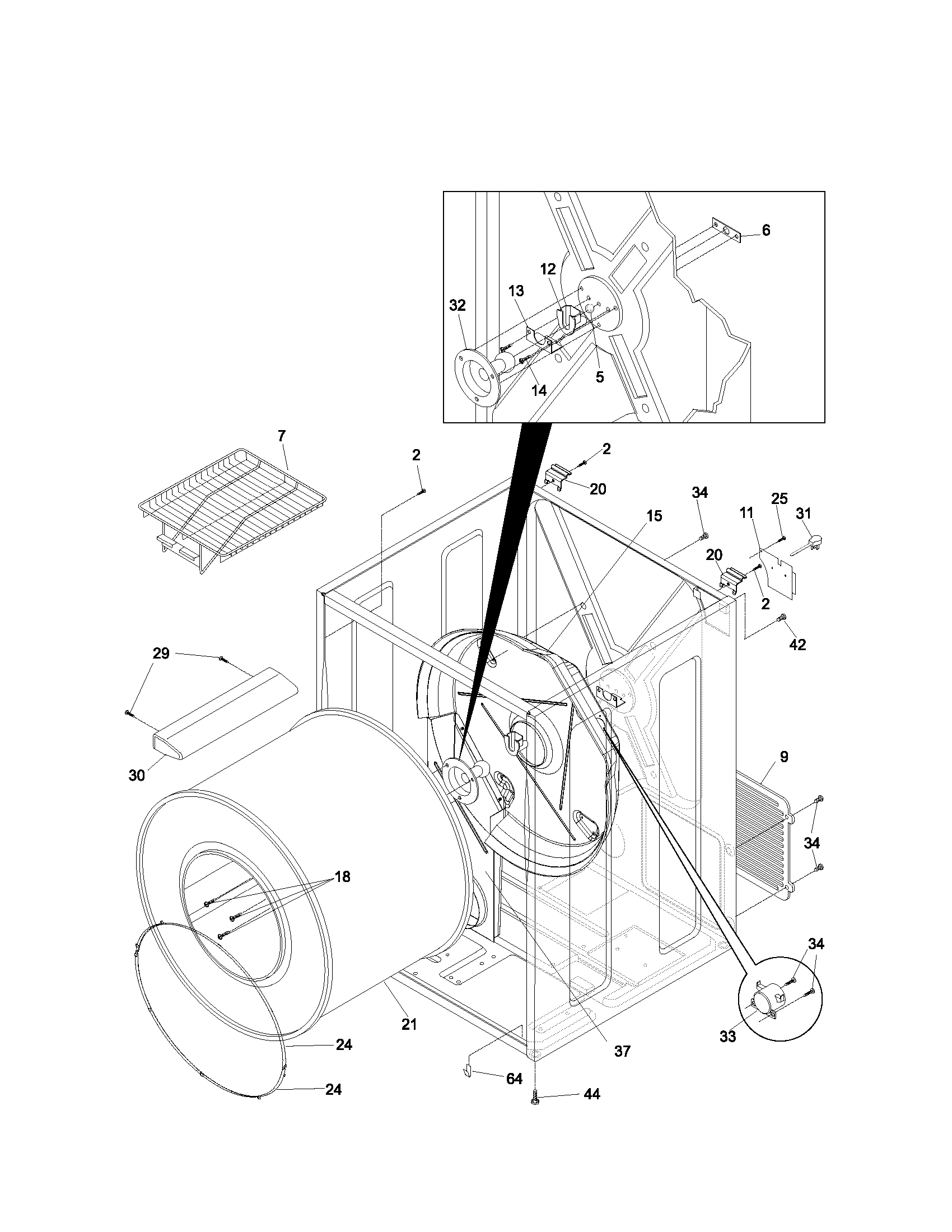

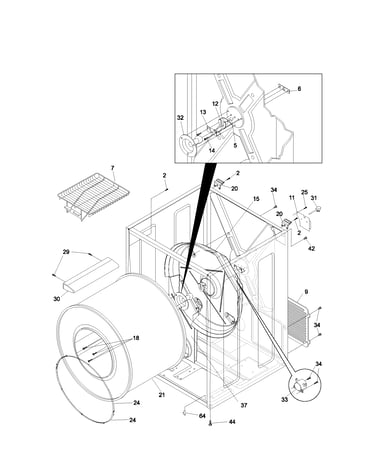

Cabinet/drum diagram

Dryer drum bearing kit (replaces 000142850, 142850, 3281153, q000142850, wq142850)

Part #5303281153

4.57 (21)
BEST SELLER
$19.52 |
9% OFF Phone Price : $21.52
In Stock
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

Cabinet/drum diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

2.5 (4)
BEST SELLER
This item is not returnable
$7.16 |
12% OFF Phone Price : $8.16
In Stock
Dryer Drum Support Shaft (replaces 137088600) 131777700
#32

Cabinet/drum diagram

Dryer drum support shaft (replaces 137088600)

Part #131777700

3.83 (18)
BEST SELLER
$59.61 |
9% OFF Phone Price : $65.61
In Stock
Frigidaire Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

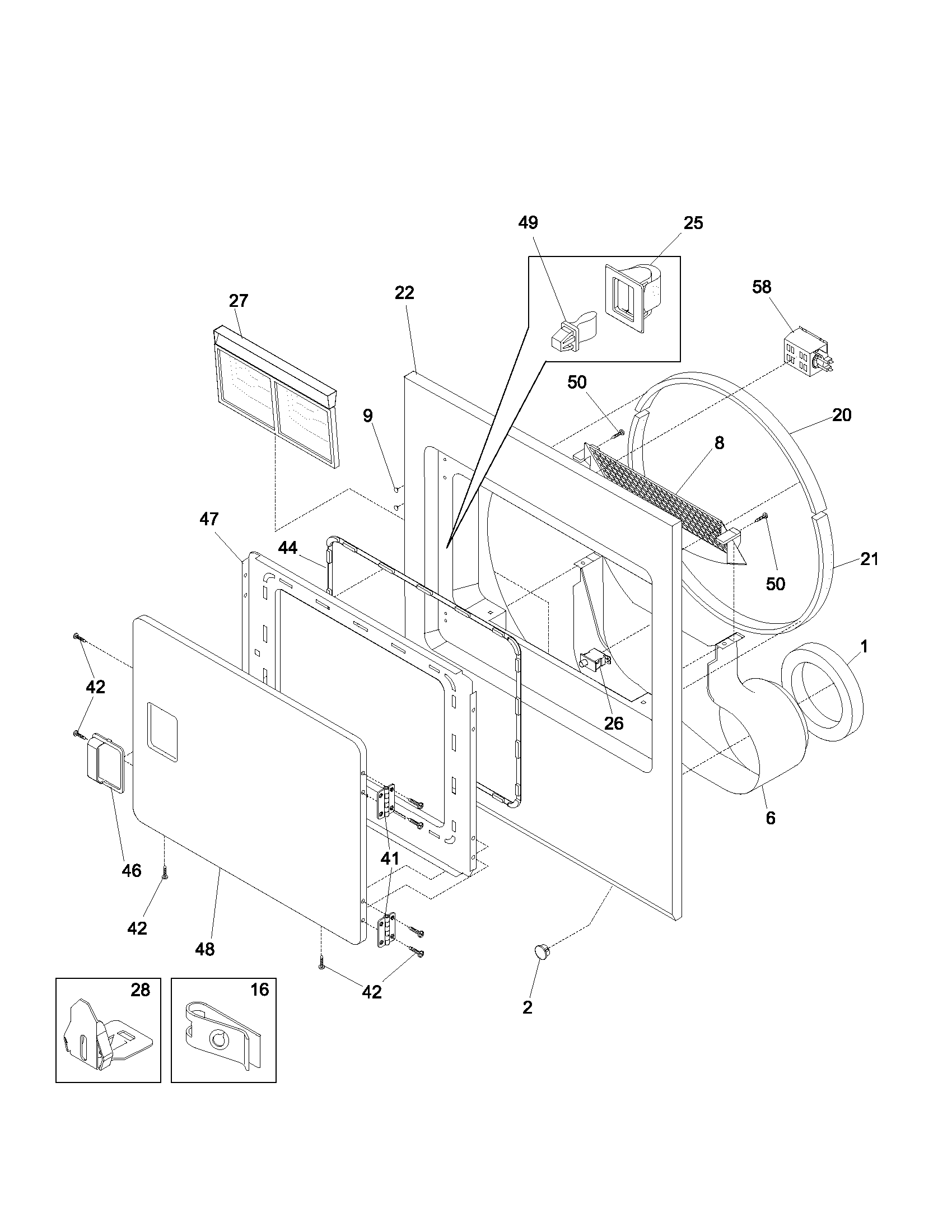

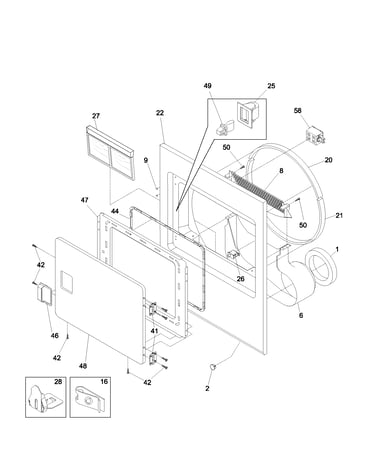

Front panel/lint filter diagram

Frigidaire dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

3.86 (42)
BEST SELLER
$42.30 |
12% OFF Phone Price : $48.30
In Stock
Frigidaire Dryer Drive Motor (replaces 134156500, S131560100) 131560100
#28

Motor diagram

Frigidaire dryer drive motor (replaces 134156500, s131560100)

Part #131560100

4.7 (20)
BEST SELLER
$158.87 |
7% OFF Phone Price : $170.87
In Stock
Coil-seconda 5303307291
#71

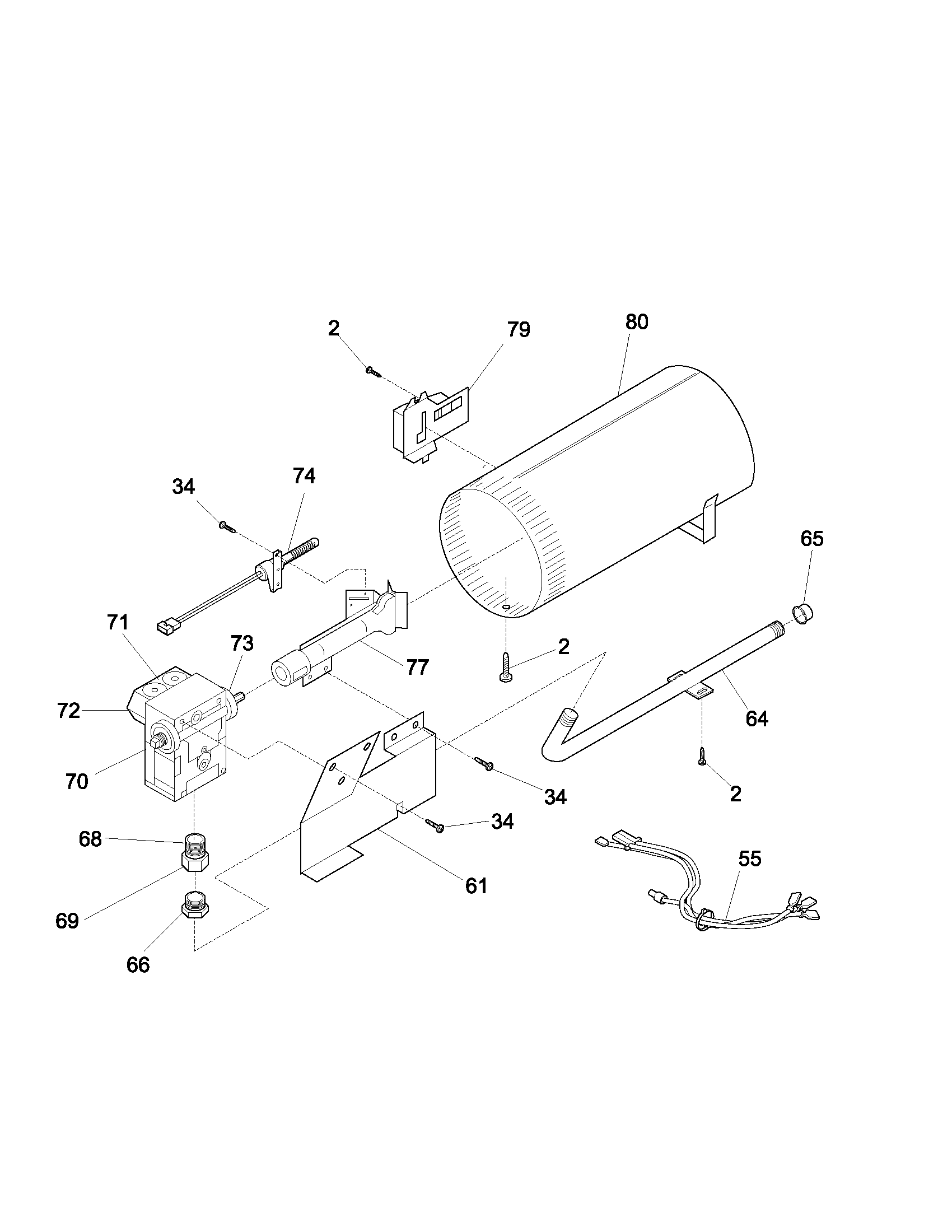

Burner diagram

Coil-seconda

Part #5303307291

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5303307291. Substitute parts can look different from the original.
5 (8)
BEST SELLER
$37.54 |
14% OFF Phone Price : $43.54
In Stock
Booster Coil 5303307292
#72

Burner diagram

Booster coil

Part #5303307292

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5303307292. Substitute parts can look different from the original.
5 (8)
BEST SELLER
$37.54 |
14% OFF Phone Price : $43.54
In Stock
Bracket 131863000
#23

Motor diagram

Bracket

Part #131863000

Replaced by #131863007

?
Manufacturer substitution
This part replaces 131863000. Substitute parts can look different from the original.
4.71 (7)
BEST SELLER
$49.60 |
11% OFF Phone Price : $55.60
In Stock
Dryer Drum Bearing Bracket 131724300
#13

Cabinet/drum diagram

Dryer drum bearing bracket

Part #131724300

Replaced by #131724301

?
Manufacturer substitution
This part replaces 131724300. Substitute parts can look different from the original.
BEST SELLER
$13.59 |
13% OFF Phone Price : $15.59
In Stock
