Kelvinator
Freestanding Freezer

Model # KCBM23F Official Kelvinator reach-in freezer

Here are the diagrams and repair parts for Official Kelvinator KCBM23F reach-in freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

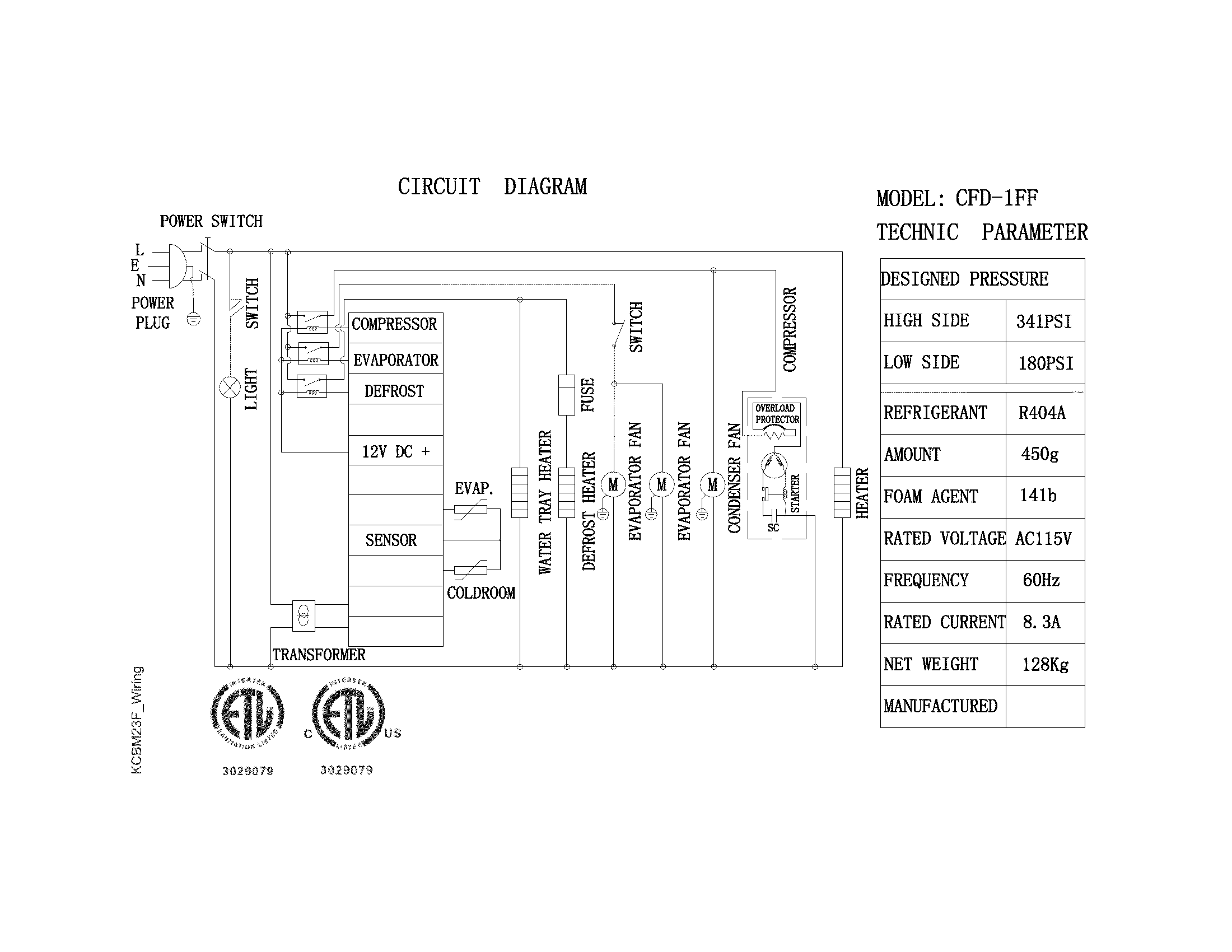

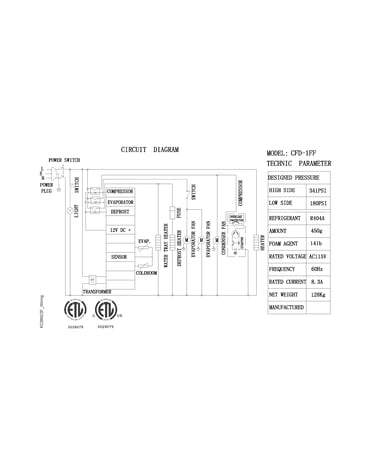

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Lock 5304487079
#NI

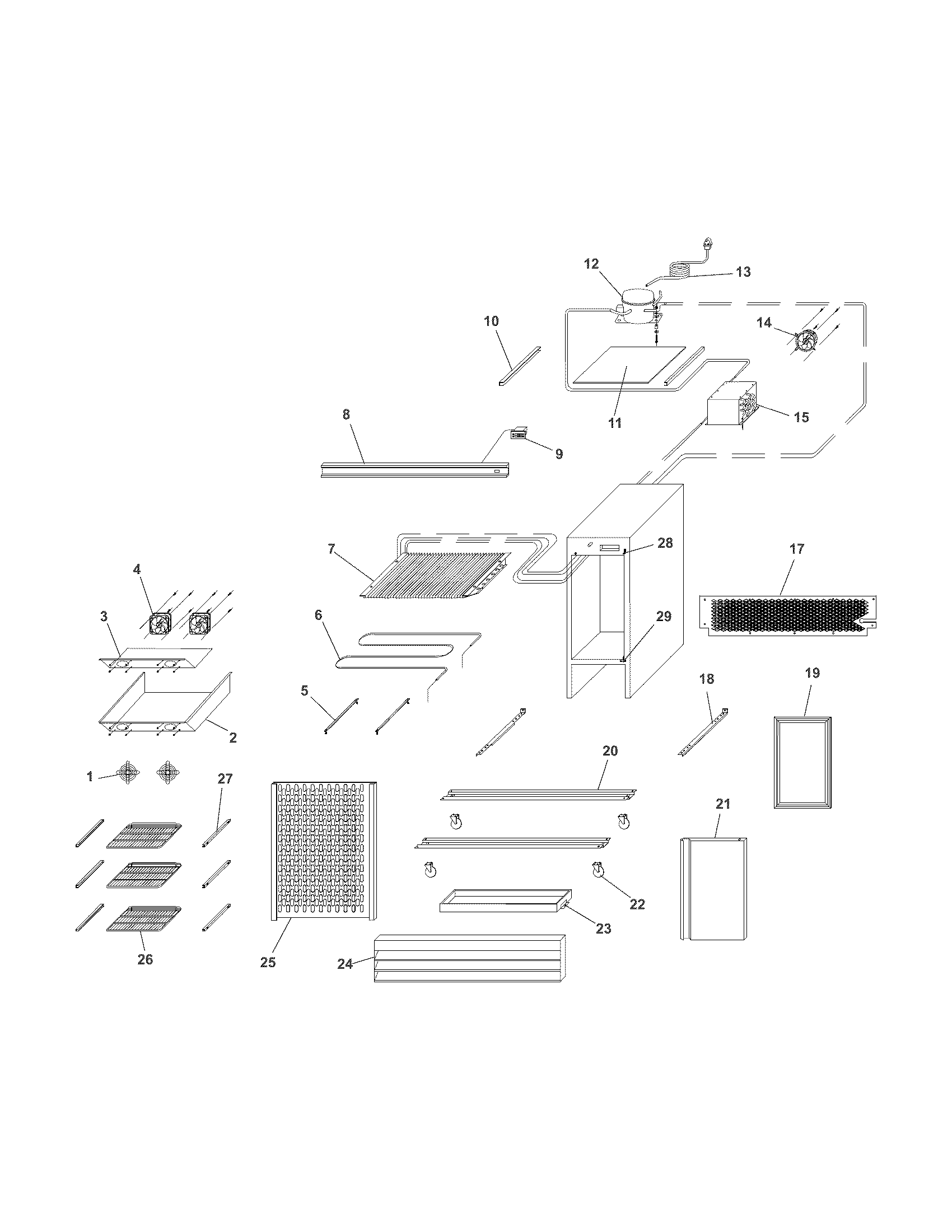

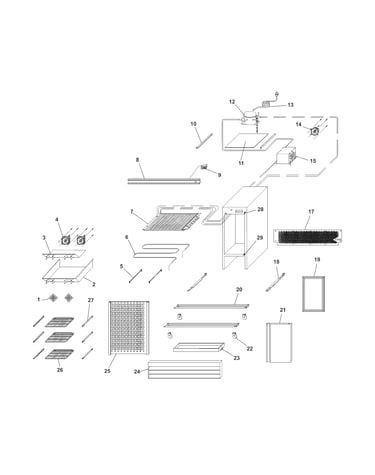

Recommended spare parts diagram

Lock

Part #5304487079

The manufacturer no longer makes this part, and there's no substitute part

Shelf 5304486092
#26

Recommended spare parts diagram

Shelf

Part #5304486092

The manufacturer no longer makes this part, and there's no substitute part

Support 5304486093
#27

Recommended spare parts diagram

Support

Part #5304486093

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 5304486098
#13

Recommended spare parts diagram

Power cord

Part #5304486098

The manufacturer no longer makes this part, and there's no substitute part

Grille 5304486090
#24

Recommended spare parts diagram

Grille

Part #5304486090

The manufacturer no longer makes this part, and there's no substitute part

Panel 5304485569
#8

Recommended spare parts diagram

Panel

Part #5304485569

The manufacturer no longer makes this part, and there's no substitute part

Cover 5304485564
#1

Recommended spare parts diagram

Cover

Part #5304485564

The manufacturer no longer makes this part, and there's no substitute part

Heater 5304486095
#6

Recommended spare parts diagram

Heater

Part #5304486095

The manufacturer no longer makes this part, and there's no substitute part

Rail 5304486087
#20

Recommended spare parts diagram

Rail

Part #5304486087

The manufacturer no longer makes this part, and there's no substitute part

Cover 5304485565
#2

Recommended spare parts diagram

Cover

Part #5304485565

The manufacturer no longer makes this part, and there's no substitute part
