Roper
Electric Range

Model # FEP210EW0 Official Roper electric range

Here are the diagrams and repair parts for Official Roper FEP210EW0 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

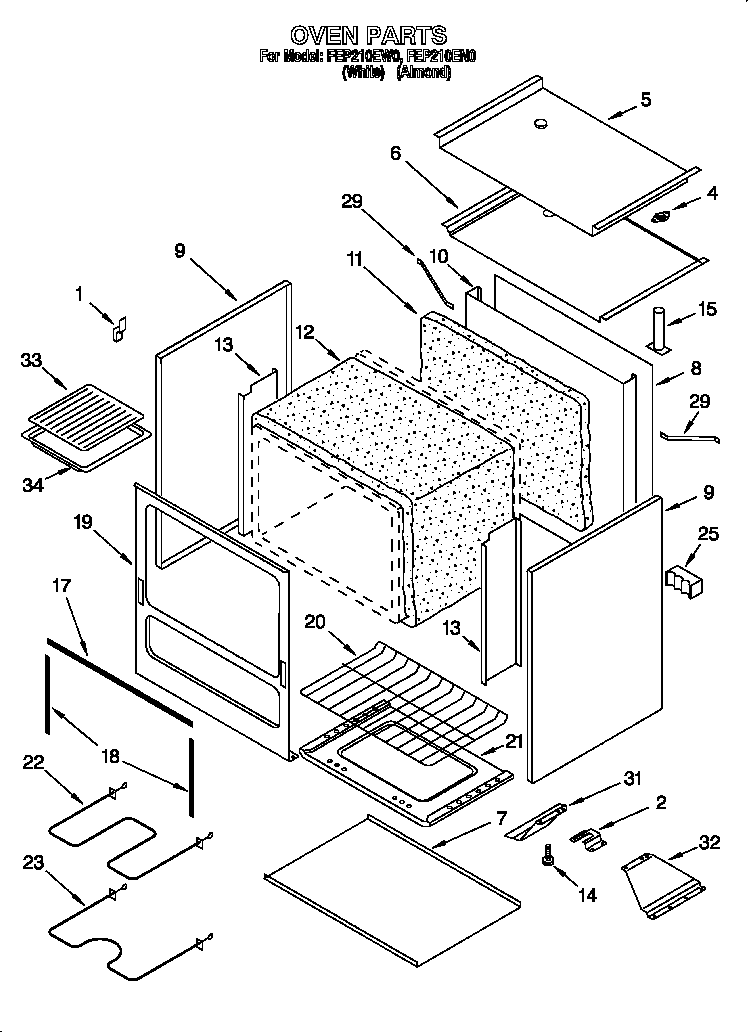

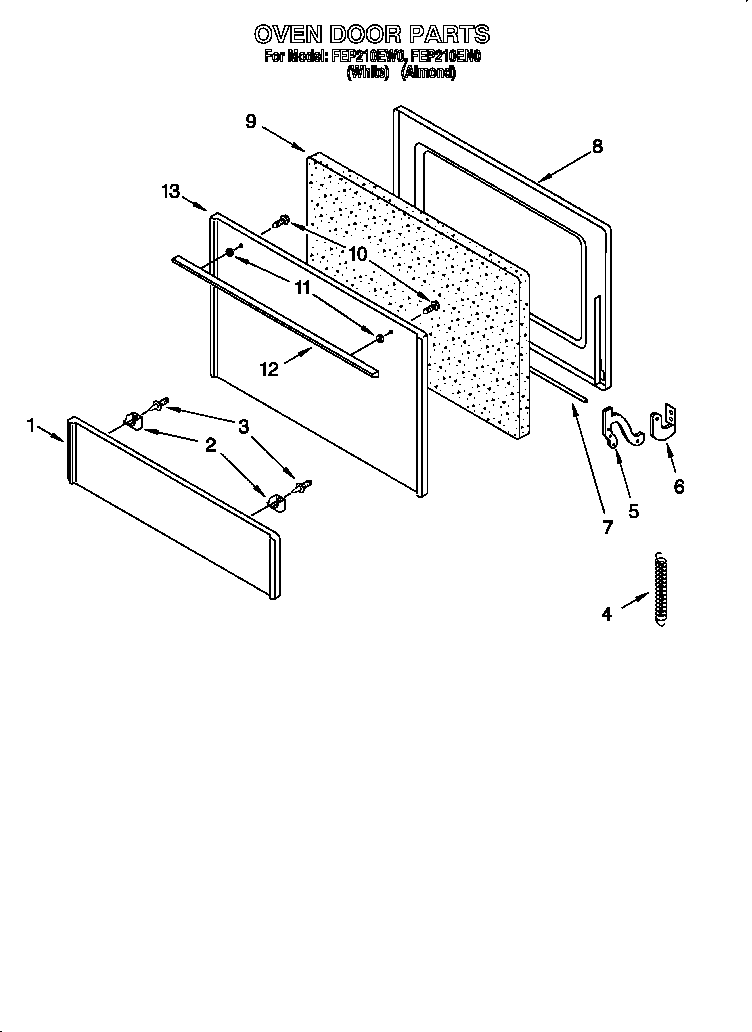

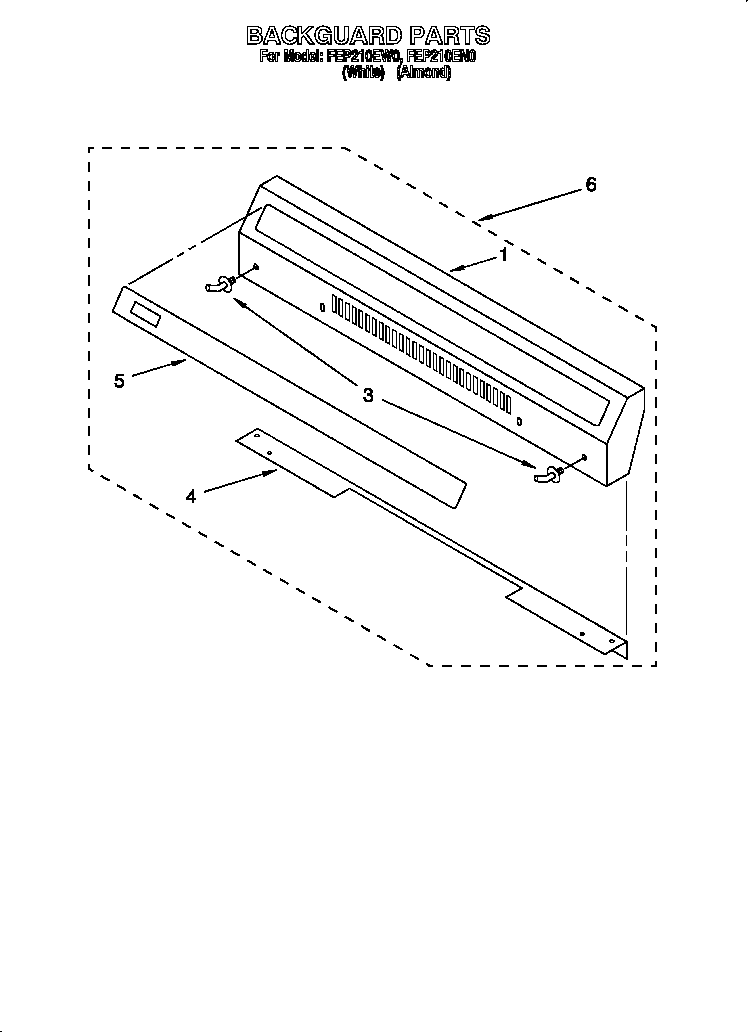

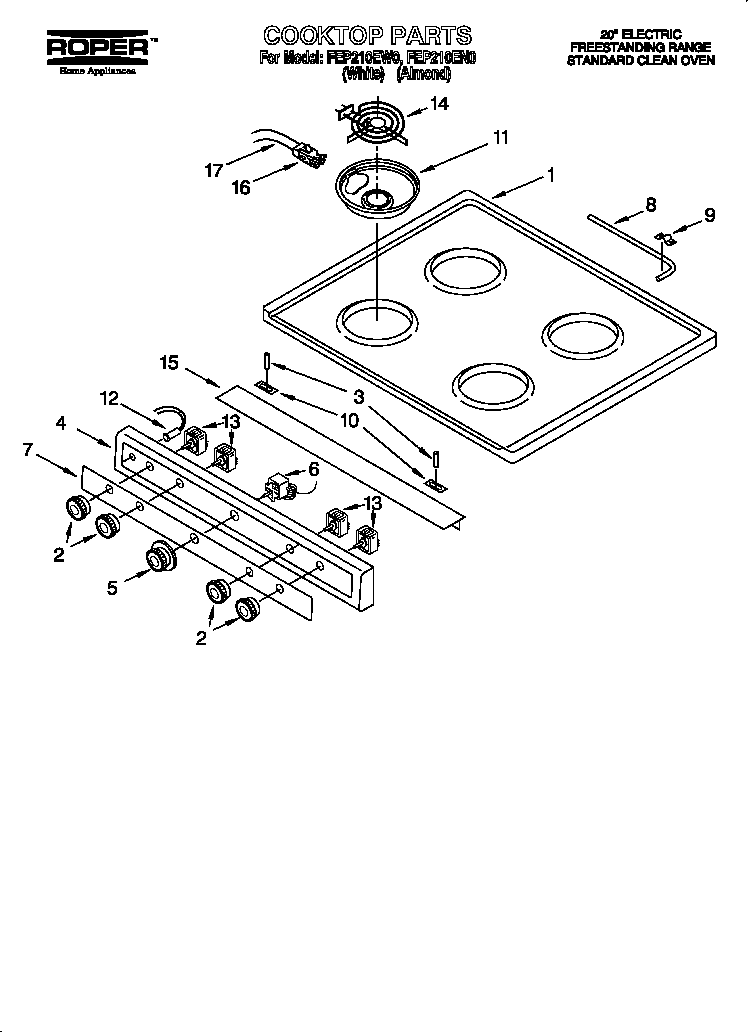

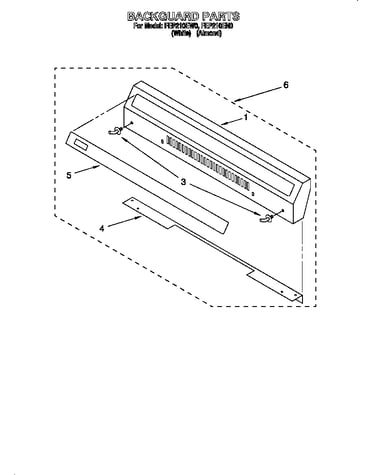

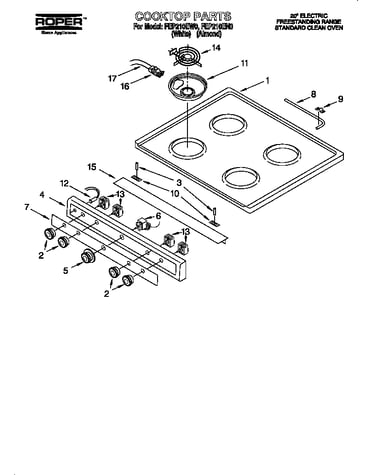

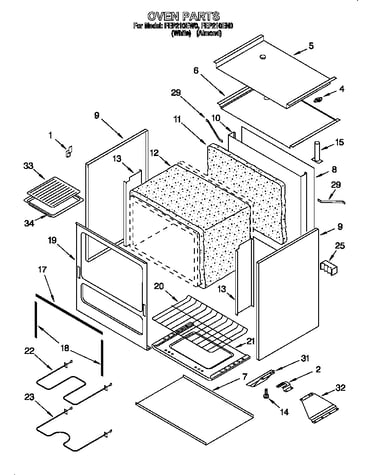

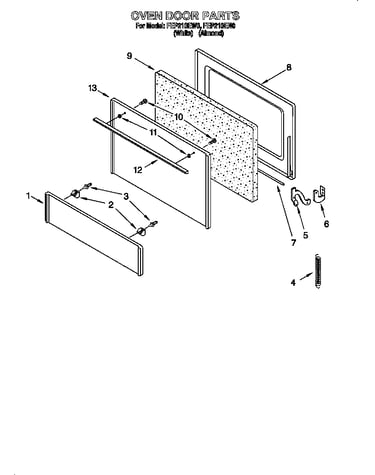

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Surface Element 4364174
#14B

Cooktop diagram

Surface element

Part #4364174

Replaced by #WPW10345407

?
Manufacturer substitution
This part replaces 4364174. Substitute parts can look different from the original.
$68.03 |
8% OFF Phone Price : $74.03
In Stock
Surface Element 4364175
#14A

Cooktop diagram

Surface element

Part #4364175

Replaced by #W10345409

?
Manufacturer substitution
This part replaces 4364175. Substitute parts can look different from the original.
$66.19 |
8% OFF Phone Price : $72.19
In Stock
Limit Switch 4364180
#13A

Cooktop diagram

Limit switch

Part #4364180

Replaced by #WPW10197681

?
Manufacturer substitution
This part replaces 4364180. Substitute parts can look different from the original.
$96.20
In Stock
Cooktop, Almond 4364195
#1B

Cooktop diagram

Cooktop, almond

Part #4364195

The manufacturer no longer makes this part, and there's no substitute part

Rear Cover 4364200
#8

Oven diagram

Rear cover

Part #4364200

The manufacturer no longer makes this part, and there's no substitute part

Indicator, Surface 4364182
#12

Cooktop diagram

Indicator, surface

Part #4364182

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Door (side) 4364208
#18

Oven diagram

Gasket, door (side)

Part #4364208

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Gasket 4364084
#17

Oven diagram

Oven door gasket

Part #4364084

The manufacturer no longer makes this part, and there's no substitute part

Door Liner 4364231
#8

Oven door diagram

Door liner

Part #4364231

The manufacturer no longer makes this part, and there's no substitute part

Cooktop, White 4364194
#1A

Cooktop diagram

Cooktop, white

Part #4364194

The manufacturer no longer makes this part, and there's no substitute part
