Model # DE806 Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag DE806 washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

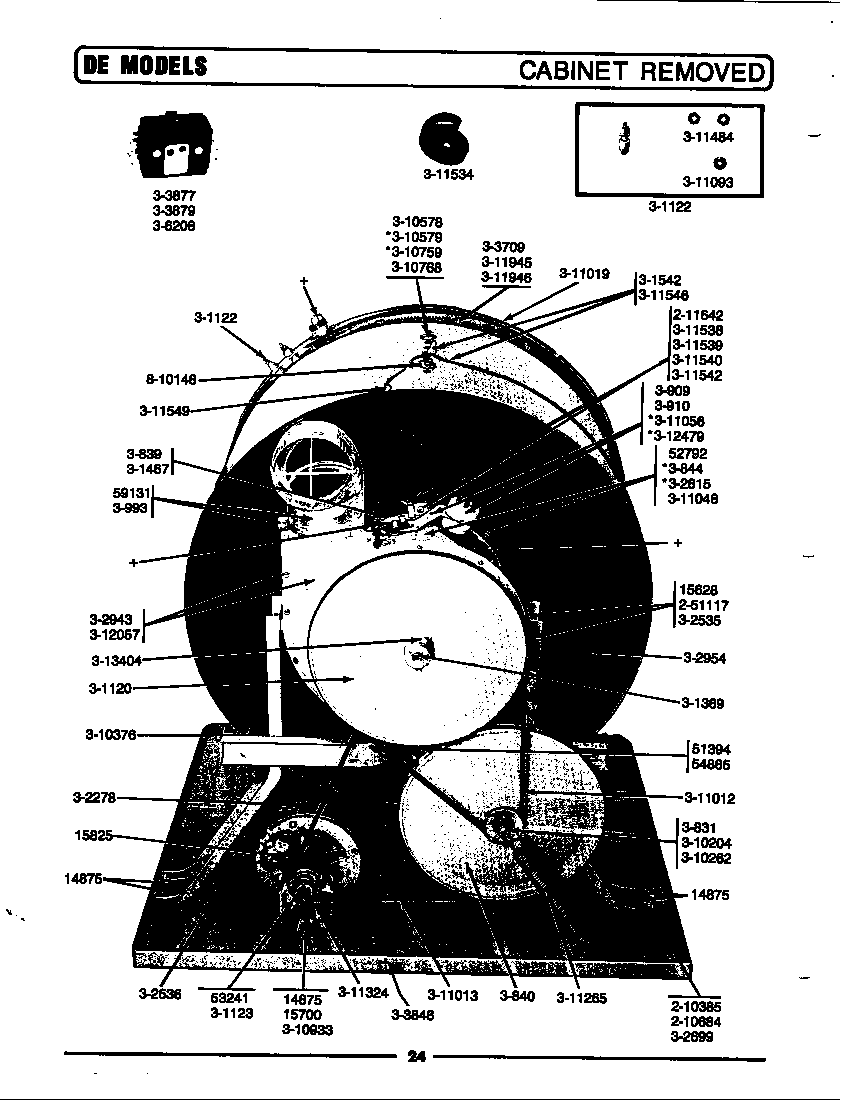

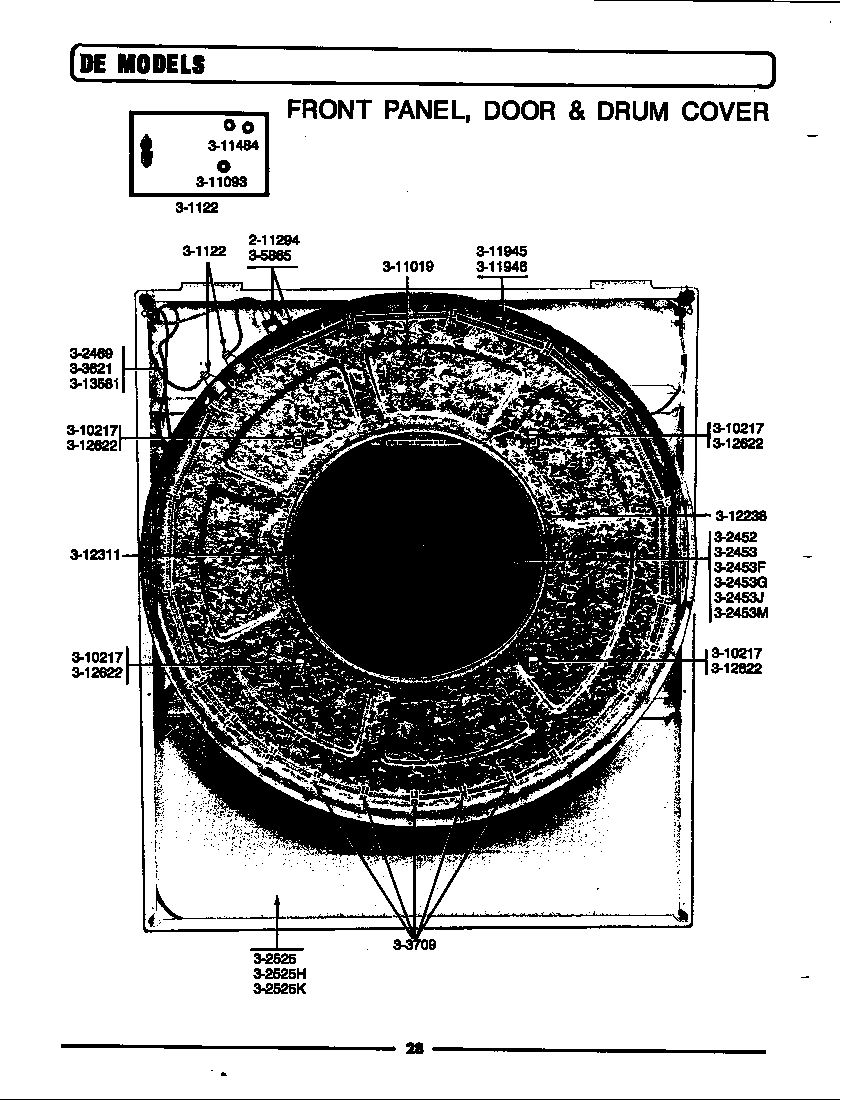

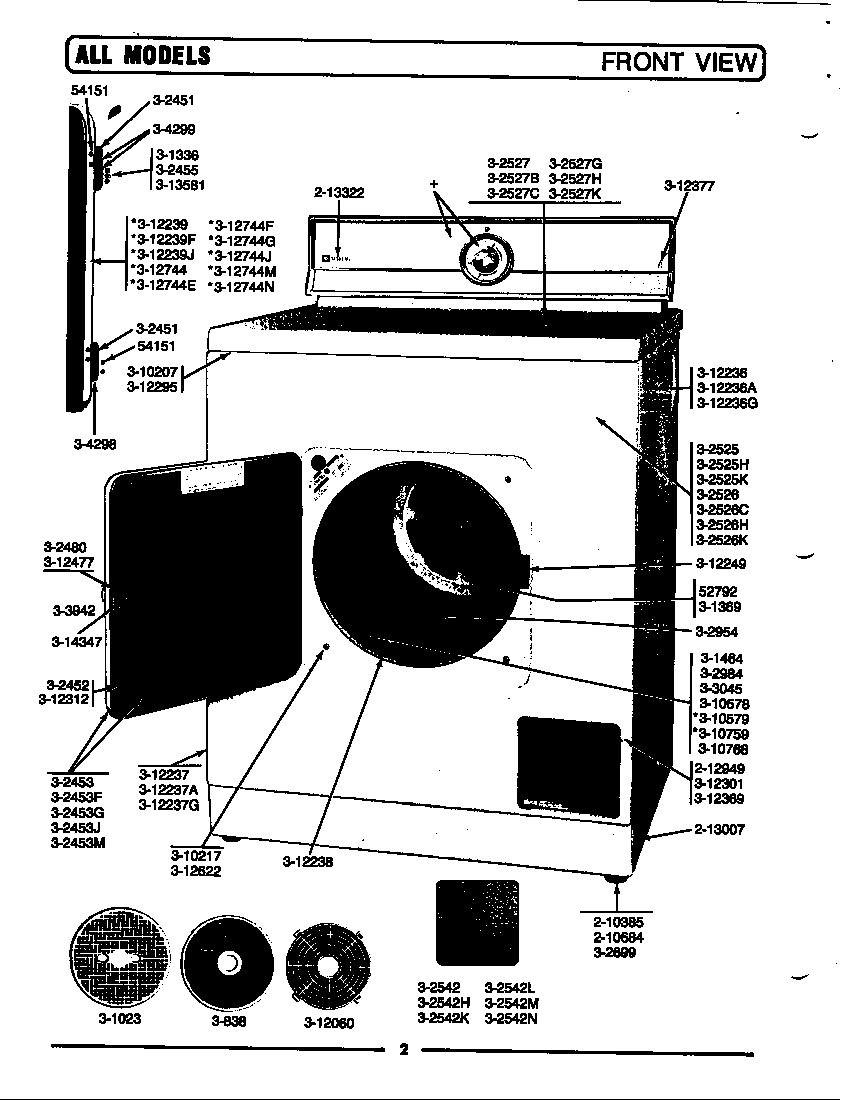

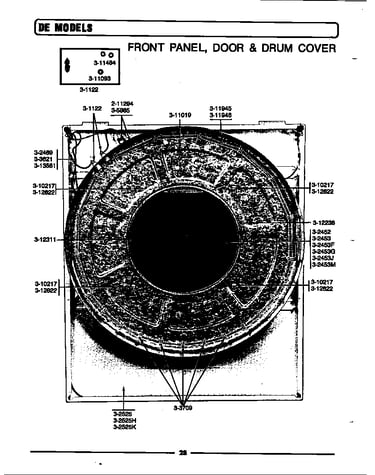

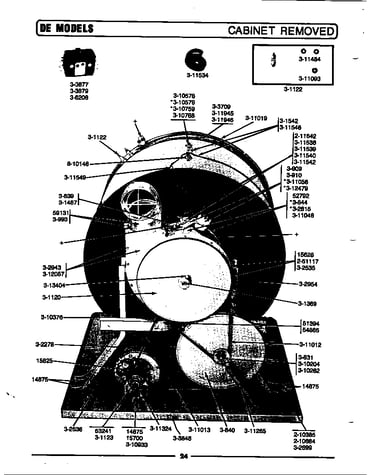

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Regulating Thermostat 303035
Regulating thermostat

Part #303035

Replaced by #WP694674

?
Manufacturer substitution
This part replaces 303035. Substitute parts can look different from the original.
BEST SELLER
$57.19 |
9% OFF Phone Price : $63.19
In Stock
Washer Screw 211294
Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw, #10-3 311423
#12

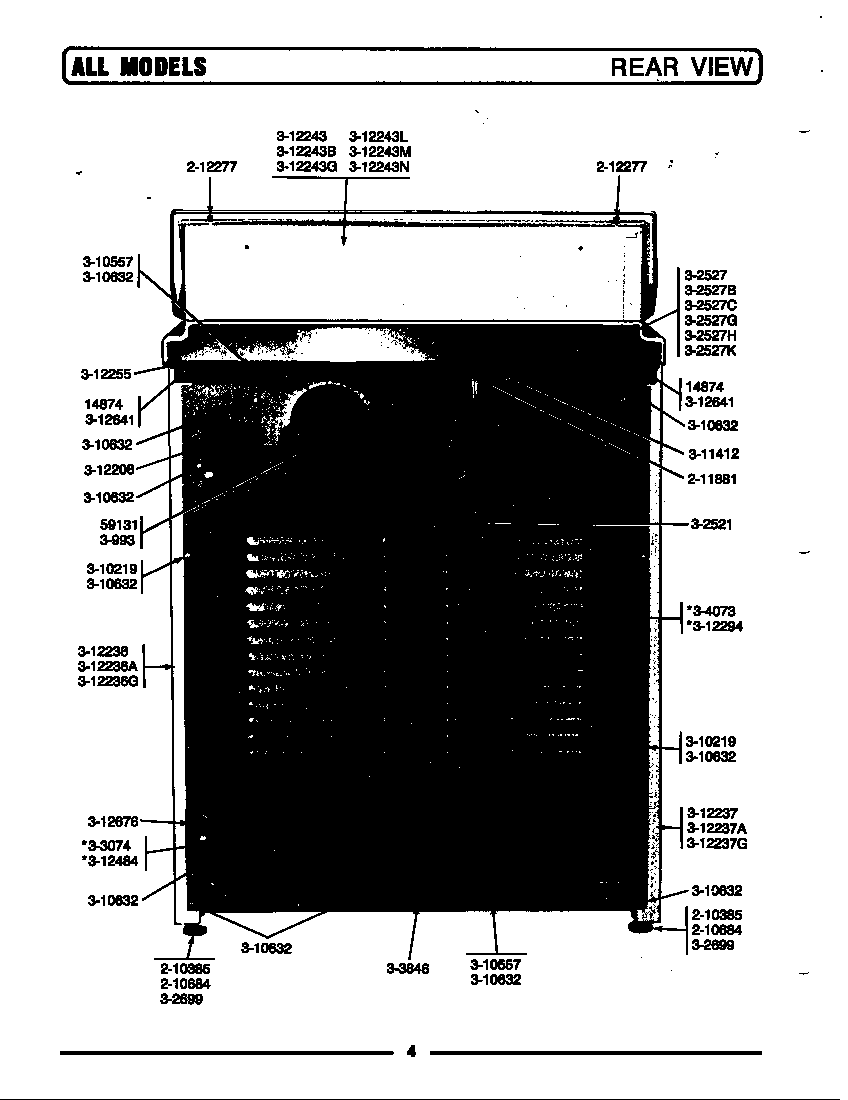

Rear view diagram

Screw, #10-3

Part #311423

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 311423. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Flexible Alu 304353
#16

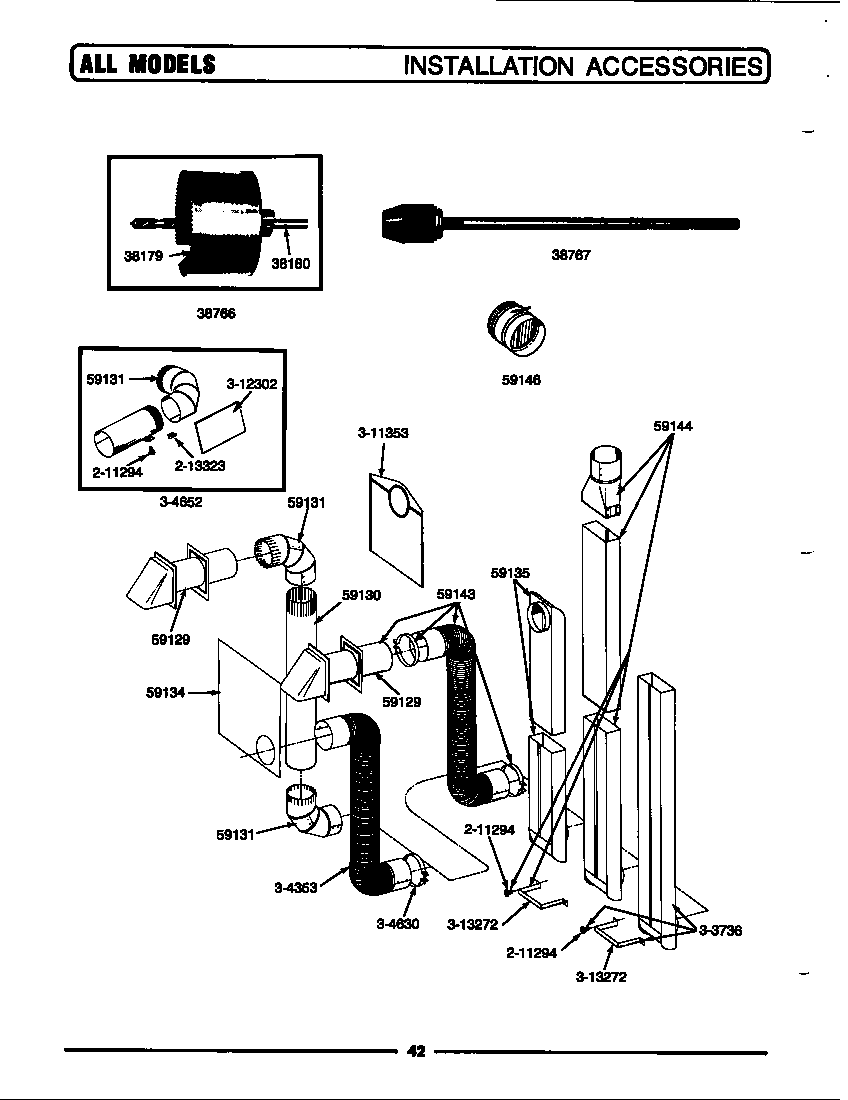

Installation accessories diagram

Flexible alu

Part #304353

The manufacturer no longer makes this part, and there's no substitute part

Dryer Support Roller Shaft Washer 312535
#41

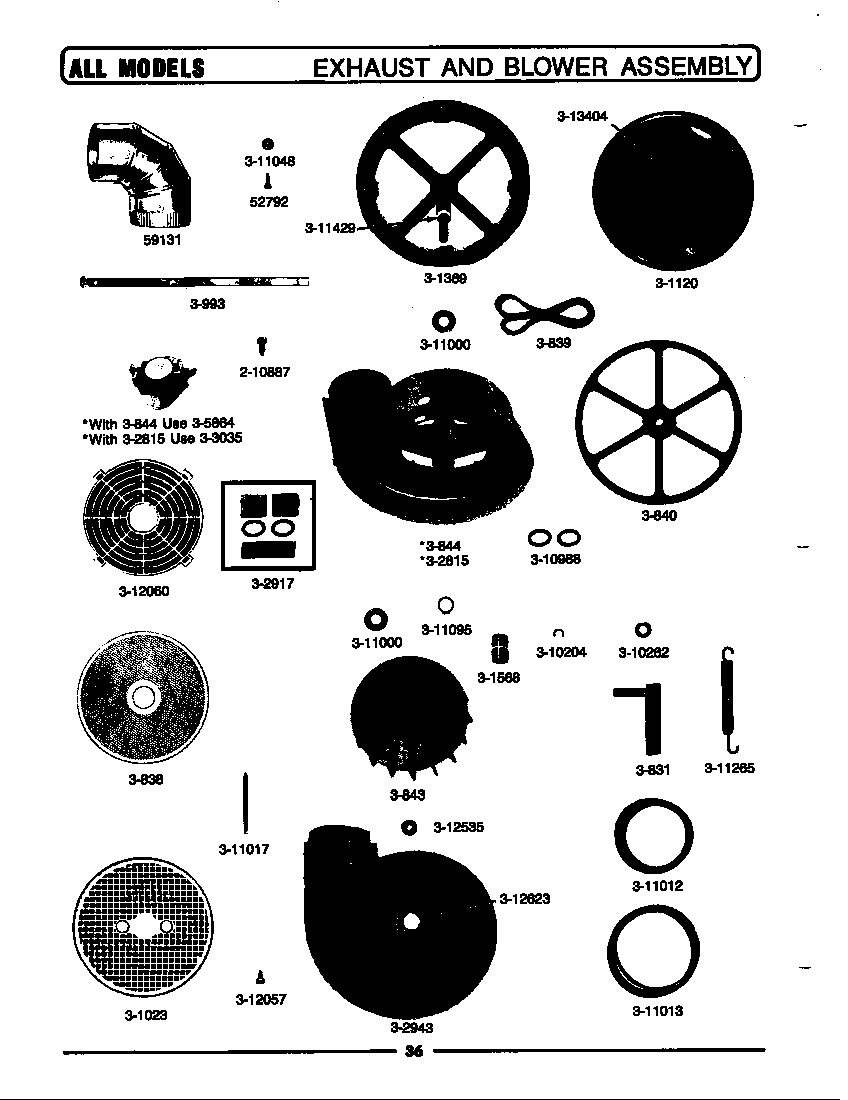

Exhaust & blower assembly diagram

Dryer support roller shaft washer

Part #312535

Replaced by #WP312535

?
Manufacturer substitution
This part replaces 312535. Substitute parts can look different from the original.
This item is not returnable
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Washer Screw 303846
Washer screw

Part #303846

Replaced by #W10850756

?
Manufacturer substitution
This part replaces 303846. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 211252
#13

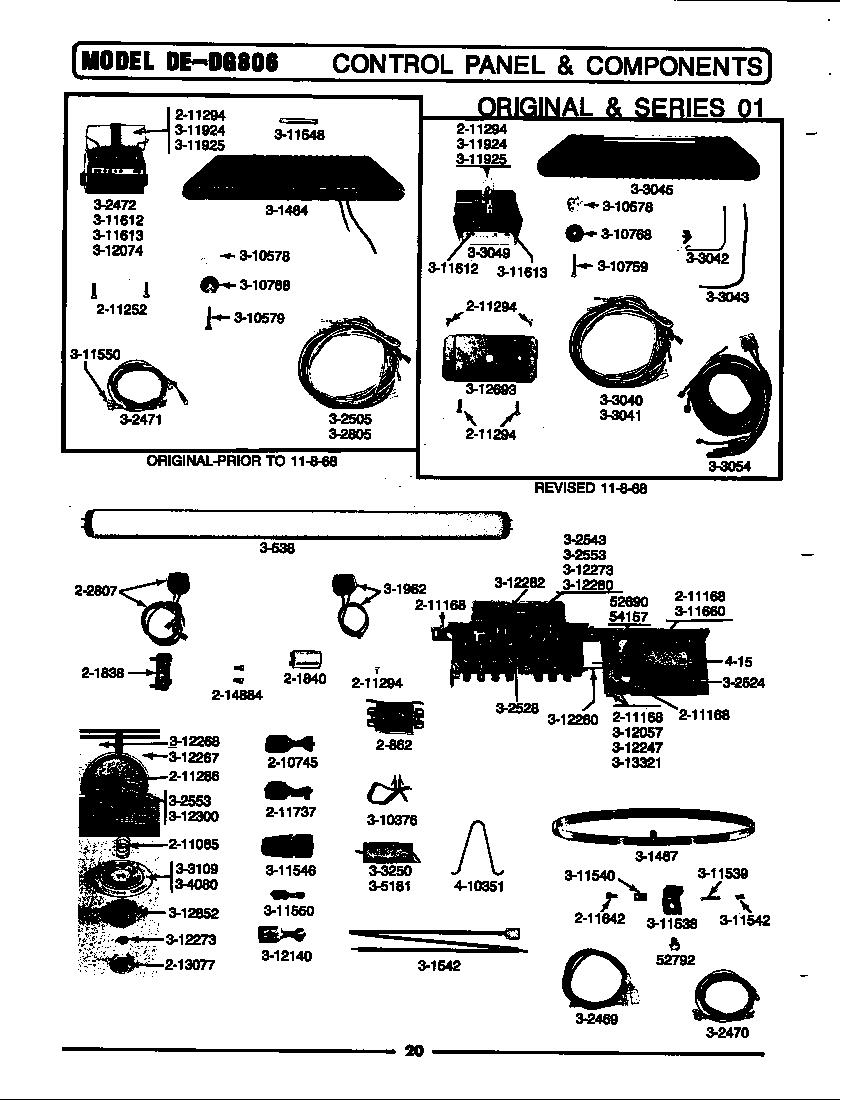

Control panel & components diagram

Screw

Part #211252

Replaced by #WP489399

?
Manufacturer substitution
This part replaces 211252. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Terminal Block Nut 311484
Terminal block nut

Part #311484

Replaced by #WP112432

?
Manufacturer substitution
This part replaces 311484. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Cycling Thermostat 304475
#4

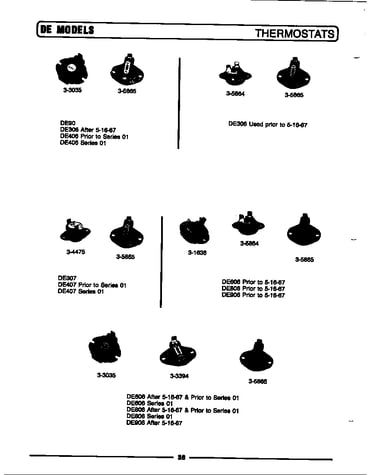

Thermostats diagram

Cycling thermostat

Part #304475

Replaced by #WPY304475

?
Manufacturer substitution
This part replaces 304475. Substitute parts can look different from the original.
$43.37 |
12% OFF Phone Price : $49.37
In Stock
Leg, Adjusta 302699
Leg, adjusta

Part #302699

Replaced by #22003428

?
Manufacturer substitution
This part replaces 302699. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
