Model # DVL223GB5WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE DVL223GB5WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Igniter Assembly WE04X10128
#1374

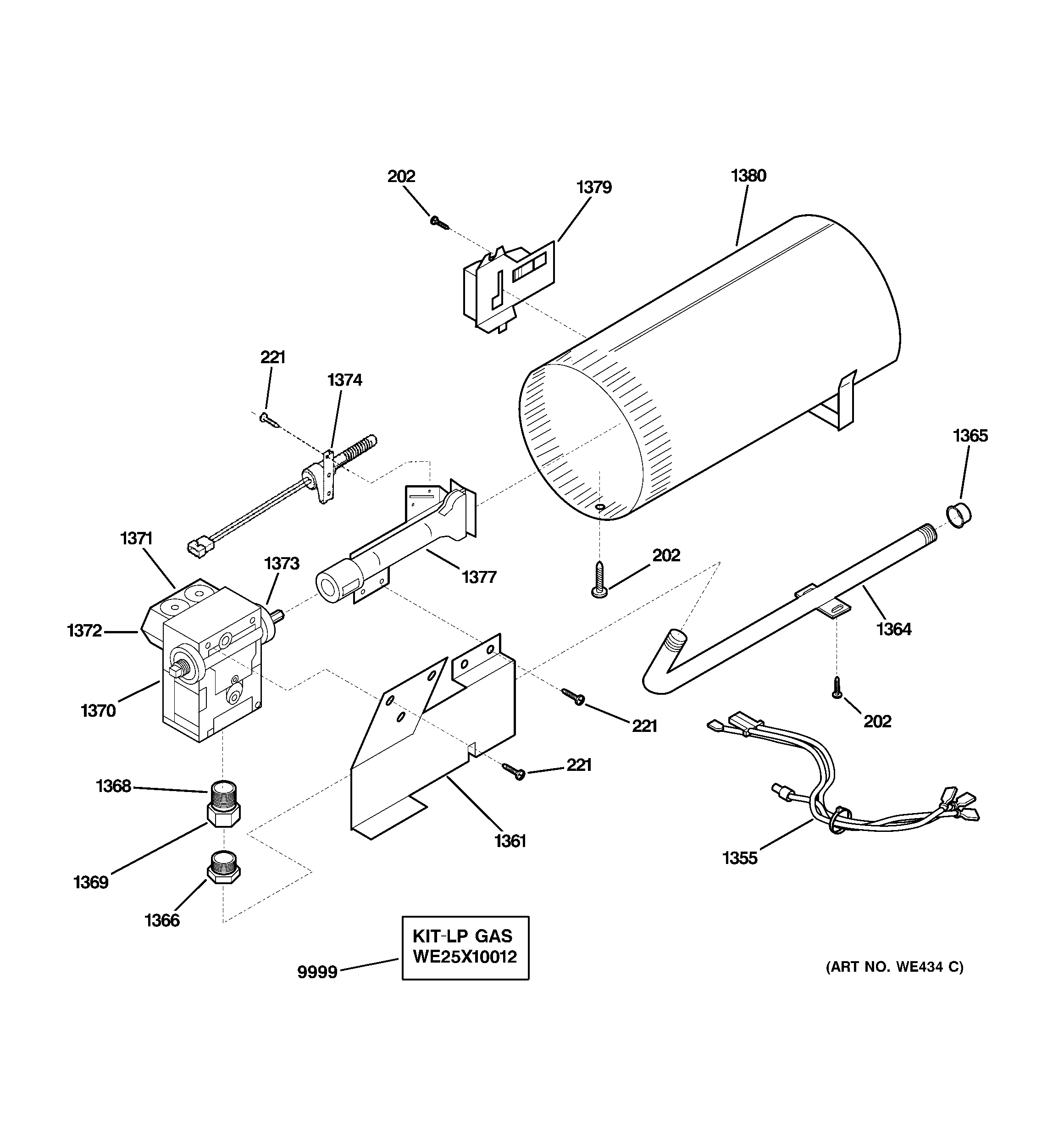

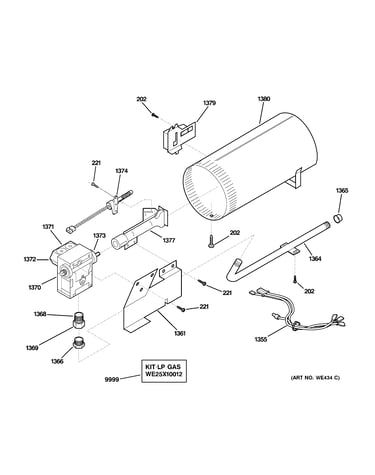

Burner diagram

Igniter assembly

Part #WE04X10128

Replaced by #WE04X25996

?
Manufacturer substitution
This part replaces WE04X10128. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Selector Knob WE01X10142
#29

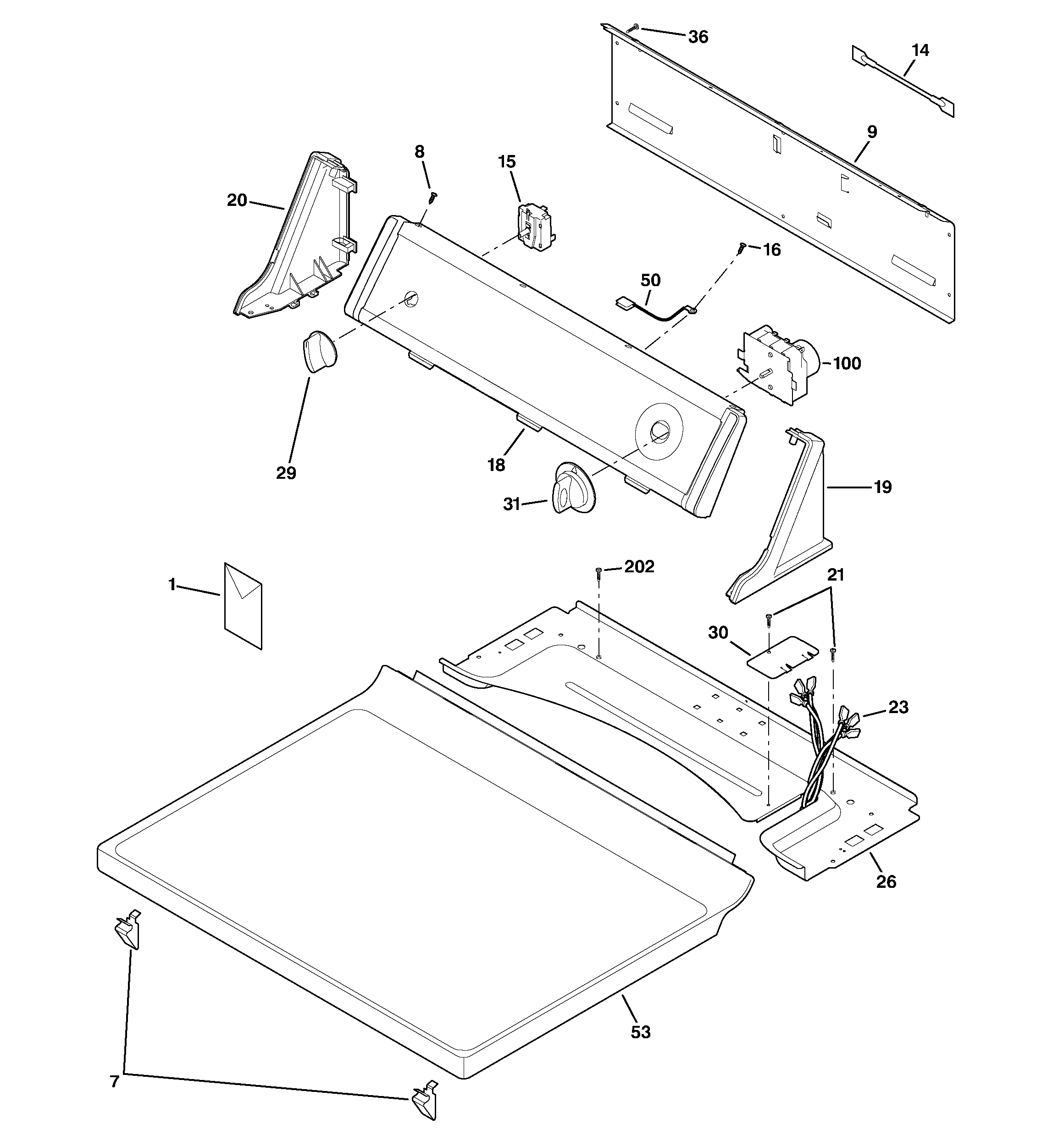

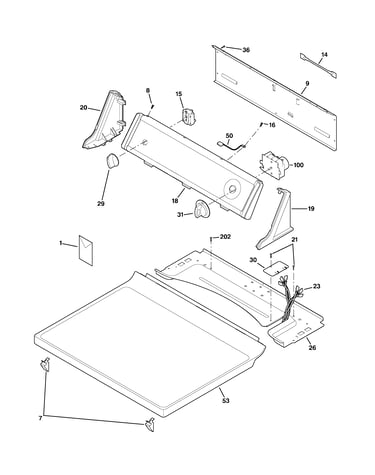

Controls & top panel diagram

Selector knob

Part #WE01X10142

Replaced by #WH01X10060

?
Manufacturer substitution
This part replaces WE01X10142. Substitute parts can look different from the original.
This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Dryer Drum Front Glide WE03X10007
#1124

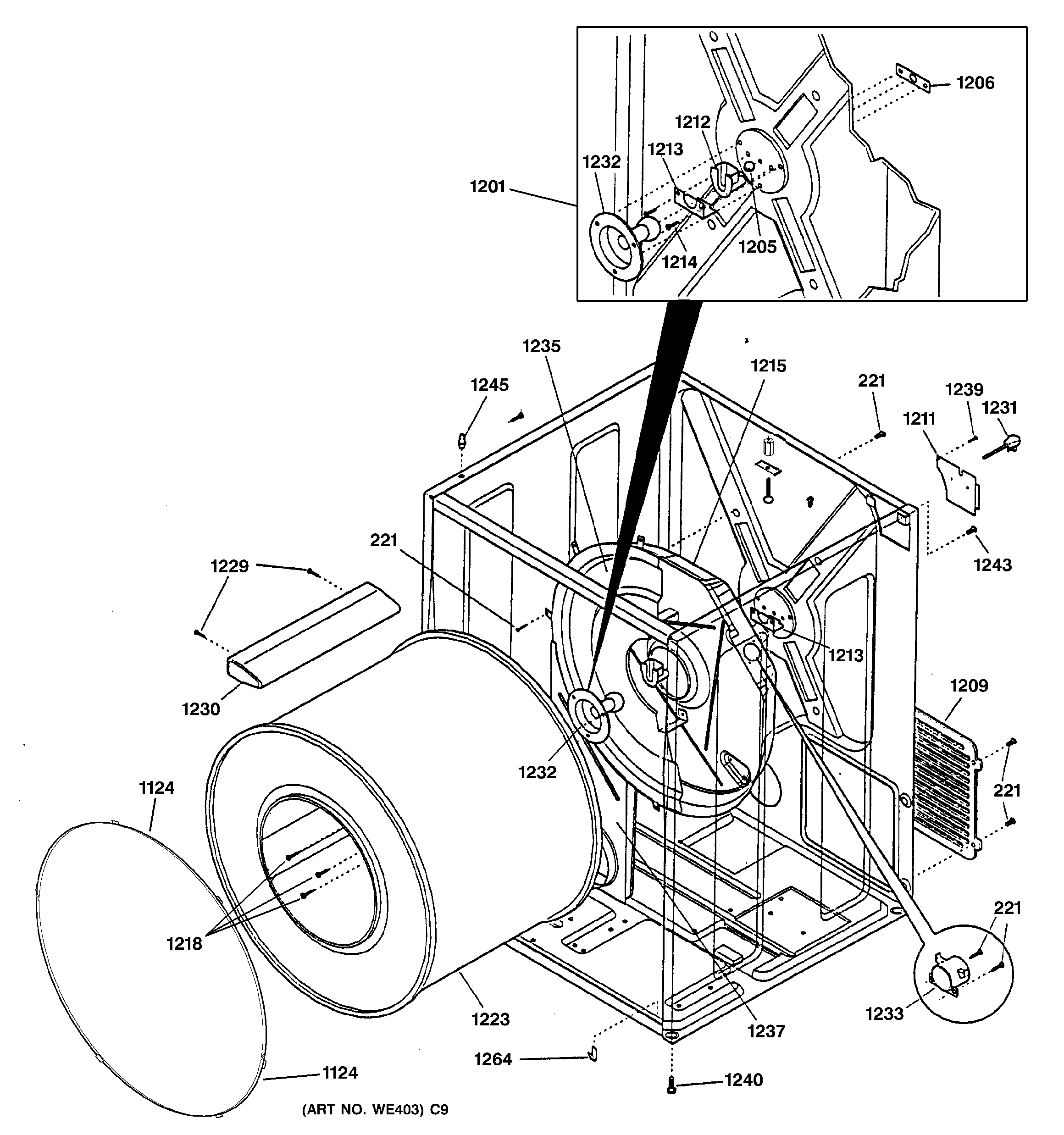

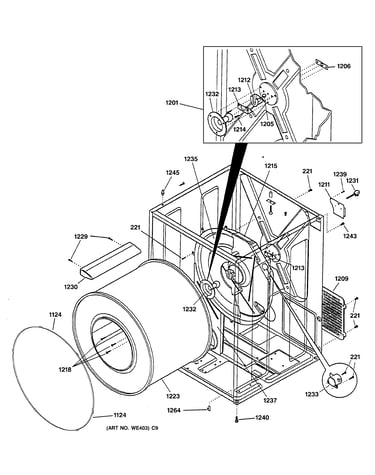

Cabinet & drum diagram

Dryer drum front glide

Part #WE03X10007

$26.13 |
19% OFF Phone Price : $32.13
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

Cabinet & drum diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93 |
6% OFF Phone Price : $93.93
In Stock
Dryer Rear Bearing Kit WE25X10001
#1201

Cabinet & drum diagram

Dryer rear bearing kit

Part #WE25X10001

$90.31 |
6% OFF Phone Price : $96.31
In Stock
Dryer Drum Felt Seal, Lower WE09X10014
#1221

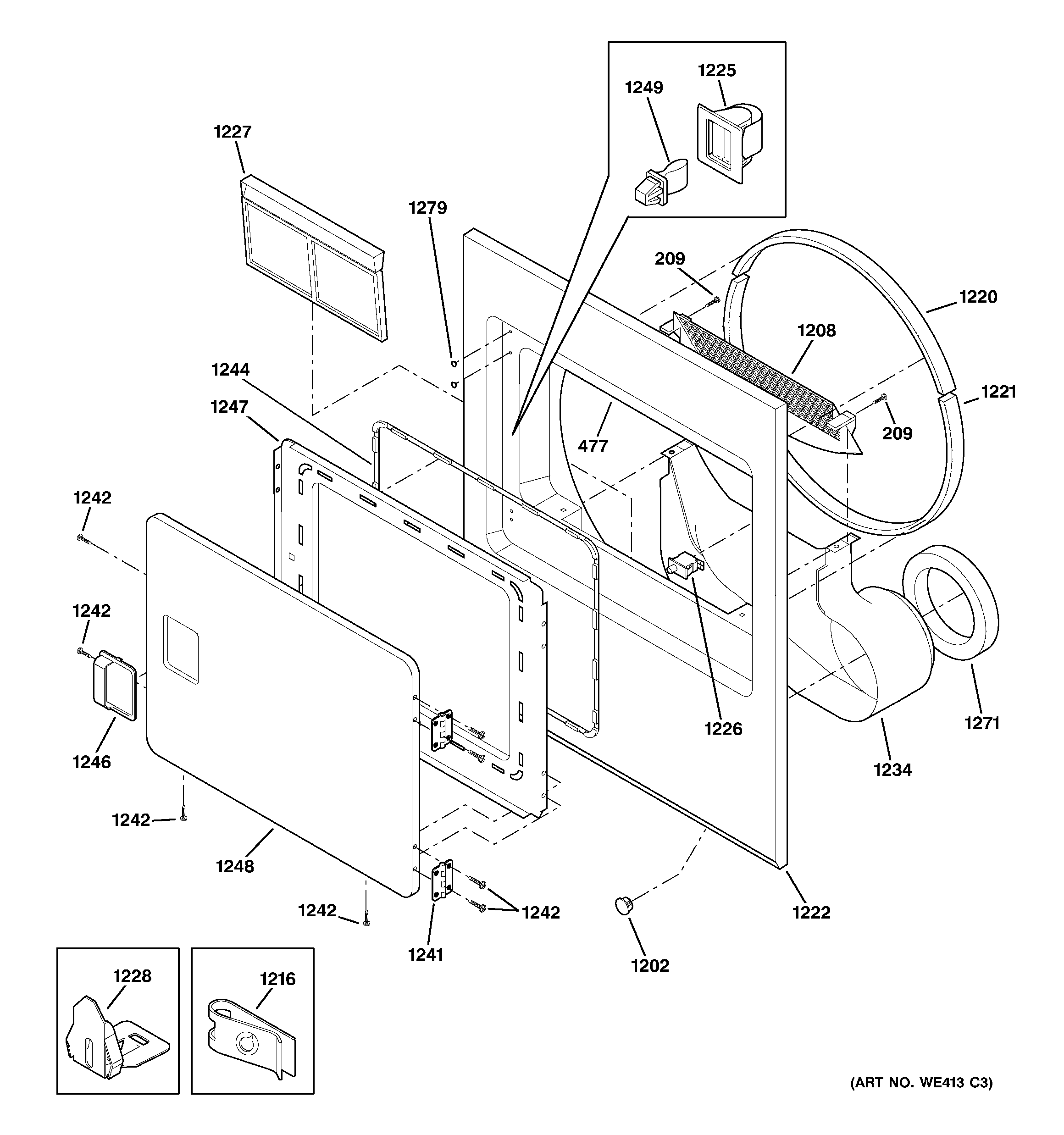

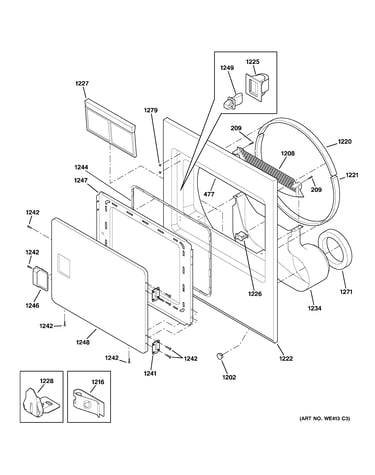

Front panel & door diagram

Dryer drum felt seal, lower

Part #WE09X10014

The manufacturer no longer makes this part, and there's no substitute part

Dryer Drive Motor WE17X10002
#1328

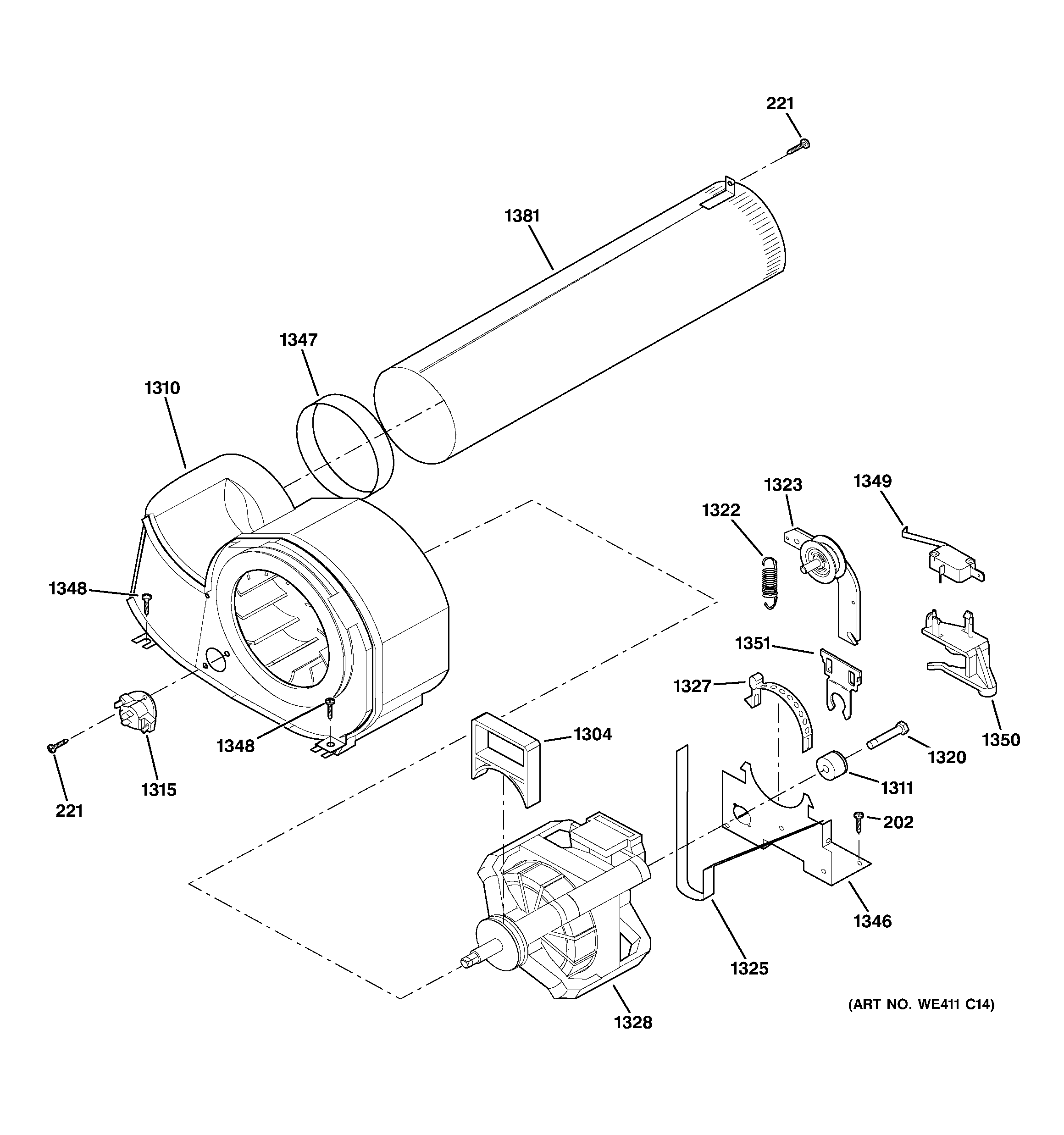

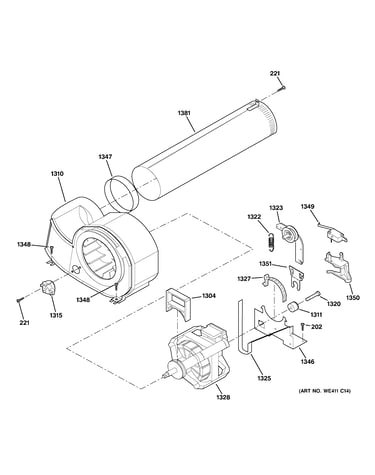

Motor diagram

Dryer drive motor

Part #WE17X10002

Replaced by #WE17X23466

?
Manufacturer substitution
This part replaces WE17X10002. Substitute parts can look different from the original.
$182.91
In Stock
Cabinet Foot WE02X10056
#1240

Cabinet & drum diagram

Cabinet foot

Part #WE02X10056

Replaced by #WR2X9485

?
Manufacturer substitution
This part replaces WE02X10056. Substitute parts can look different from the original.
$20.43 |
23% OFF Phone Price : $26.43
In Stock
Dvl223 - Njl 49-9996
#1

Controls & top panel diagram

Dvl223 - njl

Part #49-9996

$8.59 |
10% OFF Phone Price : $9.59
In Stock
Dryer Cabinet Hole Plug WE01X10137
#477

Front panel & door diagram

Dryer cabinet hole plug

Part #WE01X10137

$54.21 |
10% OFF Phone Price : $60.21
In Stock
