Model # AT121102AJ Official Campbell Hausfeld sandblasting kit

Here are the diagrams and repair parts for Official Campbell Hausfeld AT121102AJ sandblasting kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 25 parts |

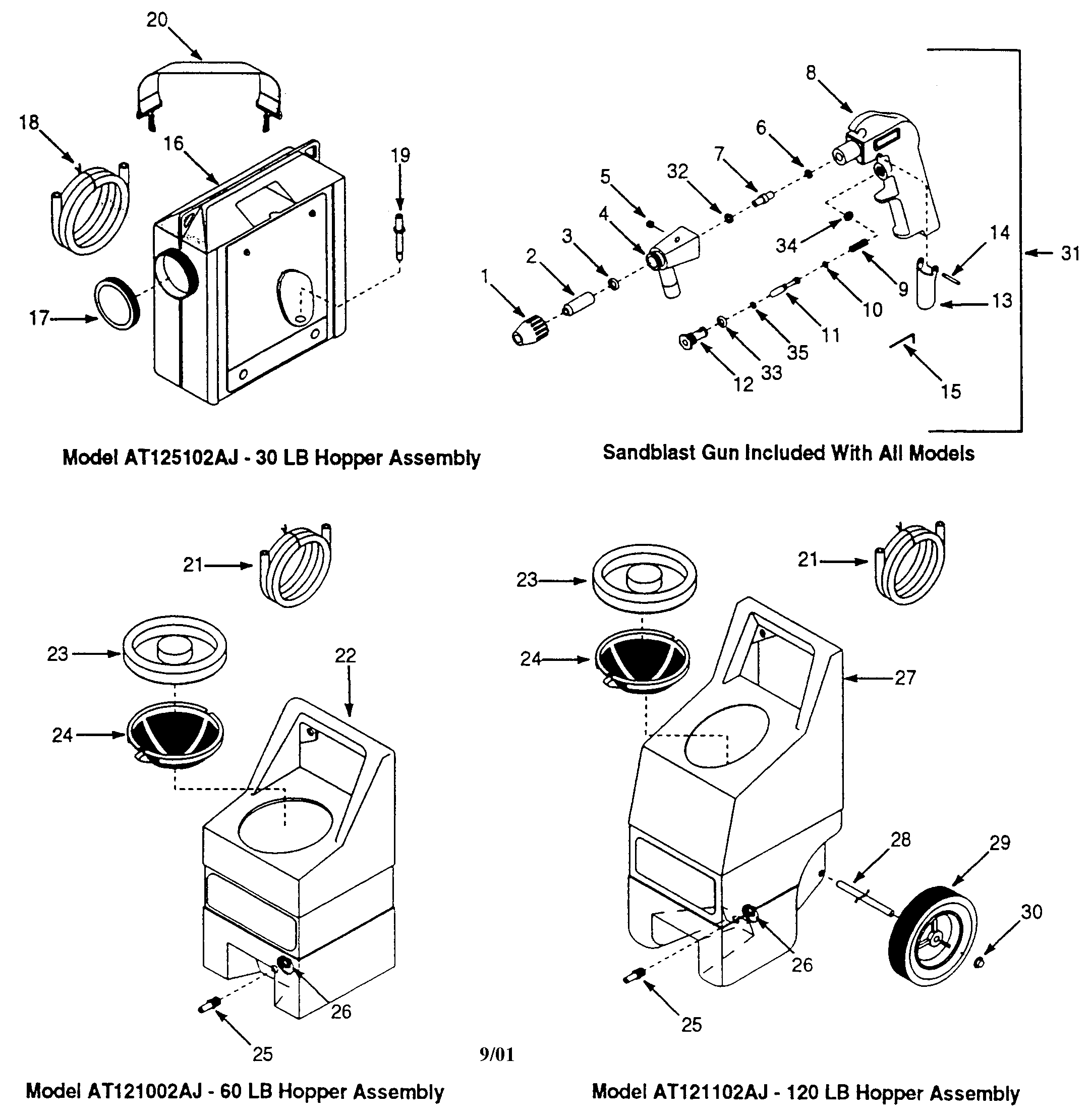

Sandblasting kit diagram

Gun tip

Part #AT210100AV

The manufacturer no longer makes this part, and there's no substitute part

#22

Sandblasting kit diagram

Hopper

Part #AT005003AV

The manufacturer no longer makes this part, and there's no substitute part

#NI

Sandblasting kit diagram

Trigger valve repair kit

Part #SV212000AV

The manufacturer no longer makes this part, and there's no substitute part

#23

Sandblasting kit diagram

Cover

Part #AT007600AV

The manufacturer no longer makes this part, and there's no substitute part

Sandblasting kit diagram

Gun nose

Part #AT210400AV

The manufacturer no longer makes this part, and there's no substitute part

#25

Sandblasting kit diagram

Hose connector

Part #AT008800AV

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Sandblast Gun Assembly AT212000AV

#31

Sandblasting kit diagram

Air compressor sandblast gun assembly

Part #AT212000AV

The manufacturer no longer makes this part, and there's no substitute part

#21

Sandblasting kit diagram

Mtl hose

Part #HA210503AJ

The manufacturer no longer makes this part, and there's no substitute part

#24

Sandblasting kit diagram

Hopper screen

Part #AT005200AV

The manufacturer no longer makes this part, and there's no substitute part

#NI

Sandblasting kit diagram

Hose

Part #SV901000AJ

The manufacturer no longer makes this part, and there's no substitute part
