Model # 6253490000 Official Kenmore water softener
Here are the diagrams and repair parts for Official Kenmore 6253490000 water softener, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
6253490000 Water Treatment
#95

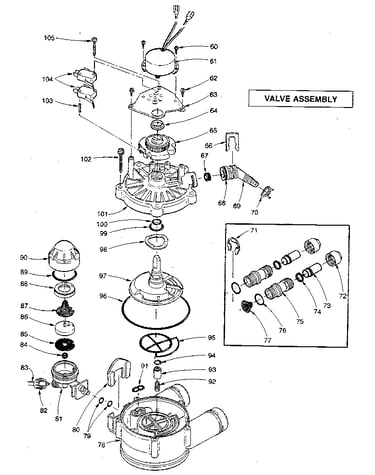

Valve assembly diagram
Rotor seal
Part #7081756
Replaced by #7129716
?
Manufacturer substitution
This part replaces 7081756. Substitute parts can look different from the original.
$48.42 |
11% OFF Phone Price : $54.42
In Stock
#NI
All parts diagram
Seal kit
Part #7092163
Replaced by #7129716
?
Manufacturer substitution
This part replaces 7092163. Substitute parts can look different from the original.
$48.42 |
11% OFF Phone Price : $54.42
In Stock
#97
Valve assembly diagram
Rotor disc
Part #7088504
Replaced by #7199232
?
Manufacturer substitution
This part replaces 7088504. Substitute parts can look different from the original.
$65.40 |
8% OFF Phone Price : $71.40
In Stock
#78
Valve assembly diagram
Valve
Part #7080611
Replaced by #7082053
?
Manufacturer substitution
This part replaces 7080611. Substitute parts can look different from the original.
$73.33 |
8% OFF Phone Price : $79.33
In Stock
Water softener ferrule nut (replaces 7031450, ws03x10017, ws3x10017)
Part #1202600
$8.89 |
10% OFF Phone Price : $9.89
In Stock
#17

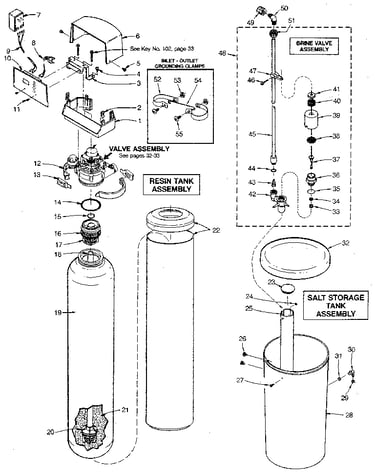

Unit parts diagram
Water softener distributor top (replaces ws14x10002)
Part #7077870
$18.79 |
10% OFF Phone Price : $20.79
In Stock
#18
Unit parts diagram
Standpipe
Part #7089055
Replaced by #7105047
?
Manufacturer substitution
This part replaces 7089055. Substitute parts can look different from the original.
$95.89 |
11% OFF Phone Price : $107.89
In Stock
#20
Unit parts diagram
Distributor
Part #7066497
Replaced by #7105047
?
Manufacturer substitution
This part replaces 7066497. Substitute parts can look different from the original.
$95.89 |
11% OFF Phone Price : $107.89
In Stock
#66
Valve assembly diagram
Clip (gray)
Part #7080653
Replaced by #7142942
?
Manufacturer substitution
This part replaces 7080653. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
#98
Valve assembly diagram
Kenmore elite water softener rotor wave washer
Part #7082087
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Symptoms for water softeners
Choose a symptom to see related water softener repairs.
Main causes: faulty brine valve assembly, bad rotor valve…
Main causes: clogged drain hose, faulty rotor valve, leaky rotor valve seals…
Main causes: salt bridge inside the salt tank, bad timer, valve motor failure, faulty rotor valve, clogged venturi…
Main causes: loose water line connections, cracked water-carrying components, bad rotor valve seals…
Main causes: lack of electrical power, bad power transformer, faulty timer…
Main causes: empty salt tank, salt bridge, depleted resin, clogged or damaged venturi, broken rotor position switch, fai…
Main causes: broken resin tank screen, bad resin tank seals, cracked upper distributor in resin tank…
Main causes: broken water flow meter, faulty timer, water flow to softener is bypassed…
Repair guides for water softeners
These step-by-step repair guides will help you safely fix what’s broken on your water softener.
How to replace a water softener venturi
The venturi valve in your water softener draws brine water from the salt tank to the resin tank for regeneration. Follow…
Repair difficulty
Time required
15 minutes or less
How to replace a water softener rotor position switch
The rotor position switch detects the position of the valve rotor. If the rotor position switch fails, follow these step…
Repair difficulty
Time required
30 minutes or less
How to replace a water softener timer
The timer is the control board you use to program the water softener. If the timer isn’t accepting commands when you pus…
Repair difficulty
Time required
15 minutes or less
Articles and videos for water softeners
Use the advice and tips in these articles and videos to get the most out of your water softener.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
