Hoover
Upright Vacuum

Model # UH70805 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH70805 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |

Clip 440003990
#5

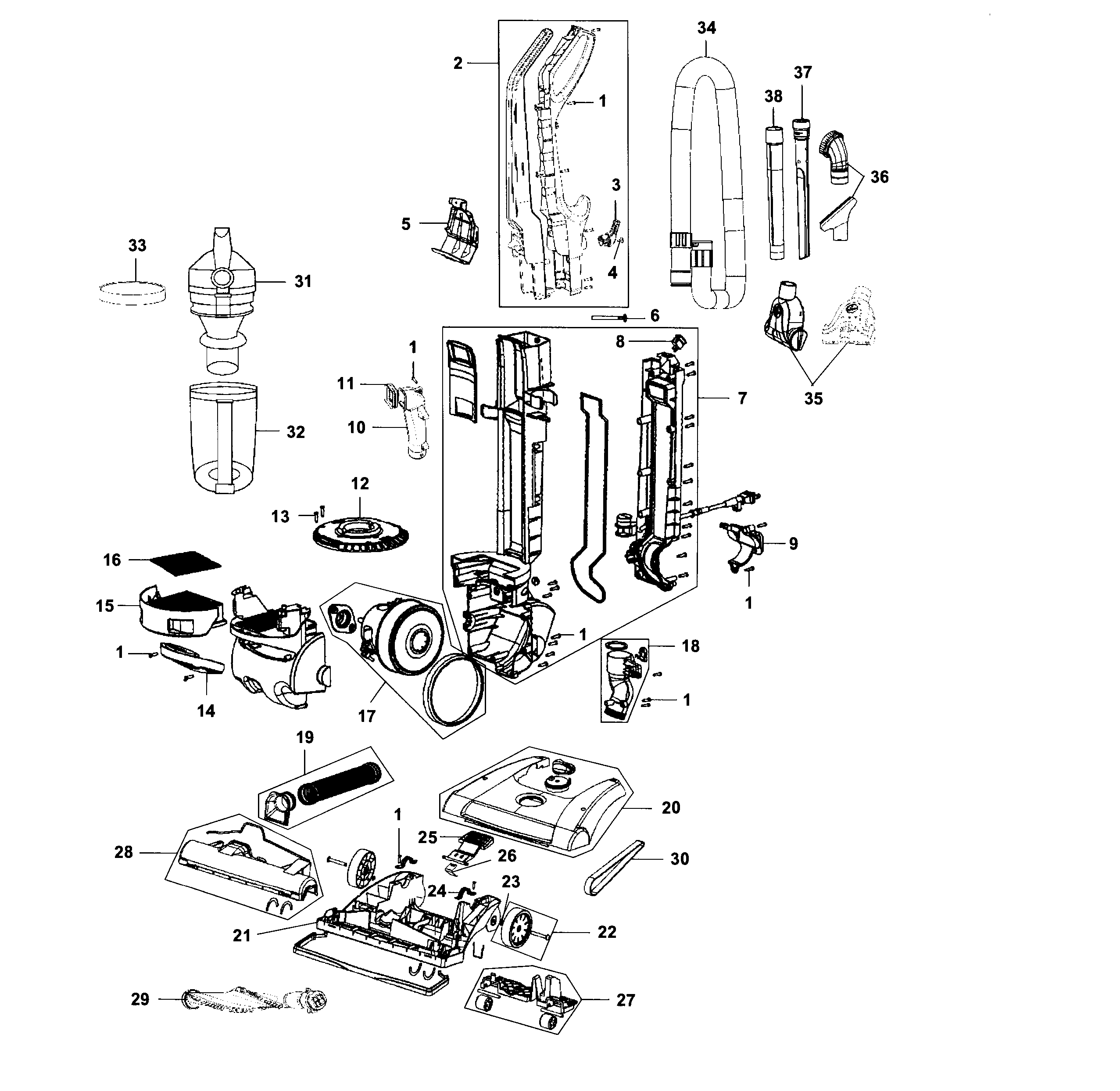

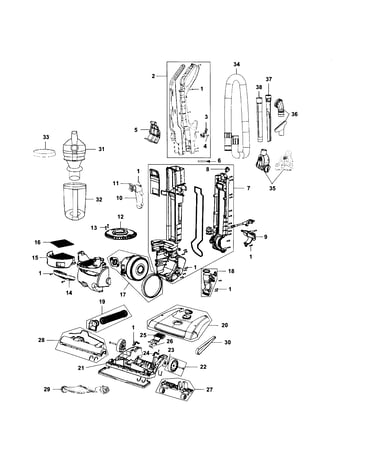

Vacuum assy diagram

Clip

Part #440003990

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base Cover Assembly 440003982
#21

Vacuum assy diagram

Vacuum base cover assembly

Part #440003982

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 440003992
#8

Vacuum assy diagram

Vacuum on/off switch

Part #440003992

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wand 500170001
#38

Vacuum assy diagram

Vacuum wand

Part #500170001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 303205001
#36

Vacuum assy diagram

Vacuum dust brush

Part #303205001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 440003987
#29

Vacuum assy diagram

Vacuum beater bar

Part #440003987

The manufacturer no longer makes this part, and there's no substitute part

Housing 440003981
#28

Vacuum assy diagram

Housing

Part #440003981

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Adapter 303832001
#18

Vacuum assy diagram

Vacuum hose adapter

Part #303832001

The manufacturer no longer makes this part, and there's no substitute part

Handle 440003976
#2

Vacuum assy diagram

Handle

Part #440003976

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 522305001
#37

Vacuum assy diagram

Vacuum crevice tool

Part #522305001

The manufacturer no longer makes this part, and there's no substitute part
