Sharp
Countertop Microwave

Model # R-409AK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-409AK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

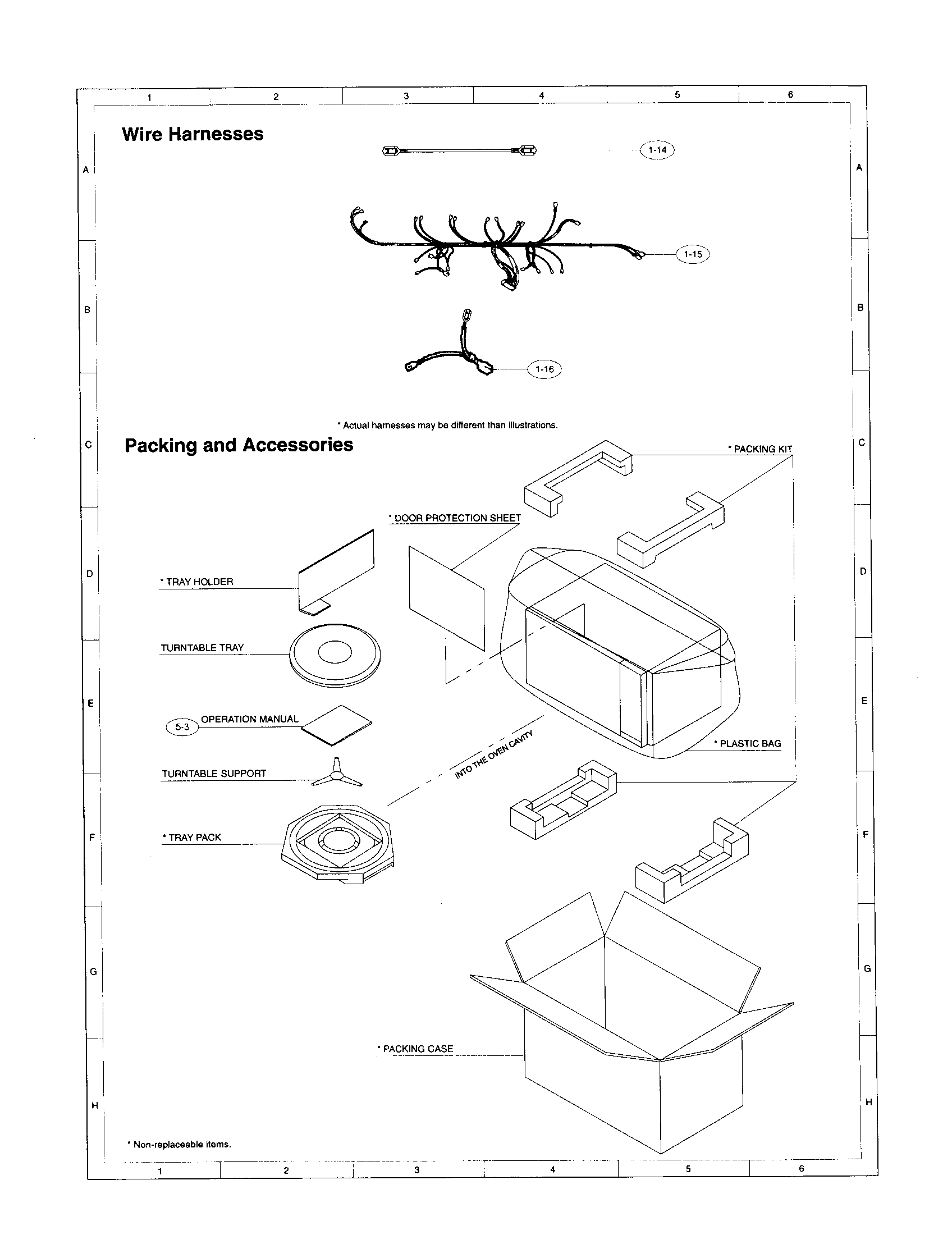

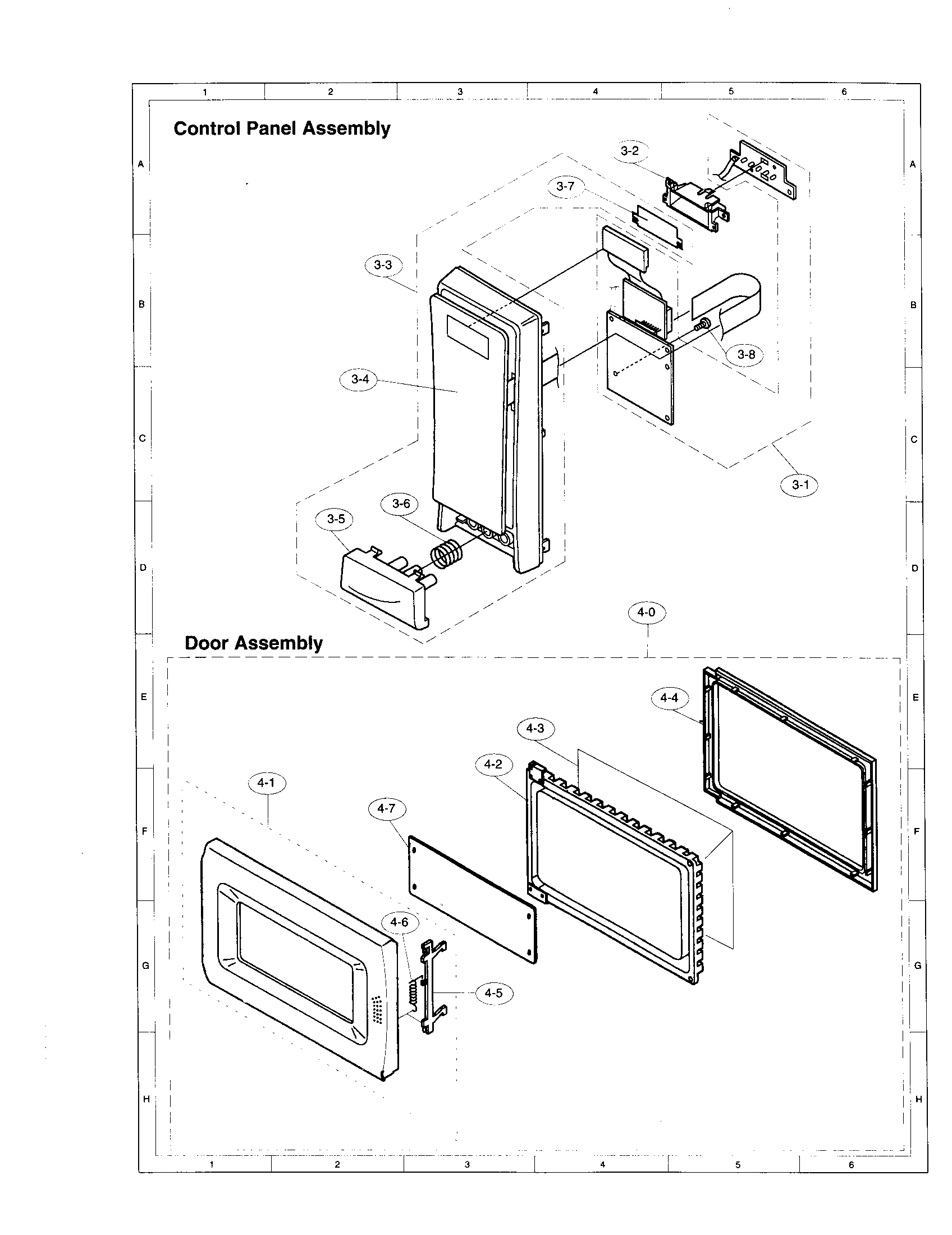

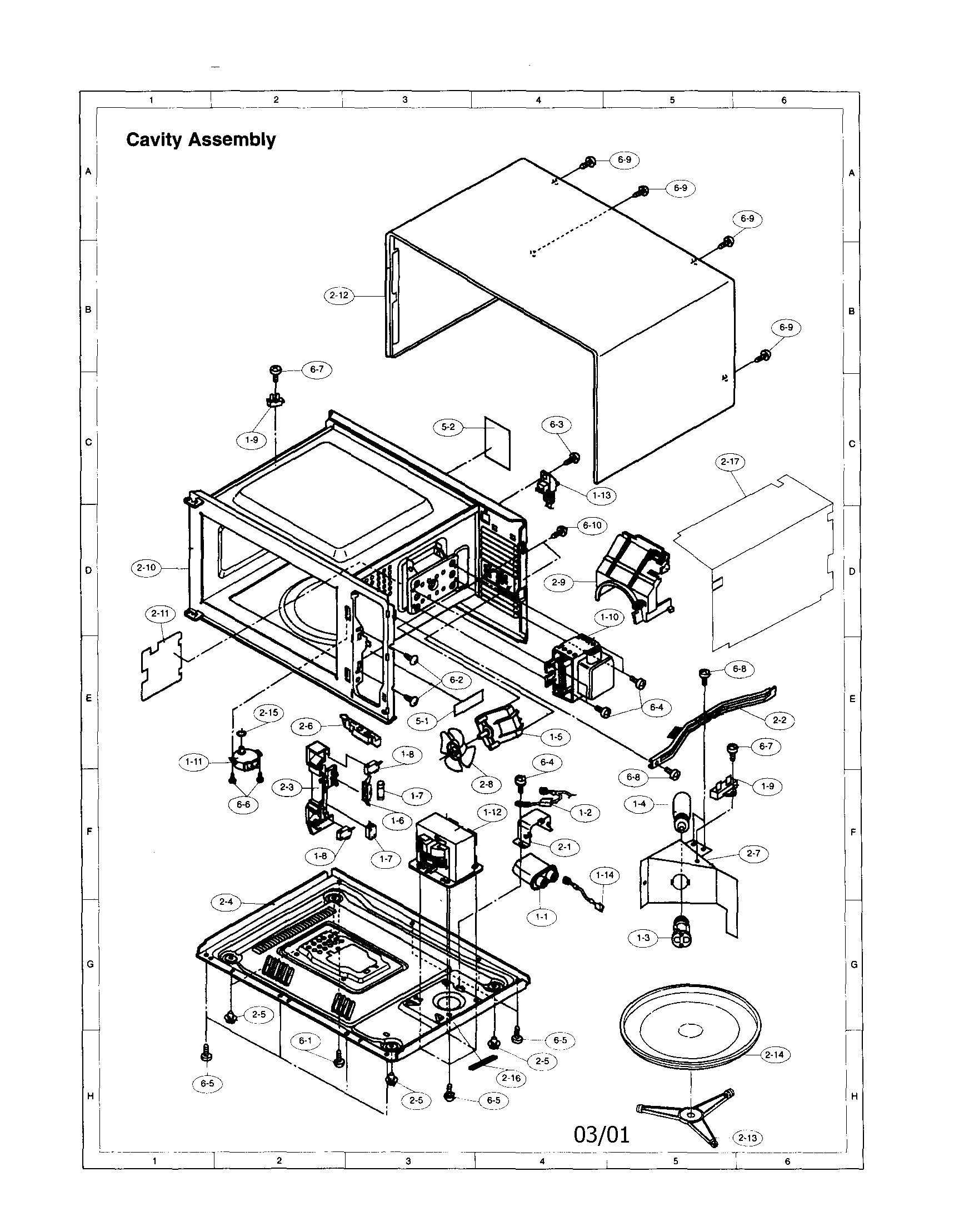

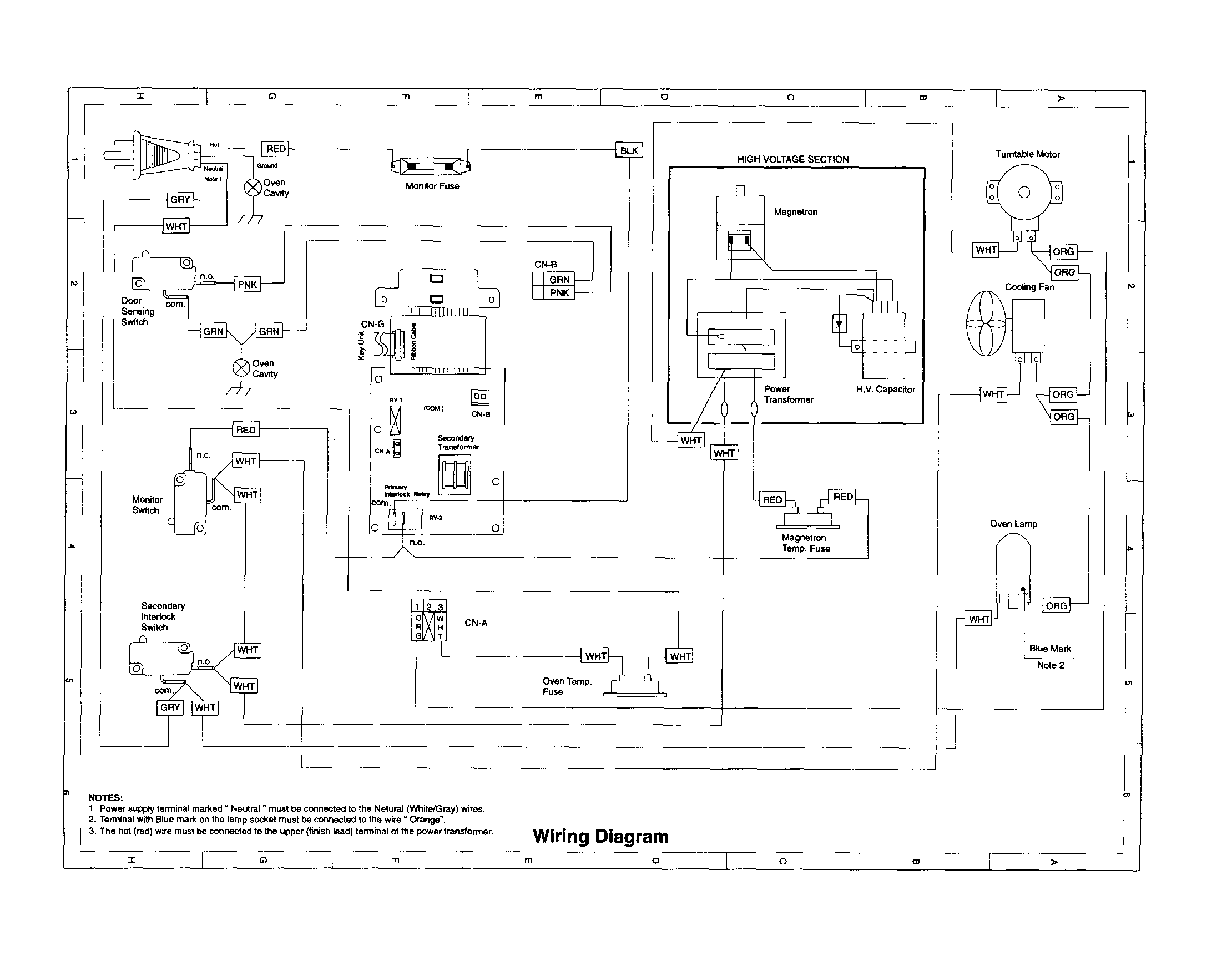

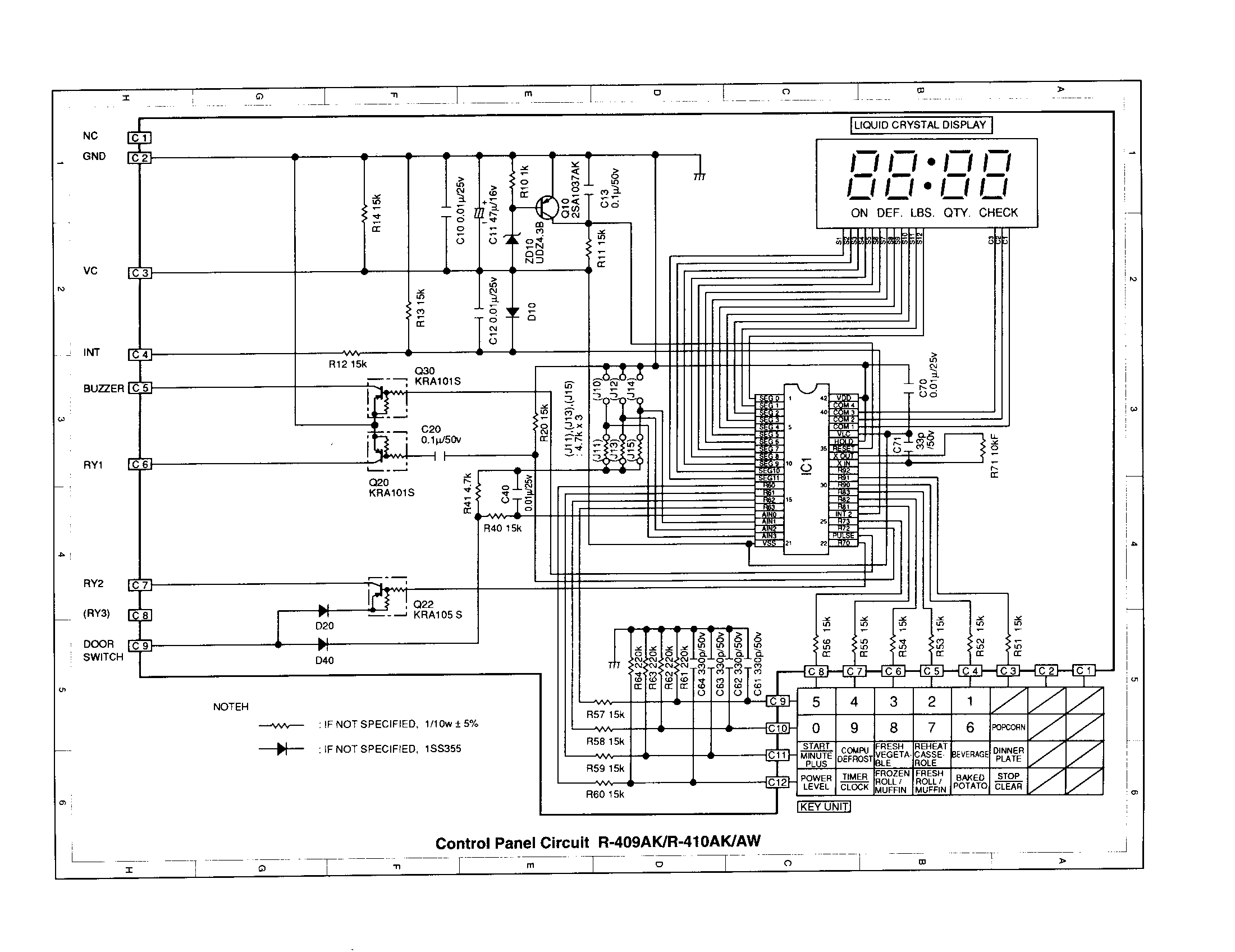

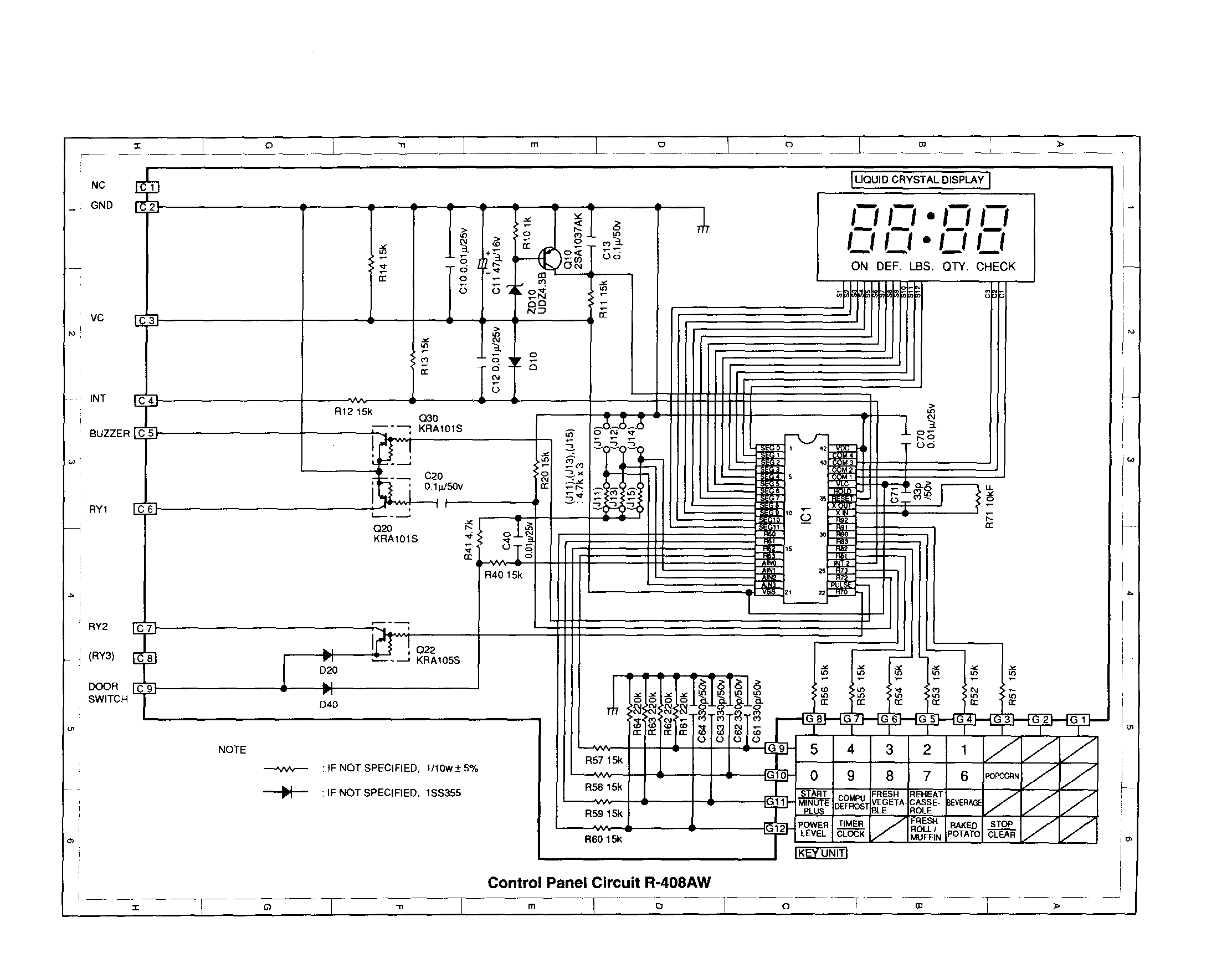

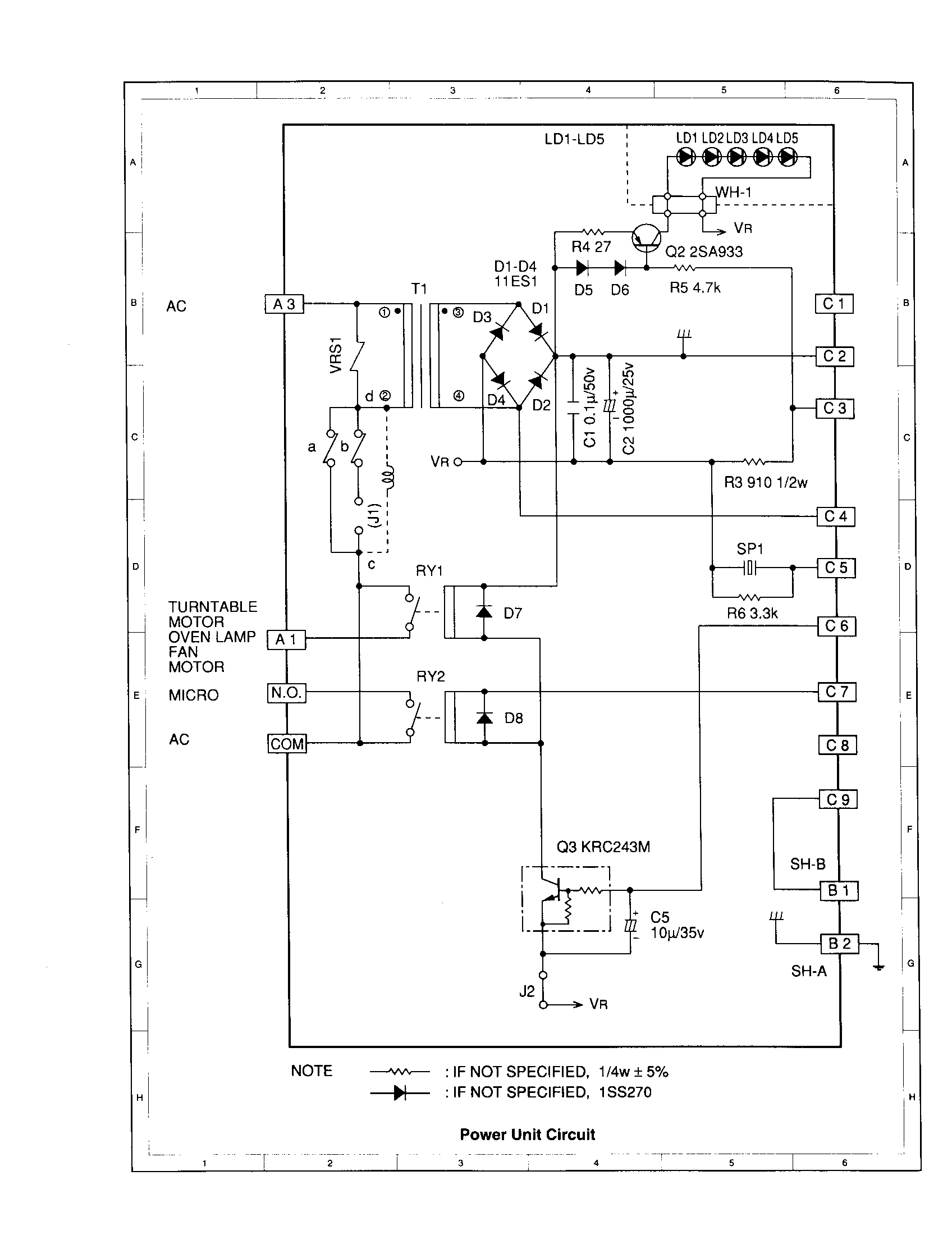

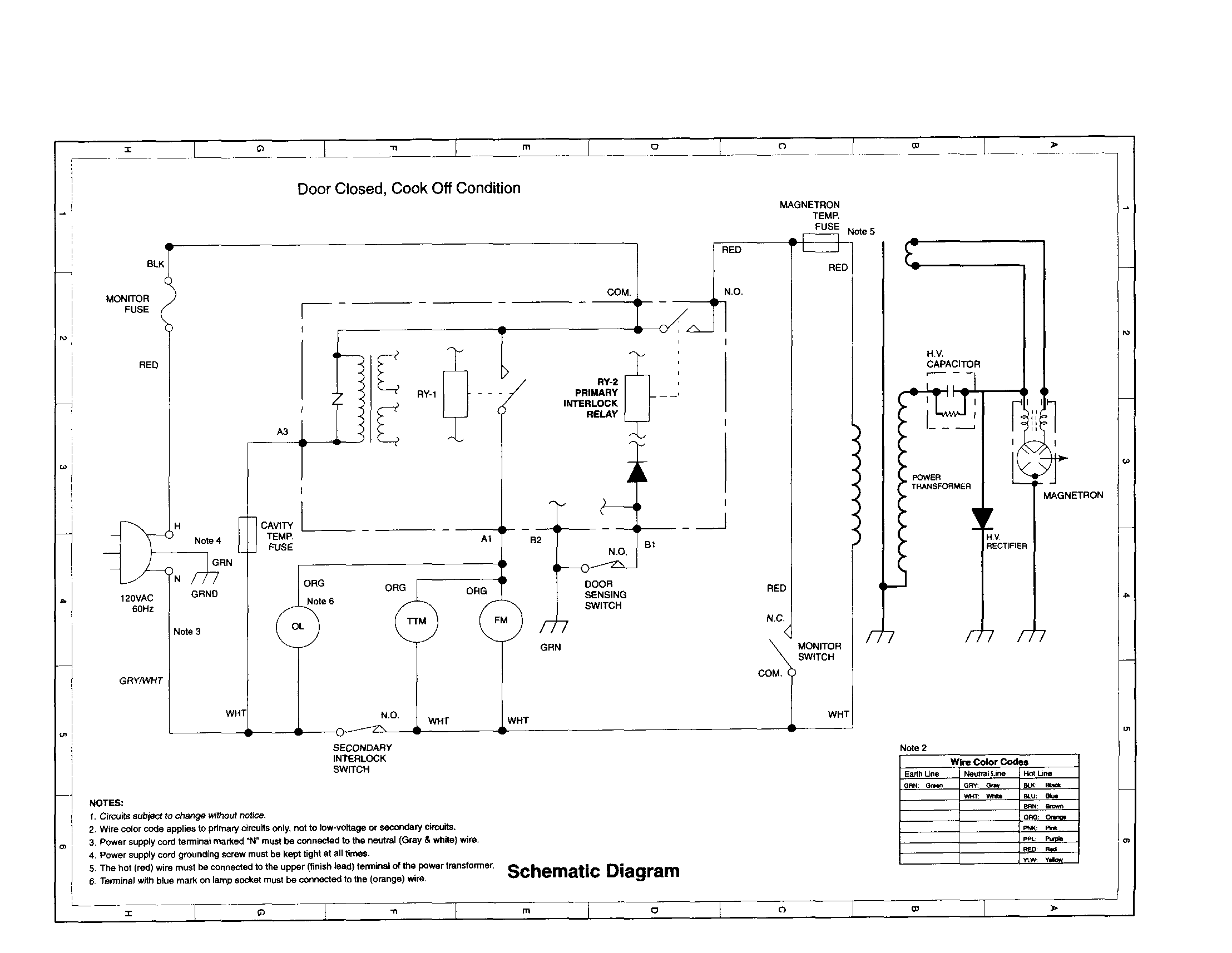

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Switch FFS-BA016/KIT

#1-07

All parts diagram

Switch

Part #FFS-BA016/KIT

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA266WRE0

#1-10

All parts diagram

Magnetron

Part #RV-MZA266WRE0

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDB001MRE0

#1-13

All parts diagram

Power cord

Part #FACCDB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Assembly (r-410aw) FPNLCB171MRK0

#3-03A

All parts diagram

Control panel assembly (r-410aw)

Part #FPNLCB171MRK0

The manufacturer no longer makes this part, and there's no substitute part

Latch LSTPPB021MRF0

#4-05

All parts diagram

Latch

Part #LSTPPB021MRF0

The manufacturer no longer makes this part, and there's no substitute part

910 Ohm VRD-B12HF911J

#NI

All parts diagram

910 ohm

Part #VRD-B12HF911J

The manufacturer no longer makes this part, and there's no substitute part

Diode VHD11ES1///-1

#NI

All parts diagram

Diode

Part #VHD11ES1///-1

The manufacturer no longer makes this part, and there's no substitute part

Control CPWBFB002MRU0

#3-01

All parts diagram

Control

Part #CPWBFB002MRU0

The manufacturer no longer makes this part, and there's no substitute part

Keypad FUNTKB127MRE0

#3-04A

All parts diagram

Keypad

Part #FUNTKB127MRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA038WRE0

#6-09

All parts diagram

Screw

Part #LX-CZA038WRE0

The manufacturer no longer makes this part, and there's no substitute part
