Model # GFU20F7GW5 Official Gibson freezer

Here are the diagrams and repair parts for Official Gibson GFU20F7GW5 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |

Filter Drier 216634500
#4

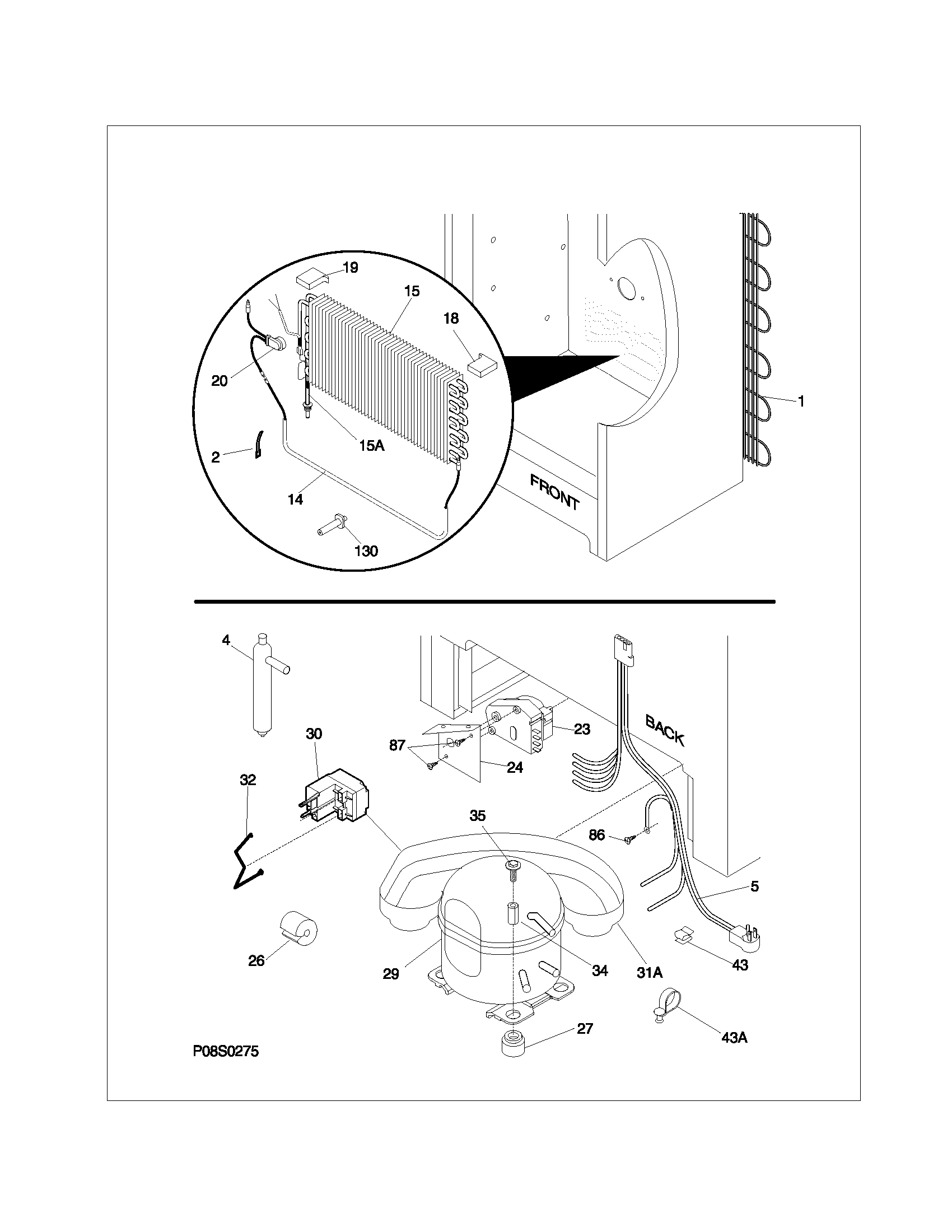

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Evaporator 216737300
#15

System diagram

Evaporator

Part #216737300

Replaced by #297414901

?
Manufacturer substitution
This part replaces 216737300. Substitute parts can look different from the original.
BEST SELLER
$87.43
6% OFF Phone Price : $93.43
In Stock
Freezer Door Gasket 216522312
#1

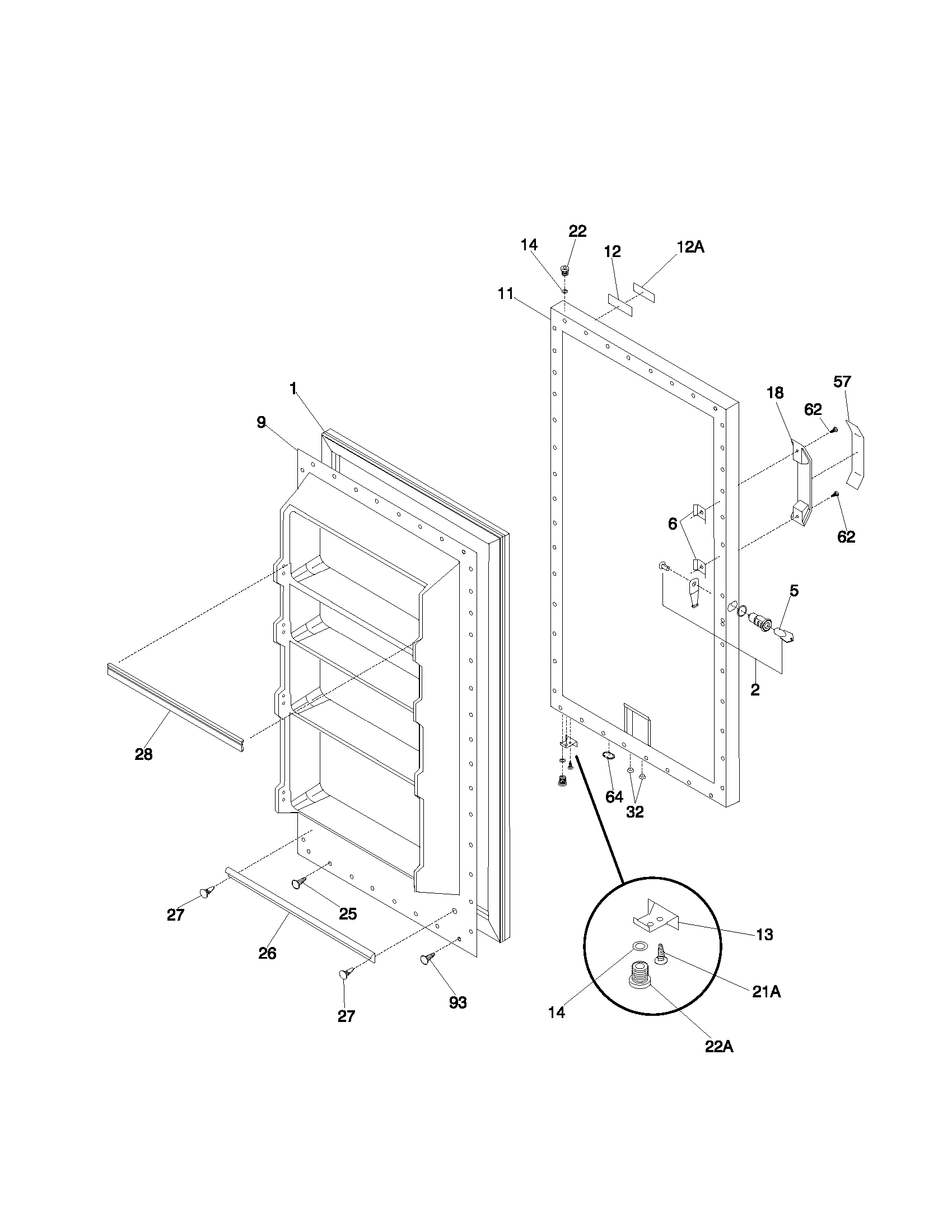

Door diagram

Freezer door gasket

Part #216522312

Replaced by #5304507199

?
Manufacturer substitution
This part replaces 216522312. Substitute parts can look different from the original.
BEST SELLER
$103.47
10% OFF Phone Price : $115.47
In Stock
Freezer Door Key 216702900
#5

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.25
10% OFF Phone Price : $10.25
In Stock
Upright Freezer Defrost Timer 216744400
#23

System diagram

Upright freezer defrost timer

Part #216744400

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 216744400. Substitute parts can look different from the original.
BEST SELLER
$45.98
12% OFF Phone Price : $51.98
In Stock
Thermostat 216731000
Thermostat

Part #216731000

Replaced by #297216600

?
Manufacturer substitution
This part replaces 216731000. Substitute parts can look different from the original.
BEST SELLER
$19.36
9% OFF Phone Price : $21.36
In Stock
Refrigerator Door Handle (white) (replaces 5303288185) 216446900
#18

Door diagram

Refrigerator door handle (white) (replaces 5303288185)

Part #216446900

BEST SELLER
$41.47
13% OFF Phone Price : $47.47
In Stock
Hinge Bearing 216503200
#22A

Door diagram

Hinge bearing

Part #216503200

Replaced by #297006800

?
Manufacturer substitution
This part replaces 216503200. Substitute parts can look different from the original.
This item is not returnable
$12.59
14% OFF Phone Price : $14.59
In Stock
Light Bulb 216608600
#15

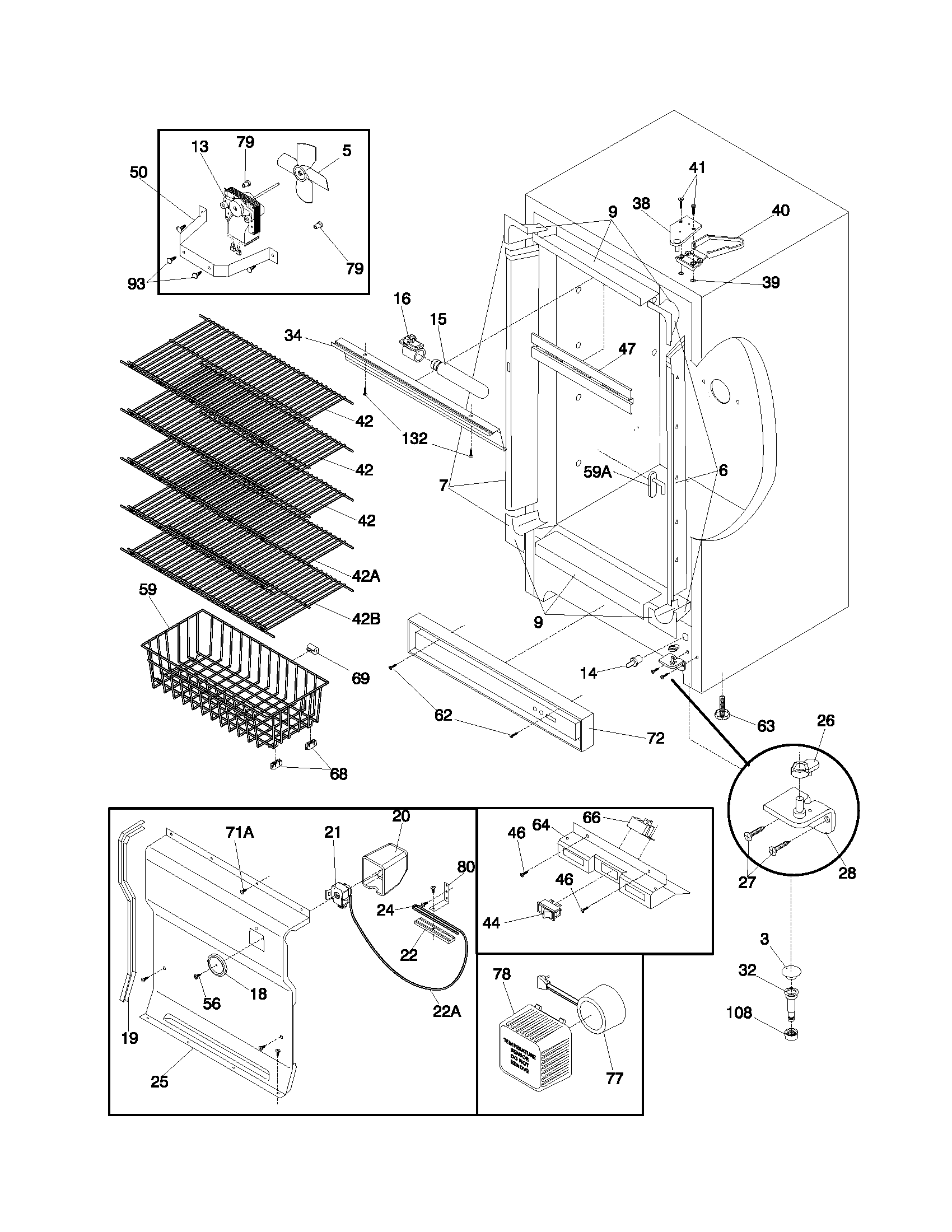

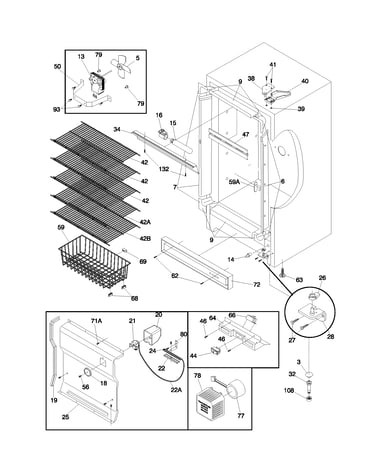

Cabinet diagram

Light bulb

Part #216608600

Replaced by #216846400

?
Manufacturer substitution
This part replaces 216608600. Substitute parts can look different from the original.
$40.15
13% OFF Phone Price : $46.15
In Stock
Evaporator Fan Motor 216690400
#13

Cabinet diagram

Evaporator fan motor

Part #216690400

Replaced by #5304442620

?
Manufacturer substitution
This part replaces 216690400. Substitute parts can look different from the original.
$147.29
8% OFF Phone Price : $159.29
In Stock

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Repair guides for upright freezers

How to replace a freezer control panel

How to replace a freezer control panel

A freezer control panel that doesn’t show the temperature or respond when you press the buttons could be broken. This DI…

Repair difficulty
Time required
 15 minutes or less
How to replace a freezer door switch

How to replace a freezer door switch

When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…

Repair difficulty
Time required
 15 minutes or less
How to replace a freezer thermistor

How to replace a freezer thermistor

When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follo…

Repair difficulty
Time required
 45 minutes or less
