Kenmore
Mechanical Sewing Machine

Model # 15813570 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15813570 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

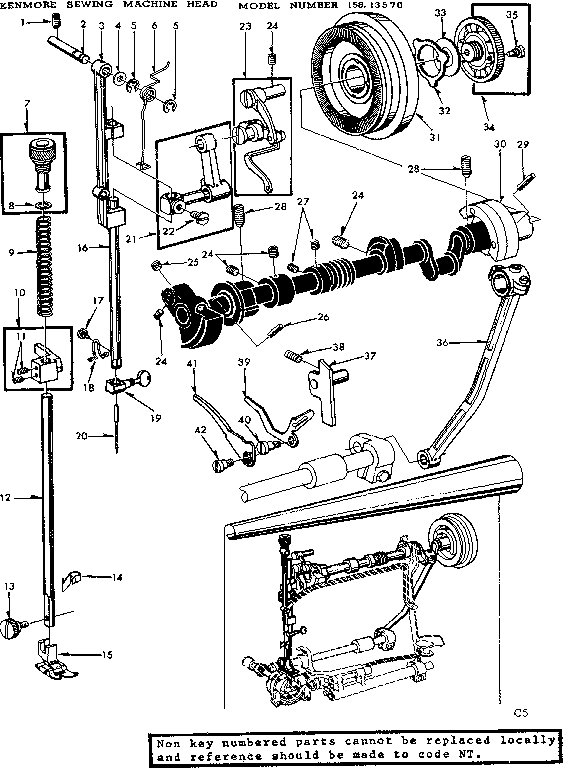

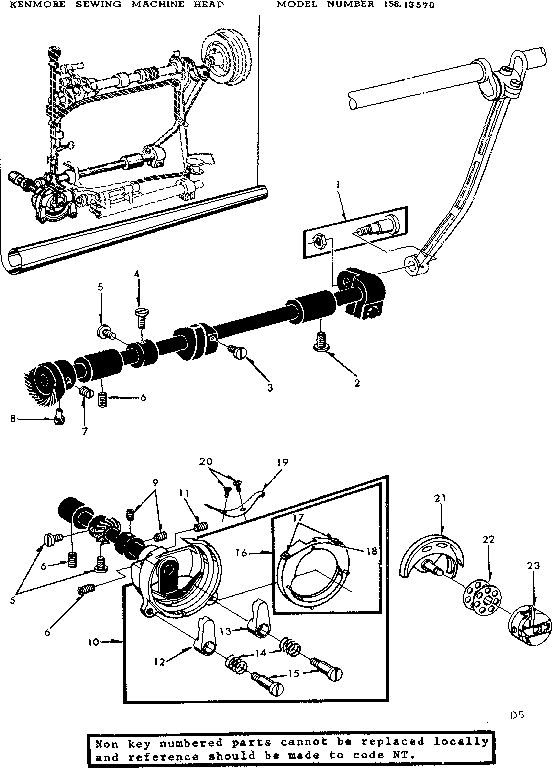

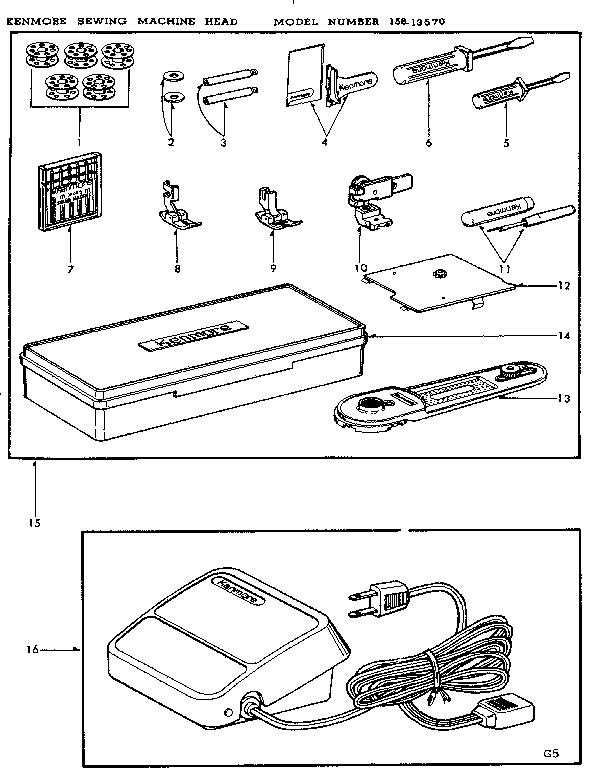

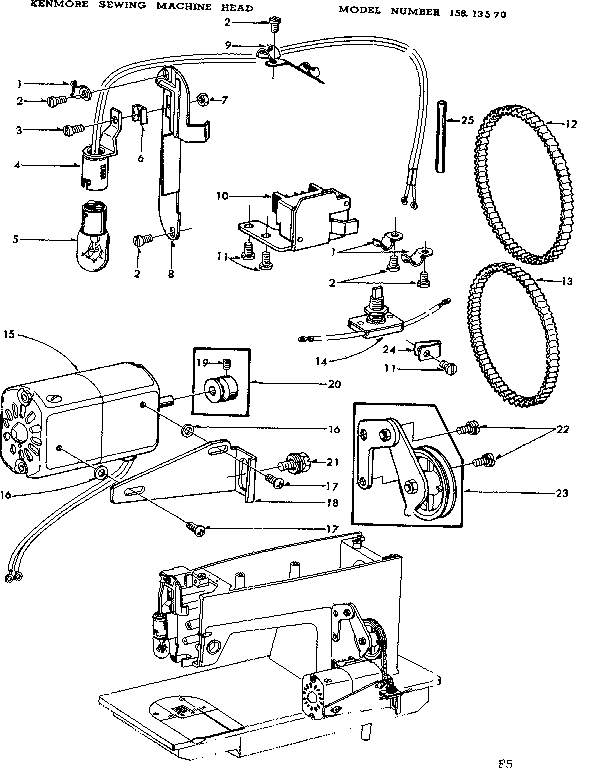

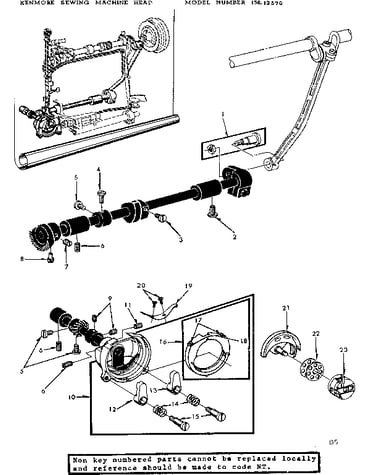

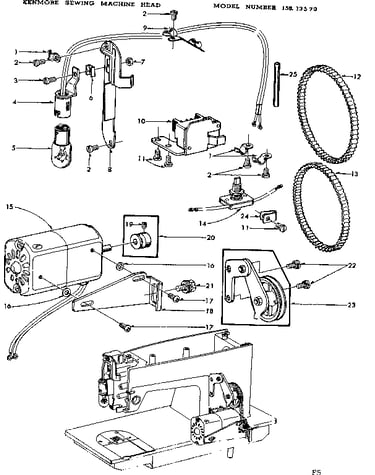

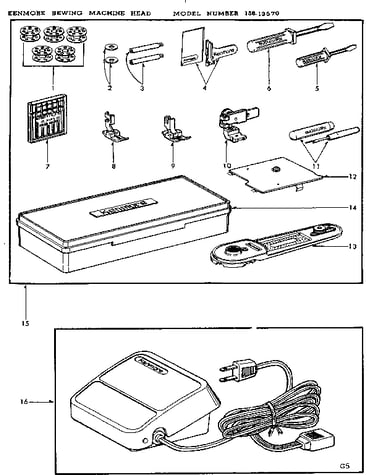

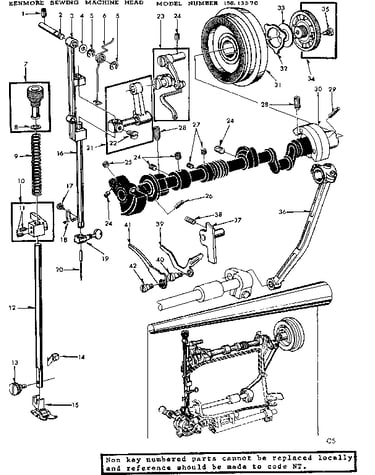

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Washer 2467
#3

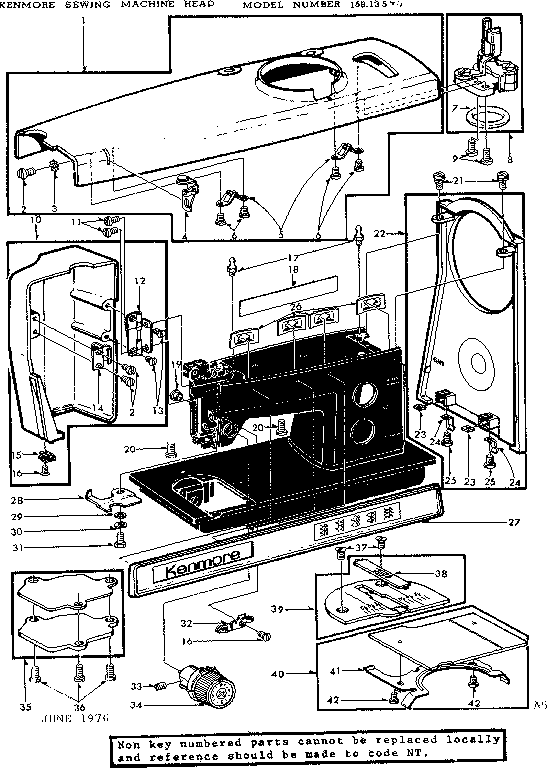

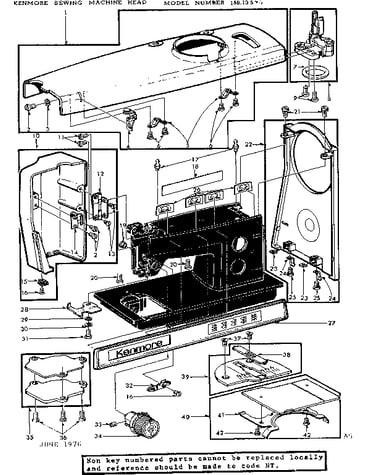

Base assembly diagram

Washer

Part #2467

The manufacturer no longer makes this part, and there's no substitute part

Cam 48358
#17

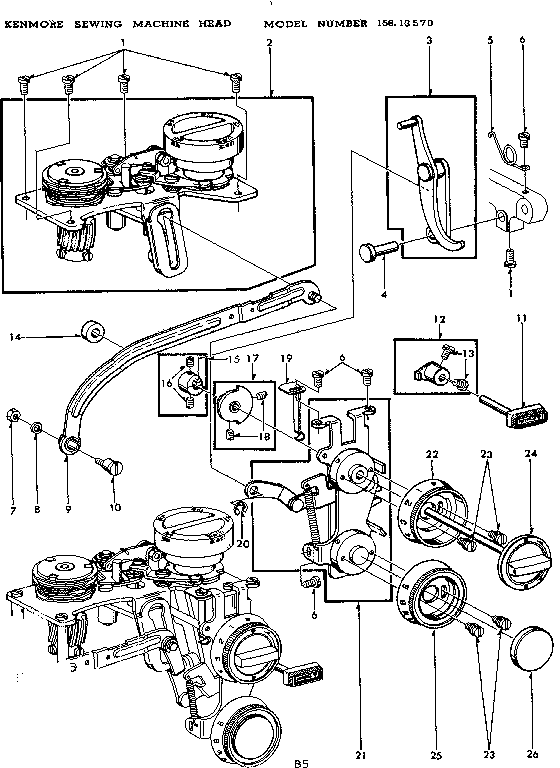

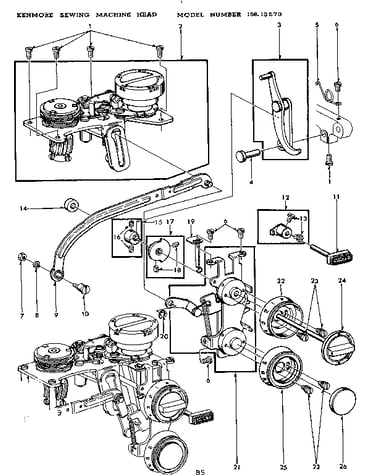

Geared cam assembly diagram

Cam

Part #48358

The manufacturer no longer makes this part, and there's no substitute part

Washer 9100
#3

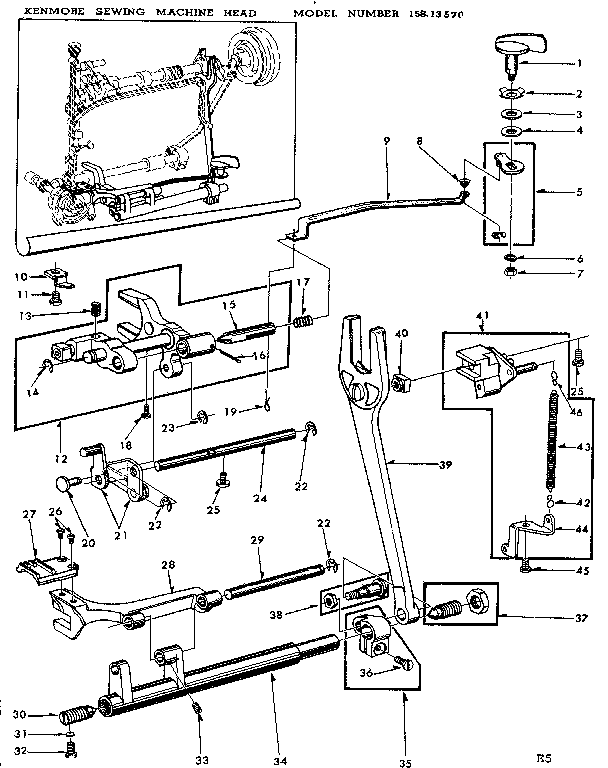

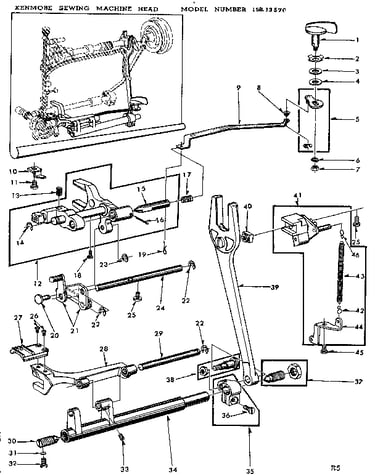

Feed regulator assembly diagram

Washer

Part #9100

The manufacturer no longer makes this part, and there's no substitute part

Insert 37061
#26

Geared cam assembly diagram

Insert

Part #37061

The manufacturer no longer makes this part, and there's no substitute part

Hook Plate 41298
#3

Geared cam assembly diagram

Hook plate

Part #41298

The manufacturer no longer makes this part, and there's no substitute part

Lever Pin 38722
#20

Feed regulator assembly diagram

Lever pin

Part #38722

The manufacturer no longer makes this part, and there's no substitute part

Bracket 36951
#44

Feed regulator assembly diagram

Bracket

Part #36951

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 41680
#18

Base assembly diagram

Nameplate

Part #41680

The manufacturer no longer makes this part, and there's no substitute part

Collar 41932
#14

Geared cam assembly diagram

Collar

Part #41932

The manufacturer no longer makes this part, and there's no substitute part

Washer 34844
#4

Feed regulator assembly diagram

Washer

Part #34844

The manufacturer no longer makes this part, and there's no substitute part
