KitchenAid
Stand Mixer

Model # KSM88RBQCL0 Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid KSM88RBQCL0 mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

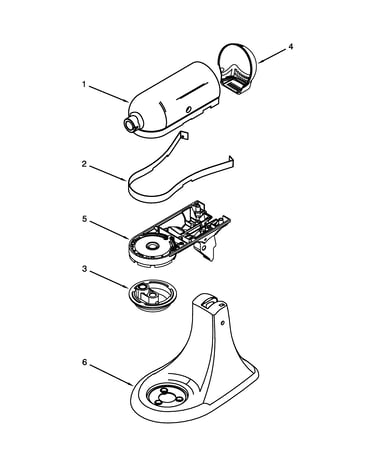

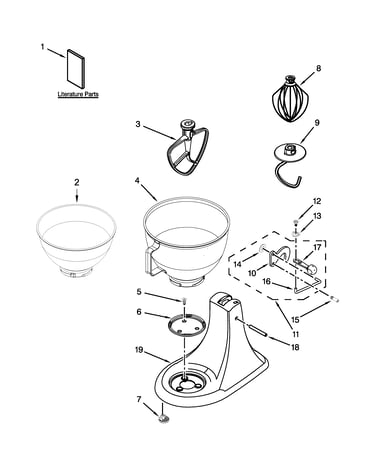

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Ring-o 67500-55
#16

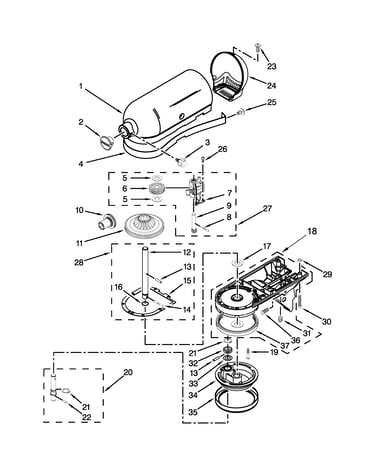

Case, gearing and planetary unit parts diagram

Ring-o

Part #67500-55

Replaced by #WP67500-55

?
Manufacturer substitution
This part replaces 67500-55. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 311932
#25

Case, gearing and planetary unit parts diagram

Screw

Part #311932

Replaced by #WP313808

?
Manufacturer substitution
This part replaces 311932. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Seal 240775-1
#10

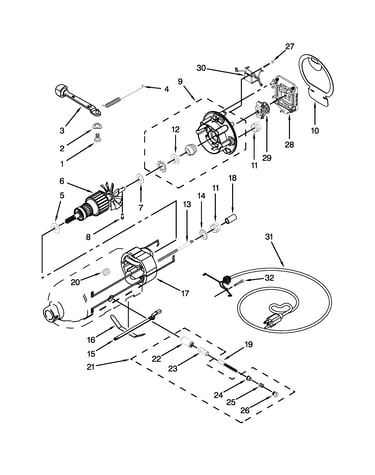

Motor and control unit parts diagram

Seal

Part #240775-1

Replaced by #WP240775-1

?
Manufacturer substitution
This part replaces 240775-1. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Pin-groove 9705443
#14

Case, gearing and planetary unit parts diagram

Pin-groove

Part #9705443

Replaced by #WP9705443

?
Manufacturer substitution
This part replaces 9705443. Substitute parts can look different from the original.
This item is not returnable
$4.58 |
18% OFF Phone Price : $5.58
In Stock
Pin-groove 9705444
#8

Case, gearing and planetary unit parts diagram

Pin-groove

Part #9705444

Replaced by #WP9705444

?
Manufacturer substitution
This part replaces 9705444. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Power Cord W10325327
#31

Motor and control unit parts diagram

Power cord

Part #W10325327

Replaced by #W11396625

?
Manufacturer substitution
This part replaces W10325327. Substitute parts can look different from the original.
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Power Cord W10325328
#31A

Motor and control unit parts diagram

Power cord

Part #W10325328

Replaced by #W11545825

?
Manufacturer substitution
This part replaces W10325328. Substitute parts can look different from the original.
$14.29 |
12% OFF Phone Price : $16.29
In Stock
Brush Cap 3184212
#26

Motor and control unit parts diagram

Brush cap

Part #3184212

Replaced by #WP3184212

?
Manufacturer substitution
This part replaces 3184212. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Gear 240210-2
#9

Case, gearing and planetary unit parts diagram

Gear

Part #240210-2

Replaced by #WP240210-2

?
Manufacturer substitution
This part replaces 240210-2. Substitute parts can look different from the original.
This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Field Assembly W10787725
#17

Motor and control unit parts diagram

Field assembly

Part #W10787725

Replaced by #W10870869

?
Manufacturer substitution
This part replaces W10787725. Substitute parts can look different from the original.
$50.26 |
11% OFF Phone Price : $56.26
In Stock
