Model # MXR30PDAAS Official Maytag commercial washer

Here are the diagrams and repair parts for Official Maytag MXR30PDAAS commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

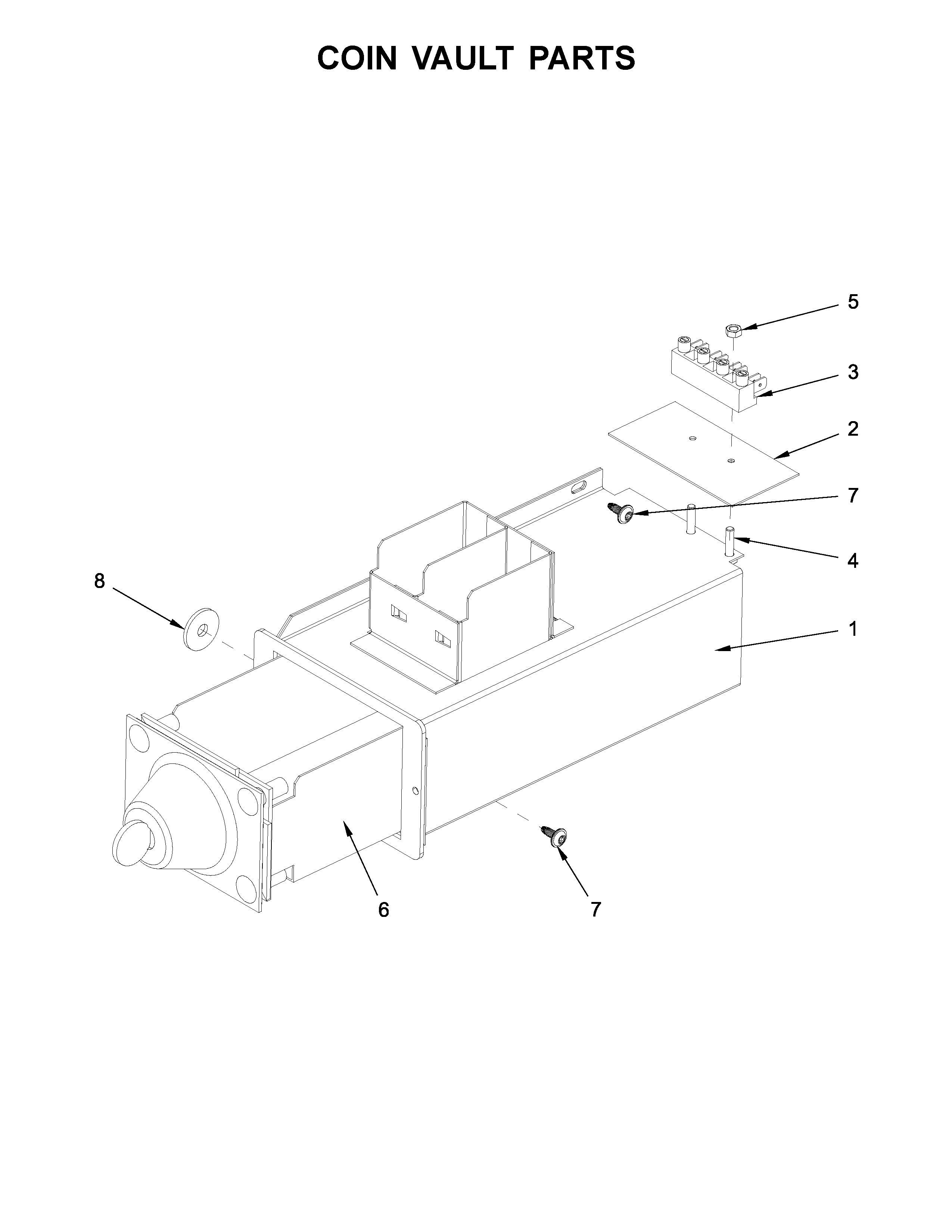

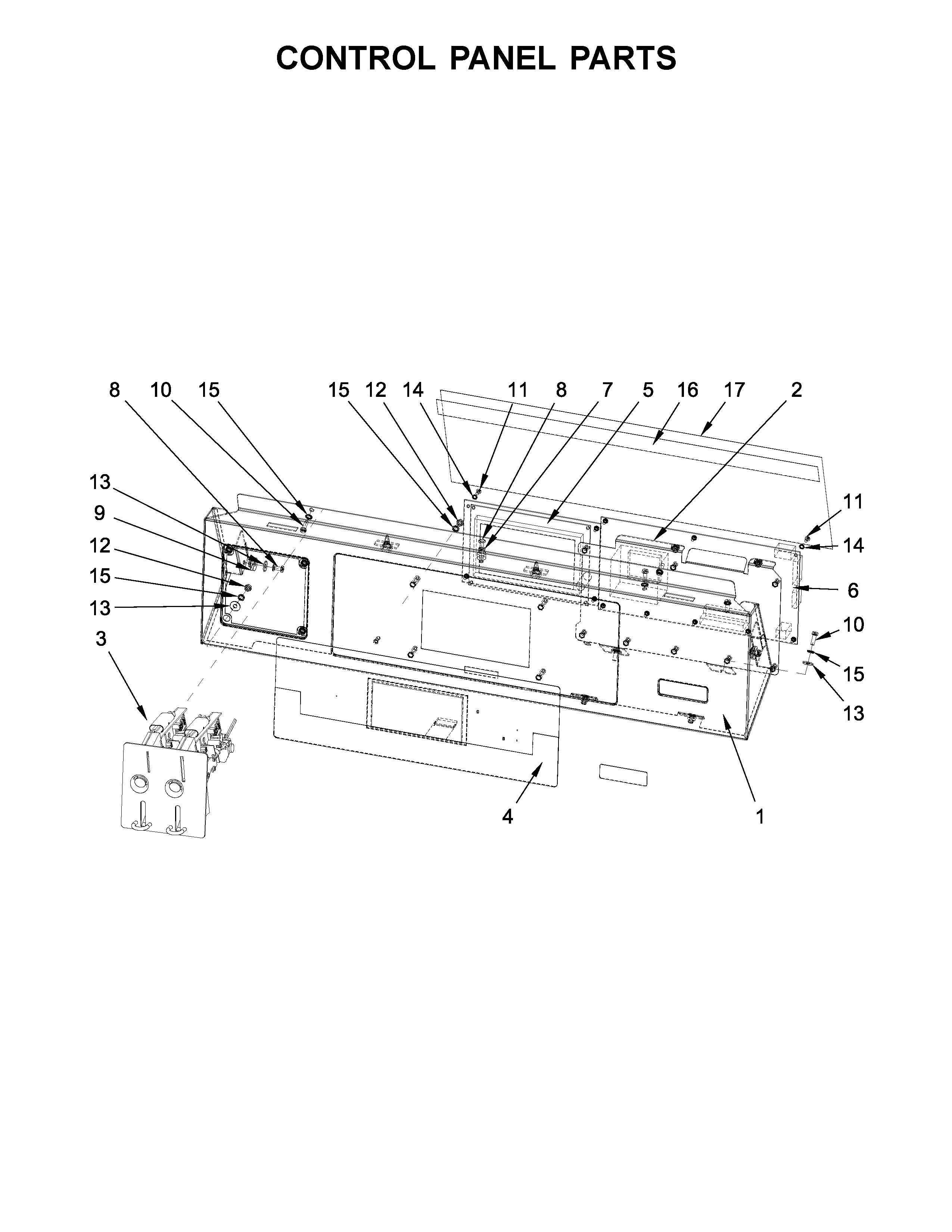

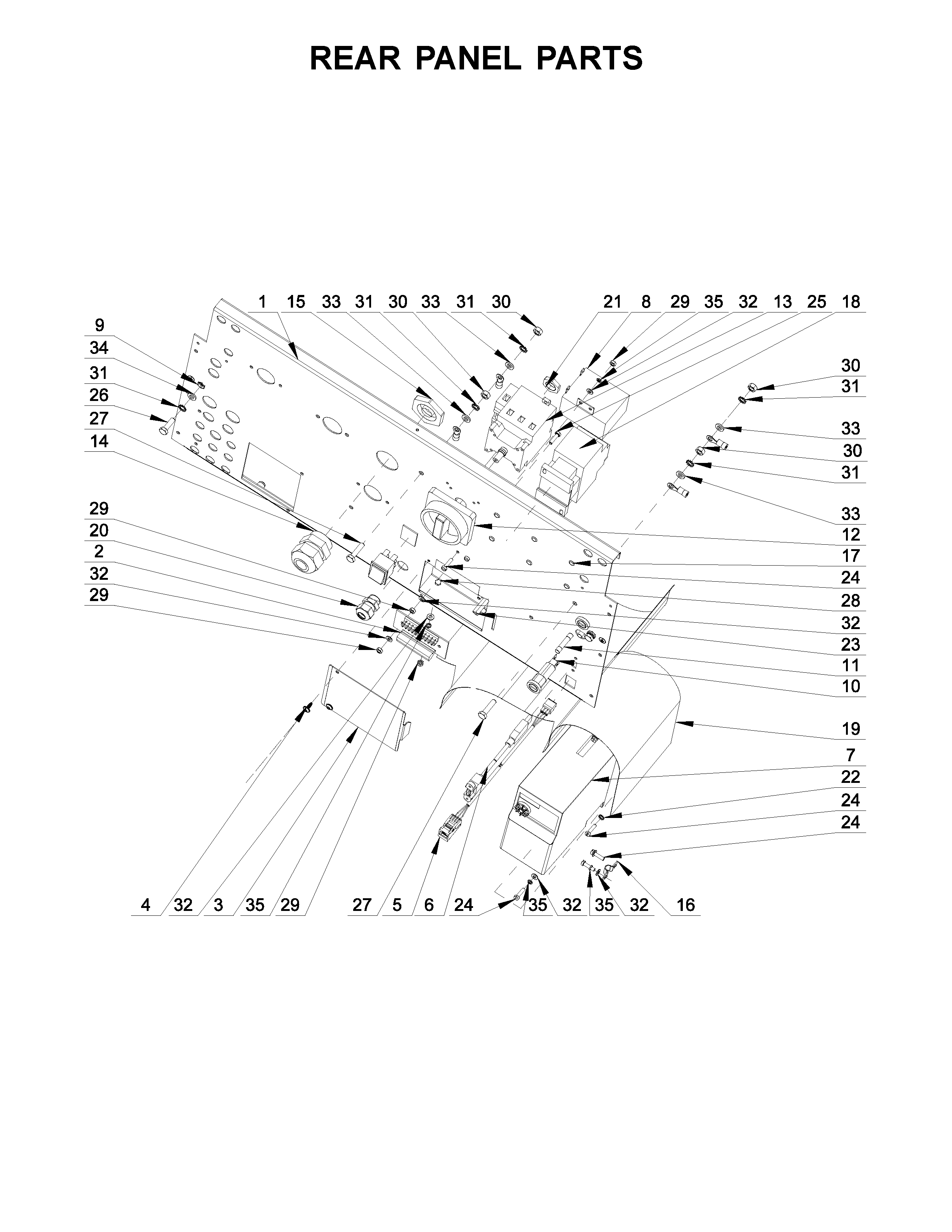

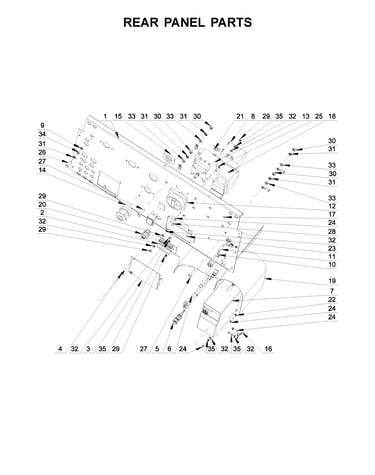

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 220 parts  |
Clamp W10712805
#19

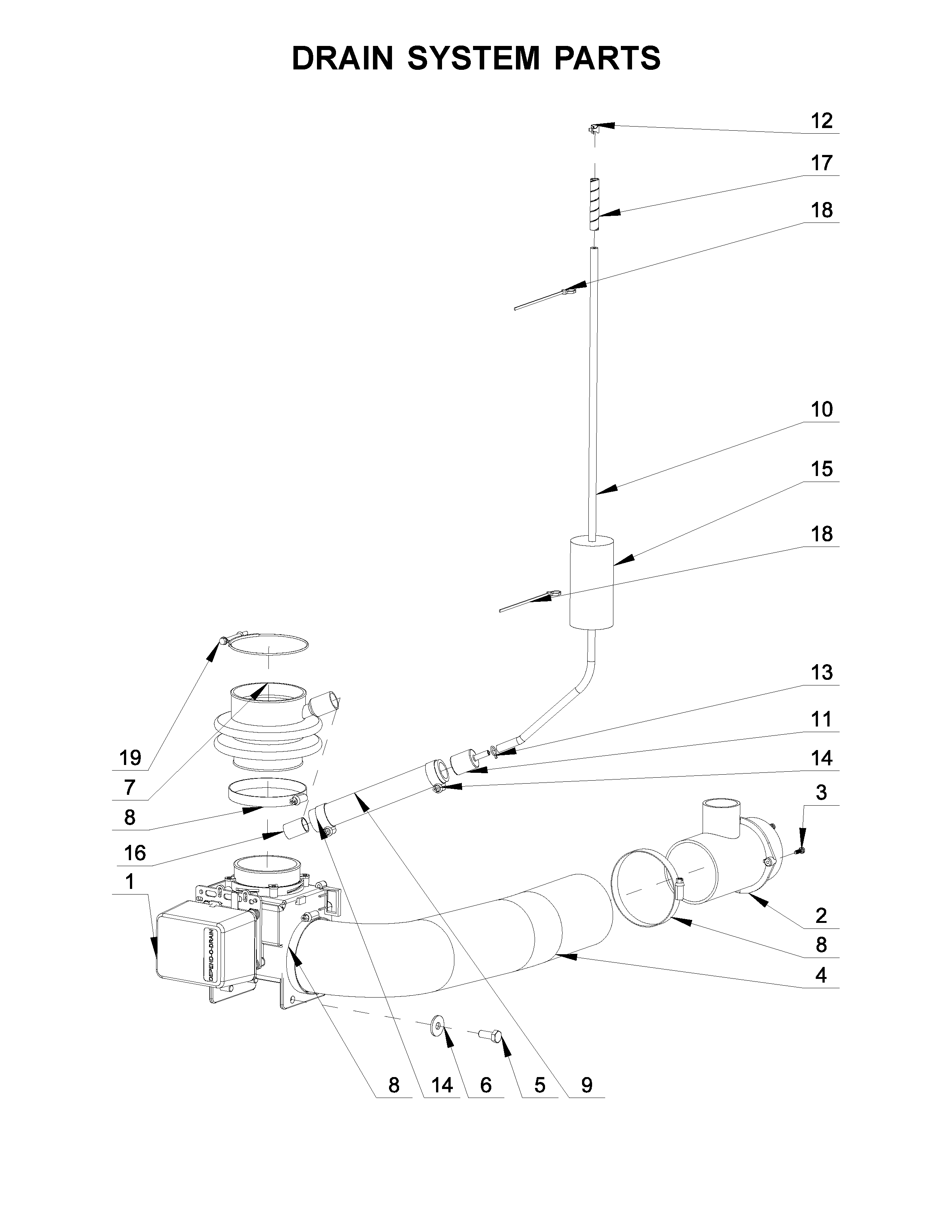

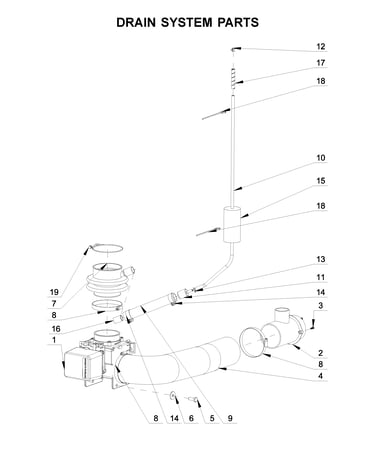

Drain system parts diagram

Clamp

Part #W10712805

Replaced by #WP696392

?
Manufacturer substitution
This part replaces W10712805. Substitute parts can look different from the original.
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Tube W10725475
#19

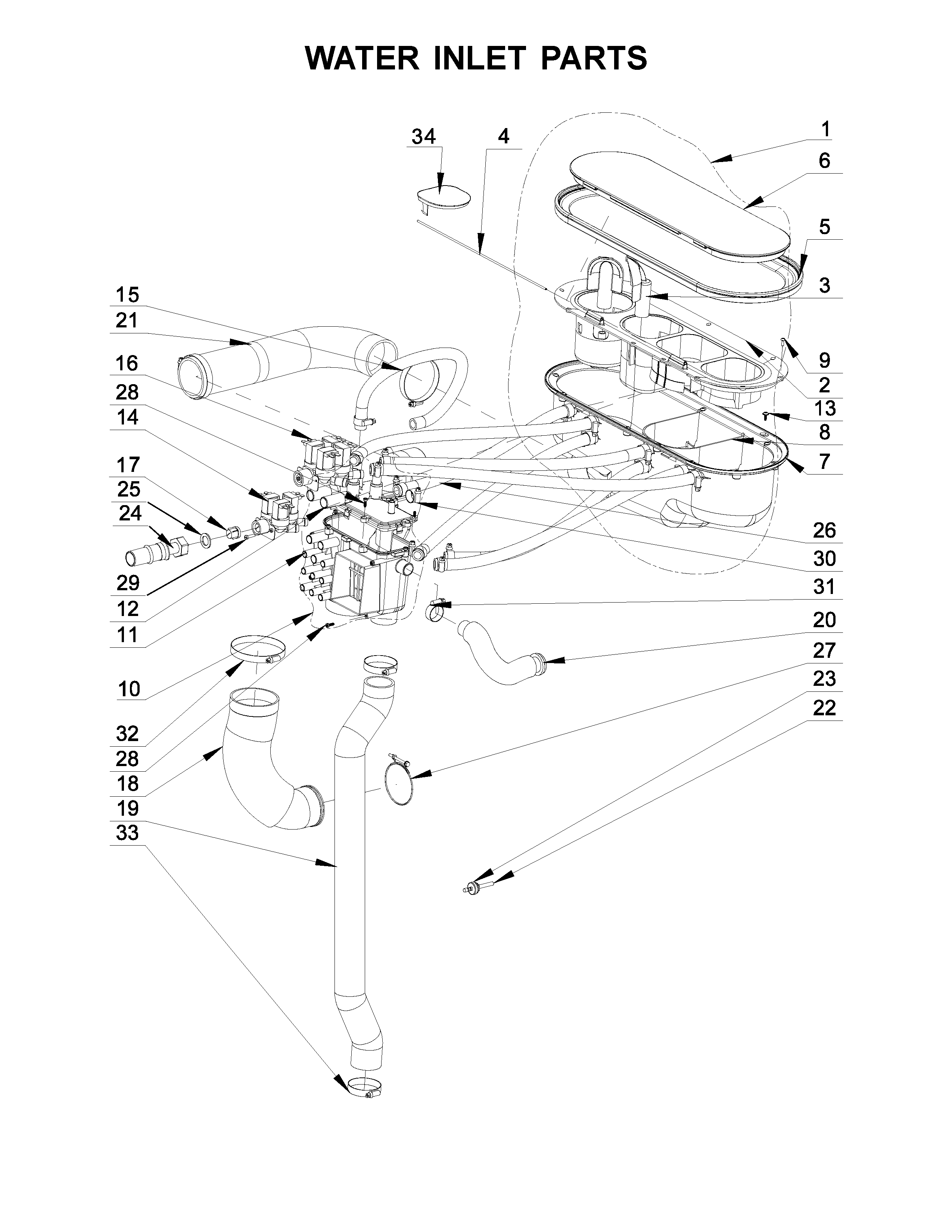

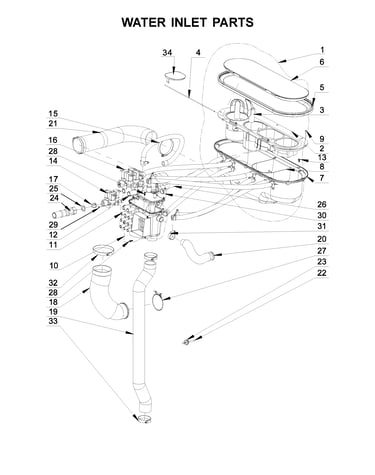

Water inlet parts diagram

Tube

Part #W10725475

$76.33
In Stock
Sensor W10747780
#21

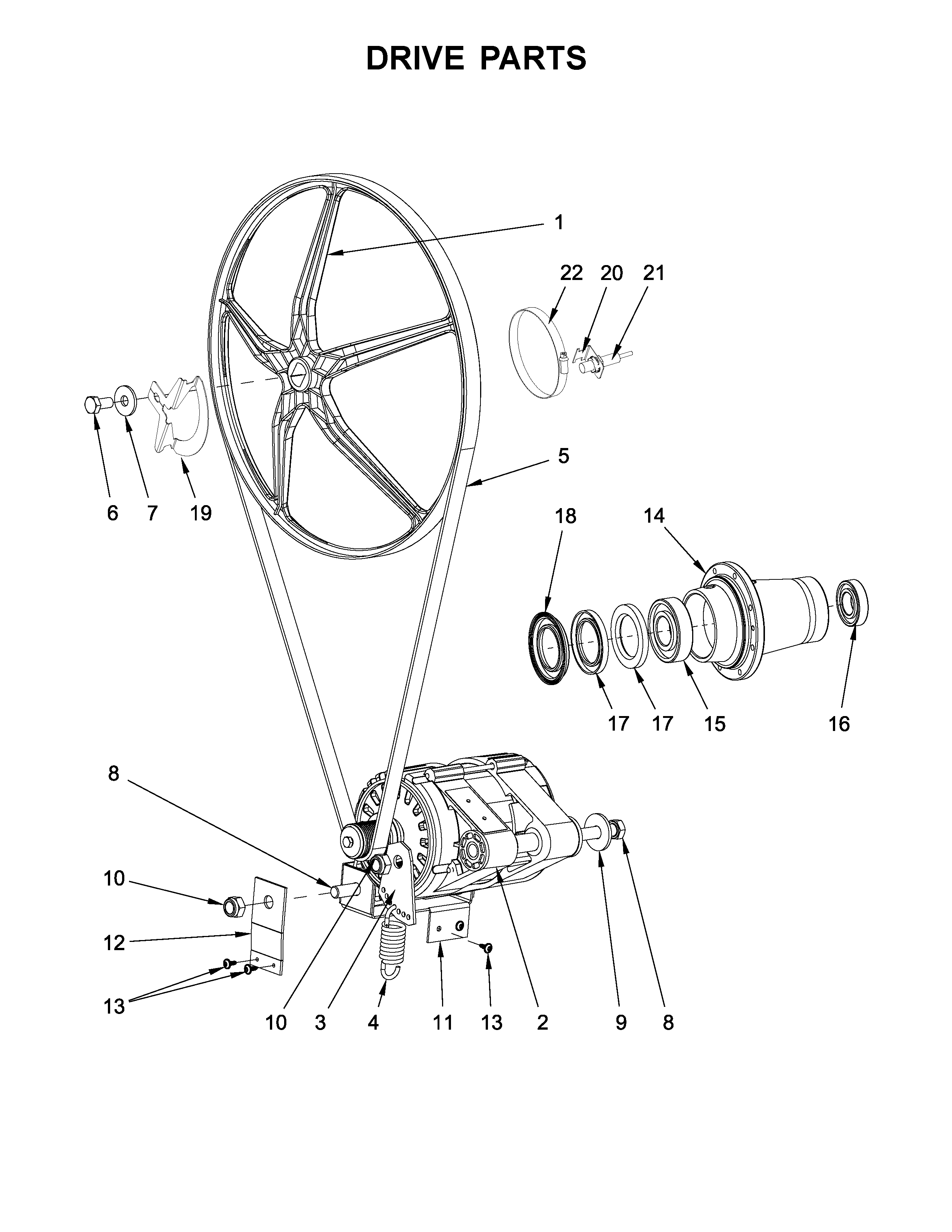

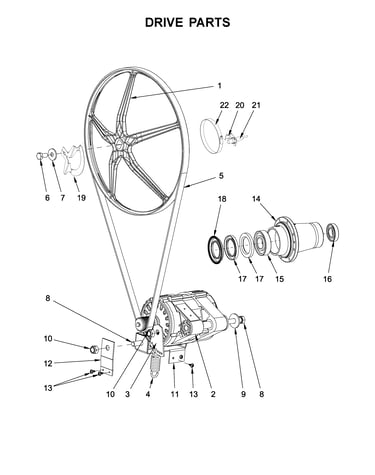

Drive parts diagram

Sensor

Part #W10747780

$144.22
In Stock
Hose W10712797
#7

Drain system parts diagram

Hose

Part #W10712797

$51.20
In Stock
Dispenser W10714957
#1

Water inlet parts diagram

Dispenser

Part #W10714957

$494.60
In Stock
Screw 23003064
#5

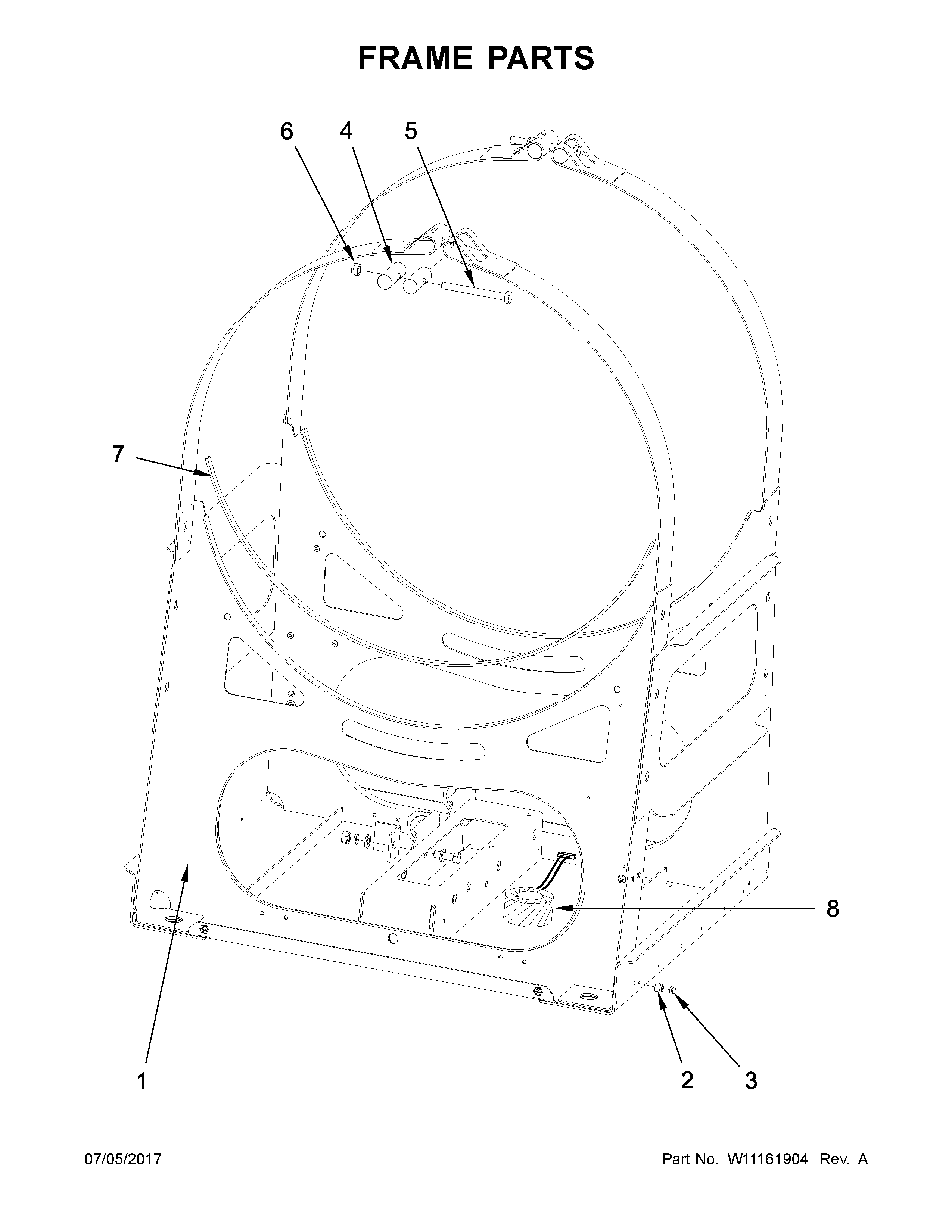

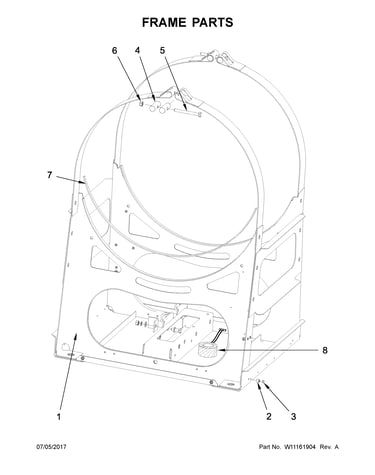

Frame parts diagram

Screw

Part #23003064

This item is not returnable
$6.60
In Stock
Cover W10712363
#24

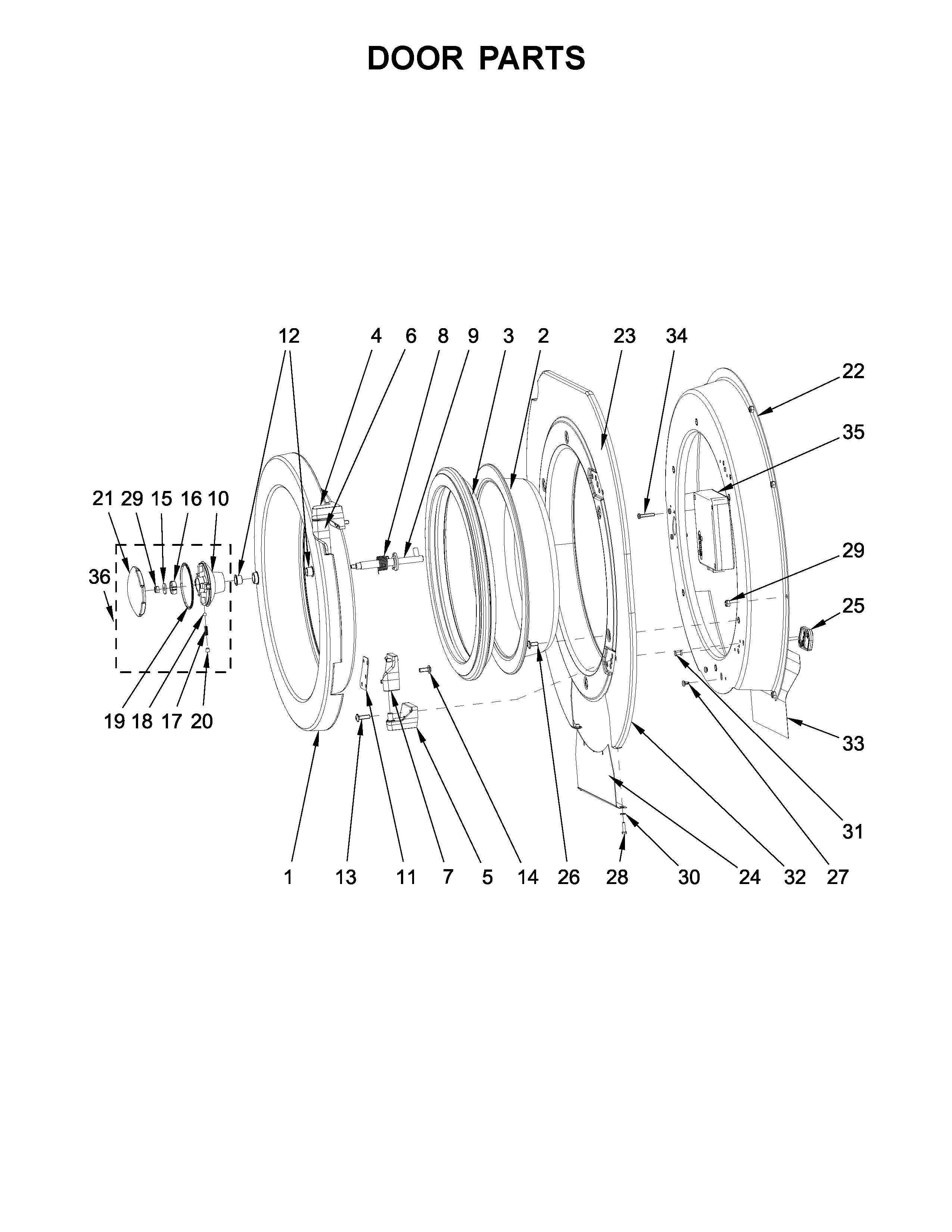

Door parts diagram

Cover

Part #W10712363

$40.67
In Stock
Lid W10712630
#6

Water inlet parts diagram

Lid

Part #W10712630

$53.56
In Stock
Panel W10725424
#8

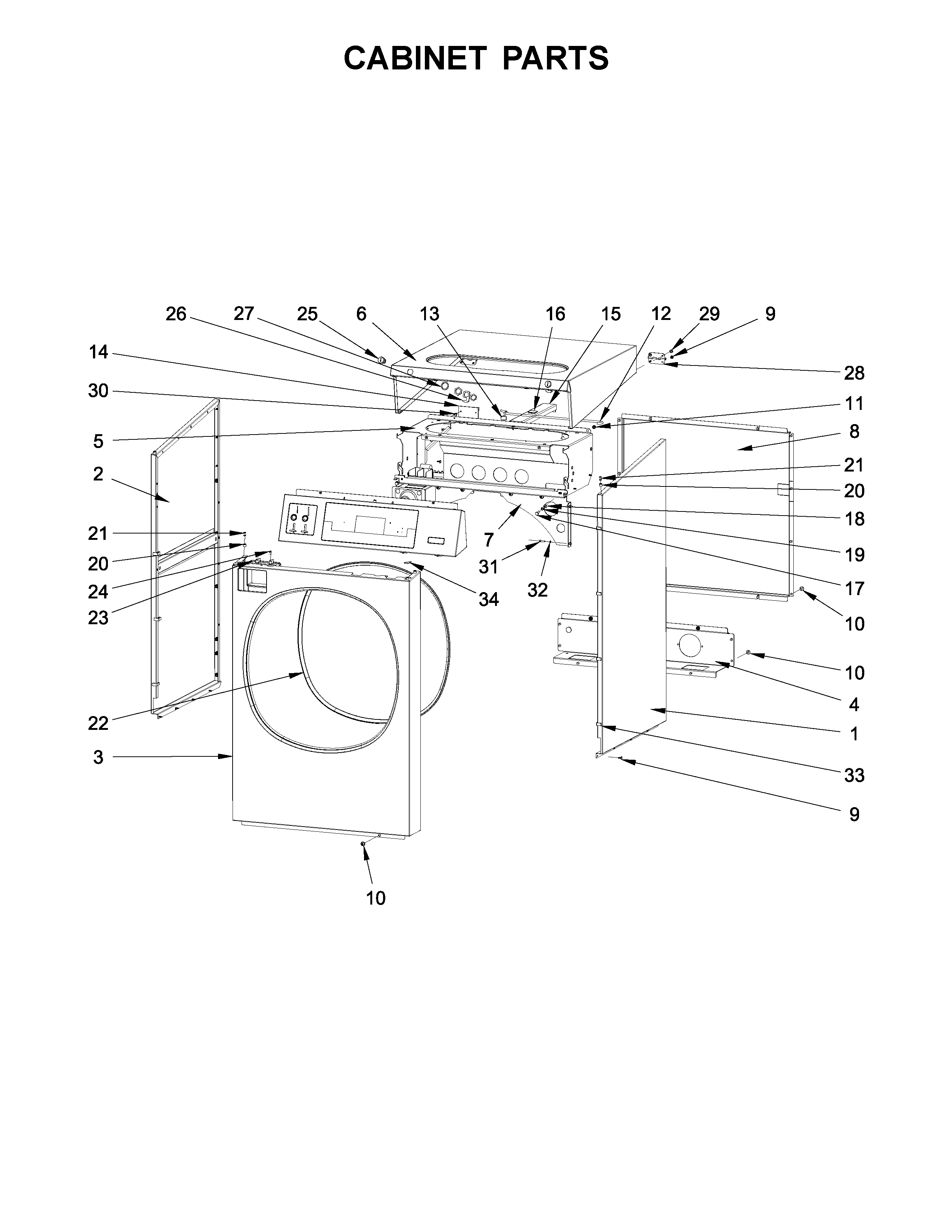

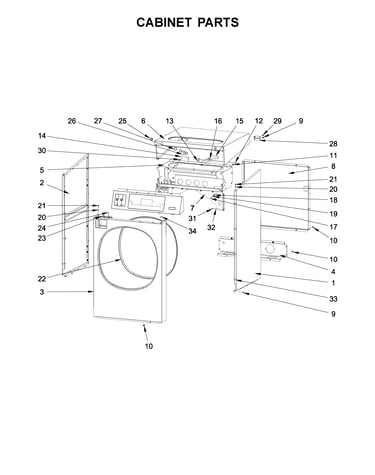

Cabinet parts diagram

Panel

Part #W10725424

$143.42
In Stock
Tub Support W10713400
#4

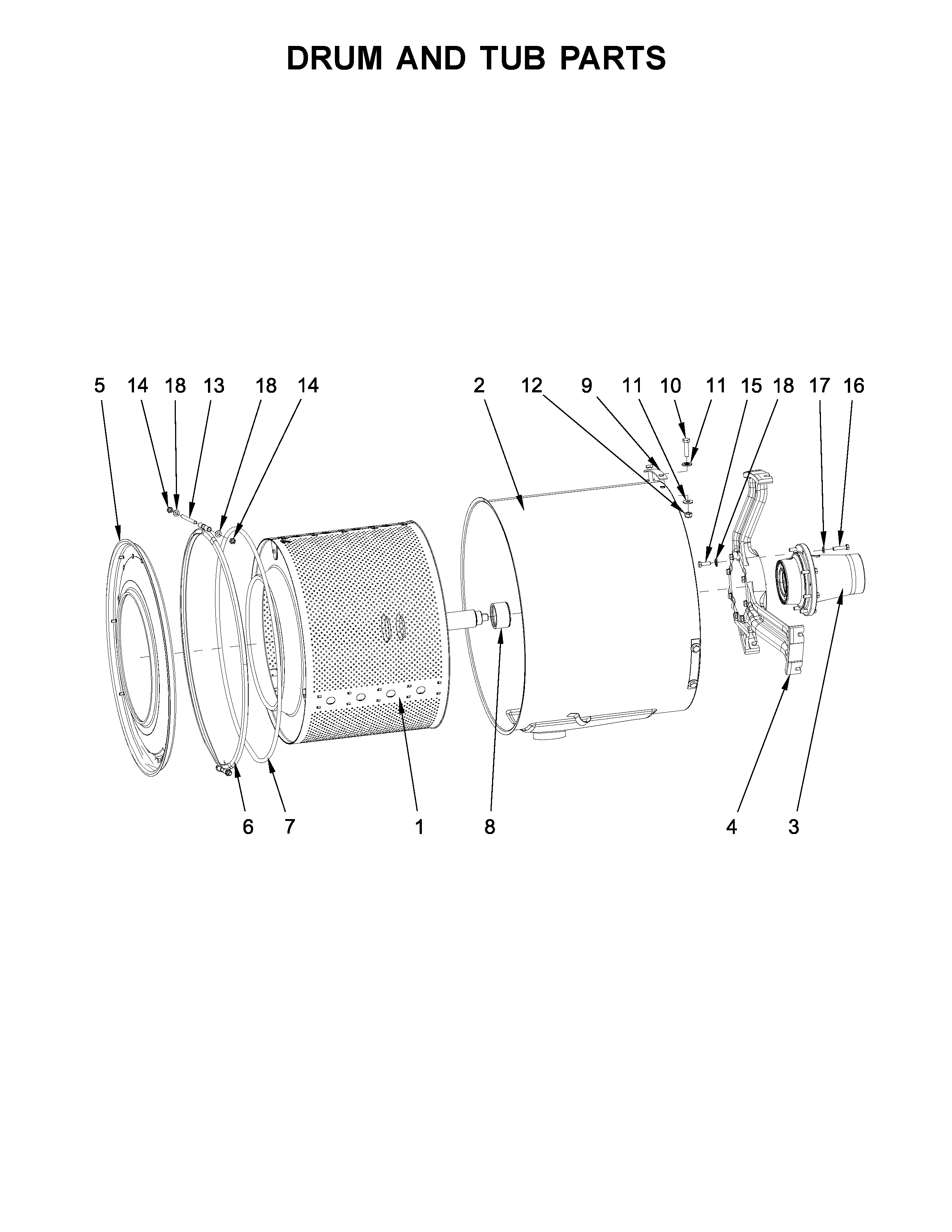

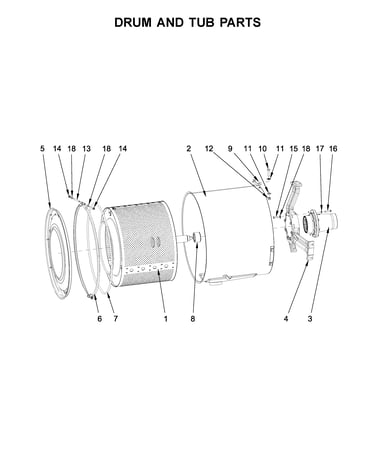

Drum and tub parts diagram

Tub support

Part #W10713400

$1023.47
In Stock
