Model # YWED7500VW0 Official Whirlpool electric compact dryer

Here are the diagrams and repair parts for Official Whirlpool YWED7500VW0 electric compact dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

Optional parts (not included) diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Dryer Heating Element 8182528
#45

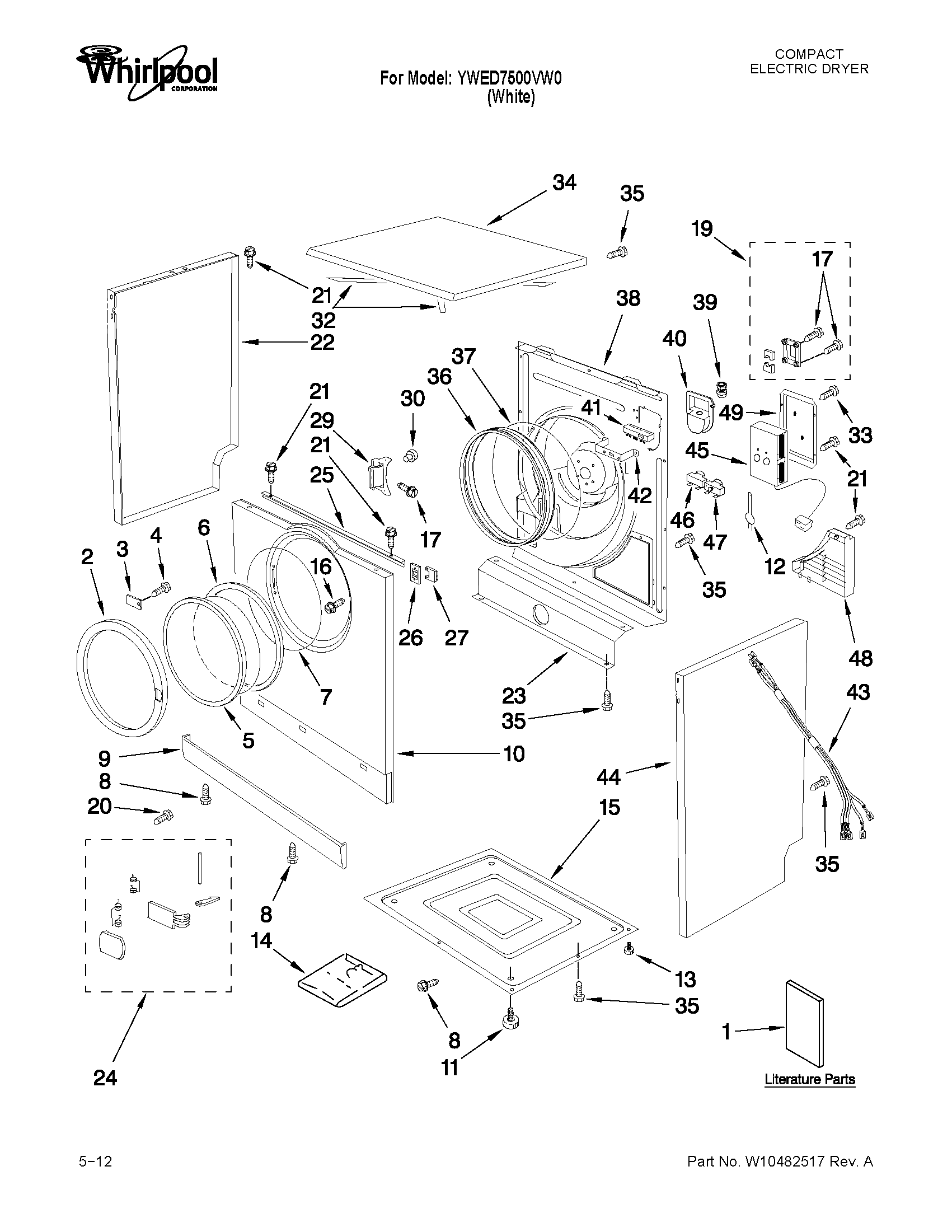

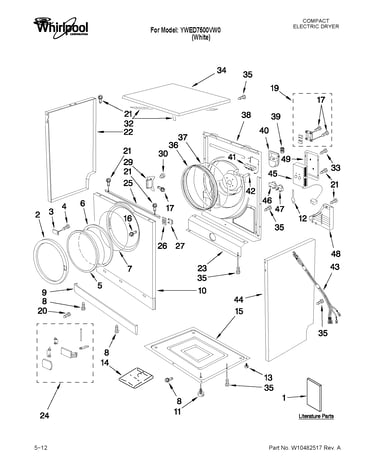

Cabinet and door parts diagram

Dryer heating element

Part #8182528

Replaced by #WP8182528

?
Manufacturer substitution
This part replaces 8182528. Substitute parts can look different from the original.
$202.65 |
6% OFF Phone Price : $214.65
In Stock
Dryer Safety Thermostat 8182508
#46

Cabinet and door parts diagram

Dryer safety thermostat

Part #8182508

Replaced by #W10843940

?
Manufacturer substitution
This part replaces 8182508. Substitute parts can look different from the original.
$114.22 |
10% OFF Phone Price : $126.22
In Stock
Timer W10497407
#6

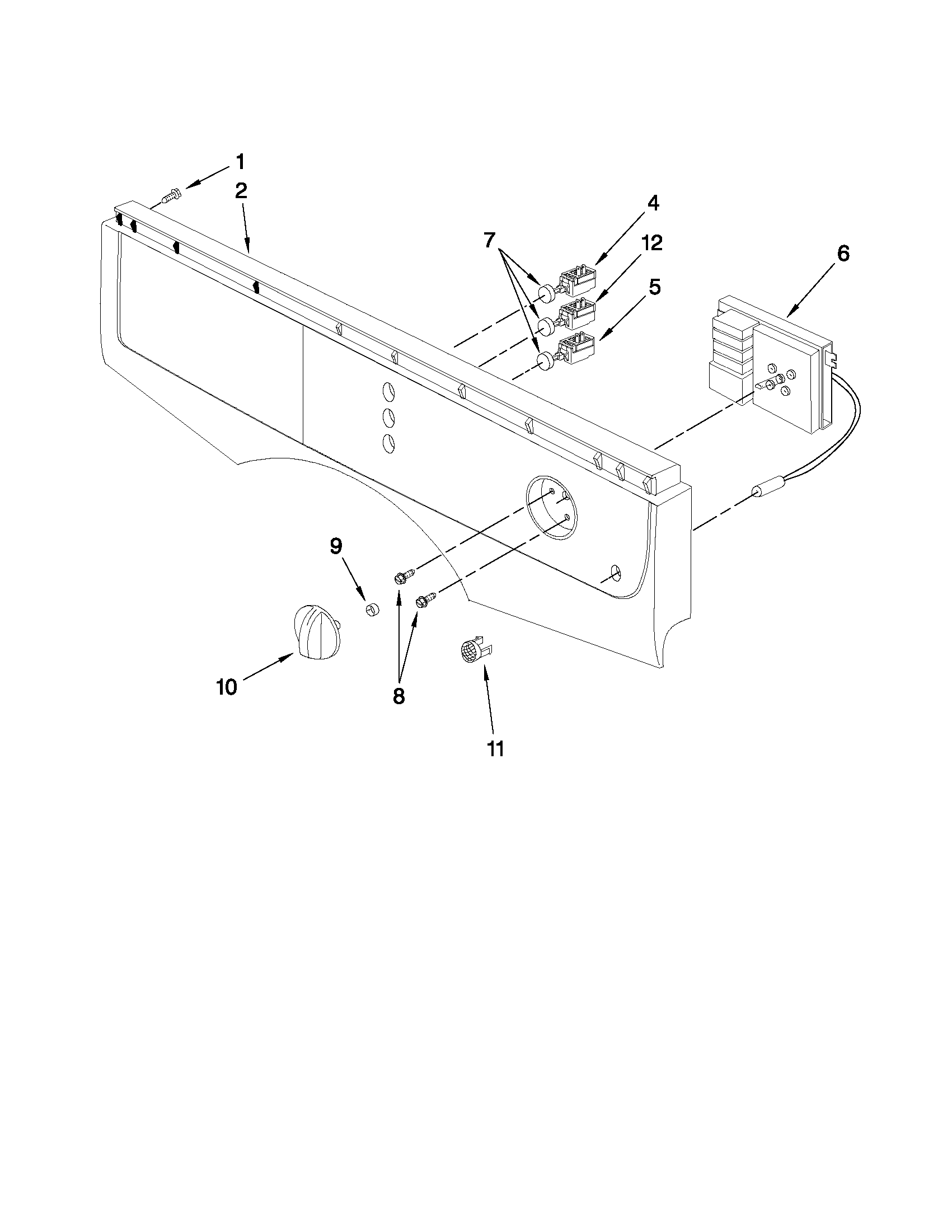

Control panel parts diagram

Timer

Part #W10497407

Replaced by #WPW10404695

?
Manufacturer substitution
This part replaces W10497407. Substitute parts can look different from the original.
$267.52 |
$12.00 OFF Phone Price : $279.52
In Stock
Dryer Door Switch 8182530
#27

Cabinet and door parts diagram

Dryer door switch

Part #8182530

Replaced by #WP8182530

?
Manufacturer substitution
This part replaces 8182530. Substitute parts can look different from the original.
$81.12 |
7% OFF Phone Price : $87.12
In Stock
Dryer Exhaust Vent Coupler (replaces Wpw10296394) W10296394
#39

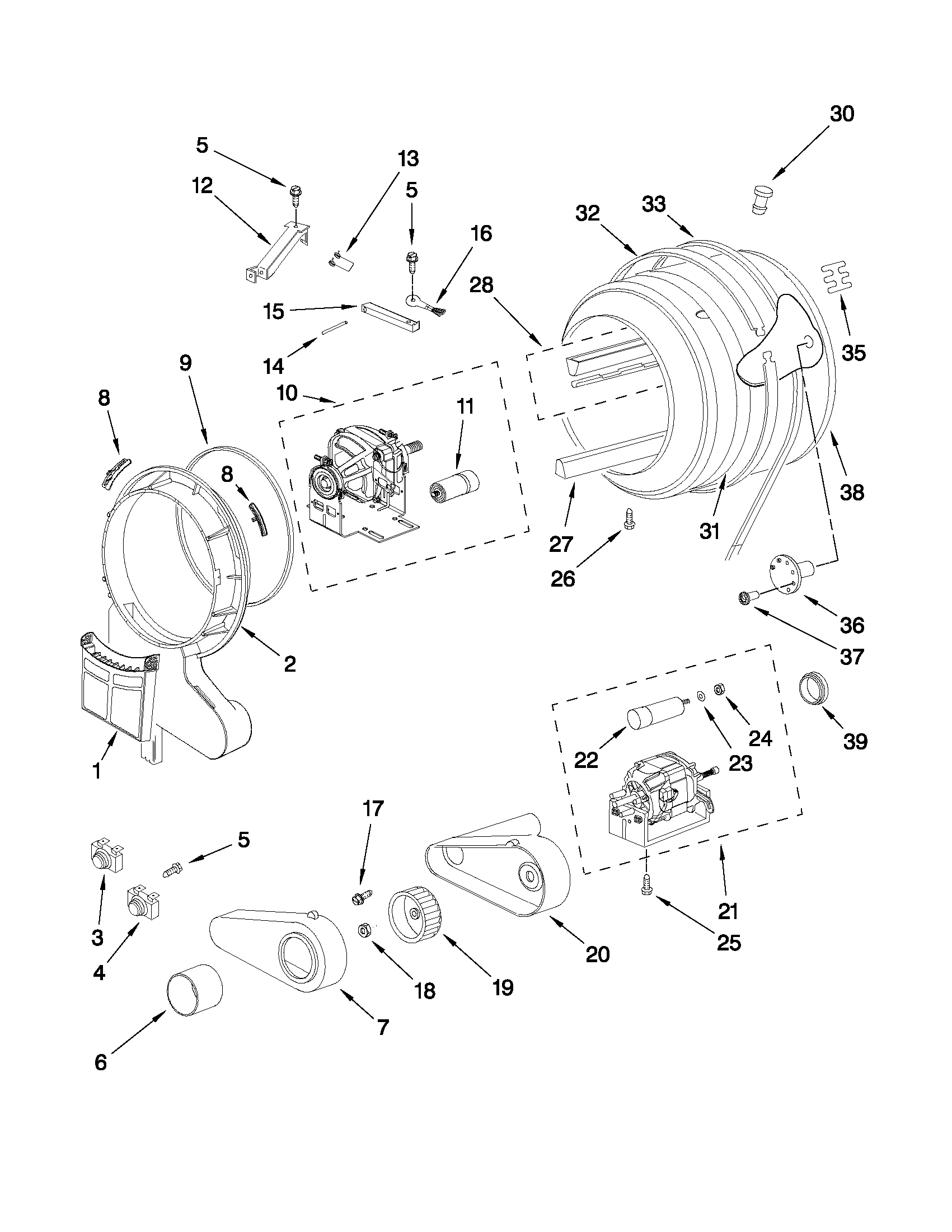

Drum and motor parts diagram

Dryer exhaust vent coupler (replaces wpw10296394)

Part #W10296394

$159.04 |
7% OFF Phone Price : $171.04
In Stock
Appliance Spray Paint (gray Primer) (replaces 10955, 350338) 350938
#NI

Optional parts (not included) diagram

Appliance spray paint (gray primer) (replaces 10955, 350338)

Part #350938

$31.19 |
16% OFF Phone Price : $37.19
In Stock
Dryer Start Capacitor 8182473
#22

Drum and motor parts diagram

Dryer start capacitor

Part #8182473

Replaced by #W11105120

?
Manufacturer substitution
This part replaces 8182473. Substitute parts can look different from the original.
$203.00 |
6% OFF Phone Price : $215.00
In Stock
Inglis Retainer 8182540
#37

Cabinet and door parts diagram

Inglis retainer

Part #8182540

$113.40
In Stock
