Model # JDB1250AWS Official Jenn-Air dishwasher
Here are the diagrams and repair parts for Official Jenn-Air JDB1250AWS dishwasher, as well as links to manuals and error code tables, if available.

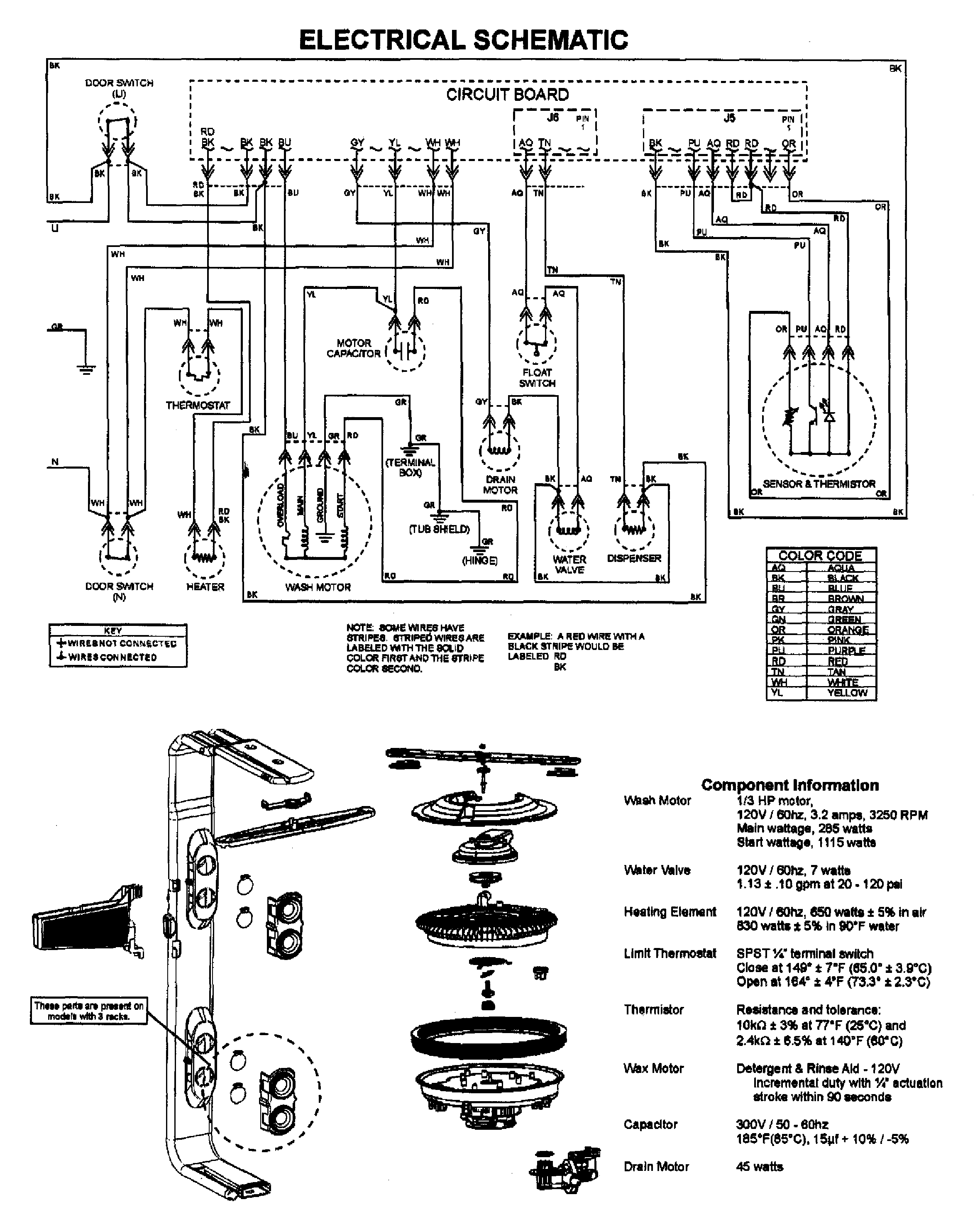

Owner’s manualBy Schematic
By Part

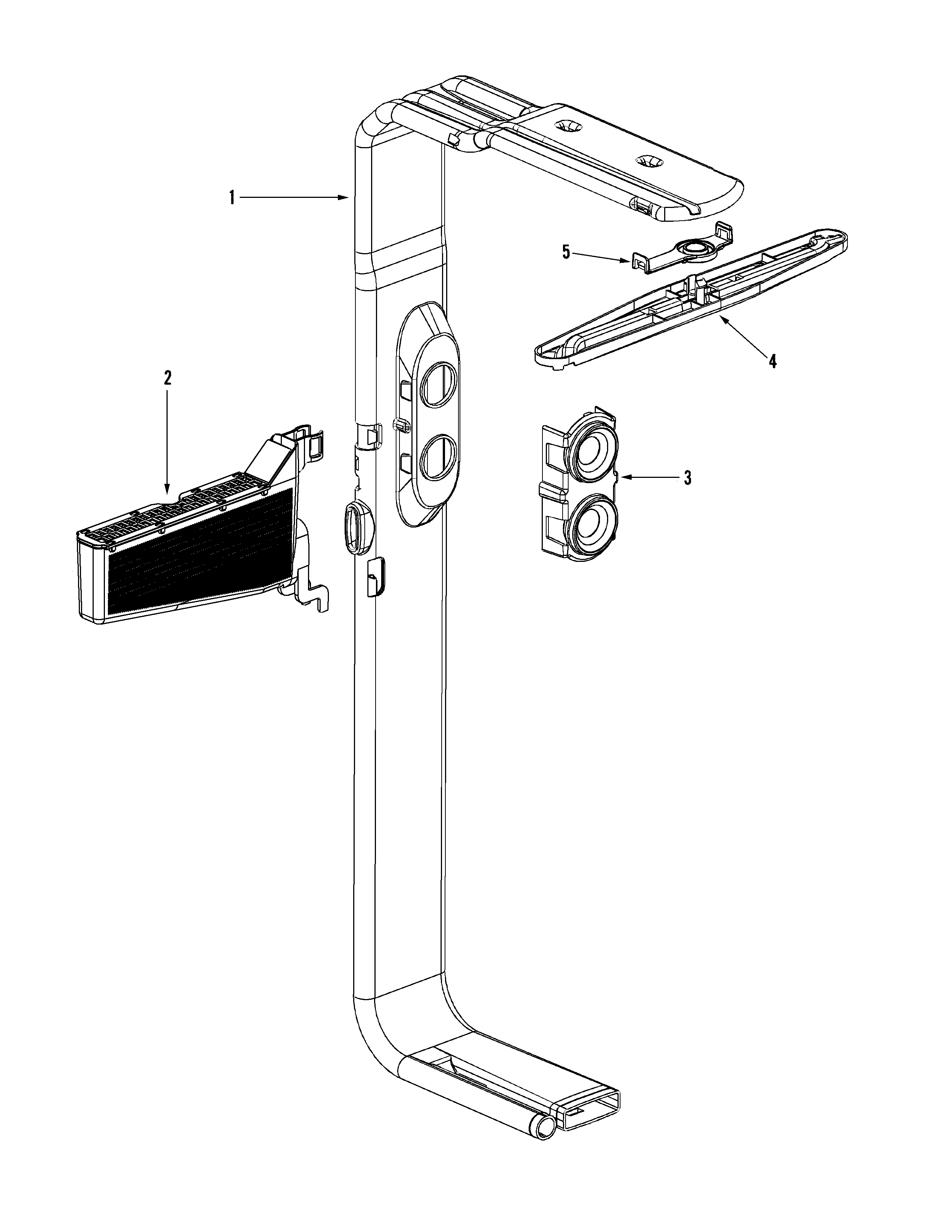

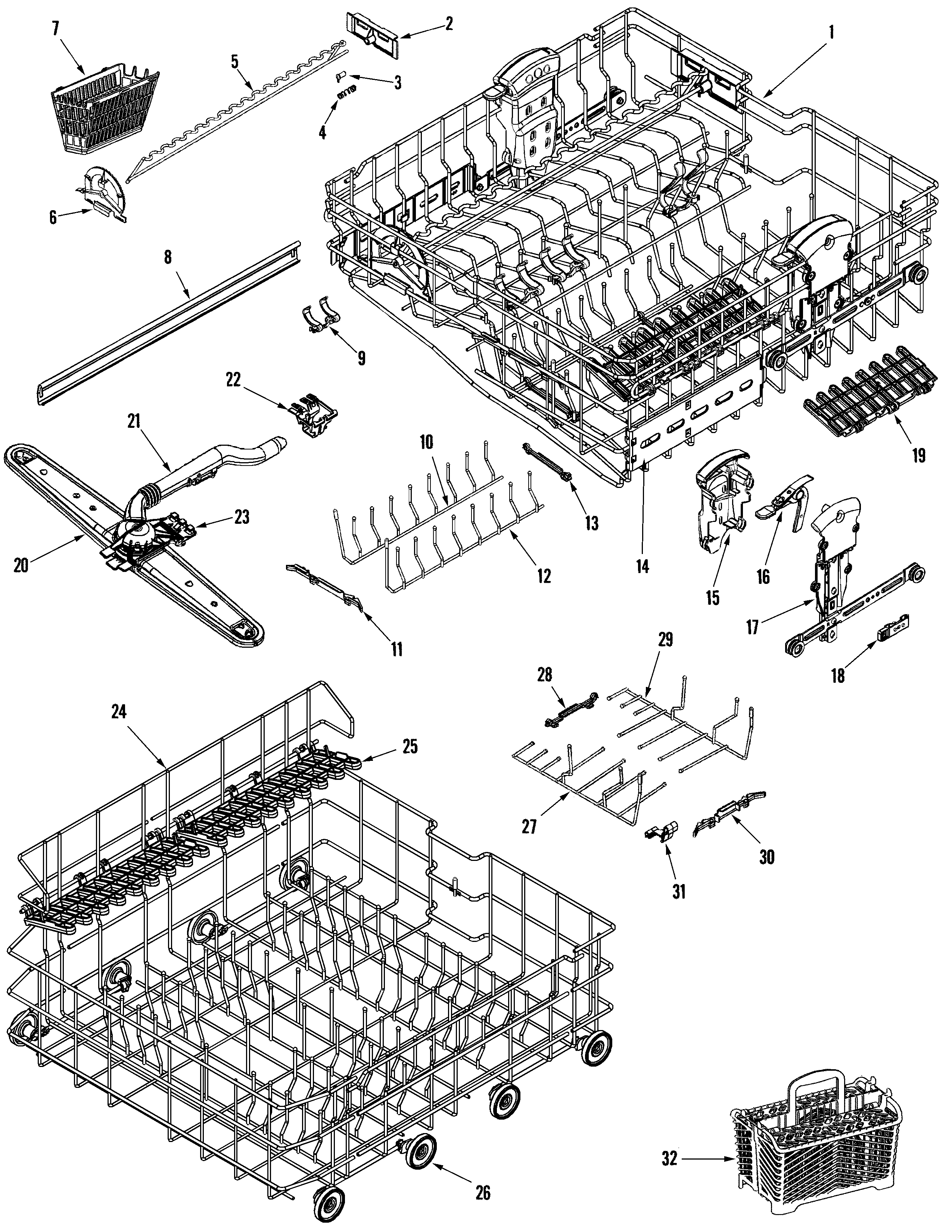

SELECT DIAGRAM
Browse Parts forJDB1250AWS Dishwasher
- #3

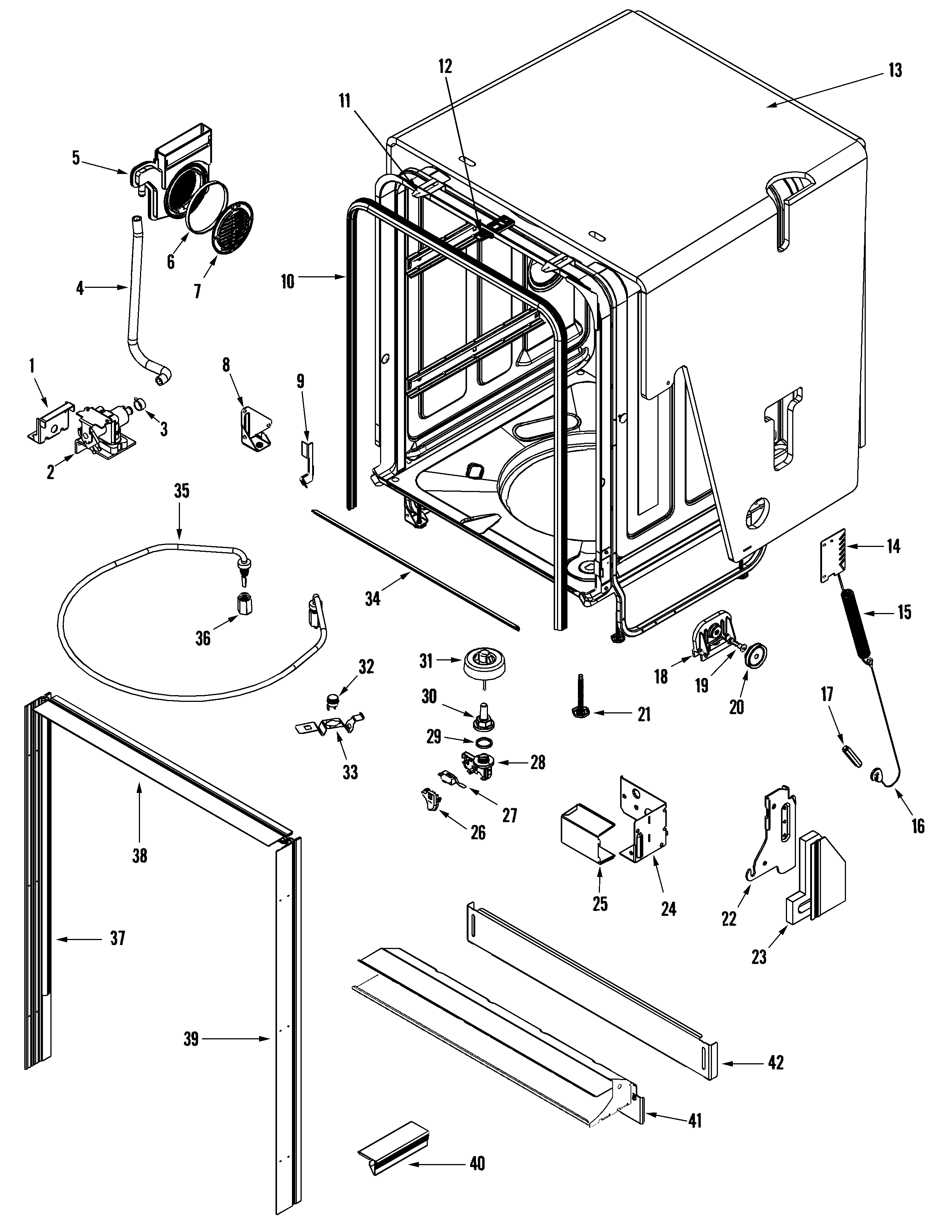

Tub diagram
Clamp springPart #911856
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 911856. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #2
Tub diagram
Dishwasher water inlet valvePart #99002975
Replaced by #W11082871
?Manufacturer substitutionThis part replaces 99002975. Substitute parts can look different from the original.$87.08 |6% OFF Phone Price : $93.08In Stock - #7

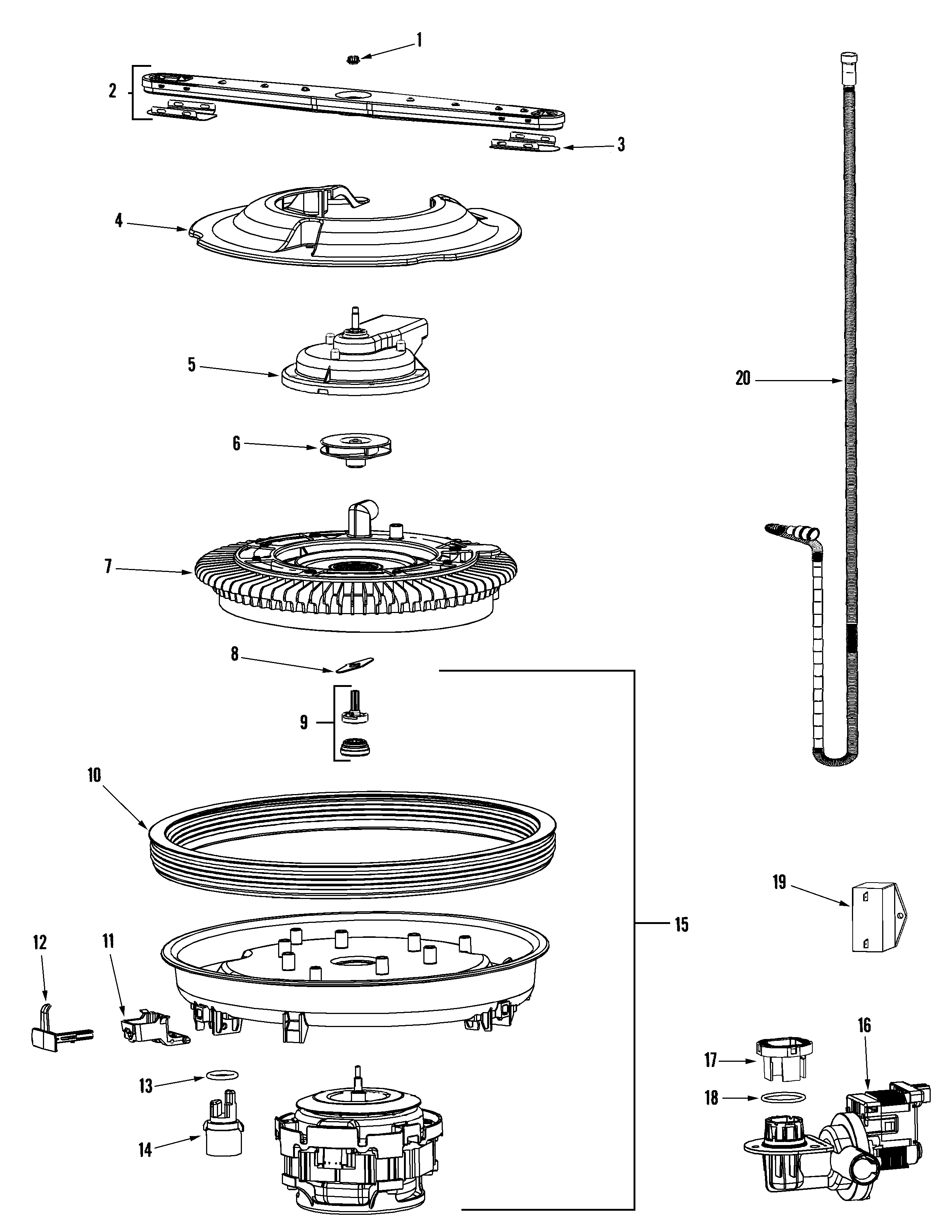

Pump & motor diagram
Filter flow platePart #99003235
Replaced by #WPW10192799
?Manufacturer substitutionThis part replaces 99003235. Substitute parts can look different from the original.$131.40 |8% OFF Phone Price : $143.40In Stock - #25A
Tub diagram
Plate screwPart #912365
Replaced by #WP489128
?Manufacturer substitutionThis part replaces 912365. Substitute parts can look different from the original.This item is not returnable$8.12 |11% OFF Phone Price : $9.12In Stock - #10
Tub diagram
Door sealPart #99003030
Replaced by #WP99003337
?Manufacturer substitutionThis part replaces 99003030. Substitute parts can look different from the original.$98.61 |11% OFF Phone Price : $110.61In Stock - #35
Tub diagram
Heater elementPart #99002971
Replaced by #W10283681
?Manufacturer substitutionThis part replaces 99002971. Substitute parts can look different from the original.$74.75 |7% OFF Phone Price : $80.75In Stock - #2A
Tub diagram
ScrewPart #99002553
Replaced by #WP489128
?Manufacturer substitutionThis part replaces 99002553. Substitute parts can look different from the original.This item is not returnable$8.12 |11% OFF Phone Price : $9.12In Stock - #12
Tub diagram
Door strikePart #99002644
Replaced by #WP99002644
?Manufacturer substitutionThis part replaces 99002644. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #15A

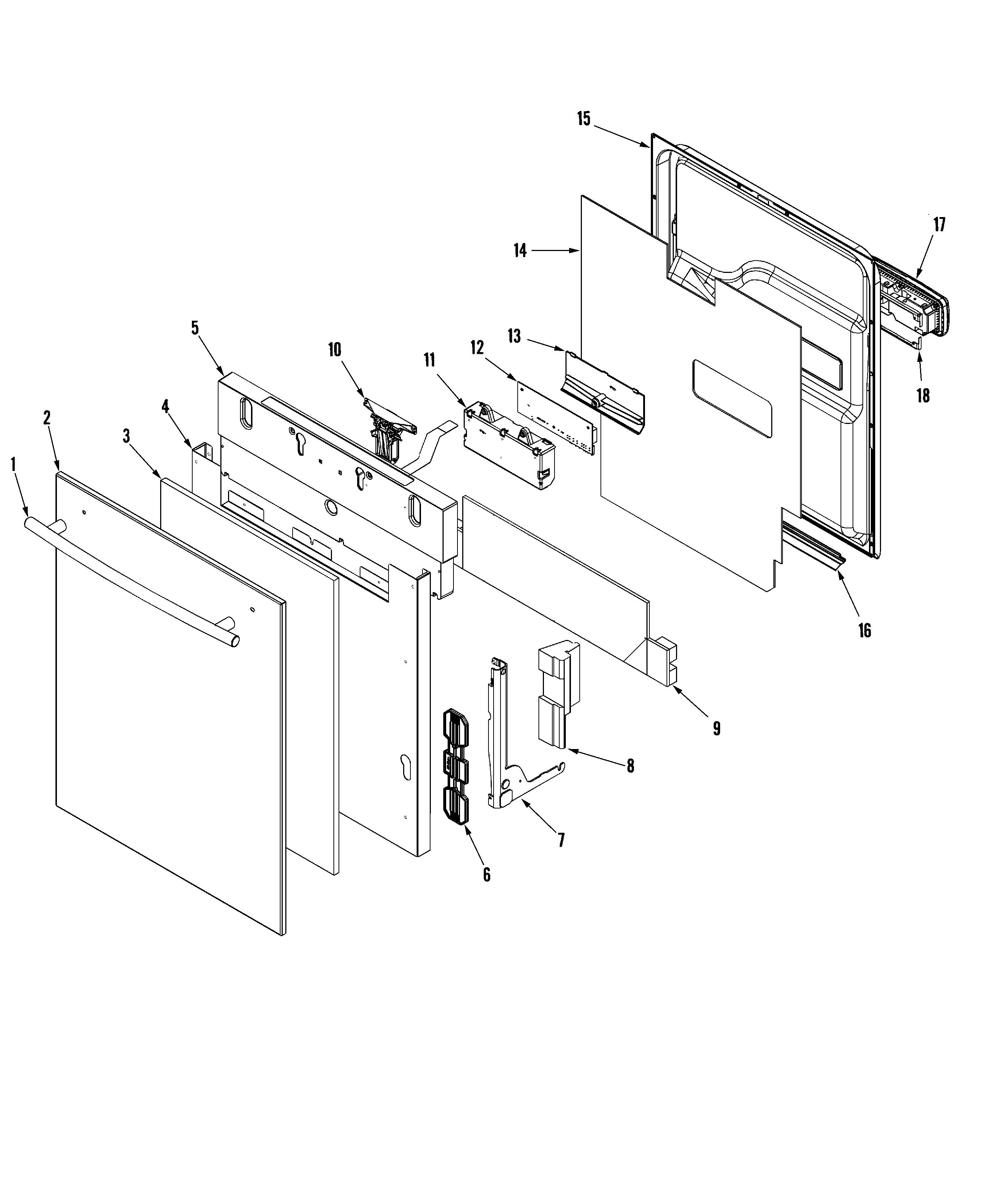

Control panel & door diagram
Dishwasher screwPart #Y912620
The manufacturer no longer makes this part, and there's no substitute part
- #14
Pump & motor diagram
Dishwasher turbidity sensorPart #99002650
Replaced by #WPW10120019
?Manufacturer substitutionThis part replaces 99002650. Substitute parts can look different from the original.$236.94In Stock
