Hotpoint
Chest Freezer

Model # FH10CLC Official Hotpoint chest freezer

Here are the diagrams and repair parts for Official Hotpoint FH10CLC chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Dryer Assembly WR86X86

#740

All parts diagram

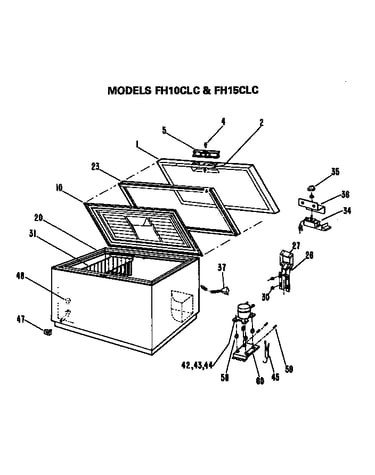

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X108

#626

All parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
I D Panel Fz WR77X5648

#10

All parts diagram

I d panel fz

Part #WR77X5648

$135.99
In Stock
I D Panel Fz WR77X5647

#10

All parts diagram

I d panel fz

Part #WR77X5647

$134.99
In Stock
Hi Side Kit WR87X214

#42

All parts diagram

Hi side kit

Part #WR87X214

The manufacturer no longer makes this part, and there's no substitute part

Hinge WR13X5191

#26

All parts diagram

Hinge

Part #WR13X5191

The manufacturer no longer makes this part, and there's no substitute part

Hinge Screw WR1X5616

#30

All parts diagram

Hinge screw

Part #WR1X5616

The manufacturer no longer makes this part, and there's no substitute part

Lid Gasket WR24X5276

#23

All parts diagram

Lid gasket

Part #WR24X5276

The manufacturer no longer makes this part, and there's no substitute part

Plug-drai WR2X7456

#48

All parts diagram

Plug-drai

Part #WR2X7456

The manufacturer no longer makes this part, and there's no substitute part

Hinge WR13X5192

#26

All parts diagram

Hinge

Part #WR13X5192

The manufacturer no longer makes this part, and there's no substitute part
